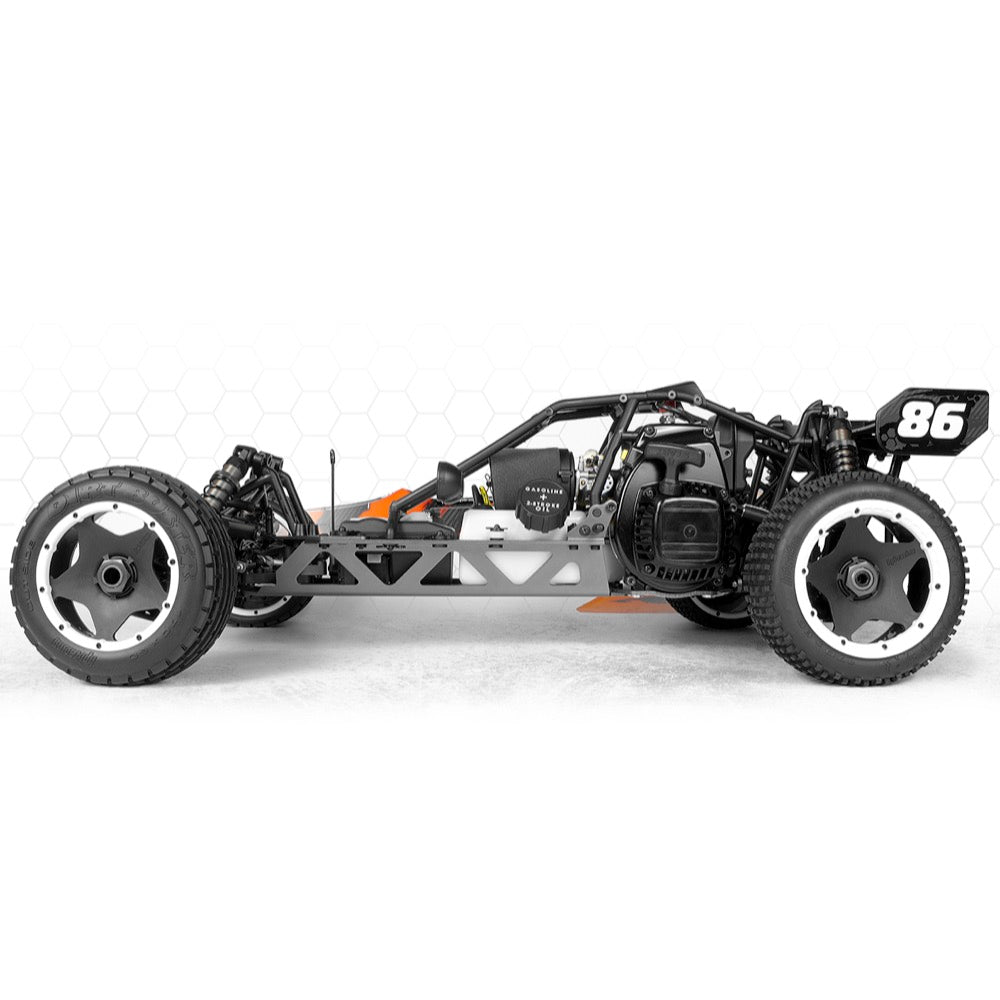

HPI Baja 5B SBK 1/5 2WD RC Buggy Kit

• Length: 817mm
• Width: 480mm
• Height: 255mm
• Wheelbase: 562mm
• Drivetrain: RWD

Chassis Specifications

• Overall Length 817mm
• Height: 255mm
• Width: Front - 460mm; Rear - 480mm
• Tire Track (to center of tires): Front - 395mm; Rear - 400mm
• Wheelbase: 570mm
• Ride Height: 76mm
• Suspension Travel: Front - 95mm; Rear - 100mm
• Weight: 9.6kg (21.3lb)
• Adjustable Camber: front - shims; rear - screw
• Front caster: adjustable with shim 22 / 25.5* / 29 degrees (* stock)
• Toe-in: Front adjustable with tie rod; Rear adjustable with inserts 0-4 degrees (3 degrees stock set-up)

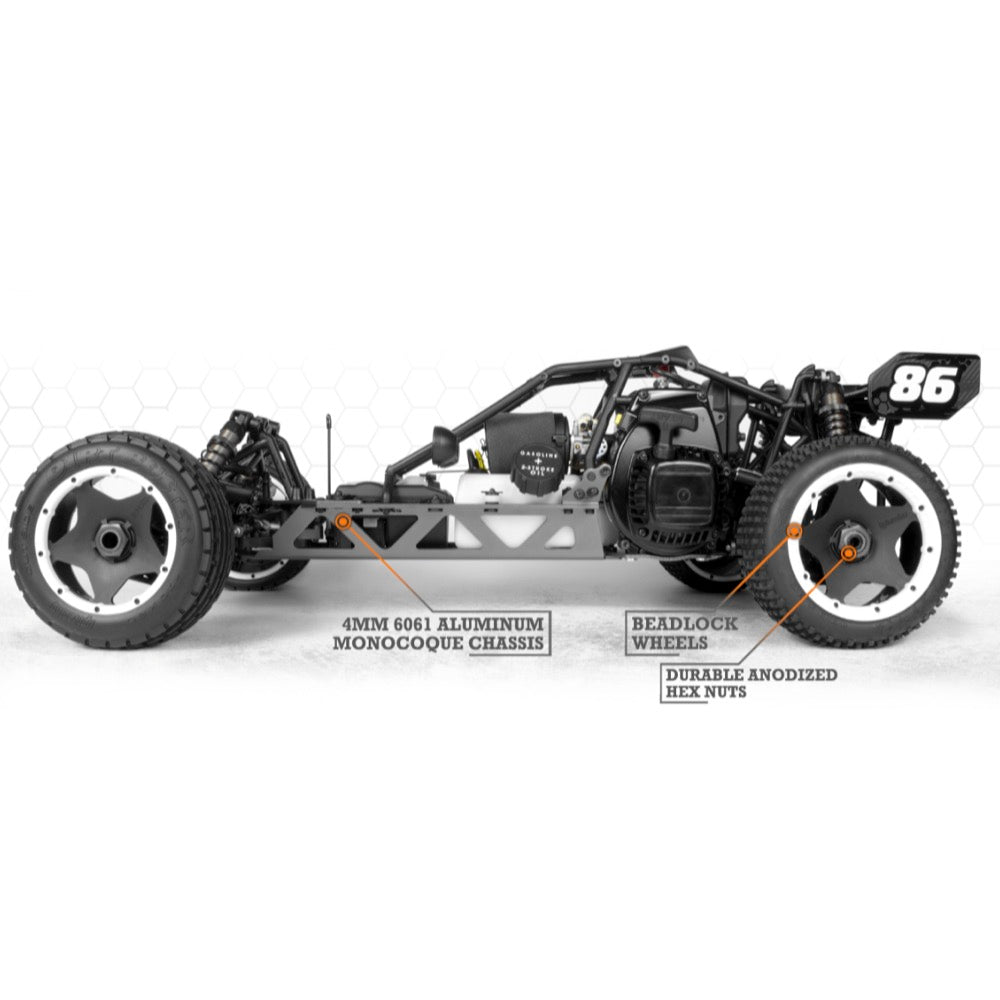

• Aircraft aluminum 6061 T6 monocoque chassis
• Double wishbone suspension with adjustable roll center F/R
• Drive system: HD metal gears with sealed gear box (8.382:1 gear ratio)
• Differential: viscous torque control with 4 pinion gears; sealed diff case with silicone oil
• Shock absorber: HD Aluminum coilover shock absorber with fully adjustable preload collar
• Wheel type: 3-piece beadlock design, high impact nylon material with inset heavy-duty metal hex hub
