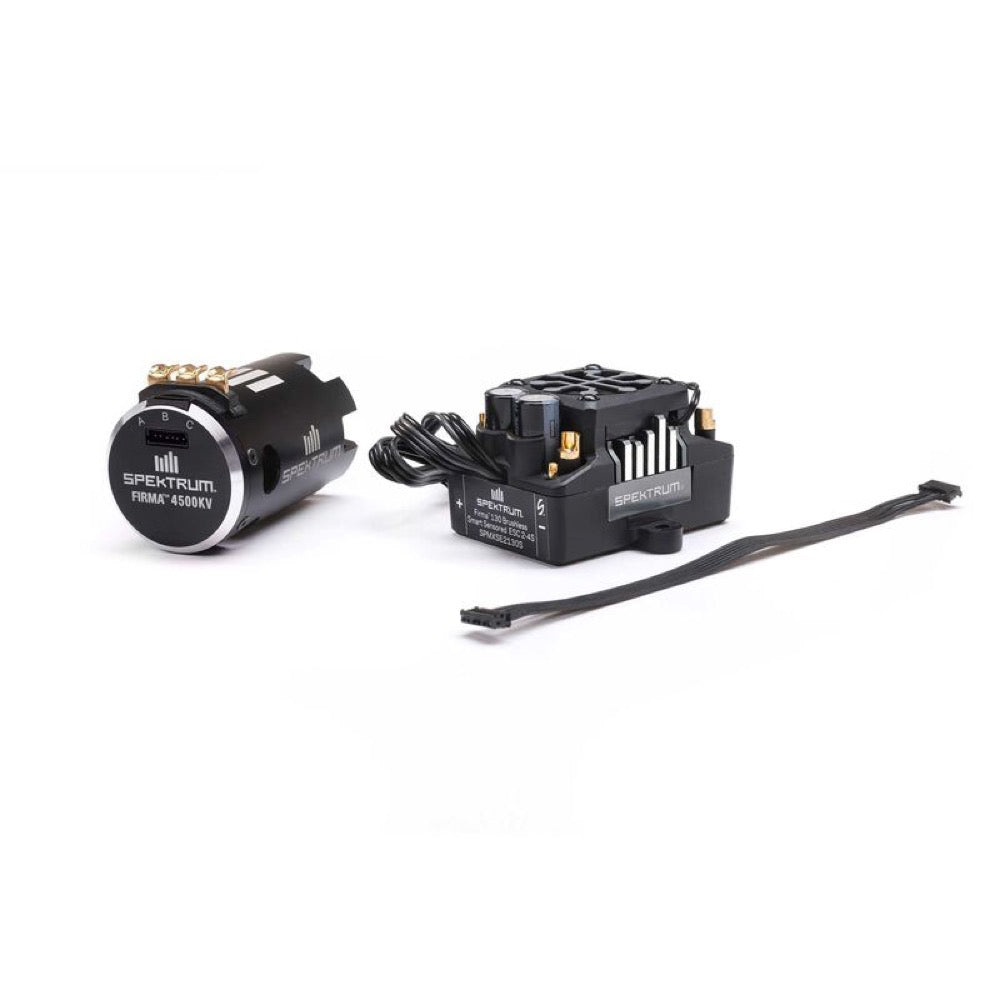

Spektrum SPMXSEMC19 Firma Smart Sensored 4500kv Motor/ESC Combo suit 1/10 Monster Trucks

The Spektrum™ Brushless ESC and Sensored Motor Combo is a great choice for 1/10th Scale Monster Trucks on up to 2S LiPo power. It features a high-precision magnetic encoder and rotor position sensor that provides excellent 1 to 1 control feel when driving at any speed and at any angle.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

This ESC comes bundled with a Spektrum Firma 4500Kv Brushless Motor capable of handling everything this ESC can put out that is a perfect to get you driving with Spektrum Smart technology.

Features

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Ready to install — no soldering required
• Multiple options for easy programming:
• Button programming
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Multi-point protection:
• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection
• Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
• Comes bundled with Spektrum Firma 4500Kv Brushless Motor
• Compact for easy installation in most applications
• Rugged plastic case with mounting tabs
• Aluminum heat sink for high efficiency
• Cooling fan
• Adjustable high-power BEC
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
• Limited 1-year warranty

Specification

• Amperage: 120A or larger
• Auto Cutoff: Yes
• Battery Connector: Solder tabs (user installable IC5 lead included)
• Battery Input Lead: None, IC5
• BEC: Yes
• BEC Continous Current: 5A
• BEC Voltage: 6V or 7.4V
• Brakes: Yes
• Connector Type: IC5
• ESC Type: Sensored Brushless
• Forward: Yes
• Input Voltage: 7.4V
• Low-Voltage Cutoff Programmable: Yes
• Maximum Burst Current: 760A
• Maximum Continuous Current: 130A
• Motor Output Lead: Solder Tab
• Motor Type: Brushless Sensored
• Programmable: Yes
• Reverse: Yes
• RPM/Volt (Kv): 4500Kv
• Sensored: Yes
• Shaft Diameter: 0.197" (5 mm)
• Shaft Length: 0.728" (18 mm)
• Speed Control: Included
• Technology: Smart

Contents

• (1) Spektrum™ Firma™ Smart ESC
• (1) Spektrum™ Firma™ 4500Kv Brushless Motor
• (1) Spektrum Smart Sticker Sheet
• (1) Product Manual

Requires

• (1) Spektrum™ Surface Receiver
• (1) Spektrum Smart Technology LiPo Battery
• (1) Spektrum Transmitter
