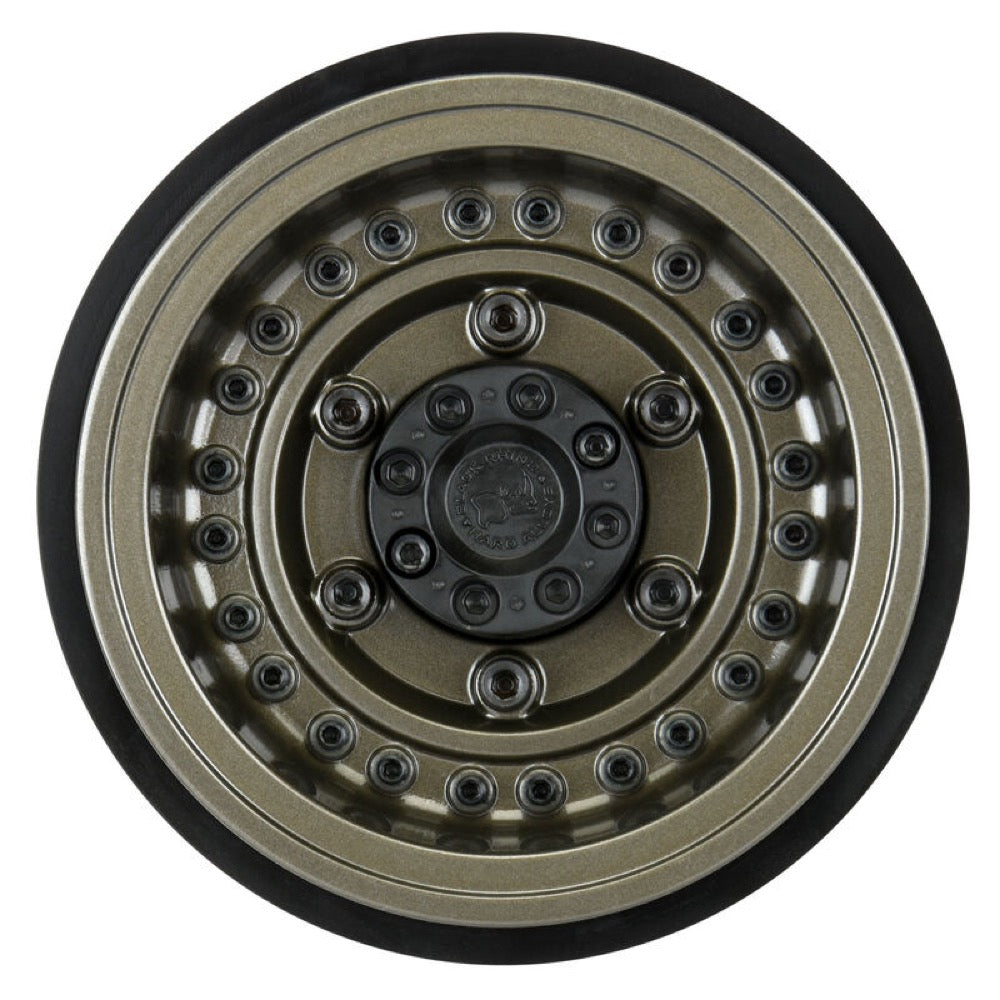

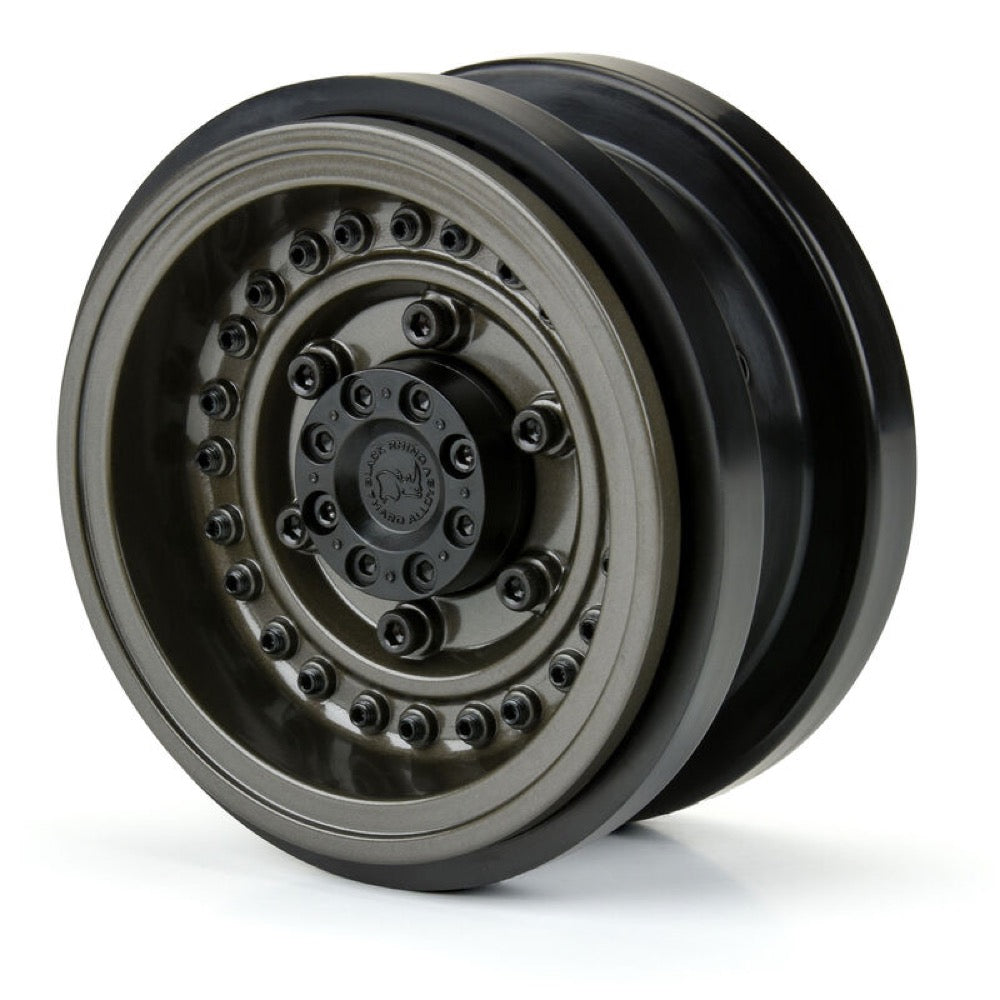

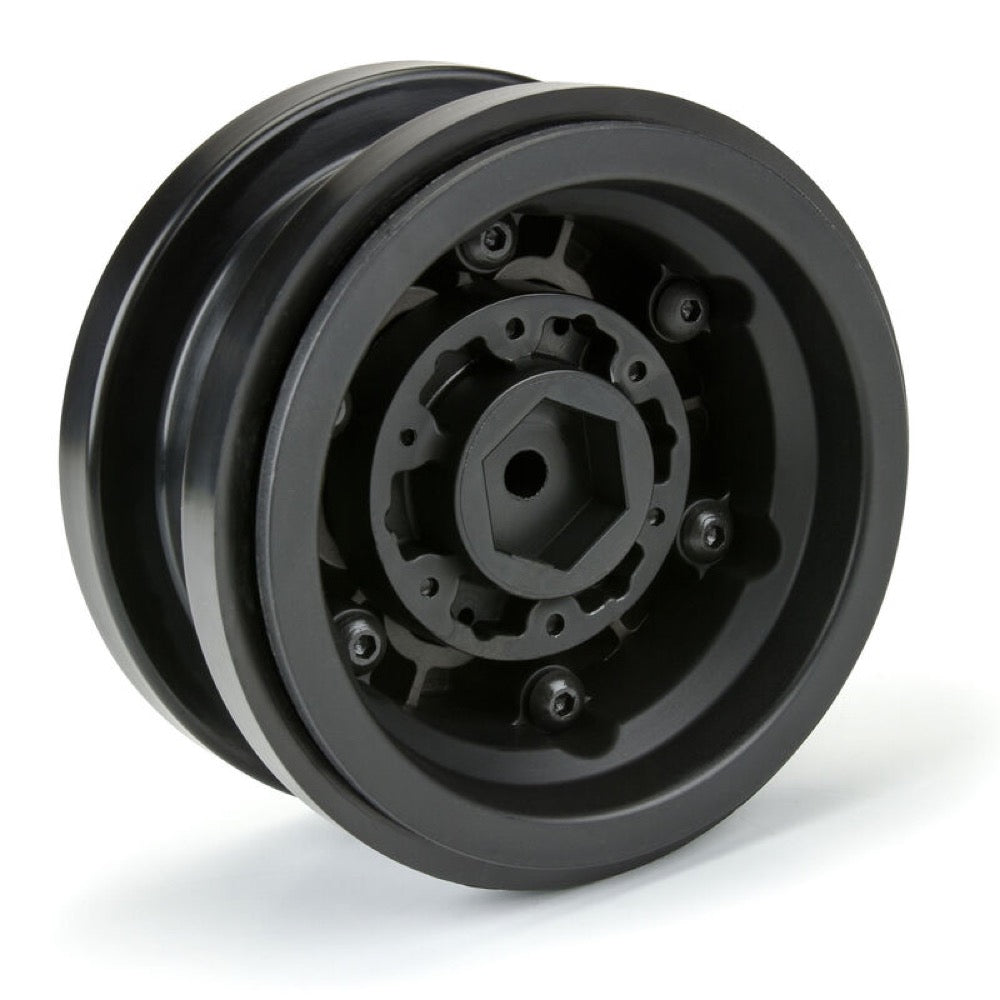

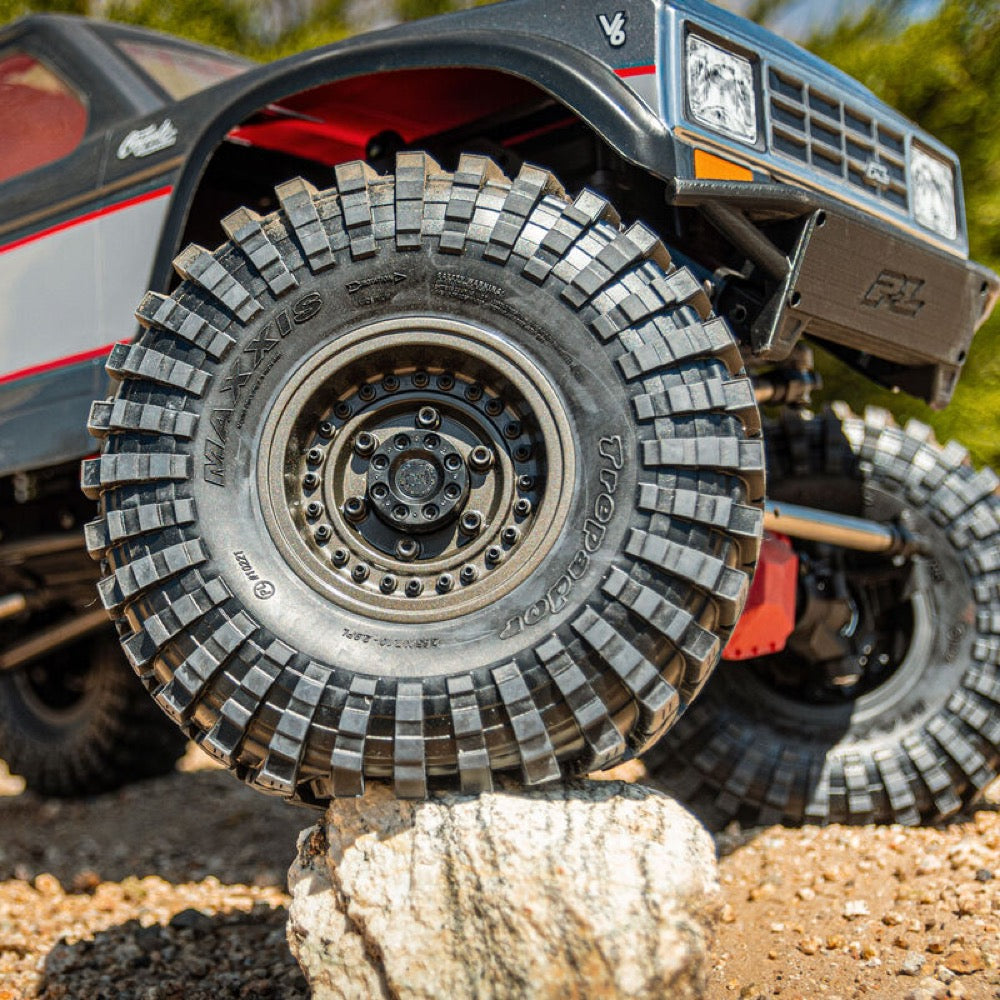

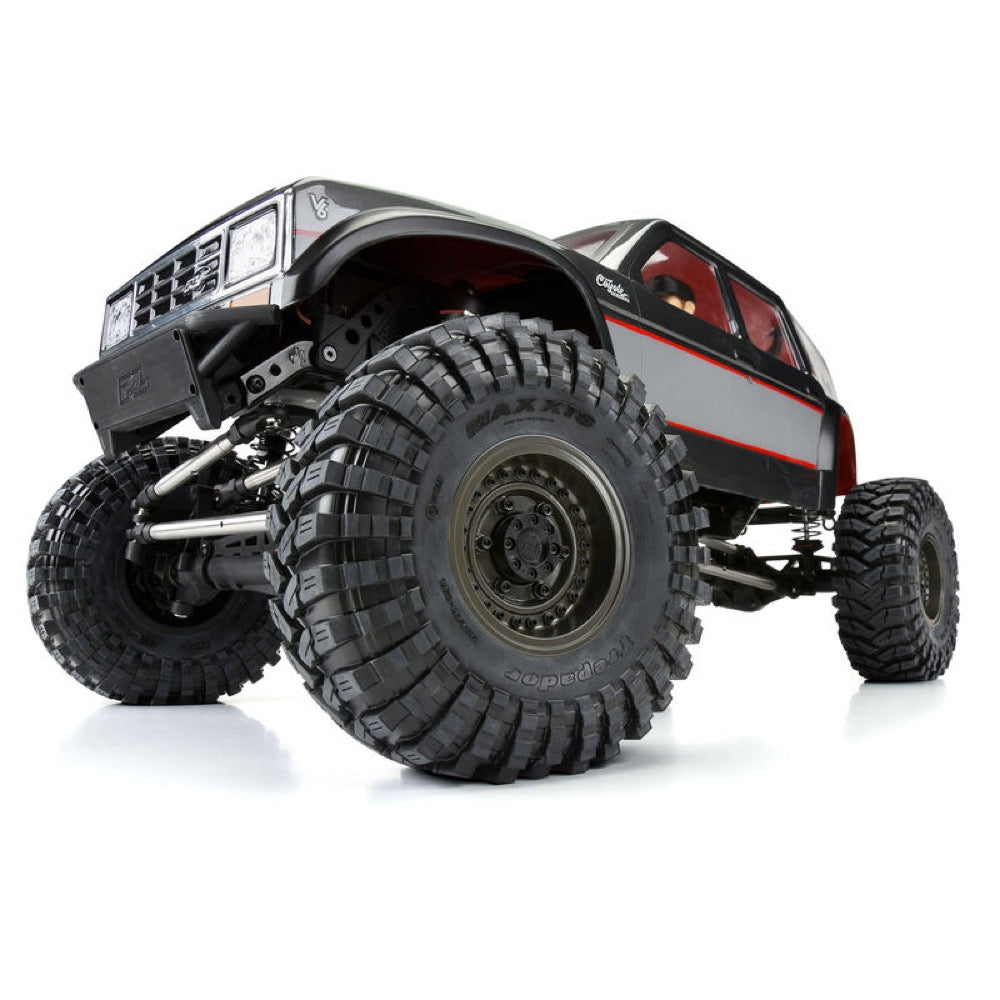

Proline Black Rhino Armory Gunmetal 2.9in Aluminum Dual Offset Wheels suit Axial SCX6

This is a pair of Black Rhino Armory 2.9" Wheels for the SCX6™. Introducing an innovative wheel solution for the Axial® SCX6™! Officially licensed by Black Rhino Wheels, the Armory is a rugged, military-style wheel perfect for the off-road enthusiast. It features a gunmetal cast aluminum face with 24 scale setscrews pre-installed into the wheel face. All the details of the 1:1 wheel have been captured for the ultimate scale look, including the Black Rhino logo molded into the Hub Cab.

This Internal bead-loc style wheel can be configured with 2 different offsets using an innovative dual-offset hex adapter. Clock the hex fully seated into the back of the wheel for a +5mm offset, or use the alternate set of holes to push the wheel further outwards for a +10mm offset, giving you more stability and clearance for wide tires.

Give your SCX6™ a tough look with Pro-Line's Black Rhino Armory wheels!

Please note: All tires & wheels are sold in pairs, unless otherwise noted.

Features

• Officially Licensed by Black Rhino
• Cast Aluminum Front Face
• Tough Scale Looks
• Dual-offset Hex Adapter for +5 or +10mm offsets

Fits

• Axial® SCX6™

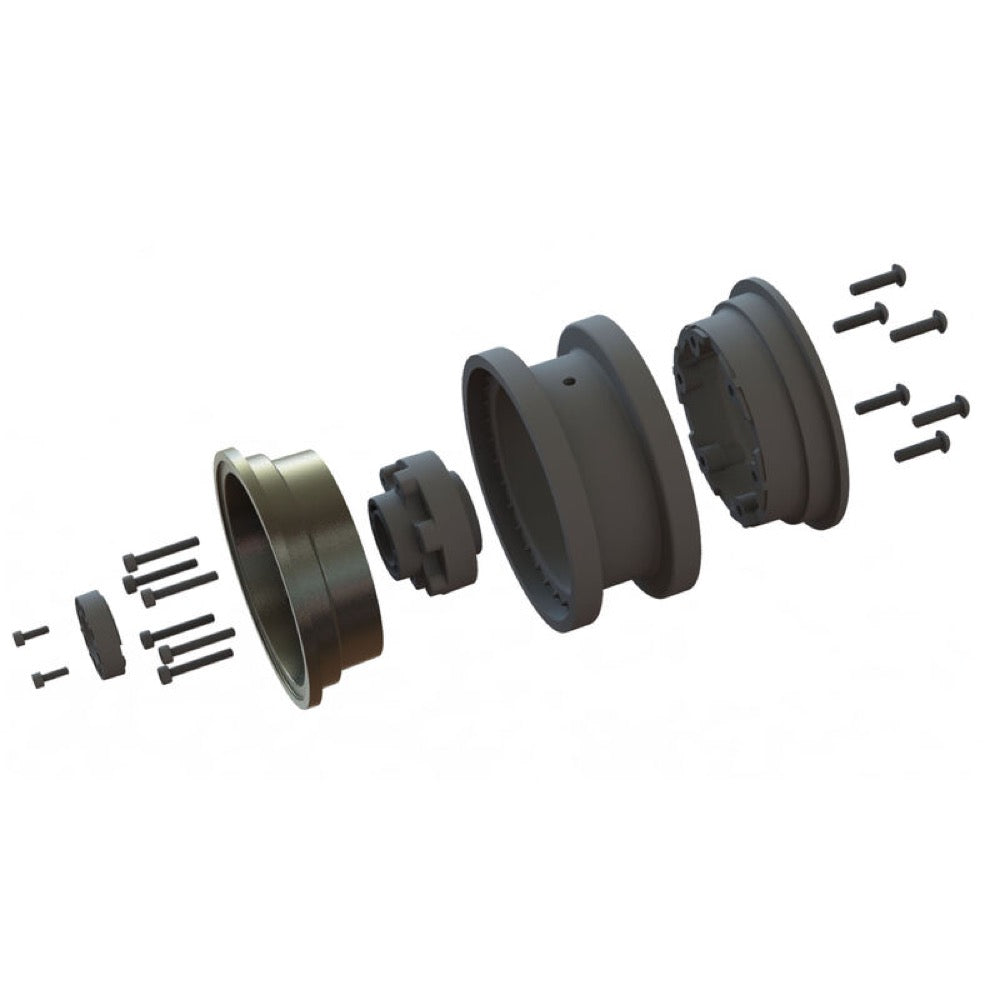

Assembly Instructions

• Stuff the Internal Beadloc Ring into your tire, making sure it is centered and fully seated.
• Assemble the Aluminum Front Face and the Back Face using (6) M4x16 BHCS, capturing the tire bead.

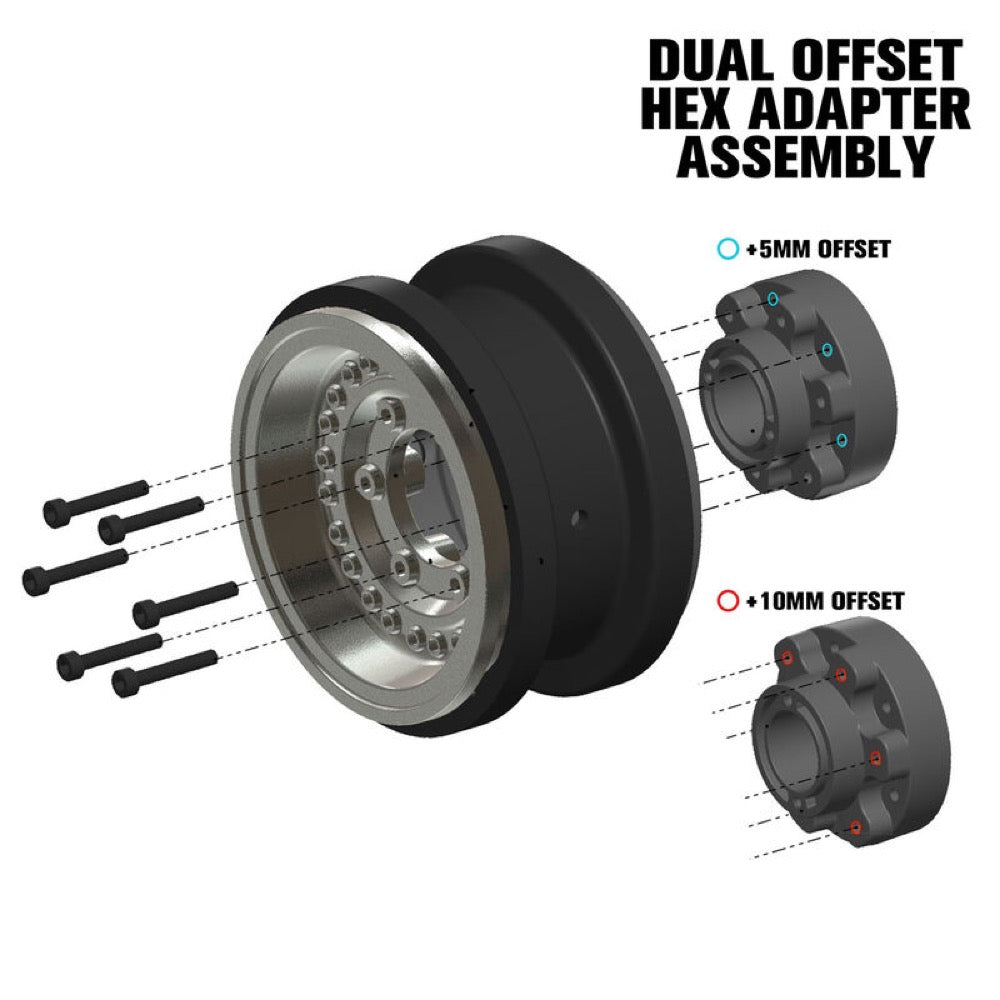

• Choose your offset:
  For a +5mm offset, fully seat the Hex Adapter into the pocket on the back of the wheel face, and secure using (6) M3x30 SHCS
  For a +10mm offset, clock the wheel hex slightly so the alternate set of holes on the hex adapter line up with the back of the wheel face. Secure using (6) M3x30 SHCS
• Install the Wheel & Tire onto your SCX6™ using the stock wheel nut
• Install the Black Rhino Hub Cab by pressing it into the slots on the Hex Adapter, then secure using (2) M2.5x8 SHCS.

Specs

• Color: Gun Metal
• Manufacturer #: 2826-00
• Package Type: Wheels Only
• Quantity Option: 2 in a package
• Scale: 1/6
• Track Surface: Rock Crawling
• Vehicle Type: Rock Crawler
• Wheel Hex Size: 17mm
• Wheel Position: Front/Rear
• Wheel Type: Black Rhino Armory

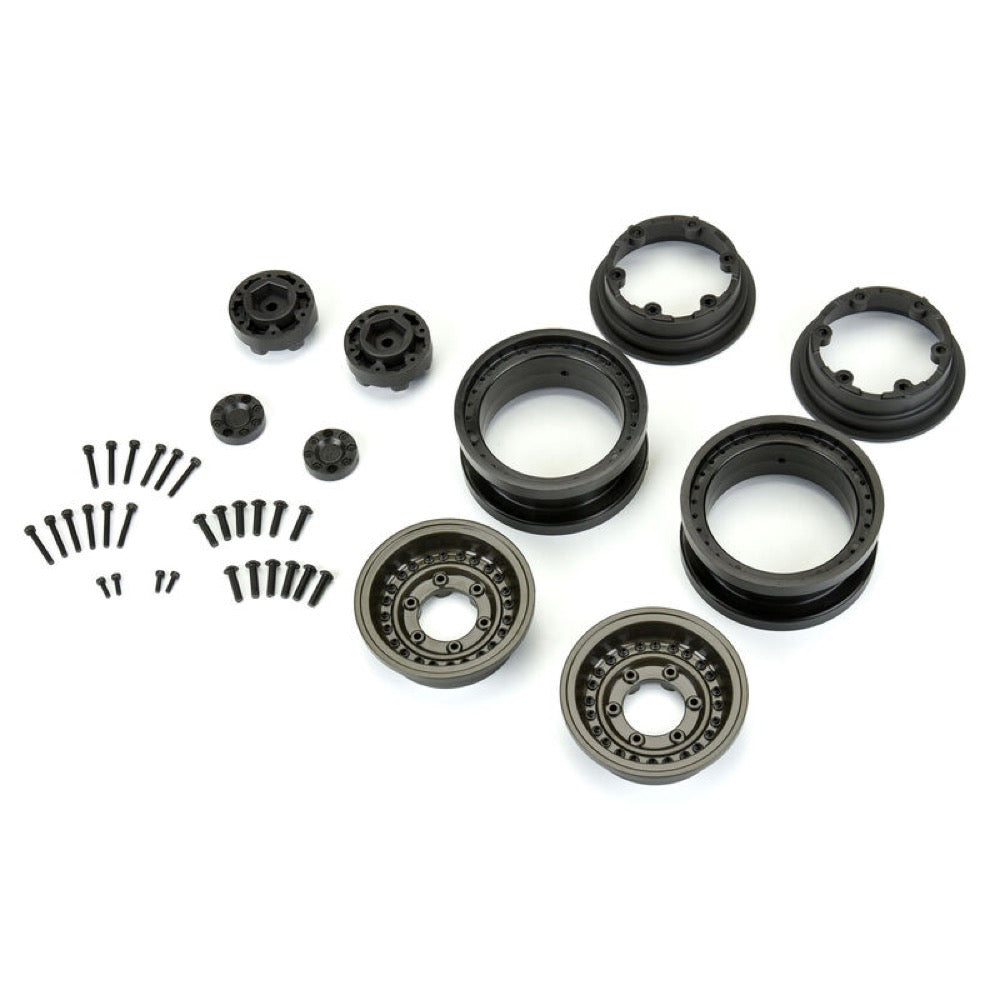

Contents

• (2) Black Rhino Armory Aluminum Wheel face
• (2) Inner Wheel Face
• (2) Internal Bead-Loc Ring
• (2) Dual-offset Hex Adapter
• (2) Black Rhino Hub Cab
• (4) M2.5x8 SHCS
• (12) M3x20 SHCS
• (12) M4x16 BHCS
