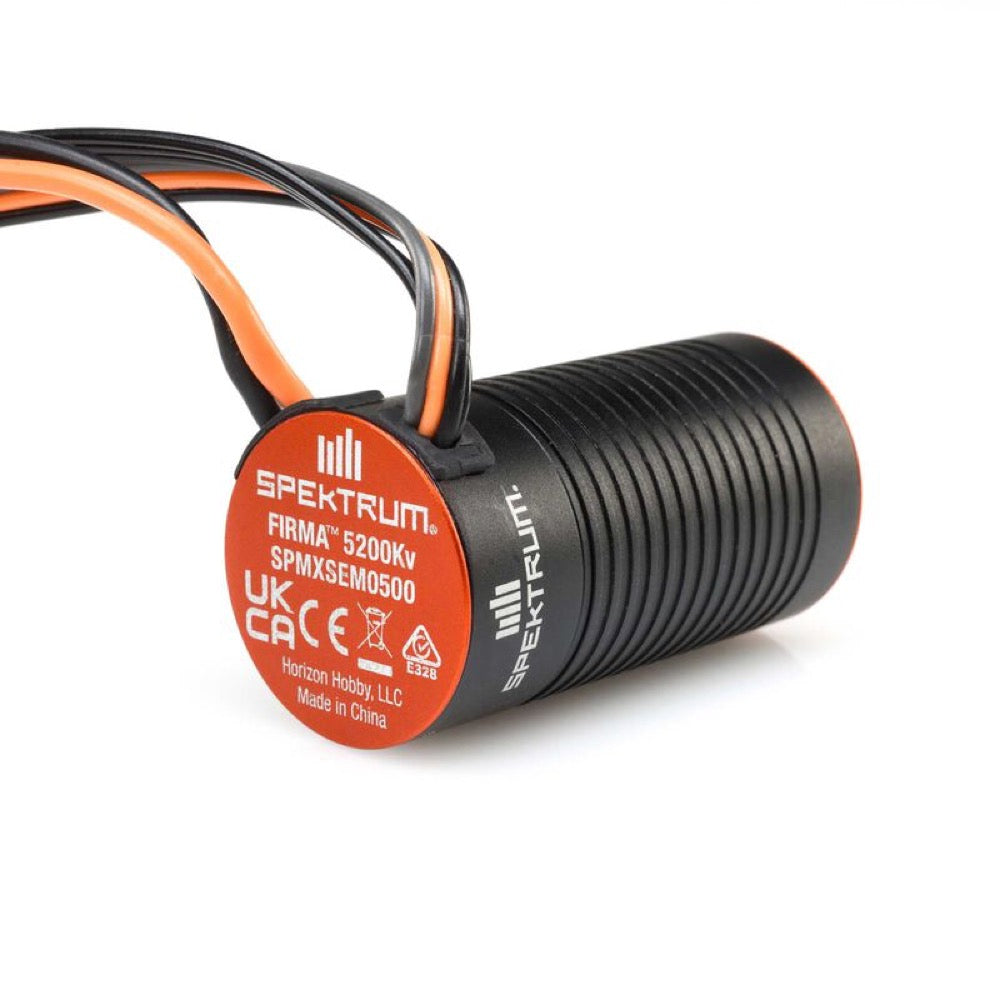

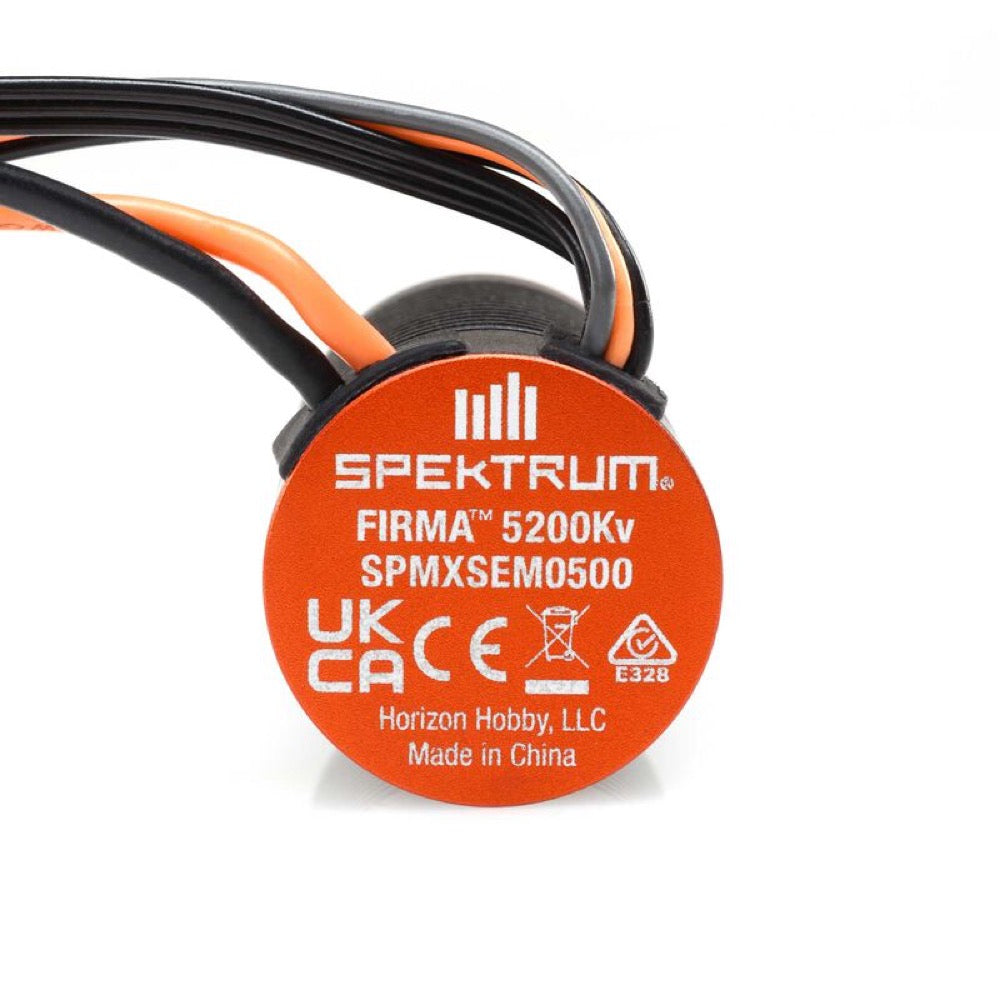

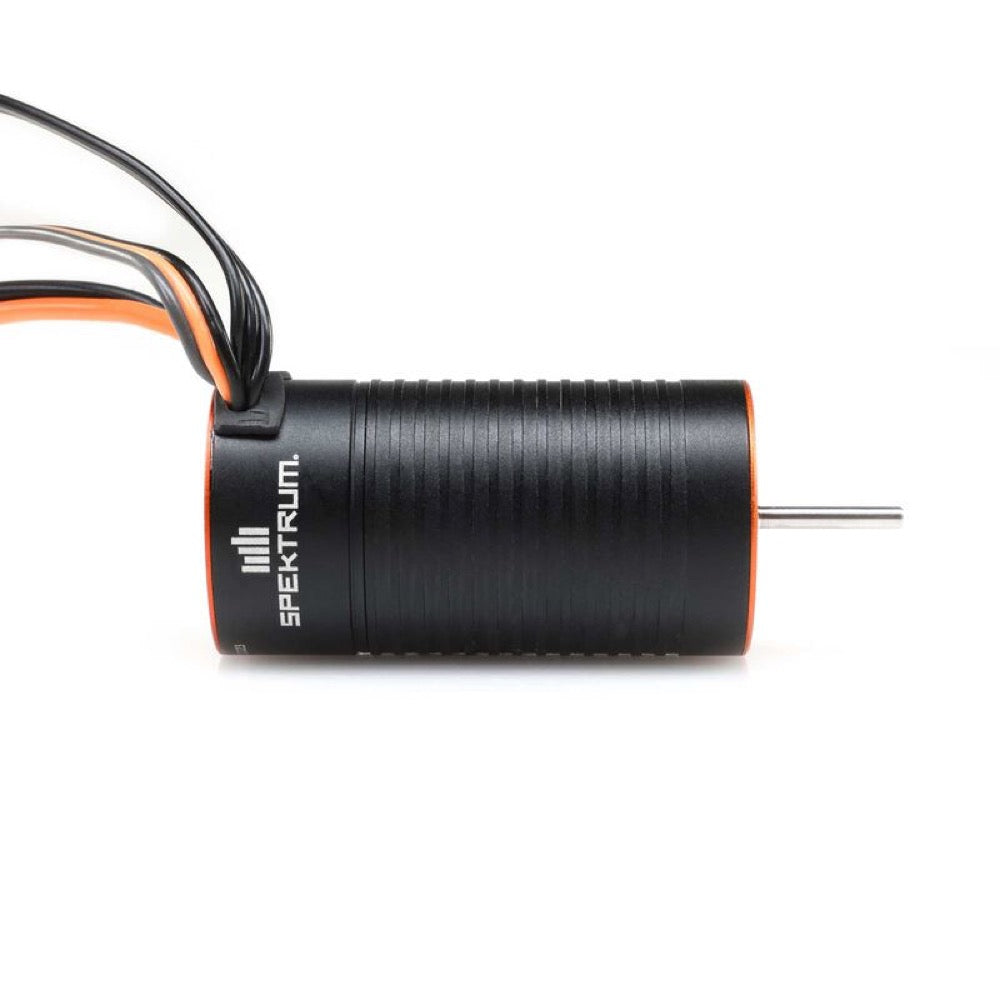

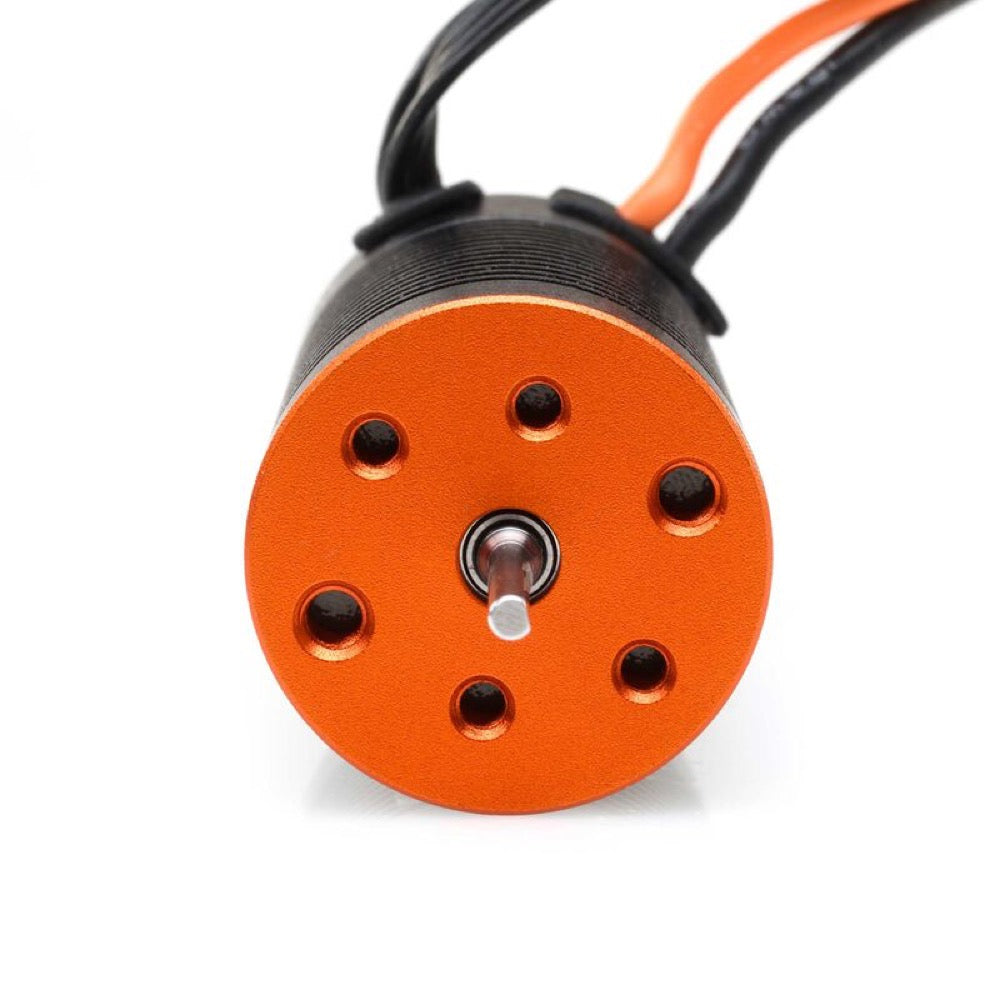

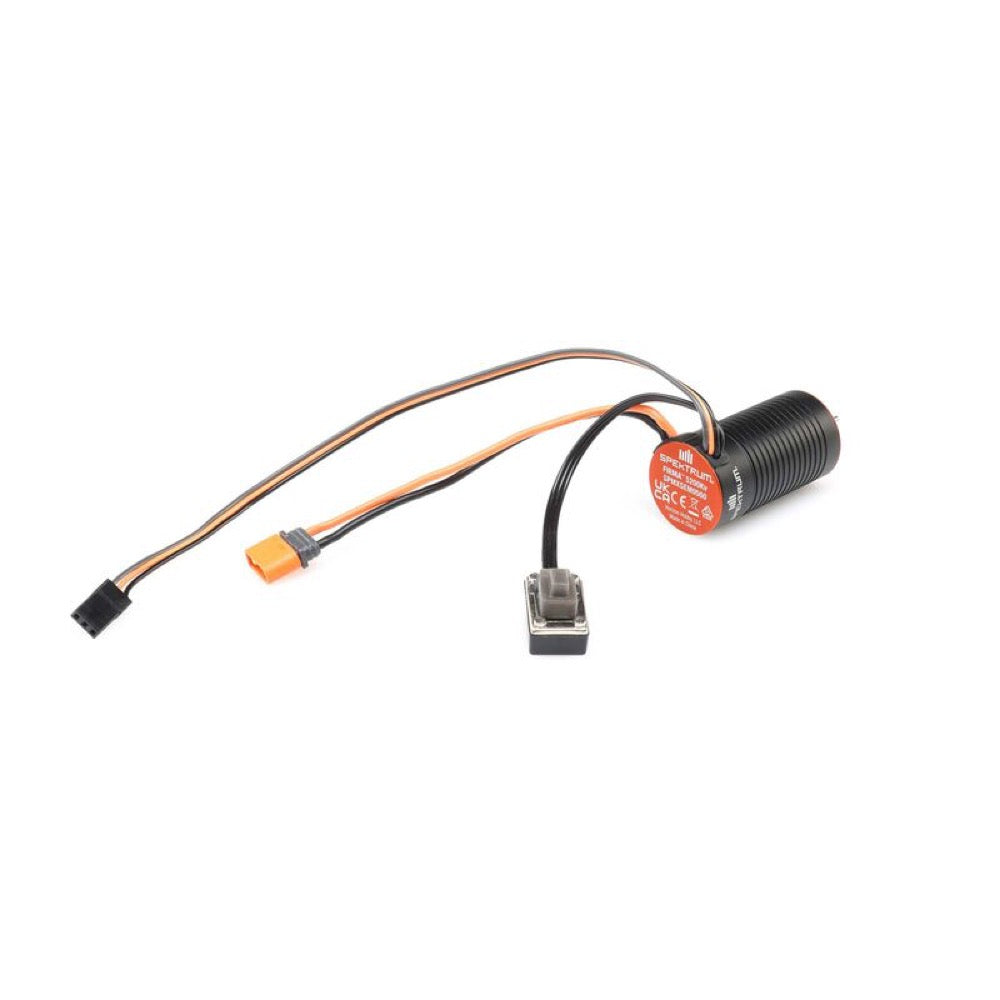

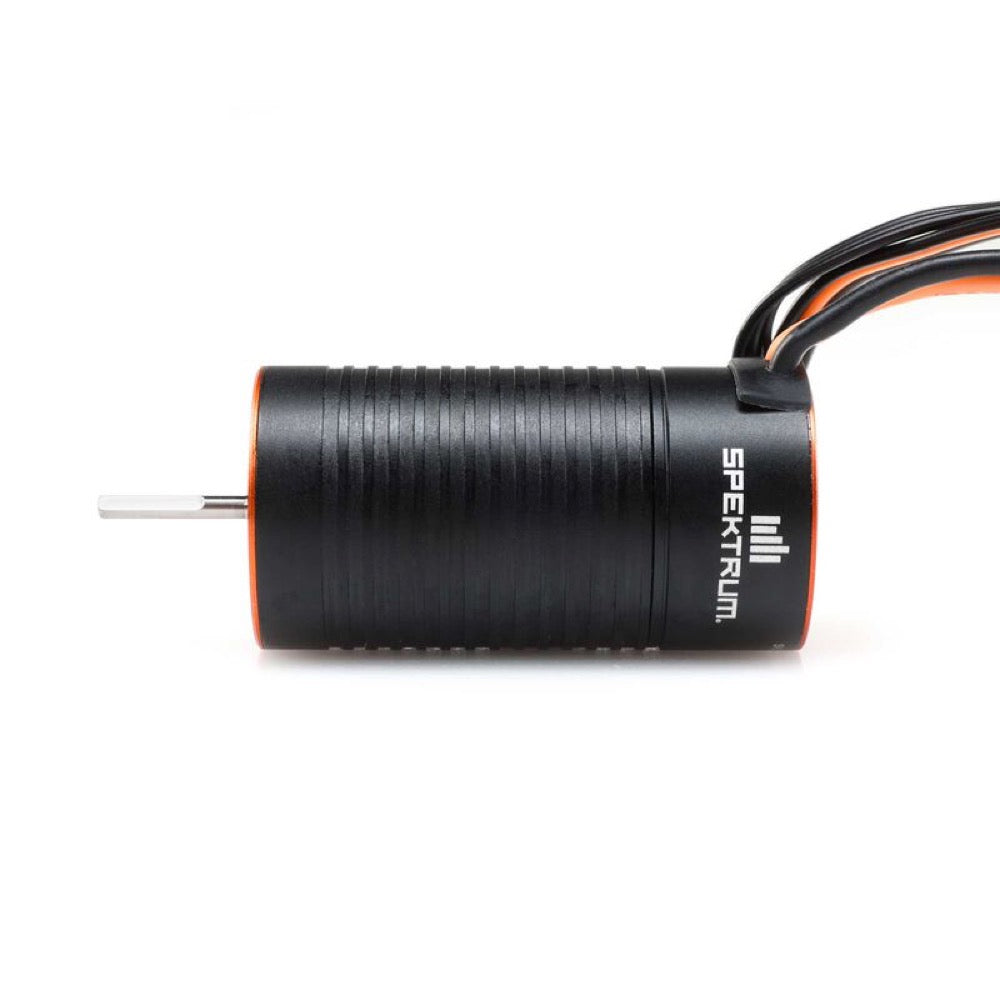

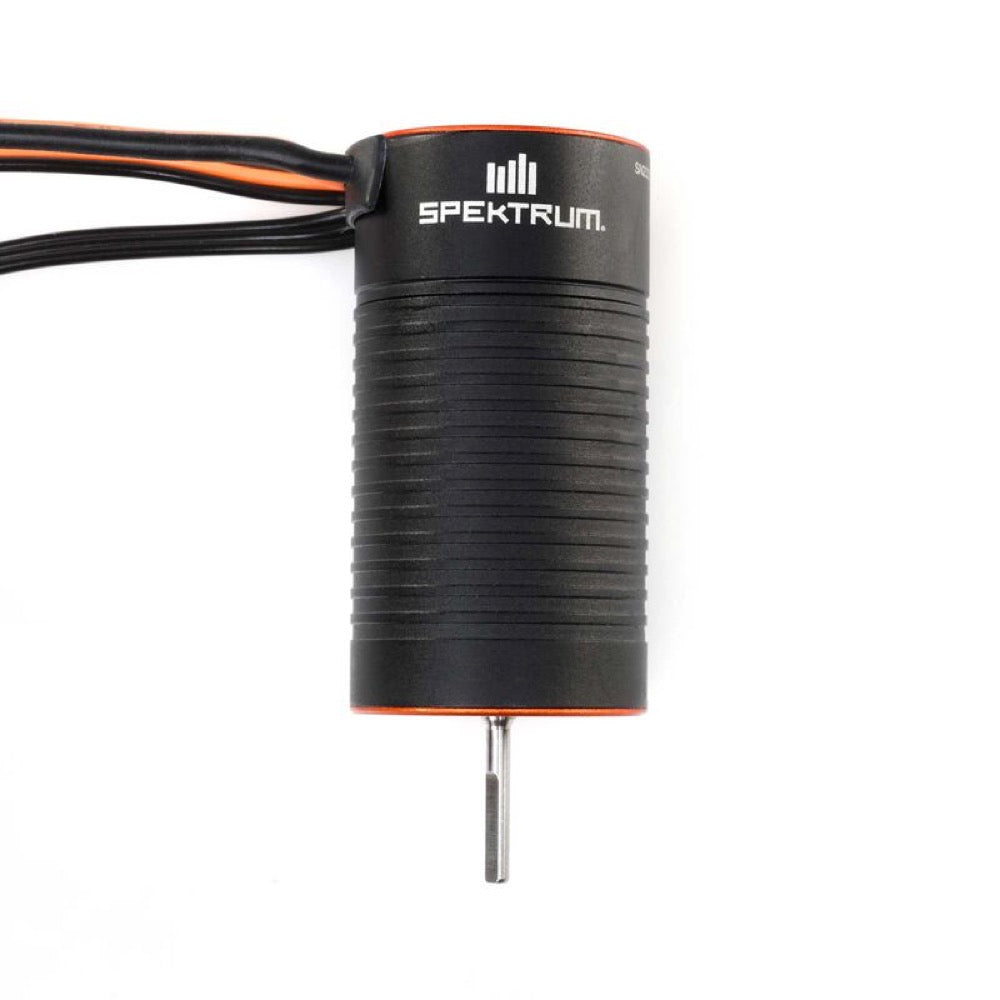

Spektrum SPMXSEM0500 Firma 5200kv Brushless Motor/ESC 2-in-1 Combo with IC2 Connector

Product Code: SPMXSEM0500
$179.99
-
+
Melbourne CBD - Out of Stock
257 Bourke Street Melbourne, Victoria 3000
+61398901144
Estimated dispatch 2~3 Business Days
Box Hill - Out of Stock
444 Station Street Box Hill, Victoria 3128
+61398901144
Estimated dispatch 1~2 Business Days
Notting Hill - Out of Stock
29 Business Park Drive Unit 9 Notting Hill, Victoria 3168
+61398901144
Estimated dispatch 1~2 Business Days
Supplier's Warehouse [Click & Collect at Notting Hill] - In Stock
Click & Collect: 29 Business Park Drive Unit 9 Notting Hill, Victoria 3168
Estimated dispatch 7~10 Business Days

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and motor 2-in-1 combo is waterproof and designed specifically for the 1/18 Losi Mini LMT 4X4 Monster Truck RTR. It features a high-precision magnetic encoder and rotor position sensor that provides an excellent one to one control feel when driving at any speed and at any angle. This advancement in sensored motor control allows the ESC to match the throttle input to the motor's RPM with unmatched precision.

This ESC and motor 2-in-1 Combo is an excellent choice to complete your 1/18 Losi Mini LMT 4X4 Monster Truck running 2S or 3S LiPo power. Whether you are bashing or competing with your Mini LMT, this combo is the perfect system.

Features

  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Easy programming
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Includes high performance and durability Spektrum Firma 5200kV Sensored Brushless motor
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Aluminum construction helps with heat dissipation
  • Adjustable high-power BEC
  • High heat-resistant IC2™ connectors, backwards compatible with EC2™ connectors

Contents

  • (1) Firma Brushless Motor / ESC 2-in-1 Combo, 5200Kv
  • (1) Product Manual

Requires

  • (1) Pinion Gear
  • Application: Losi Mini LMT
  • Auto Cutoff: Yes
  • BEC: Yes
  • BEC Continous Current: 2A
  • BEC Type: Switching
  • Connector Type: IC2
  • Forward: Yes
  • Input Voltage: 2S LiPo
  • LiPo Compatibility: 2S, 3S
  • Maximum Continuous Current: 30A
  • Motor Type: Brushless
  • Number of Cells: 2-3S LiPo, 6-9 Cells NiMH
  • Number of Poles: 4
  • Outer Diameter: 0.94" (24 mm)
  • Output: 6V/7.4V Adjustable, Continuous Current 2A
  • Overload Protection: Yes
  • Product Length: 1.8" (46 mm)
  • Product Weight: 2.7oz.
  • RPM/Volt (Kv): 5200Kv
  • Shaft Diameter: 0.07" (2 mm)
  • Shaft Length: 0.53" (13 mm)
