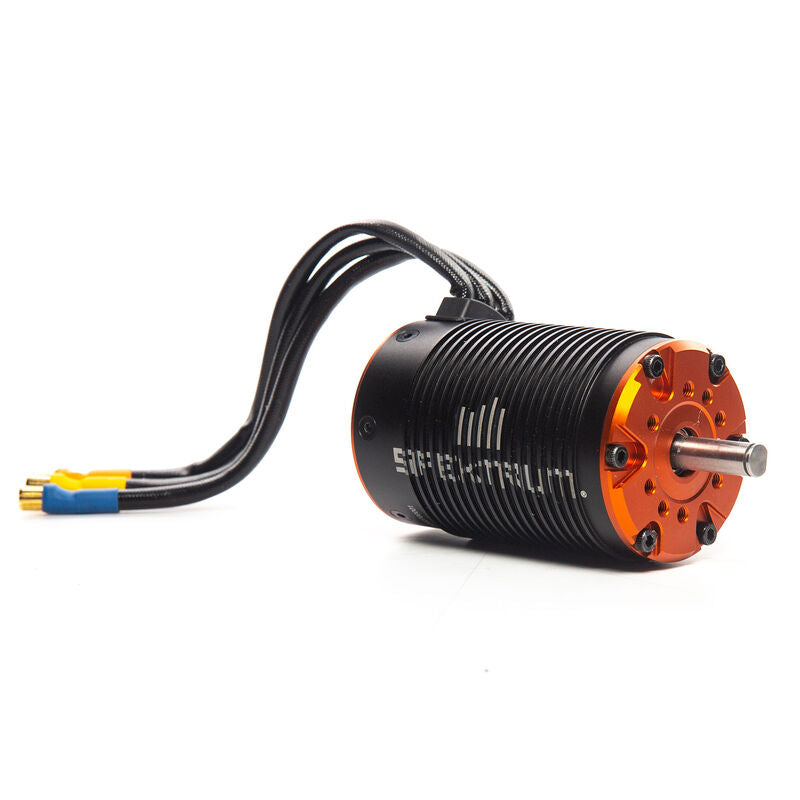

Spektrum SPMXSM2500 Firma 1100Kv 4-pole Brushless Motor

The Firma 1100Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.

Features

• Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries.
• High efficiency design
• 8S LiPo power capable
• High-quality 4-pole sintered rotor
• 6.5mm gold plated bullet connectors
• High-quality construction with precision ball bearings and hardened steel 8mm shaft
• Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip

• Connector Wire Length : 7.48" (190 mm)
• Outer Diameter : 2.2" (56 mm)
• Input Voltage : 11.1 - 29.6V (3 - 8S)
• Kv Rating : 10000-1249Kv
• Motor Output Lead : 6.5
• Recommended Speed Control : Spektrum Firma 160A Brushless Smart
• RPM/Volt (Kv) : 16,500/15V
• Sensored : No
• Sensor Type : Sensordless
• Shaft Length : 0.87" (22 mm)
• Efficiency : 86%
• Motor Class : 1/5 Scale
• Motor Size : 5687
• Product Length : 3.4" (86 mm)
• Motor Design : Inrunner
• Constant Wattage : 3000W or more
• Maximum Continuous Current : 95A
• Motor Type : Brushless
• Bushing Or Bearing : Bearing
• Connector Type : 6.5mm Bullet
• Application : Arrma Roller Kits, and 1/5 scale Basher and Monster Trucks
• Number of Poles : 4
• Output : 7900W
• Product Weight : 31.5oz (893g)
• Resistance : .0041 ohms
• Shaft Diameter : 0.315" (8 mm)
• Adjustable Timing : No
• Integrated ESC : No

Download Product Manual
