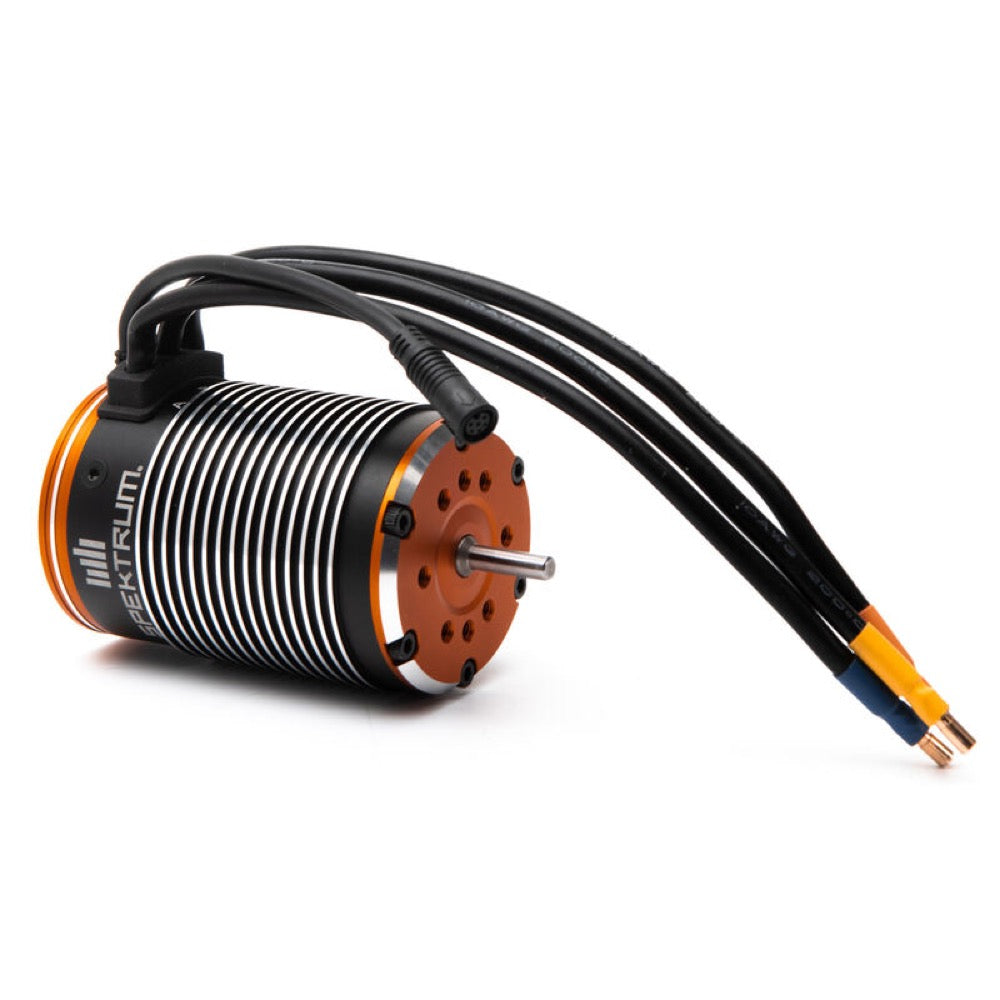

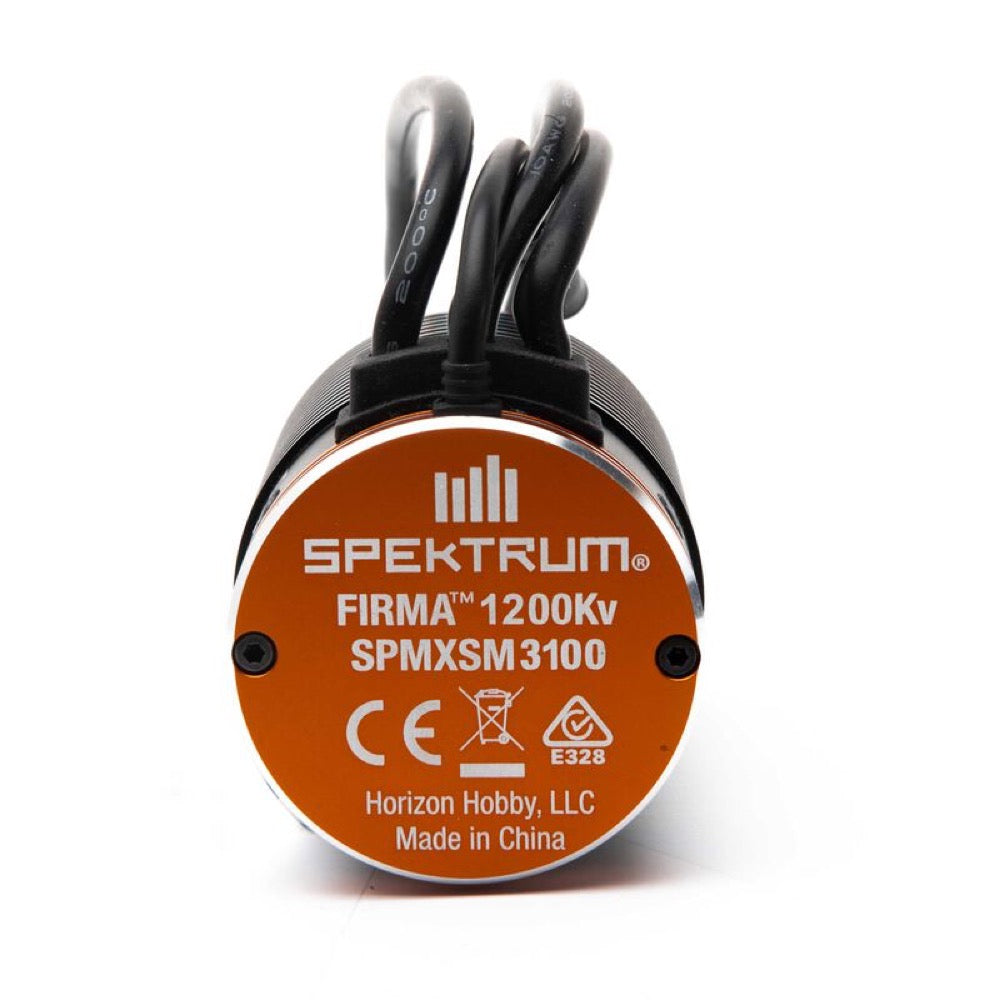

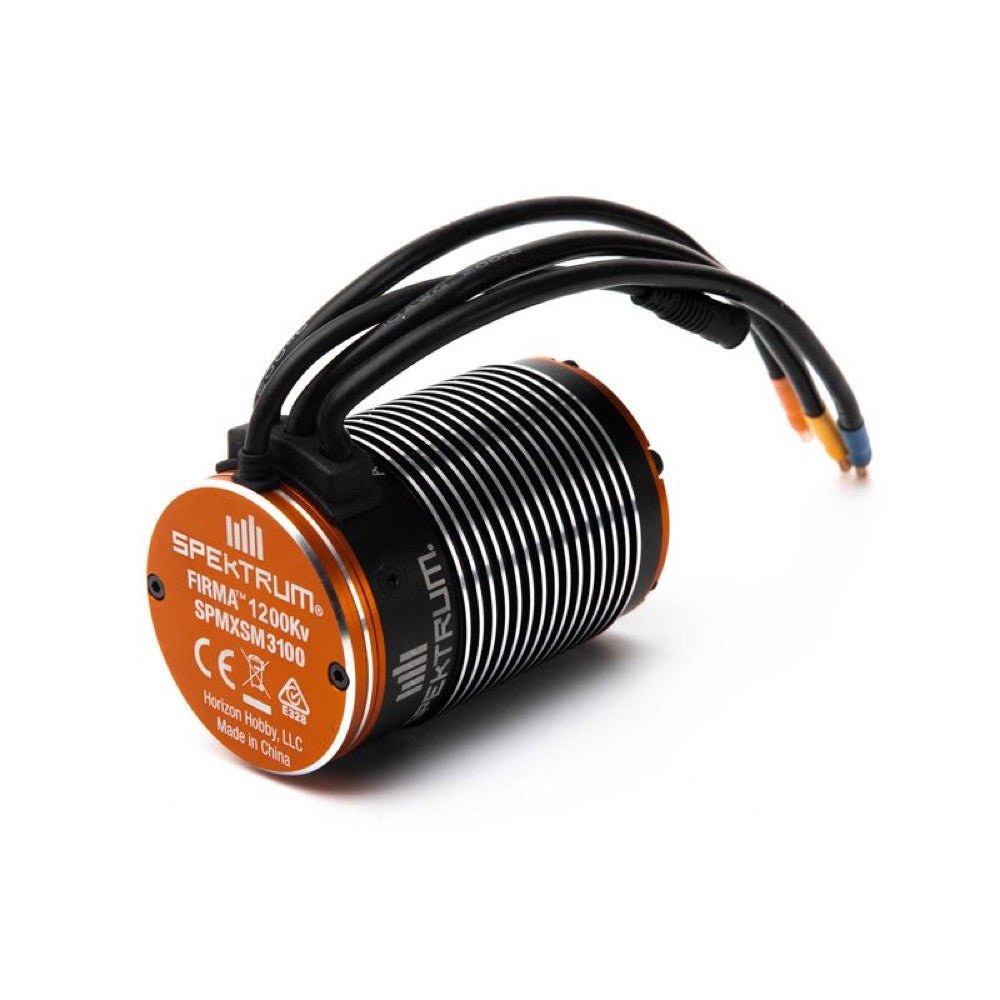

Spektrum SPMXSM3100 Firma 1200kv 1/6 Brushless Sensored Crawler Motor

The Firma 1200Kv Sensored Brushless Motor is a great choice for giant scale crawlers, rock racers, and trailers running on 2S – 4S LiPo power. Specificly sourced for the Axial® SCX6™ platform to provide the ultimate performance for maximum power and realism. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 5mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation.

Features

• Large 5684 can size to fit the demands of giant scale crawlers and scalers
• FOC (Field-Oriented Control) equipped
• High-quality 4-pole sintered rotor
• Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
• 3.5mm gold plated bullet connectors
• Waterproof sensor wire with locking plug and gasket
• High-quality construction with precision ball bearings and hardened steel 5mm output shaft

Specification

• Application: 1/6 Rock Crawling
• Connector Type: 3.5mm Bullet
• Forward: Yes
• Maximum Continuous Current: 80A
• Motor Type: Brushless
• Outer Diameter: 2.2" (56 mm)
• Output: 750W (3S)
• Product Application: Crawling, Surface
• Product Length: 3.3" (84 mm)
• Reverse: Yes
• RPM/Volt (Kv): 1160
• Voltage: 4S/15V

Requires

• SPEKTRUM FIRMA 120A SENSORED BRUSHLESS SMART CRAWLER ESC
