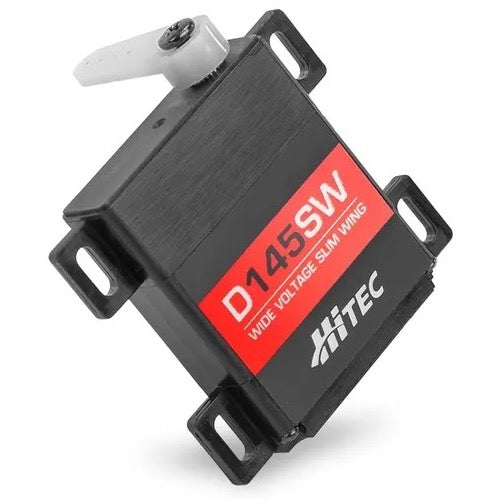

Hitec HRC36145 D145SW Digital HV Programmable Wing Servo

Hitec HS-D145SW 10mm Slim Wing 32 Bit Programmable & High Response Steel Gear servo

Features

• 10mm thickness to suit the thinnest airfoils
• 6.0 kg.cm of power @ 7.4V
• Programmable 32 Bit Wide Voltage
• High Resolution & High Response
• Smart Sense Technology
• Programmable
• Digital MOSFET Amplifier
• High positioning speed
• High positioning force
• High holding force
• Steel gears
• 2 ball bearings
• 25 tooth servo horn

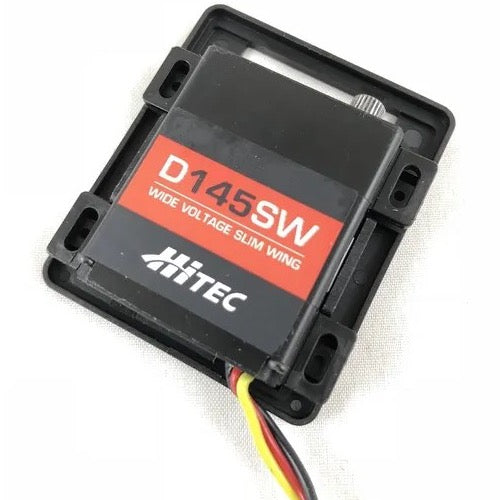

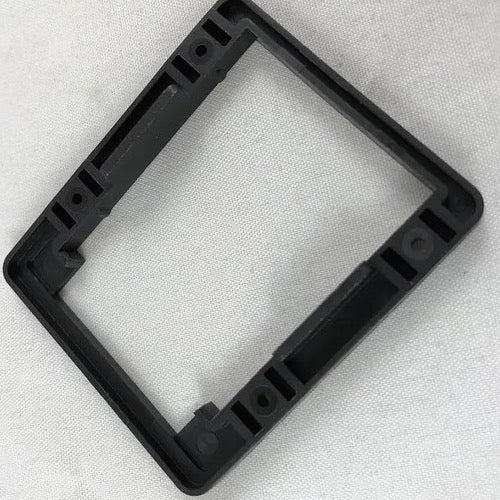

• Wing servo mounting frame is included
• The long life is due to the uniquely designed steel transmission and the robust servo housing.
• The D145SW surface servo is ideally suited for thin surface profiles in glider models and an application as a motorgearbox combination for industrial applications.

Specs

• 4.8 V Torque: 3.9 kg.cm
• 4.8 V Speed: 0.21sec/60°
• 6.0 V Torque: 4.9 kg.cm
• 6.0 V Speed: 0.17sec/60°
• 7.4 V Torque: 6.0 kg.cm
• 7.4 V Speed: 0.14sec/60°
• Operation Voltage: DC 3.5~8.4V
• Dimensions: 30.0 x 10.0 x 37.0mm
• Weight: 24g
