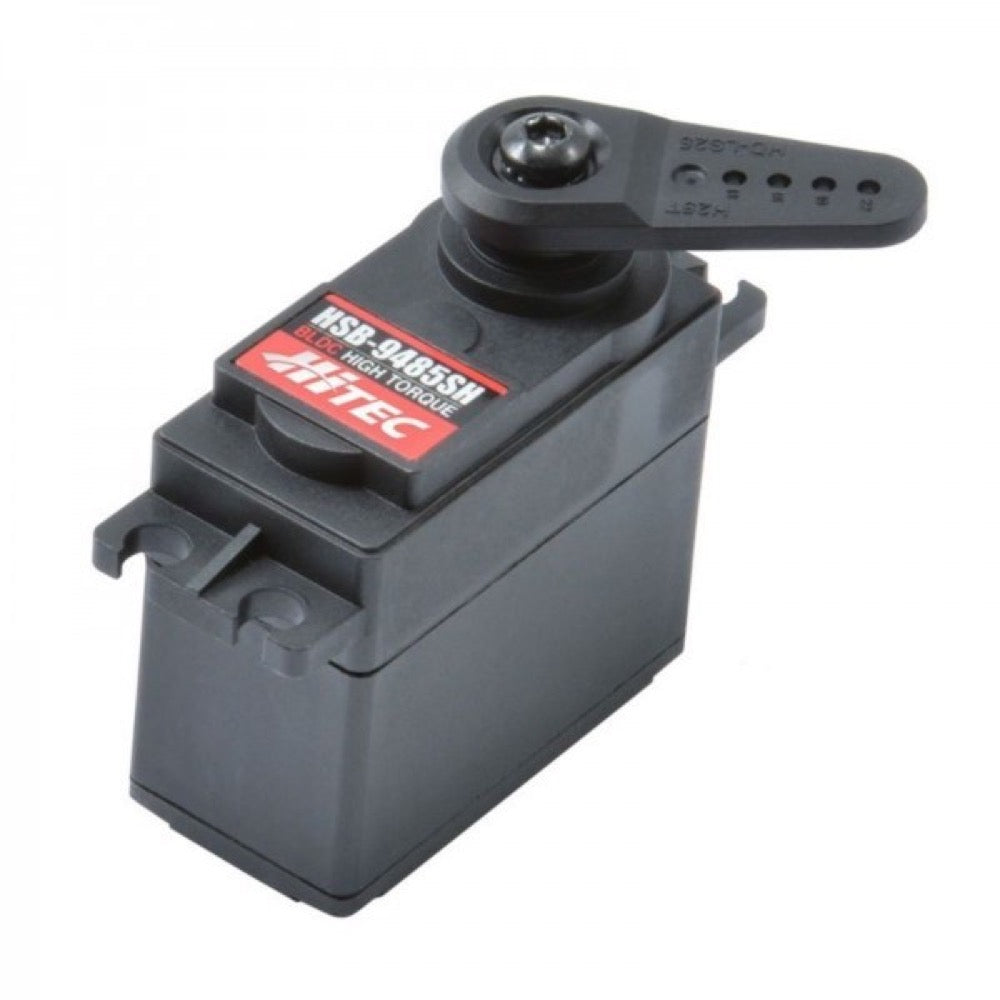

Hitec HRC39485 HSB-9485SH Digital HV Brushless High Torque Servo

This is the Hitec HSB-9485SH Multipurpose Brushless Steel Gear Servo. Pro level hobbyists demand the power and precision found in Hitec's triple threat HSB-94XX servos. Each features durable steel gears and impressive Neu brushless motors with the HSB-9485SH delivering immense torque.

NOTE: While compatible with most radio control devices, the regenerative braking feature of the HSB-9XXX series servos may cause a problem if the device cannot accept a backflow of current. The types of devices that cannot accept this backflow are Voltage Regulators, Power Safe Receivers and certain BEC circuits whether stand alone or integrated within an Electronic Speed Control. Check with the manufacturer or the Hitec website for a list of compatible models. If your device cannot accept a current backflow, then you must install a PAD (Power Absorbing Device - Hitec 55756). A PAD is included with every Hitec brushless servo.

Features

• Programmable 12 Bit Digital Circuit: Using the DPC10 PC interface (PN 44426) and downloadable software, users can program a variety of features in the HSB9XXX Series including: Fail Safe On/Off and Position, direction, EPA, Speed (Slower), Dead Band, and Soft Start.
• Power Efficient Brushless Motor Controller: The HSB9XXX Series uses the latest control circuit technology including a regenerative braking circuit* which puts power back into the battery as the motor slows. This feature, combined with ultra low current draw under sustained loads, allows these brushless servos to consume 1/5 the power of most other brushless servos on the market today.
• Custom NeuMotor: Designed by Steve Neu exclusively for the HSB9XXX Series, these high performance, brushless motors provide longstanding durability and performance.
• Constant Torque Output: Thanks to the revolutionary circuit and motor designs, the HSB9XXX Series maintain their speed in a more consistent manner, regardless of load.
• Hybrid MPD 1st Gear: The unique ultradurable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle.
• 25Tooth Standard Spline: These Brushless servos utilise a standard 25 tooth output spline for maximum compatibility with a wide range of aftermarket servo horns.

Specs

• Speed @ 6.0V: 0.18
• Speed @ 7.4V: 0.15
• Torque: 361 oz-in (26.0kg-cm)
• Dimensions: 40x20x37mm
• Weight: 2.19 oz (62g)
• Applications: Large Planes, 1/8 Scale Buggies & Trucks
