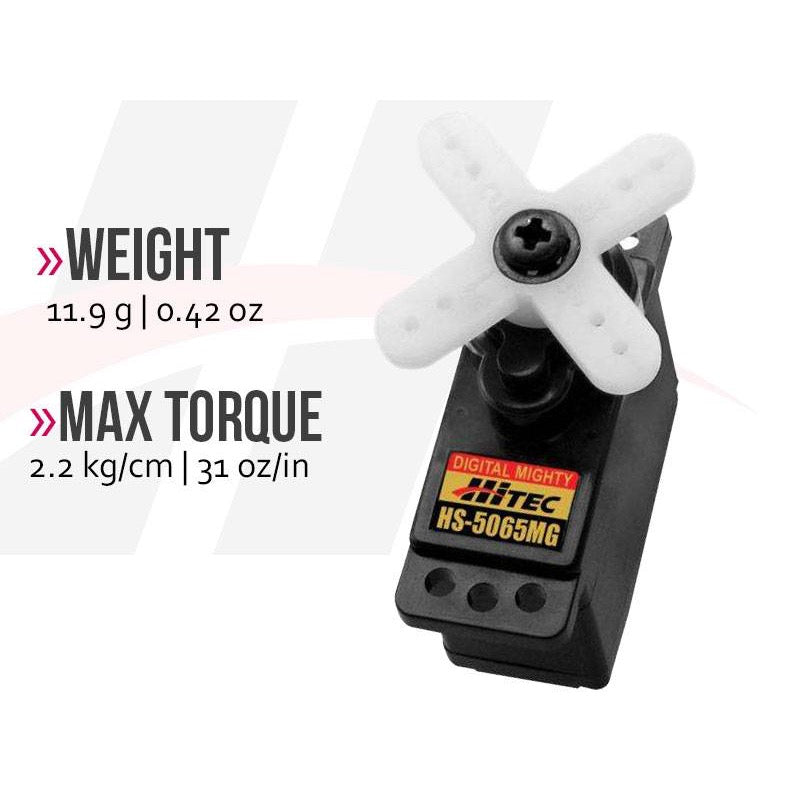

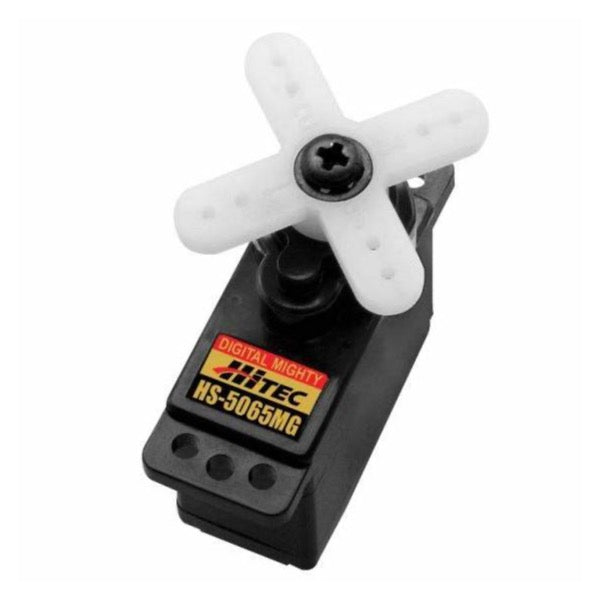

Hitec HS-5065MG Digital Micro Servo w/ Metal Gears

Product Code: HRC35065S
Barcode: 669962350655
$62.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

Performance Specifications

  • Operating Voltage Range (Volts DC) : 4.8V ~ 6.0V
  • Speed (Second @ 60°) : 0.14 ~ 0.11
  • Maximum Torque Range oz. / in. : 25 ~ 31
  • Maximum Torque Range kg. / cm. : 1.8 ~ 2.2
  • Current Draw at Idle : 3 mA
  • No Load Operating Current Draw : 220 mA
  • Stall Current Draw : 1,200 mA
  • Dead Band Width : 2 µs

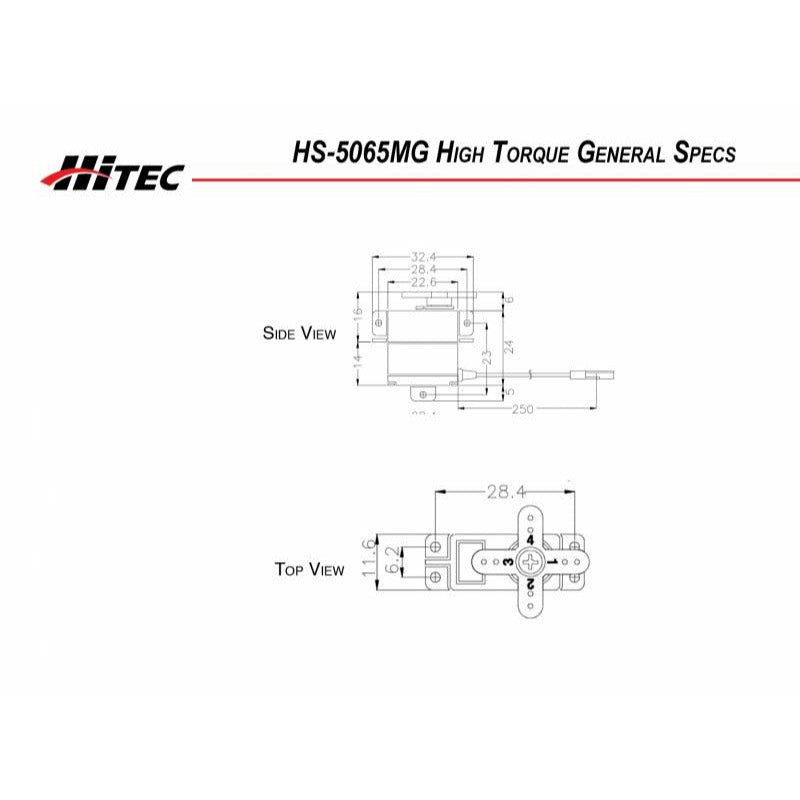

Physical Specifications

  • Dimensions (Inches) : 0.92 x 0.45 x 0.94
  • Dimensions (Metric) : 23.6 x 11.6 x 24.0
  • Weight (Ounces) : 0.42
  • Weight (Gram) : 11.9
  • Circuit Type : G1 Programable Digital
  • Motor Type : 3 Pole Metal Brush Neodymium
  • Gear Material : Metal
  • Bearing Type : Top Ball Bearing
  • Output Shaft (type / Ømm) : Micro 23
  • Case Material : Plastic
  • Dust / Water Resistance : N / A
  • Connector Gauge (AWG) / Strand Count : 28 / 20

Radio Control Applications

  • Parkflyer : < 42 oz.
  • Sport Plane : 36 - 41 oz.
  • Sailplane : <2 meter / DLG
  • 3D Performance : Foamies
  • Scale : N / A
  • Electric Helicopter : 400-500mm
  • Gas Helicopter : 30-39 Class
  • On Road : 1/16th
  • Monster Truck : N / A
  • Buggies : N / A
  • Truggies : N / A
  • Short Course / Truck : N / A
  • Crawlers : N / A
  • Sail Boat : N / A
  • Power Boat : 1/18th
