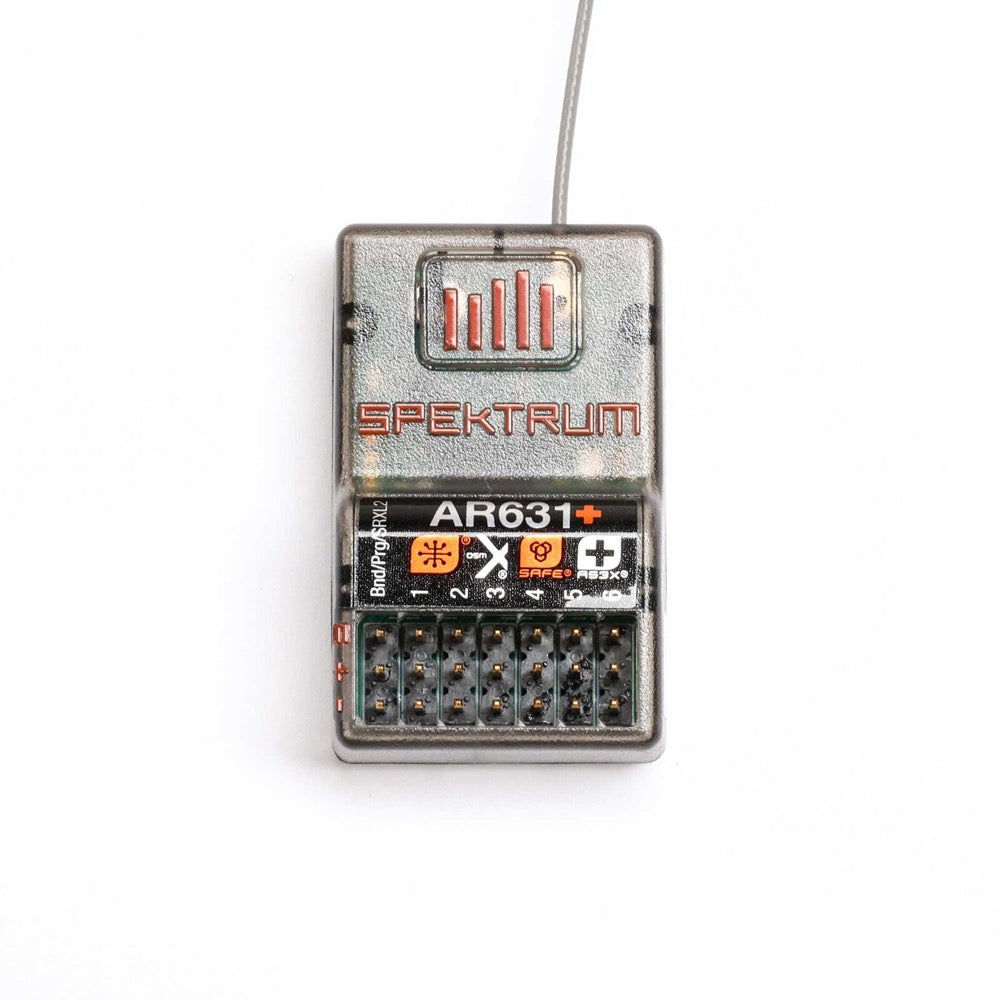

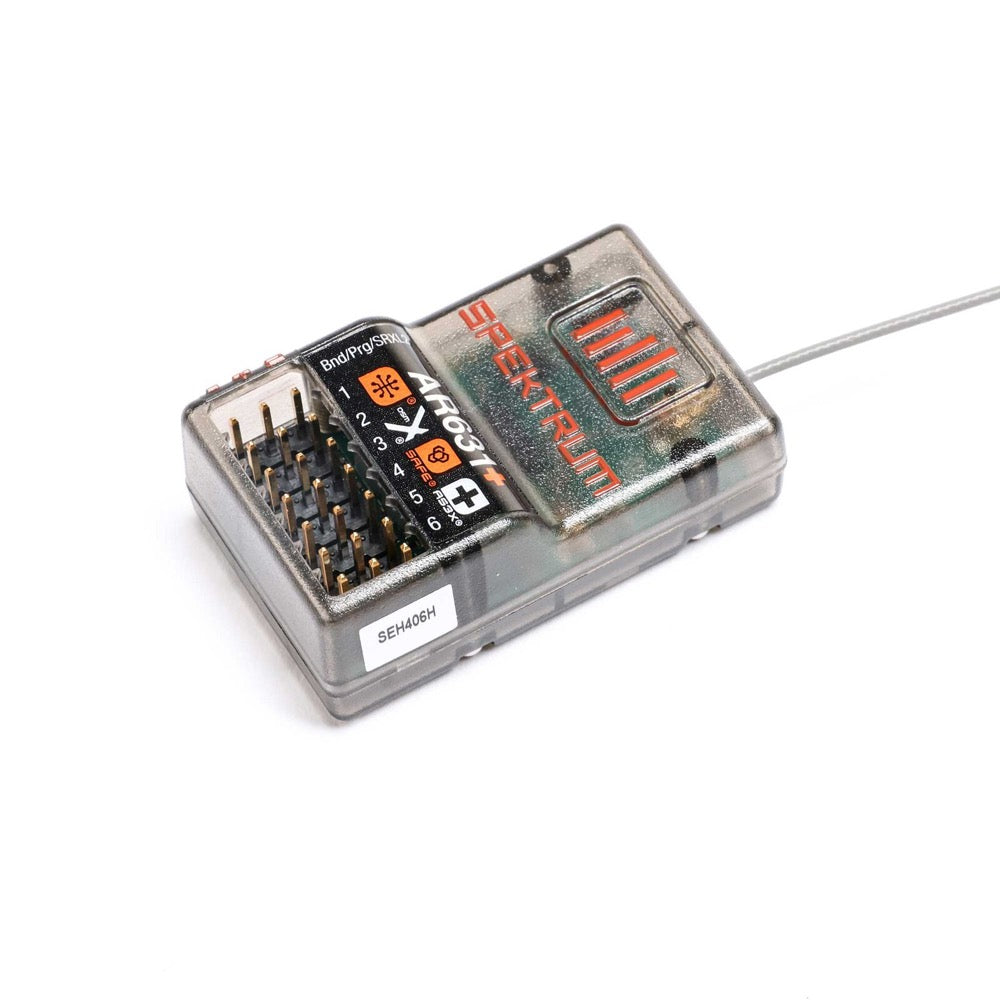

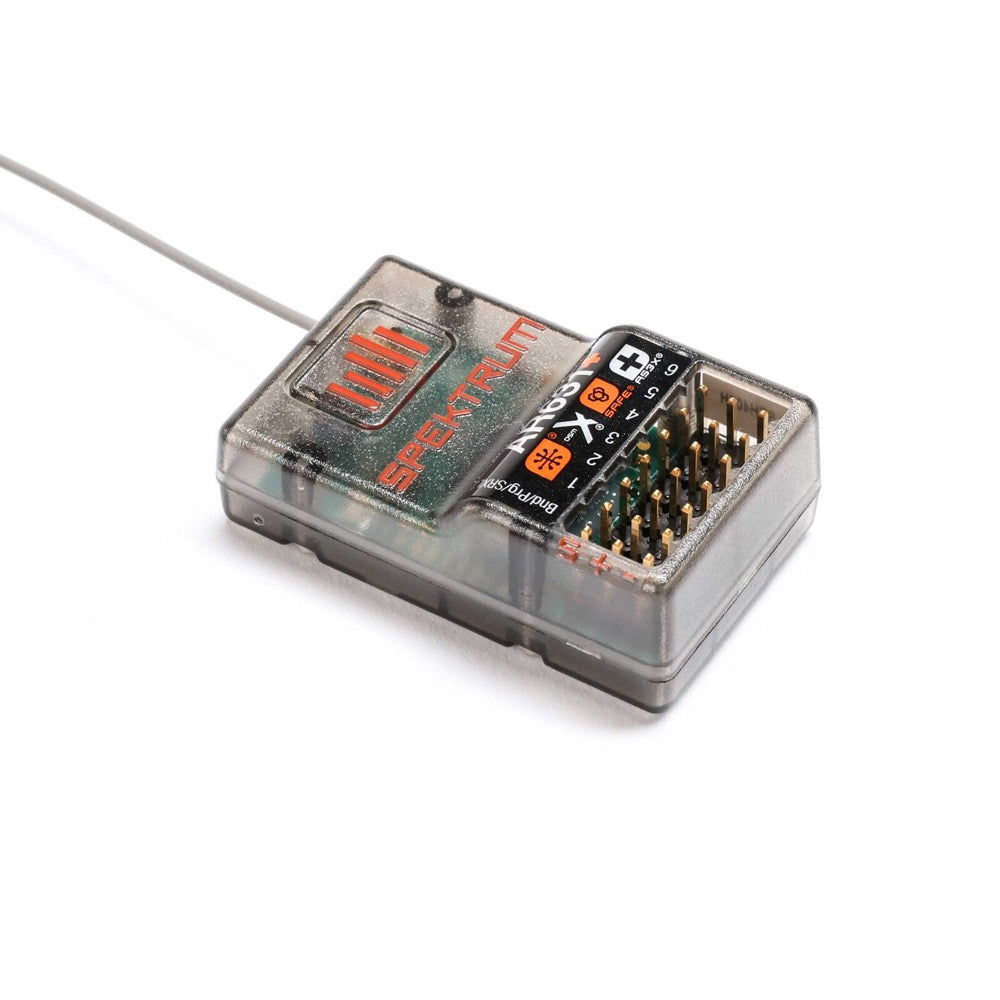

Spektrum SPM-1031 AR631+ 6 Channel AS3X+ and SAFE Receiver

The AR631+ features fly-by range telemetry and a bind button that makes it easy to bind with no plugs necessary and offers both SmartSafe technology and Hold Last as well as preset failsafe types set through forward programming. A long 230mm 2.4gHz antenna, perfect for getting optimal reception when installed into tight spaces. The AR631+ also features Smart Telemetry support.

With Smart Technology the normal servo connector delivers the throttle signal to the ESC, plus the ESC can send telemetry data like voltage and current back to the receiver. The AR631+ receiver throttle port (Channel 1 port only) will automatically detect when a Smart compatible ESC is connected. ESCs with Smart and IC series connectors can also pass along battery data from compatible Spektrum Smart batteries. Spektrum Avian™ ESCs are compatible with the AR631+ receiver for Smart Technology features.

For Smart to function you must have a Smart ESC paired with a Smart telemetry receiver, and a Spektrum DSMX transmitter with telemetry. An update for your transmitter may be required for Smart features. Visit spektrum.com to register and update your transmitter. If a standard ESC or servo is plugged into the throttle port on the AR631+ receiver, the throttle port will operate normally (PWM signal) like any conventional RC system.

Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters

Using this receiver in turbine powered aircraft models is not recommended.

AS3X+® Technology

Exclusive Spektrum™ AS3X+® technology enhances flight stability by countering the effects of wind, turbulence, and other outside forces to help your aircraft fly smoothly and with precision. You'll feel like you're piloting an expertly tuned model that performs exactly as you want.

SAFE® Technology

SAFE® (Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X+ to deliver normal flight performance, but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes.

Long 230mm 2.4GHz Antenna

The AR631+ features an extra-long 230mm 2.4ghz antenna (approximately 9 inches), specifically engineered for use in tight installations. When installing your receiver into an aircraft where there is less then ideal space away from batteries and other devices, a long antenna is key. This allows users to install the receiver in tight spaces and isolate the antenna for optimal reception and link quality. When positioning your antenna, it is best to have it at least 75mm ( approximately 3 inches) away from batteries, electronic speed controls (ESC), ignition systems, and other electronic devices. Use the integrated flight log telemetry to perform a through range test to better evaluate your setup.

Forward Programming

You can configure the AR631+ receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

Features

• Smart Transmitter File Download

• 230mm Antenna for more versatile installation options

• Built in AS3X+ Stabilization System with SAFE flight envelope protection

• AS3X+ and SAFE set up through forward programming directly from your Spektrum transmitter

• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires

• Streamlined, top-pin design in a lightweight hard-case

• Bind button allows for easy binding and eliminates the need for bind plug

• DSMX protocol receiver with DSM2 backwards compatibility

• Fly-by range telemetry support

• Standard servo connectors

Requires

• (1) Spektrum Telemetry Capable Transmitter

Specs

• Antenna Length: 9" (229 mm)

• Application: Airplane, Sailplane

• Band: 2.4GHz

• Bind Method: Bind Button

• Channels: 6

• Data Port: Yes

• Flight Log Compatible: Yes

• Forward Programming: Yes

• Input Voltage: 3.5 - 9V

• Integrated Variometer: No

• Modulation: DSMX

• Product Application: Air, Sailplanes

• Product Height: 0.55" (14 mm)

• Product Length: 1.53" (39 mm)

• Product Weight: 0.28oz (8g)

• Product Width: 0.94" (24 mm)

• Range: Full

• Remote Receiver Ports: 0

• Resolution: 2048

• Serial Out: SRXL2

• Technology: AS3X+, SAFE

• Telemetry: Yes

• Telemetry Range: Fly-By
