Tamiya 58676 1/24 Volvo A60H Hauler (G6-01 Chassis)

Power Hauler

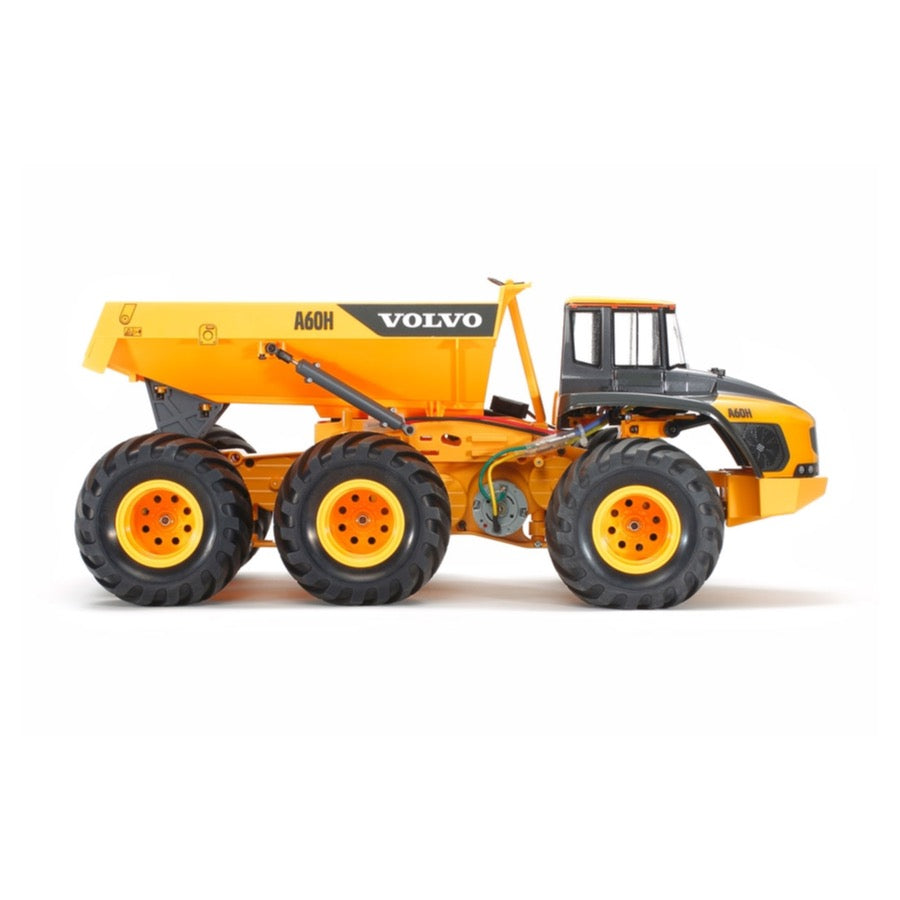

Volvo's impressive and varied vehicle line-up is home to a highly successful range of working vehicles that includes haulers for heavyweight work in mines, quarries and the like, among them the A60H that was announced at the bauma 2016 show in Munich. This R/C model assembly kit depicts the A60H with a polycarbonate cab section capturing the hauler's distinctive lines, and a sturdy bed molded in ABS plastic. Stickers are included to recreate details such as front grille, air inlets flanking the hood, headlights, logos and more.

Fun, Innovative & Great Performance!

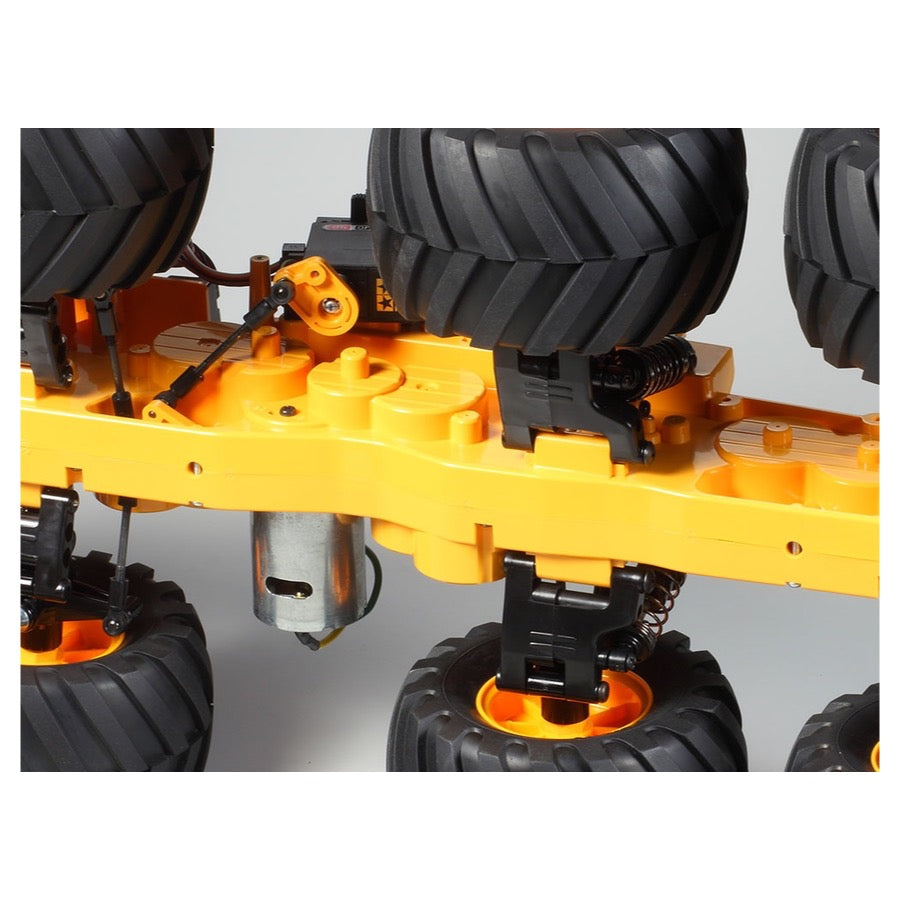

The fun G6-01 chassis is based around a tough, slimline monocoque frame and offers excellent off-road performance thanks to a 6-wheel drive system. Power is provided by a motor behind the front wheels, and transmitted to front, center and rear wheels via gears. The gearbox is sealed to protect from dust and debris, and integrated into the frame; it has built-in front, center and rear differential gears to provide smooth cornering. 6-wheel double wishbone suspension is fitted with friction dampers, and yellow deep rim wheels are paired with chunky 113mm tires. A 2-piece steering tie-rod setup utilizes the servo on the left for excellent response. With suspension reassembly and a separately-sold transmitter with 4WS function and R/C equipment, the rear wheels can be made steerable.

Features

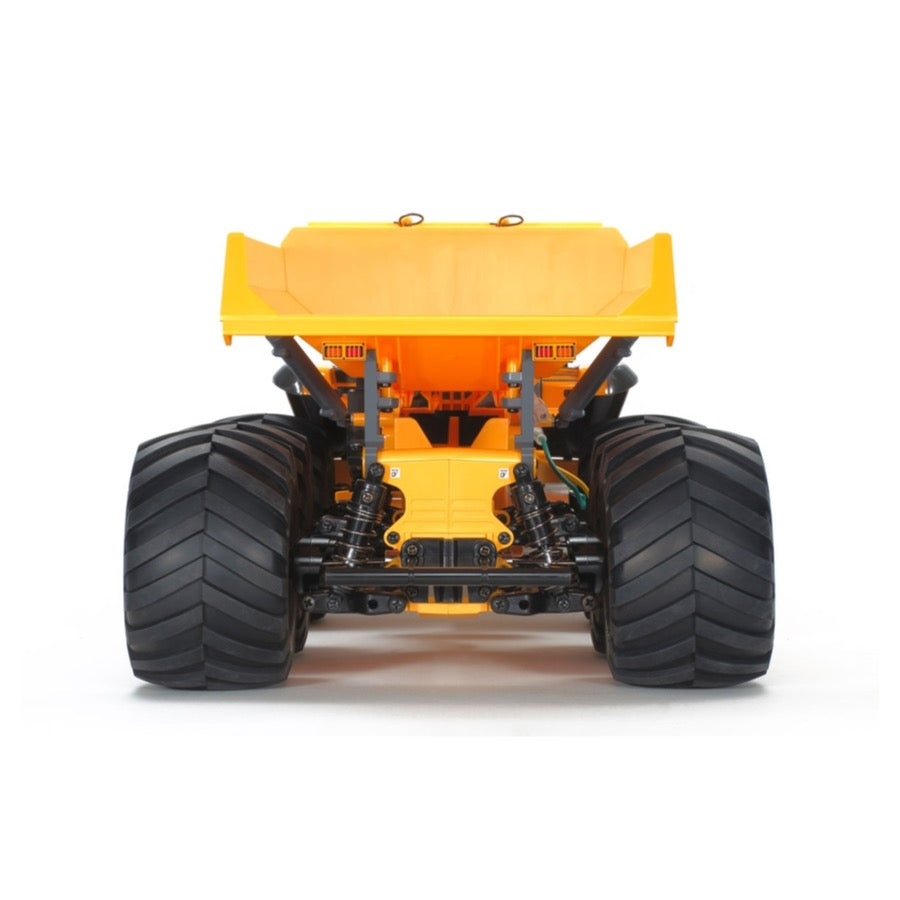

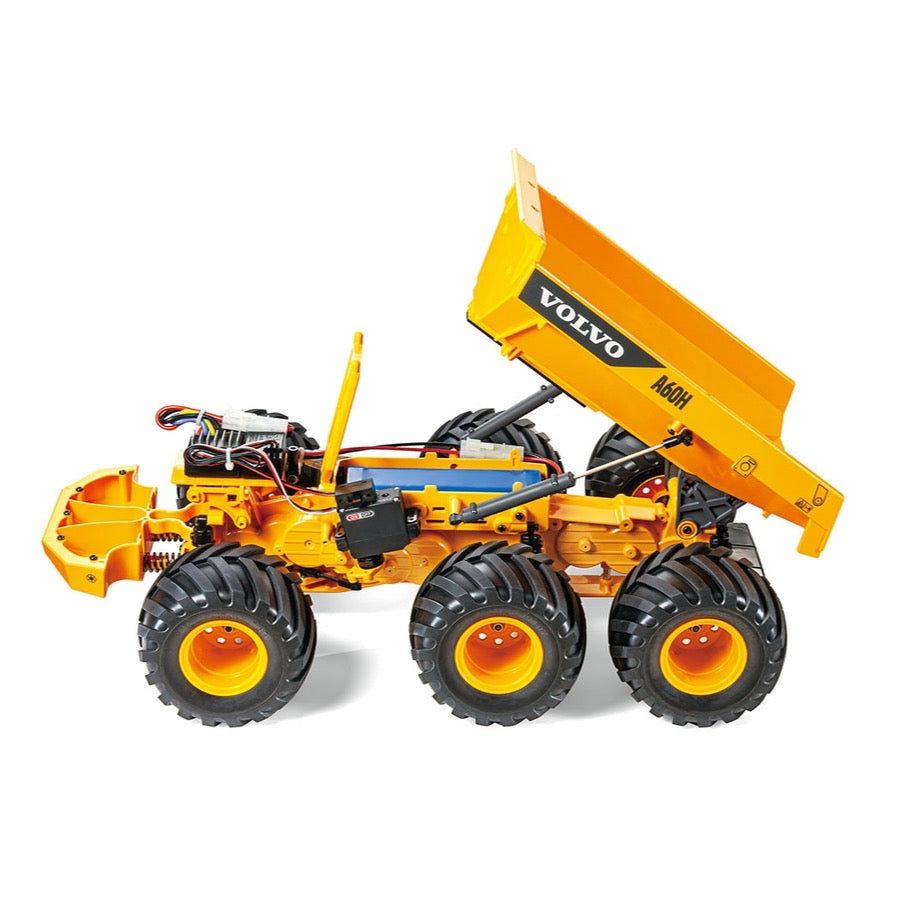

• The rear bed is molded in the same yellow as the chassis, perfect for this depiction of a construction vehicle!

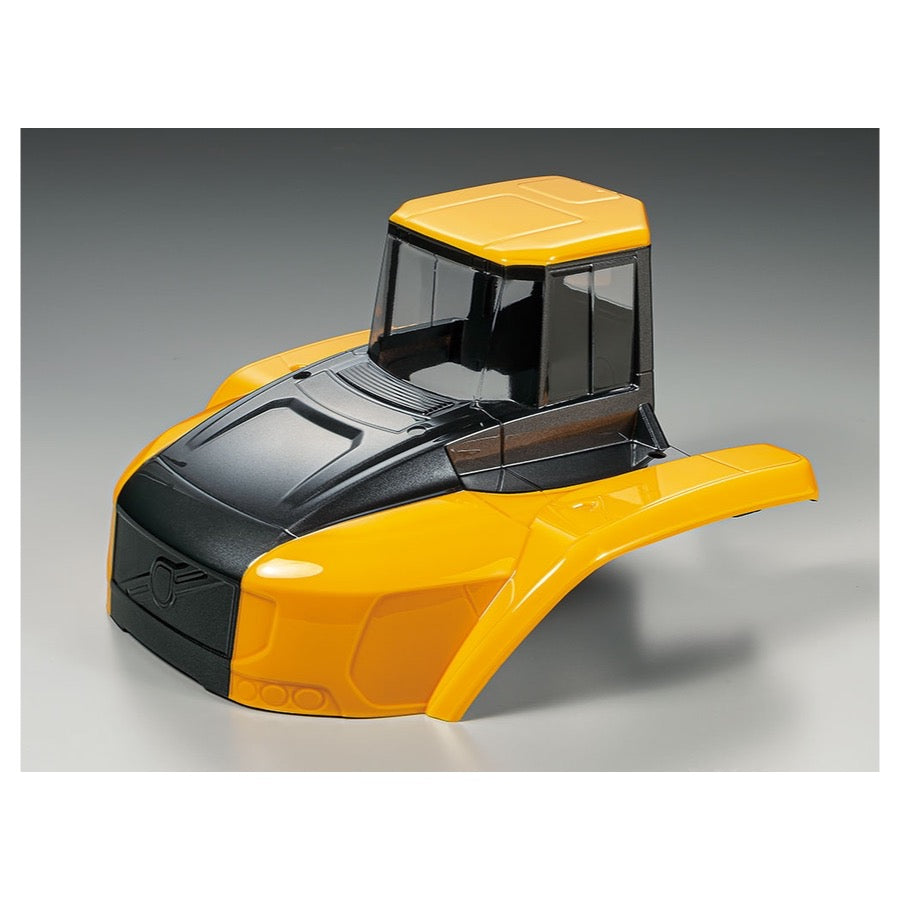

• The lightweight polycarbonate cabin section comes pre-painted in Camel yellow and Gun metal, and cut out, too.

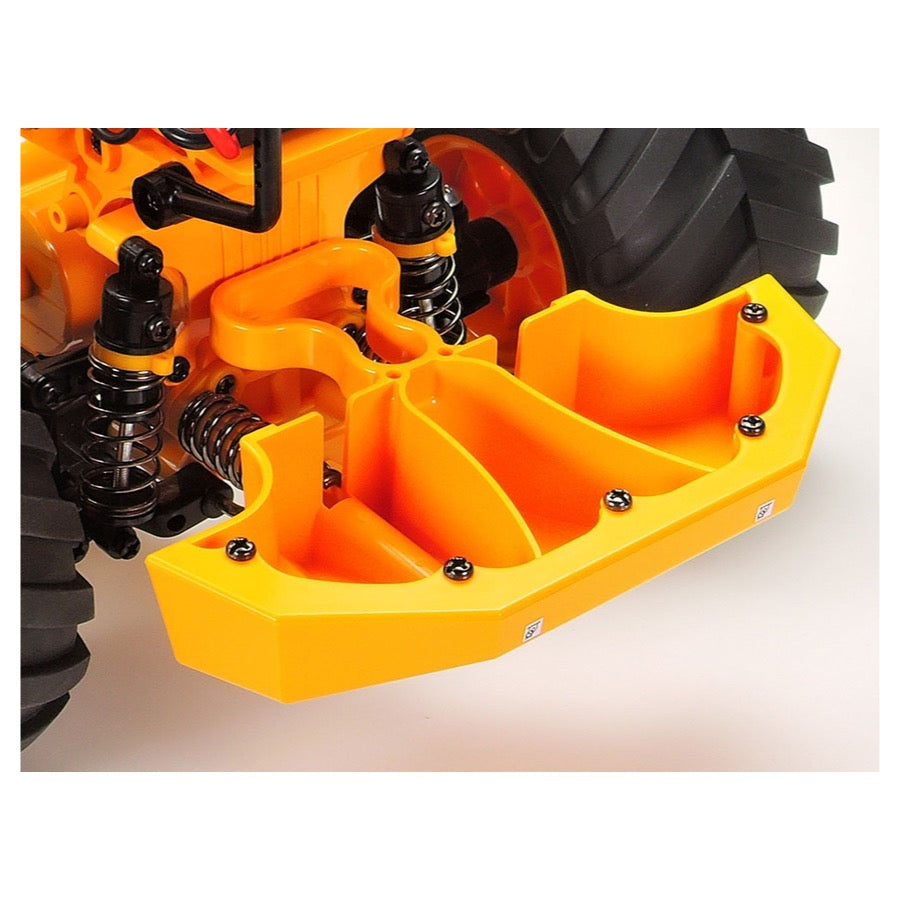

• A dedicated bumper meshes nicely with the polycarbonate cabin, helping to protect from any major bumps.
• The G6-01 chassis is based around a slimline monocoque, with a two-piece steering tie-rod for excellent response.

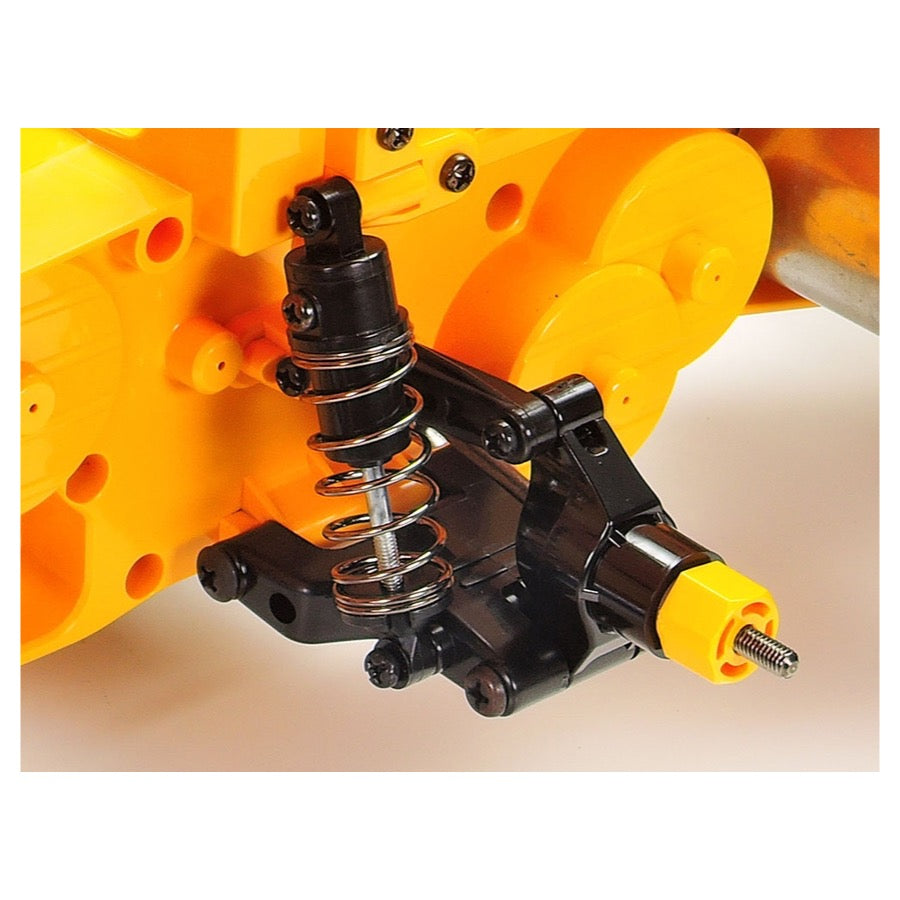

• 6-wheel double wishbone suspension ensures superior off-road performance in conjunction with 6-wheel drive.

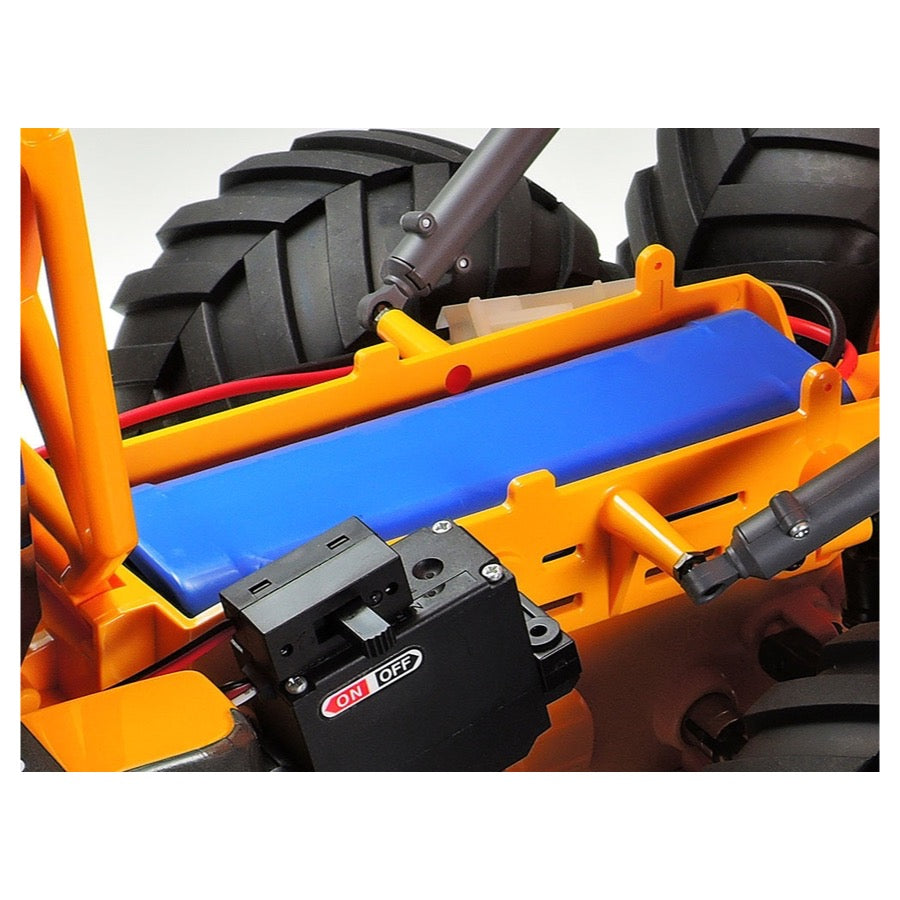

• The battery pack is inserted longitudinally, and held securely in place by the model's rear bed.

Requires

• 2-Channel R/C Unit with ESC
• Battery Pack & Charger
• R6/AA/UM3 batteries for transmitter

• Length: 486mm, Width: 270mm, Height: 210mm
• Wheelbase: 173mm + 126mm
• ;Tread: 200mm (Front, Center and Rear)
• Tire Width/Diameter: 68mm/113mm
• Monocoque Frame
• Gear-Driven 6WD
• 3-Bevel Differential Gears
• 2-Piece Steering Tie-Rod
• 6-Wheel Independent Double Wishbone Suspension
• Gear Ratio = 18.03:1
• Type 540 Motor
• Requires an Electronic Speed Controller (sold separately)
