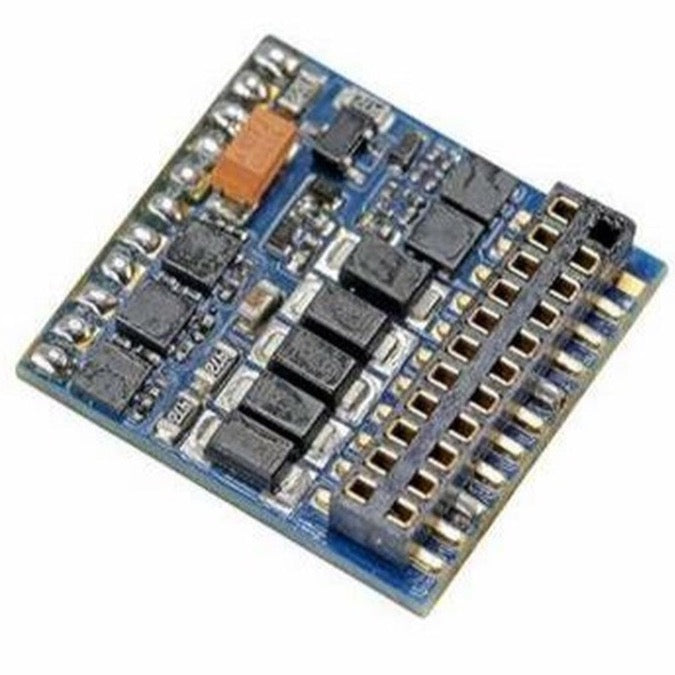

ESU 59229 LokPilot 5 Fx DCC 21MTC Direct Decoder Function Only No Motor Output

Operating modes

• NMRA / DCC with 14, 28 and 128 speed levels, DCC RailCom®
• DCC 2-digit and 4-digit addresses (short and long addresses)
• Analogue direct voltage (can be switched off).
• Automatic detection of the operating mode and DCC speed step setting
• Support of the Lenz® LG100, Märklin®, Roco® braking sections and ZIMO® HLU commands
• Support for ABC braking mode and ABC shuttle train route
• Incorrect travel bit / storage of the operating states
• Maneuvering gear and acceleration and braking delay can be switched using a button

Cruise control part

• Unavailable

Function outputs

• 10 amplified function outputs
• Version with 21MTC interface additionally 2 logic level outputs and 2 further logic level outputs instead of SUSI
• Version with PluX22 interface 2 logic level outputs instead of SUSI
• 250mA load capacity per amplified output
• Total current of all function outputs approx. 1500mA. Outputs short-circuit proof
• Allocation of the function outputs freely selectable (function mapping)

Dimensions

• 16,5mm x 15,5mm x 4,5mm
