Tomix 91045 N Embankment Large Curve S shape Track Set

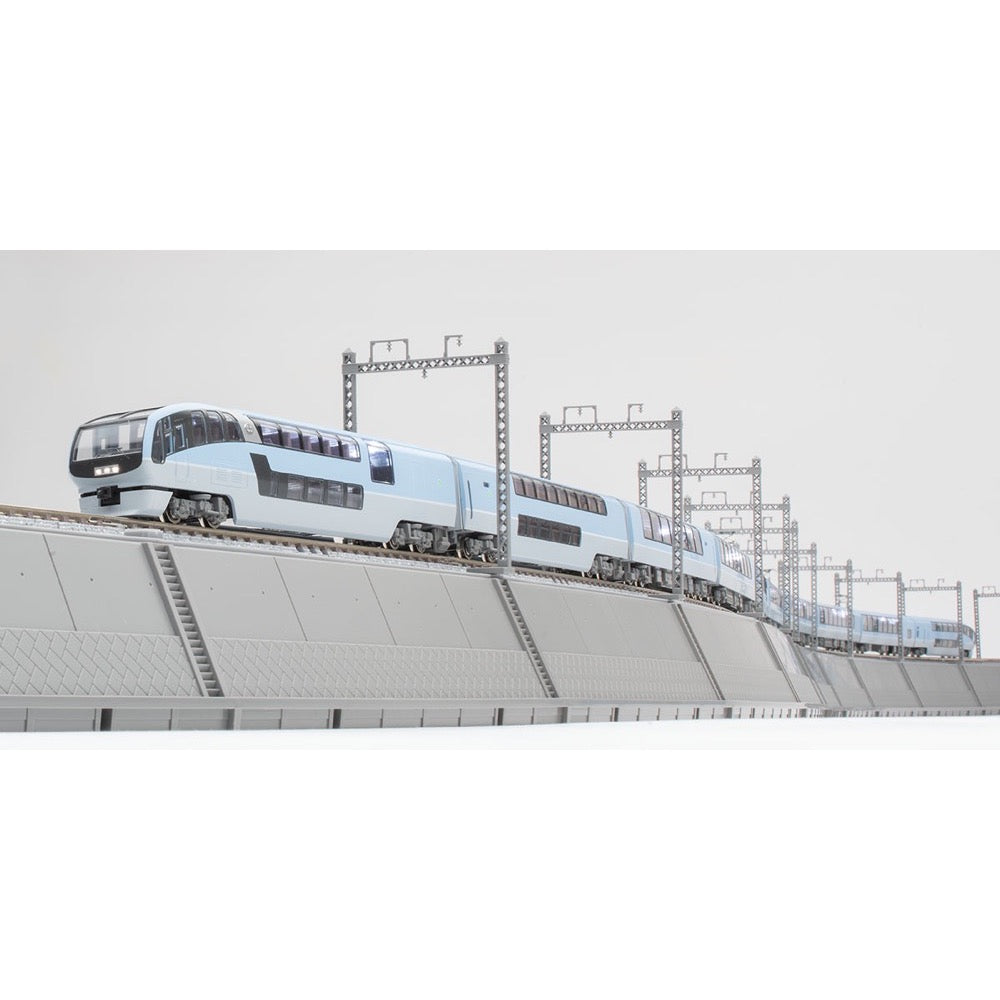

This set allows you to create embankments with large radius S-shaped curves, and can be combined with extensions or straight embankments for wide rail to recreate a variety of railway scenes.

Features

• Rails are easily and securely connected

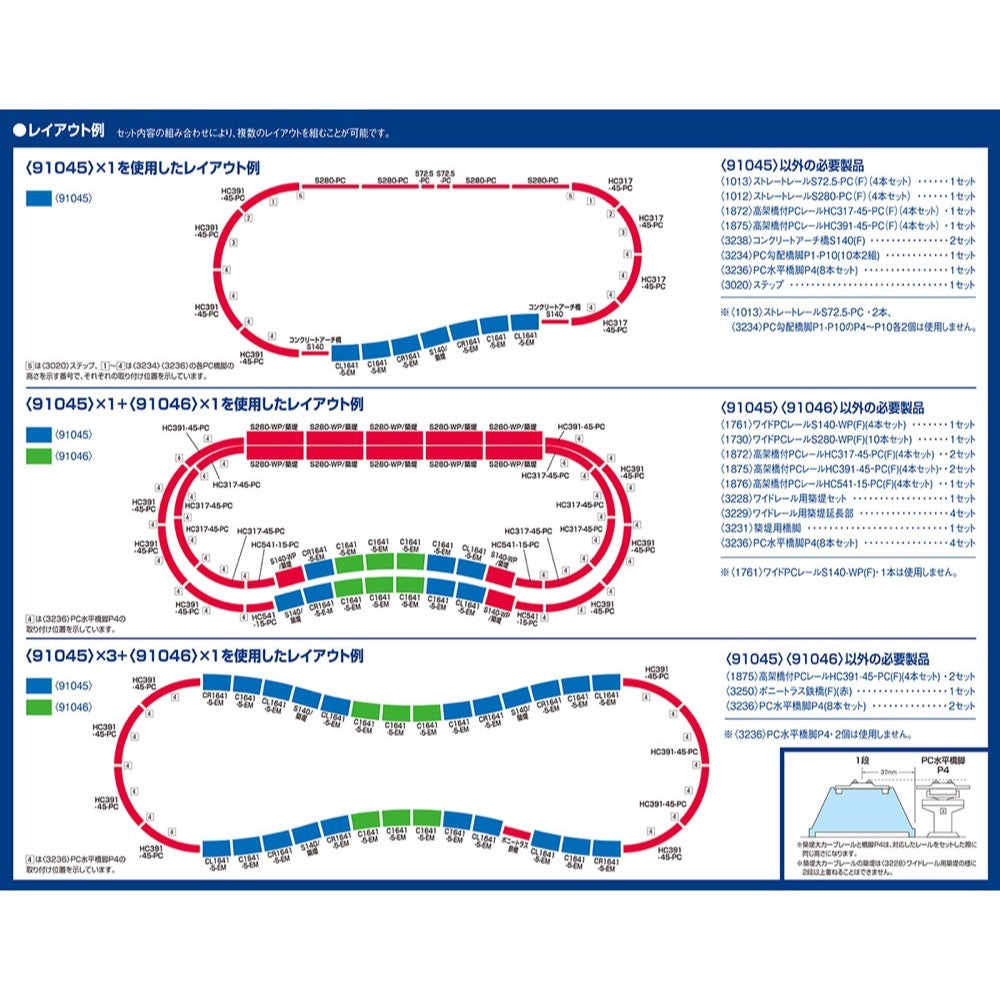

• The length is 985mm (same as S280 x 3 + S72.5 x 2), the width is offset by 148mm (four double track intervals), and the S-shaped rail layout has a straight line of 140mm between them
• The height of the embankment of this product is the same as that of one stage of the separately sold <3228> Wide Rail Embankment Set, and the exterior has the same design
• The curved rail with embankment C1641-5-EM is a wooden sleeper type
• The curved rail with embankment C1641-5-EM has a radius of 1641mm, a curve angle of A canted rail with a 5 degree embankment, with a cant inclination angle of approximately 4 degrees
• The approach rail with embankment CR(L)1641-5-EM is a curved rail with an embankment of radius 1641 mm and a curve angle of 5 degrees, and is an approach rail for introducing a non-canted rail to a canted rail
• Concrete and steel type gate-type single-wire overhead line poles are included
• An overhead bare track pole (steel type) that can be attached to the upper deck girder bridge included with the separately sold <3270> Upper Deck Steel Bridge Set (green) is included

Special Notes

The embankment of this product cannot be used in double stacking.

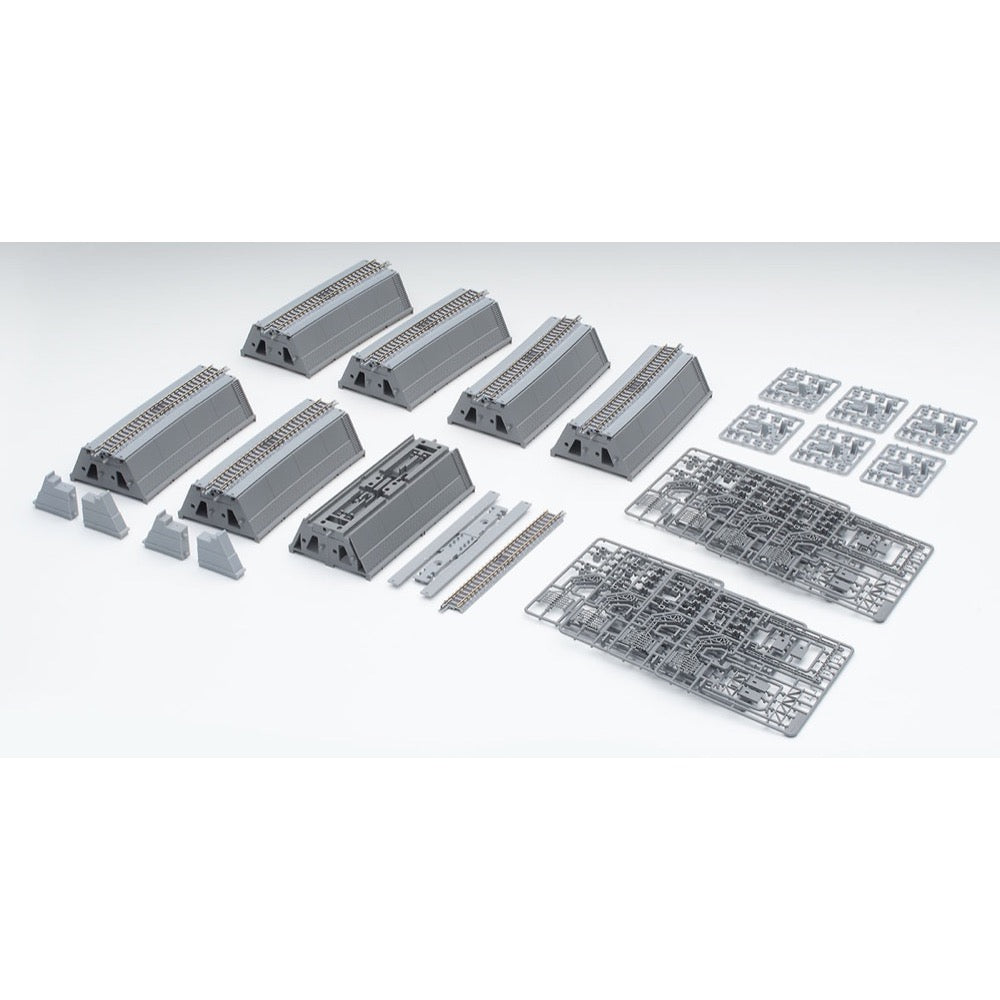

Contents

• Straight rail S140 x 1
• Curved rail with embankment C1641-5-EM x 2
• Approach rail with embankment CR1641-5-EM x 2
• Approach rail with embankment CL1641-5-EM x 2
• Embankment S140 x 2

Accessories

• Runner parts: Gate-type single-line overhead line pole, etc.
• Runner parts: Equipment box, etc.
• Parts: Embankment track bed S140-EM
• Parts: Embankment end A
• Parts: Embankment end B
