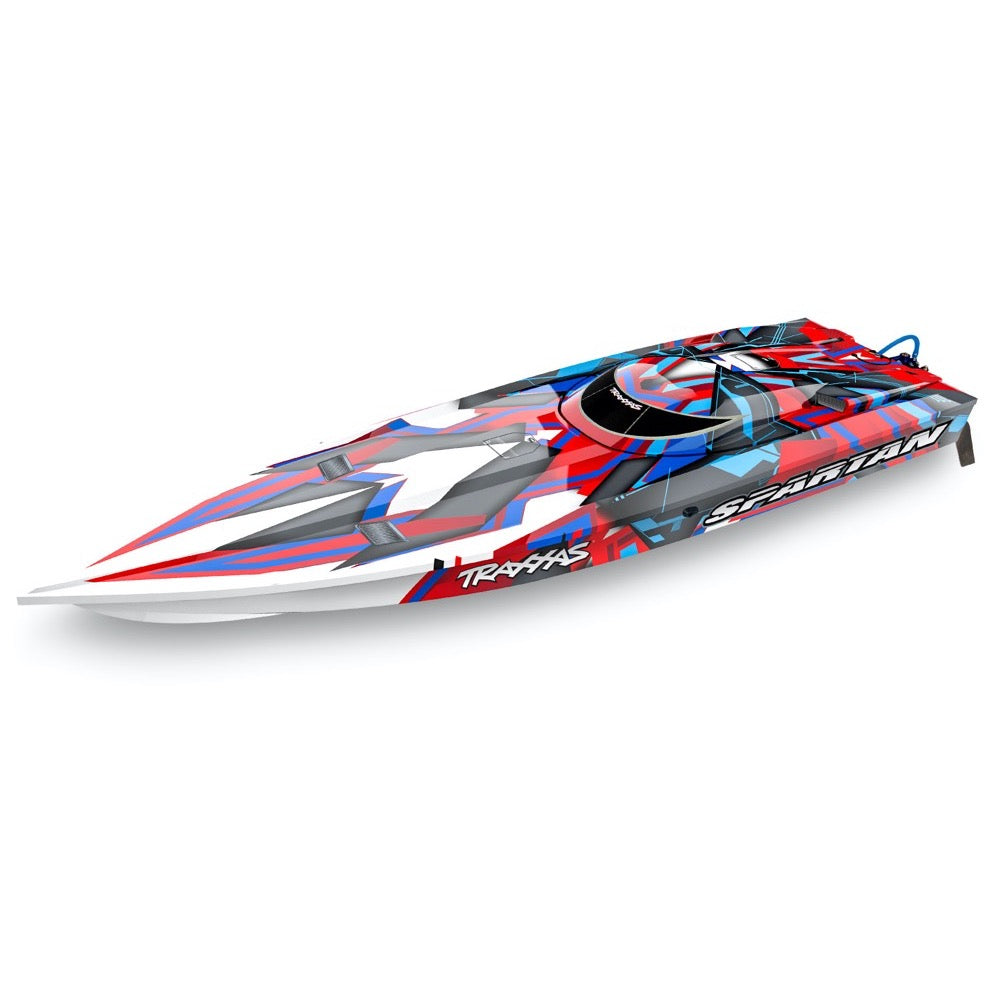

Traxxas 57076-4 Spartan 36in Brushless Muscleboat 1/10 Electric RC Boat Red

Extreme Power and Speed on the Water

Spartan is the kind of boat you expect from Traxxas. Its 50+mph fury makes even the most insatiable, power-hungry enthusiasts jump up and take notice. Spartan means business with its super-rigid, 36-inch deep-V hull, smooth, cable-drive efficiency, innovative water cooling system, and precision aluminum and stainless steel drive controls. The clean, modern hull design is built up in layers for maximum rigidity and its bold paint makes a statement on the water. The integrated battery trays secure a wide variety of battery packs from 8.4V NiMH batteries all the way up to 8400mAh 3s LiPo packs.

A high-output TQi 2.4GHz radio with the innovative Traxxas Stability Management (TSM) system keeps Spartan under complete control as it slices through the water. Spartan delivers the power, speed, convenience, and fun for which Traxxas' award-winning cars and trucks are known. Prepare yourself for the ultimate RC boating power trip, only from Traxxas.

Features

• 30+mph with two 7.4V LiPo packs, 50+mph on 6s LiPo all-out! (batteries sold separately)
• 36" deep-V hull for stable high-speed performance
• Water-cooled, waterproof VXL-6s Marine speed control
• LiPo compatible with built-in Low-Voltage Detection
• Traxxas High-Current Connectors (patented)
• Velineon 540 XL high-output brushless motor with highflow water-cooling jacket
• Quick-release Power Module integrates power system, waterproof electronics, and stuffing tube
• Adjustable battery trays with hook-and-loop straps
• Blue-anodized aluminum rudder support, rudder, and drive strut
• Stainless steel turn fins, trim tabs, and hardware
• Traxxas Stability Management® (TSM)
• Waterproof high-torque steering servo
• Sleek design with factory-applied graphics
• Ready-To-Race®
• Traxxas factory support

TQi 2.4GHz transmitter

• Compatible with optional Traxxas Link Wireless Module (#6511) for full Traxxas Link App capability with Apple iPad, iPhone or iPod touch (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• TQi 2.4GHz 5-channel micro receiver (#6533) with Traxxas Stability Management, fail-safe security and integrated telemetry ports

Ready-To-Race®

Spartan is fully assembled with a TQi™ 2.4GHz radio system, Velineon brushless power system, applied graphics, and detailed instructions. Traxxas backs the Spartan and all of our products with industry-leading support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows Spartan to be serviced with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your RC experience is fun, easy, and fast!

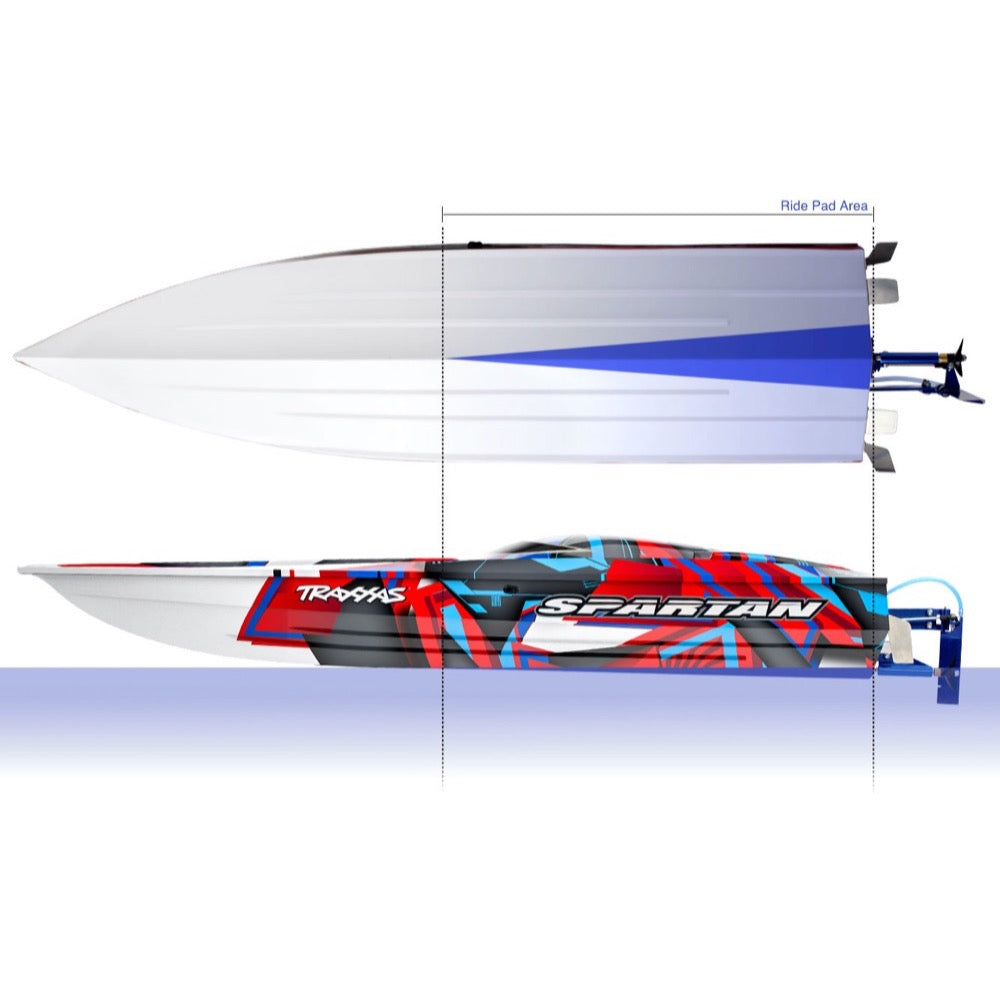

• Hull Type : Deep-V
• Dead Rise Angle : 26 degrees
• Hull Length : 36.5 inches (927 mm)
• Overall Length : 40.8 inches (1037 mm)
• Overall Height : 5.8 inches (147 mm)
• Beam (width) : 9.5 inches (243 mm)
• Weight : 72 ounces (2041 g)
• Speed Control Type : Traxxas Velineon® VXL-6s, water-cooled
• Input Voltage : 7-18 NiMH cells, 4-6 LiPo cells
• (8.4-22.2 volts DC)
• BEC Voltage : 6.0 VDC
• BEC Current : 3A
• Thermal Protection : Thermal shutdown
• Low Voltage Detection : Yes (user enabled)
• Motor (electric) : Traxxas Velineon® 540XL Brushless, water-cooled
• Drive System : Direct drive, 0.150" flex cable
• Outdrive : Adjustable aluminum
• Prop : 2-blade composite, 42x59 mm
• Transmitter : TQi 2.4GHz (2-channel)
• Receiver : 6533 2.4GHz TSM® 5-channel
• Servo : 2056 High-Torque waterproof
• Skill Level : 2
