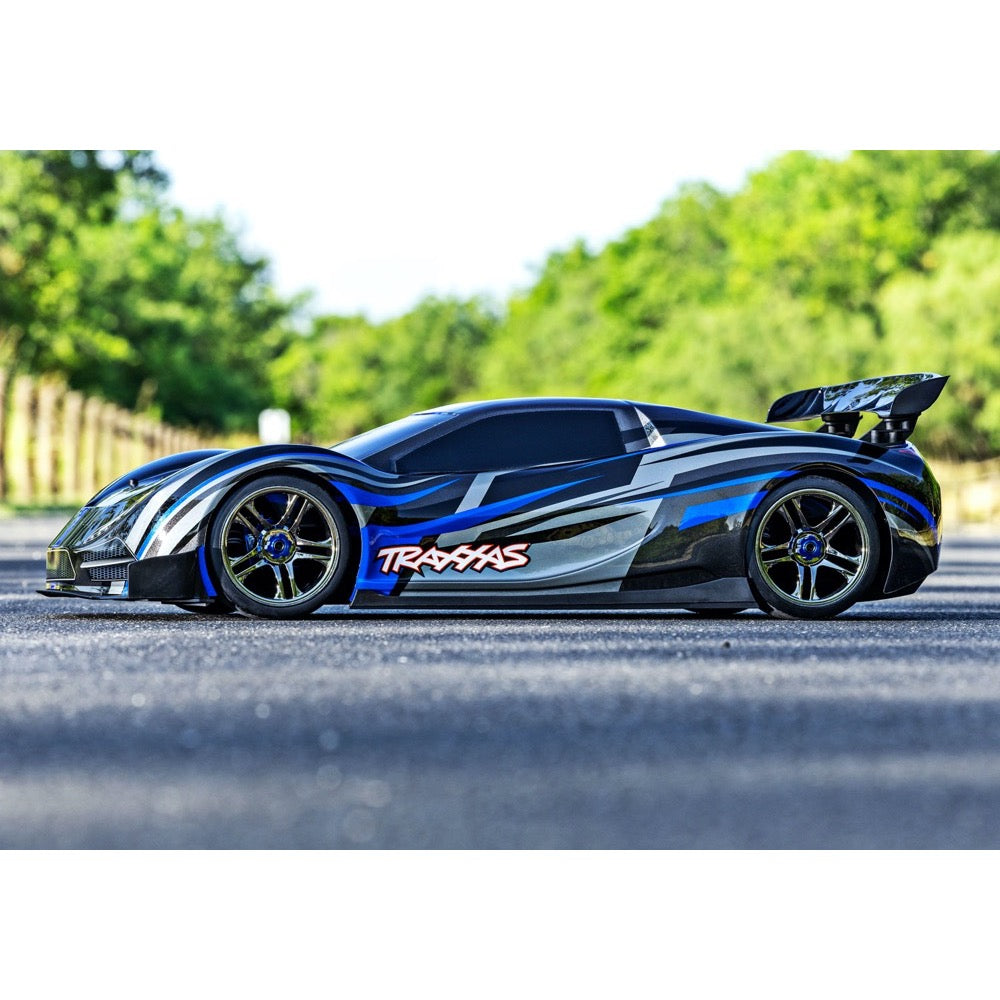

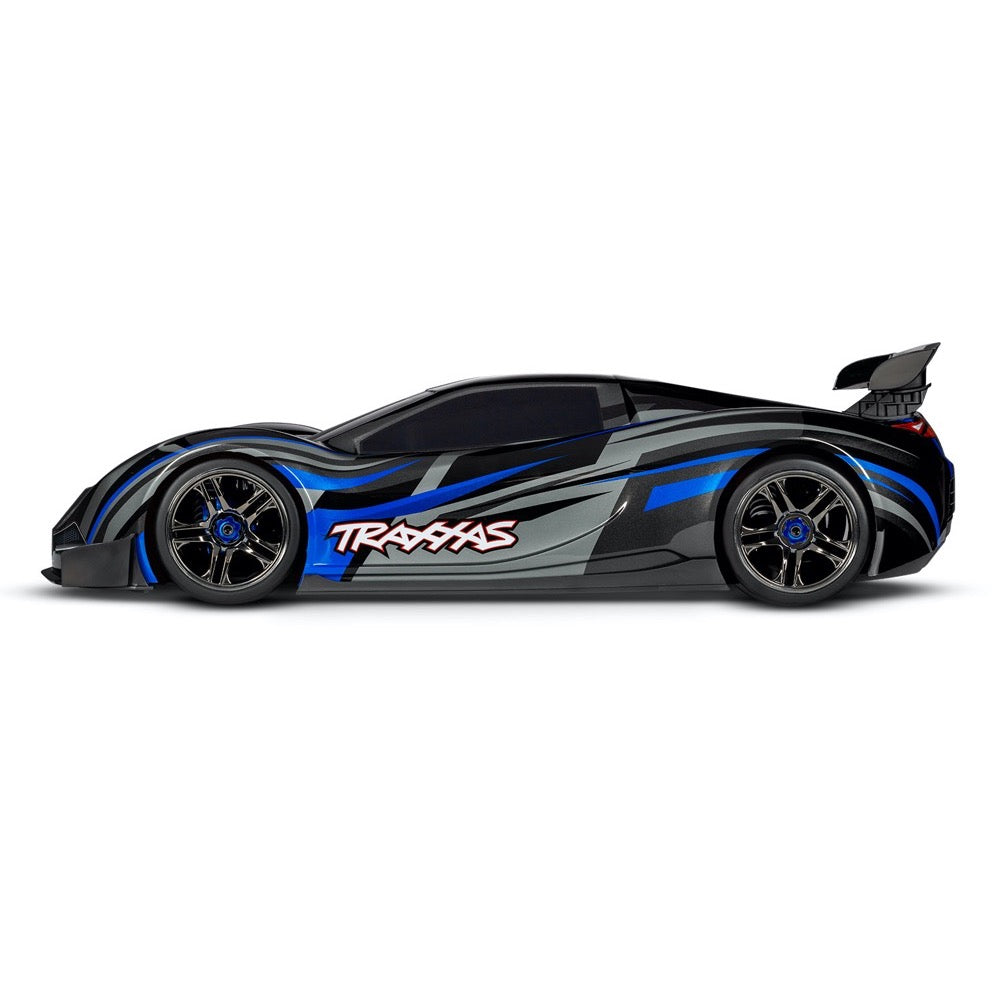

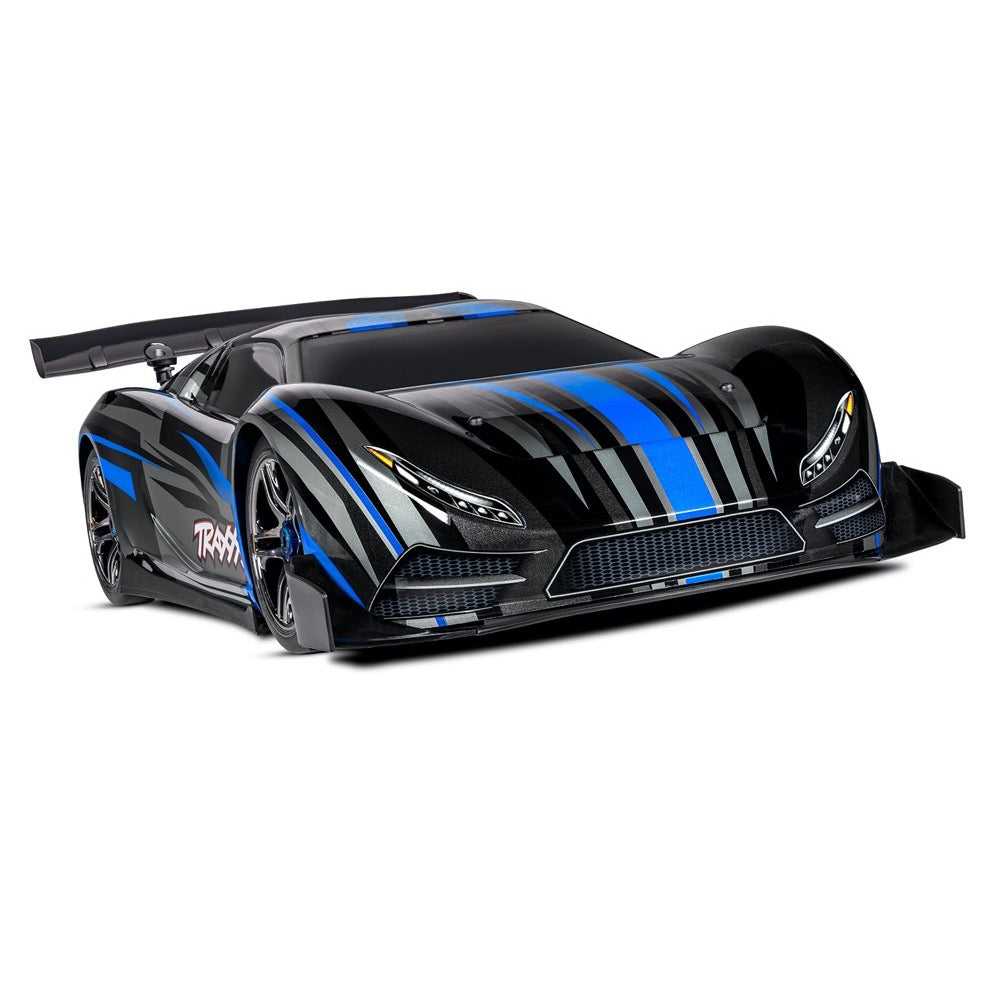

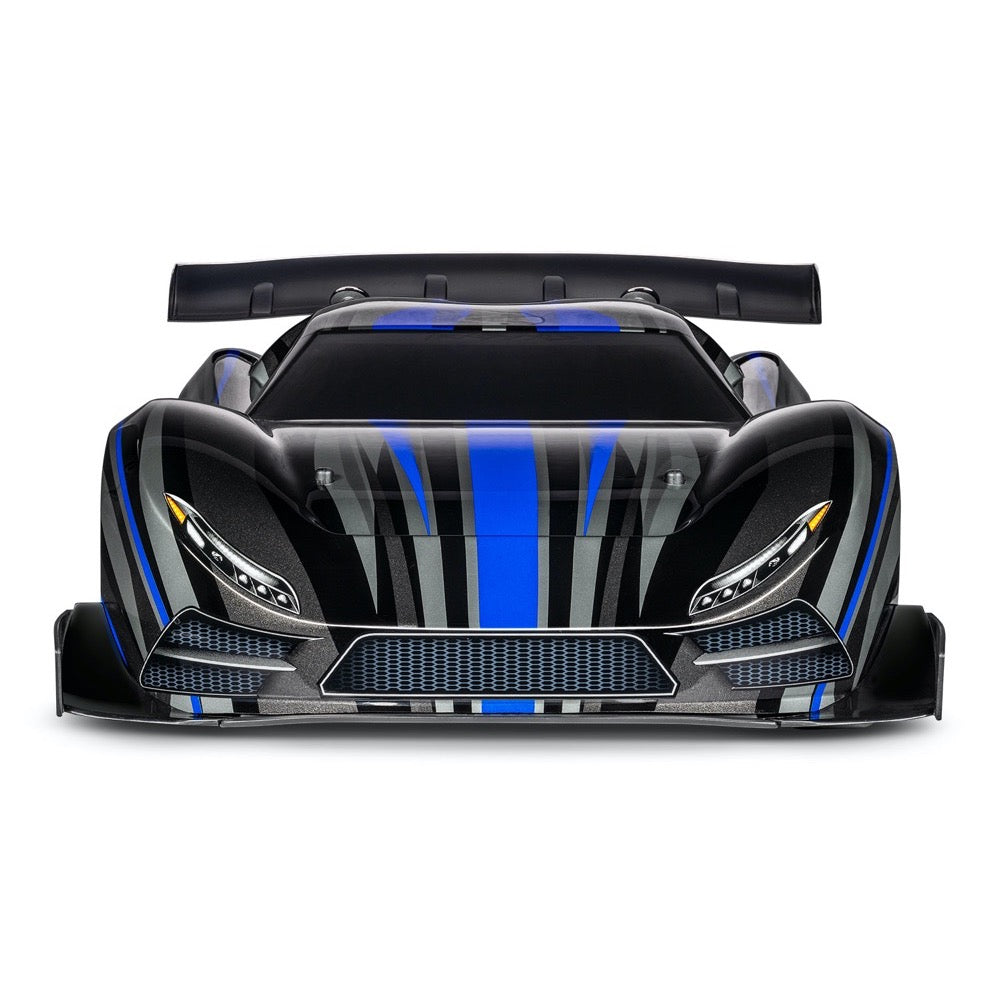

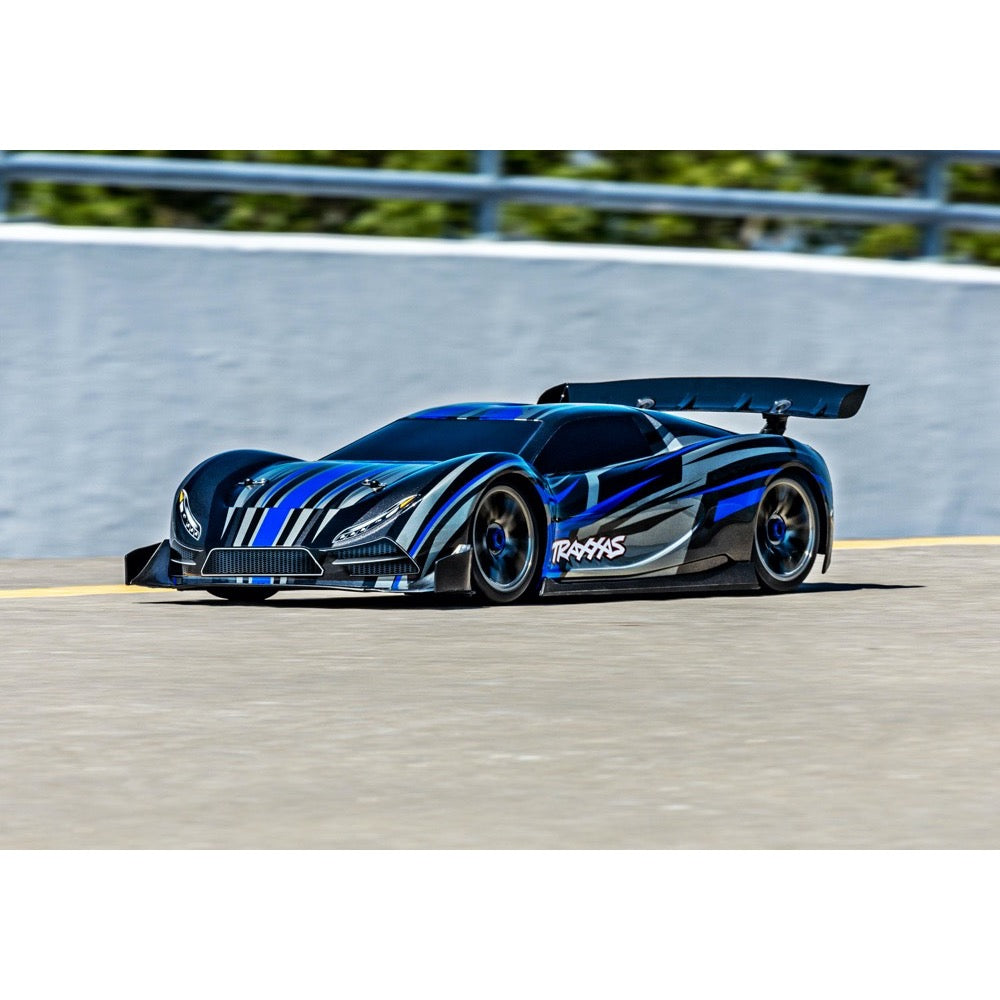

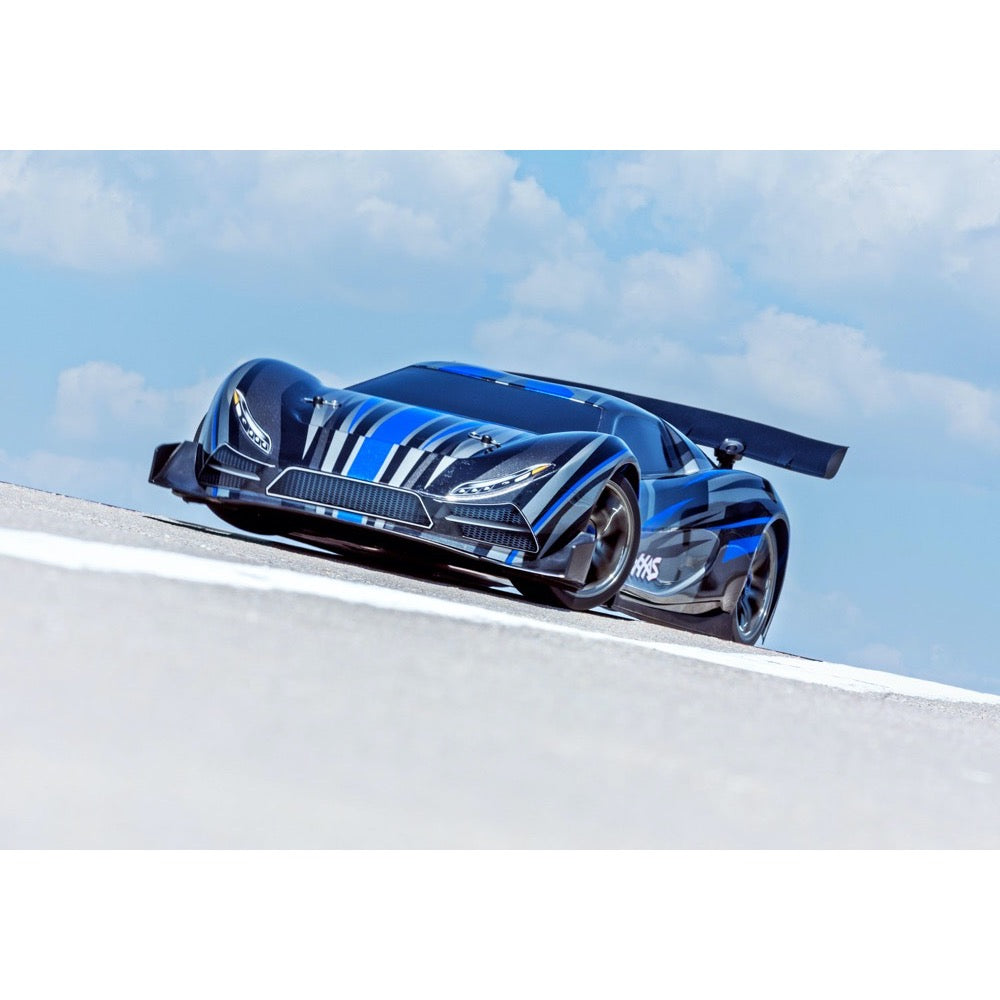

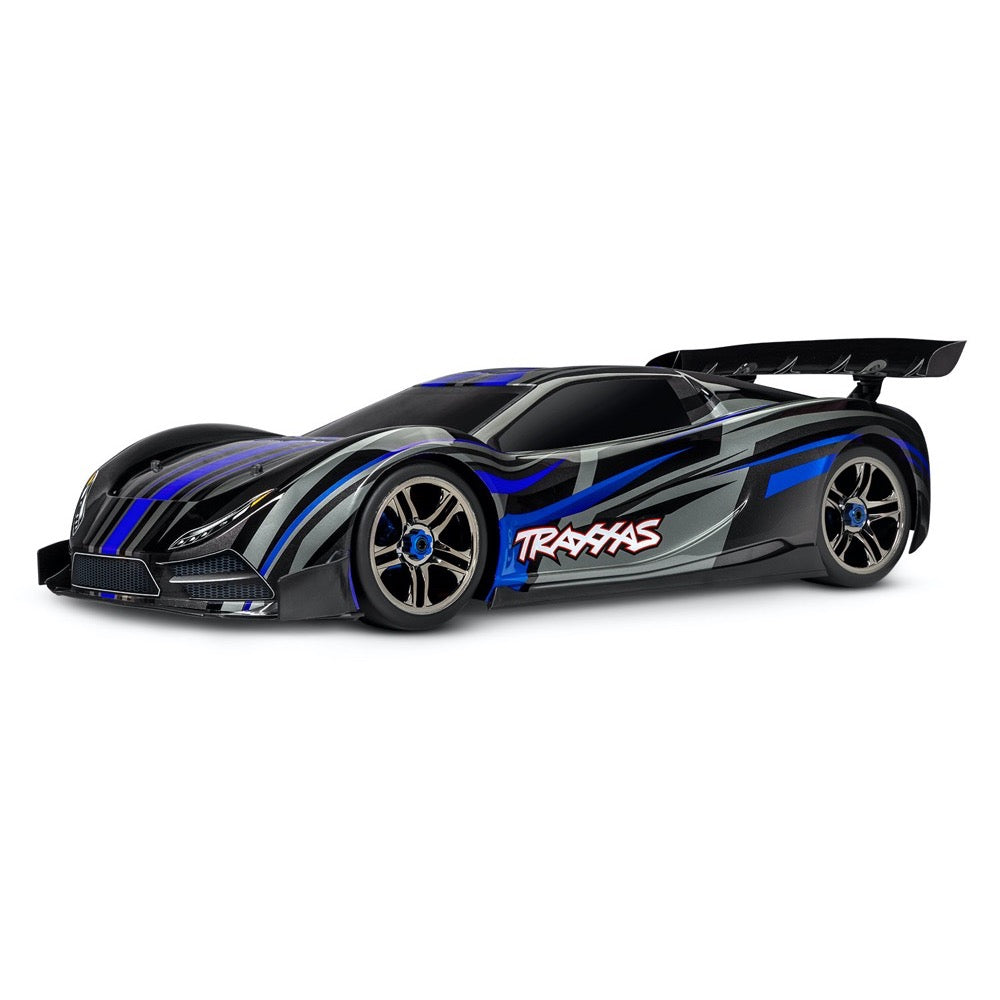

Traxxas 64077-3 XO-1 1/7 AWD RC Supercar (Blue)

The World’s Fastest Ready-To-Race® Rc Supercar

From a dead stop, 60mph flashes by in 2.3 seconds. Keep the throttle pegged and you’ll smash the 100mph barrier in 4.92 seconds. Simply put, XO-1 is the fastest and most outrageous Ready-to-Race® RC car ever created. New aero improvements make XO-1 even easier to drive at the limit and more fun than ever before. If you’re looking for the most extreme RC thrill ride ever to hit the pavement, look no further than Traxxas, The Fastest Name in Radio Control®.

Stable Aerodynamics

From top to bottom, XO-1 is a masterwork of intelligent aero design. The sculpted supercar body slices through the wind for record-breaking speed. New high-downforce canards on the front splitter and a revised rear wing provide superior high-speed stability. A high-tech NACA duct under the chassis routes cool air around the motor with a rear body vent for hot air to escape.

100+MPH Top Speed

The Traxxas XO-1 is a brutally fast hypercar intended for only the most experienced drivers. New aerodynamic improvements make XO-1’s performance more accessible than ever before with predictable straight-line performance and confidence-inspiring handling. Belted slick tires and a revised rear wing keep the XO-1 glued to the pavement whether you’re testing its top speed potential or carving up a tight race course.

Big Block Power

XO-1’s legendary speed wouldn’t be possible without explosive power and XO-1 brings big-block 6s brushless horsepower to the table. Weighing almost two pounds, the massive Traxxas Big Block motor pumps out supercar speed and gut-wrenching torque for brutal acceleration. The finely-tuned Mamba Monster Extreme ESC delivers 25+ volts of ferocious power with scalpel-like precision.

Features

Computer-Optimized Supercar Body

• Large 1/7 scale size for increased stability
• Thick 1 mm polycarbonate body with high-impact ProGraphix® paint
• Functional aerodynamics
• New front splitter design with channels to hold the body in place
• High-downforce canards for high-speed stability
• New high-downforce rear wing for improved balance
• NACA motor cooling duct with rear hot air vent
• Rigid foam bumpers maintain body shape at speed

Extreme Power System

• 100+mph capable with two 3s LiPo batteries and included accessories
• 0-60 mph in 2.3 seconds and 0-100 mph in 4.9 seconds
• Mamba Monster Extreme Power System by Castle Creations
• 6s LiPo capability
• Integrated capacitor bank
• Traxxas Big Block 1717 brushless motor
• 1650 kV
• Finned can design for improved cooling
• Oversize premium bearings
• Largest motor ever fitted to a Ready-to-Race® car

Traxxas Stability Management® (TSM)

• Improves straight line acceleration and braking
• Never dulls throttle or slows the car
• Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4GHz High Output Radio System with Wireless Module

• Includes #6511 Traxxas Link Wireless Module
• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• 5-channel micro receiver (#6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug
• Installed telemetry sensors for real-time speed, RPM, and voltage data

Steering

• Digital high-torque ball bearing 2075 servo
• Metal bellcrank with integrated cam-style servo saver

Suspension

• Oil-filled GTR shocks with height-adjustable threaded aluminum bodies
• White powder-coated performance-tuned springs
• Blue-anodized 6061-T6 aluminum caster blocks
• Blue-anodized 6061-T6 aluminum steering blocks
• Blue-anodized 6061-T6 aluminum axle carriers
• Blue-anodized 6061-T6 aluminum shock towers
• Heavy-duty 4 mm steel turnbuckles
• Impact-resistant heavy-duty suspension arms

Drivetrain

• Machined aluminum motor mount
• Precise gear mesh settings
• Ultimate strength
• Efficient heat transfer
• Steel CV Driveshafts
• Oversize 6 mm axles
• Silicone dust boots
• Hardened steel shafts
• Extruded-aluminum center driveshaft

Transmission

• Large Mod-1 pinion and spur gears
• Exclusive Cush Drive™ absorbs drivetrain shocks

Differentials

• Sealed silicone-filled limited-slip design
• Heavy-duty reinforced carrier
• 5 mm output shafts

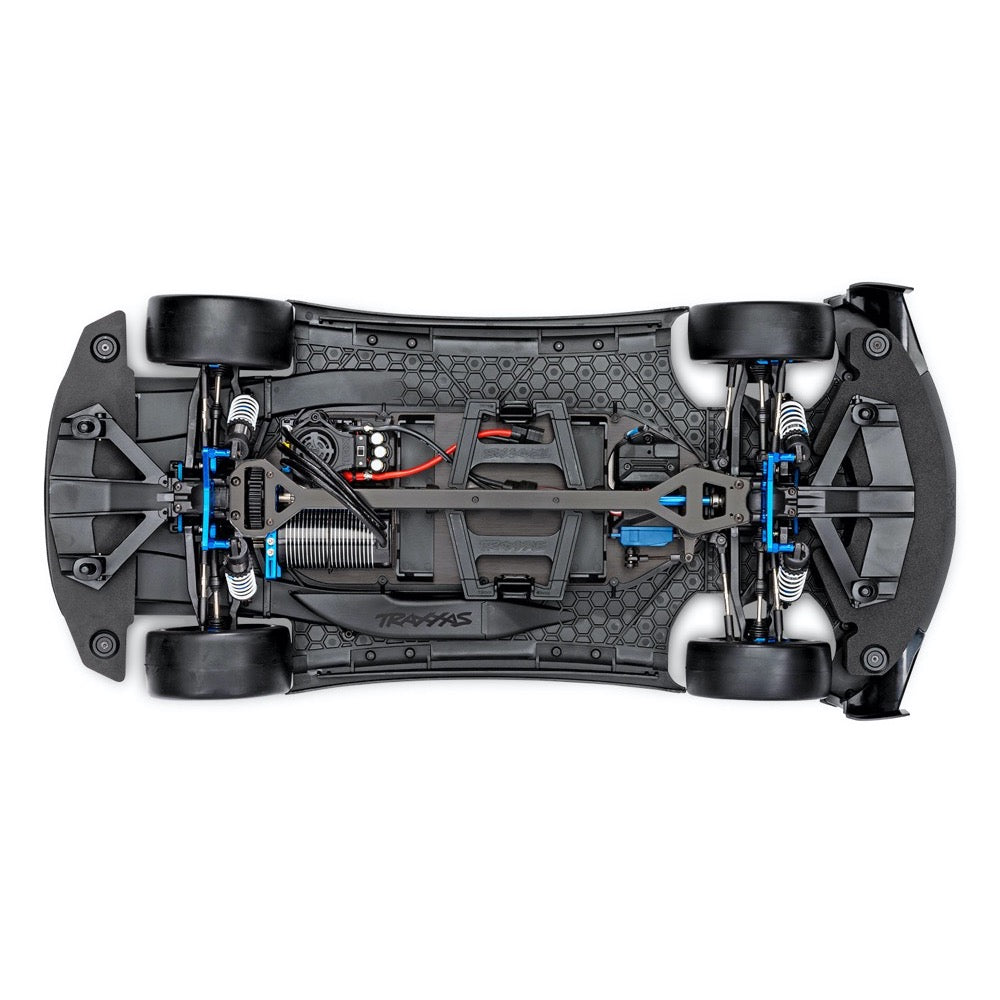

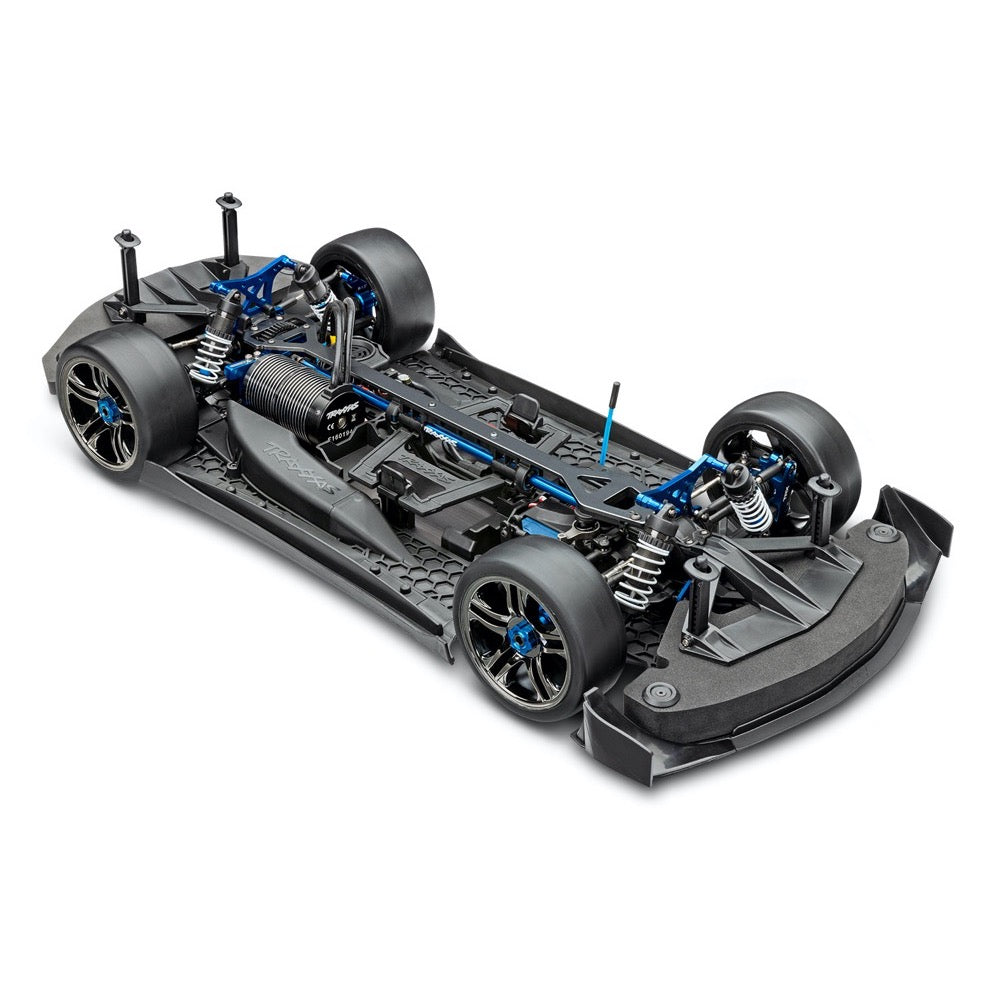

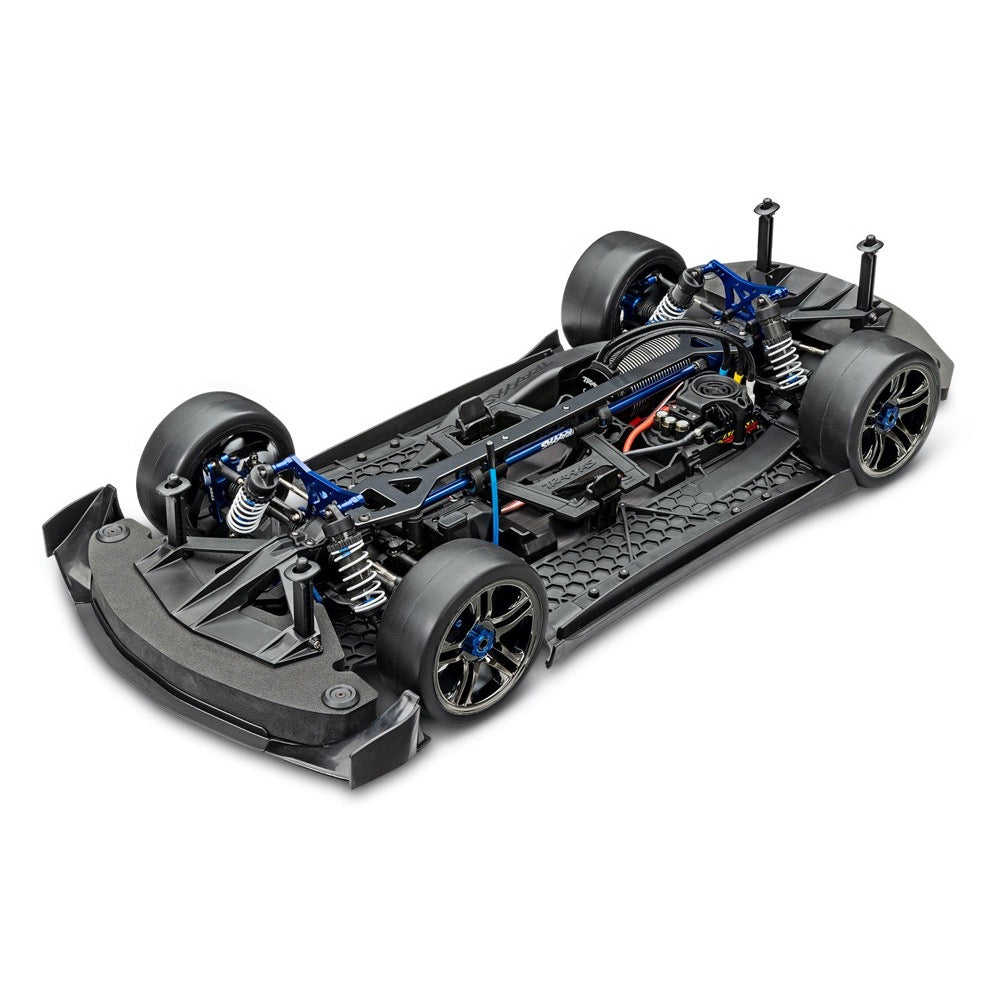

Chassis

• 3 mm Dark titanium-anodized 6061-T6 aluminum upper and lower chassis plates
• Dual scalable snap-lock battery compartments
• Keys into front and rear bulkheads for completely smooth undertray

Wheels and Tires

• Heavy-duty 17 mm splined blue-anodized aluminum hex hubs and wheel nuts
• 118+mph-rated belted slick tires with contoured foam inserts
• Large 2.8” black chrome Split-Spoke wheels with keyed 17 mm hubs

High-quality sealed ball bearings

Hex hardware with rust-resistant black oxide coating

Contents

• XO-1 Supercar with Mamba Monster Extreme ESC and Traxxas Big Block motor
• TQi™ 2.4GHz radio system with installed Traxxas Link wireless module
• Quick Start Guide
• Optional 34-tooth top speed gear

Requires

Batteries and Charger

XO-1 requires dual 2s or dual 3s LiPo batteries. See full list of compatible batteries. Use the Dual 3s Completer Pack (#2990) for maximum performance and convenience.

Mobile Device Running Free Traxxas Link App

Get real-time telemetry on your mobile device with the app and unlock top-speed mode for 100+mph performance. See Traxxas Link requirements here.

AA Alkaline Batteries

Four AA alkaline batteries for the transmitter.

• Length : 27 inches (686mm)
• Front Track : 11.81 inches (300mm)
• Rear Track : 11.81 inches (300mm)
• Ground Clearance : 0.59 inches (15mm)
• Weight : 8.6lbs (3.9 kg) (w/o batteries)
• Width (overall) : 13.0 inches (329mm)
• Height (overall) : 5 inches (127.5mm)
• Wheelbase : 15.9 inches (404mm)
• Shock Length : 3.3in (83mm) front, 3.4in (86mm) rear
• Front Tires (pre-glued) : Belted slick
• 4.29in (109mm) x 1.7in (43mm)
• Rear Tires (pre-glued) : Belted slick
• 4.29in (109mm) x 2in (51mm)
• Wheels (front & rear) : 3.3in (84mm) Split-Spoke™ (black-chrome)
• with 17mm splined hex
• Speed Control : Castle Mamba Monster Extreme forward/reverse/brake
• Motor (electric) : Traxxas Big Block Brushless (1650 kV)
• Transmission : Single-speed with Cush Drive™
• Overall Drive Ratio : 9.36 (stock, out-of-box)
• Differential Type : Sealed hardened steel bevel
• Gear Pitch : Module 1.0
• Chassis Structure/Material : 3mm plate, dual plane, 6061-T6 aluminum
• Brake Type : Electronic
• Drive System : Shaft-Driven 4WD
• Steering : Dual-Bellcrank with steel arm
• Radio System : TQi™ 2.4GHz Radio System with Traxxas Link Wireless Module
• Receiver : TSM® Receiver (#6533)
• Servo : #2075 High Torque Waterproof
• Top Speed : 50+mph out of box; 100+mph with high-speed wing, speed gear, and Traxxas Link app unlock
• Skill Level : 10
• Battery Tray Dimensions : 155mm / 50mm / 29mm (adjustable height and length)
• Required Batteries & Charger : Two Traxxas iD® Power Cell LiPo batteries (LiPo, 3-Cell 5,000 mAh), 4 "AA" (transmitter), Traxxas iD® LiPo Battery Charger
