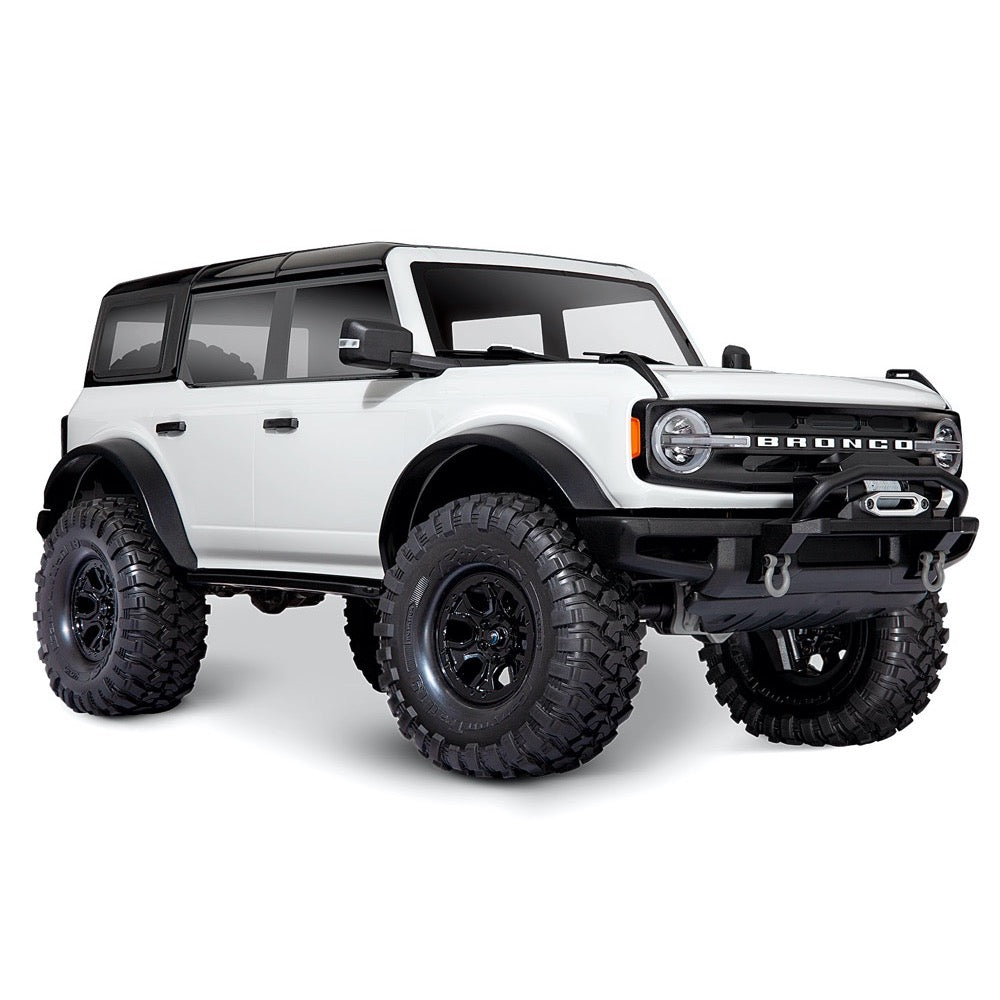

Traxxas 92076-4 TRX4 1/10 2021 Ford Bronco Trail Crawler Oxford White

An Off-Road Legend Returns

The legend is back. After 25 years, the Bronco has returned as Ford’s top-performing 4X4 and America’s most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.

Innovation

Radically innovative technology combines with precision engineering to create a completely new breed of scale crawler…Only from Traxxas.

Details

The TRX-4’s extreme off-road capability lies in the technology beneath its rugged exterior.

Contents

• TRX-4, Ready-To-Race® model
• XL-5 HV waterproof electronic speed control
• Titan™ 21T reverse rotation motor
• TQi™ 2.4GHz radio system with cruise control
• High quality maintenance tools

Requires

Batteries

TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.

Charger

Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).

AA Alkaline Batteries

Four AA alkaline batteries for the transmitter.

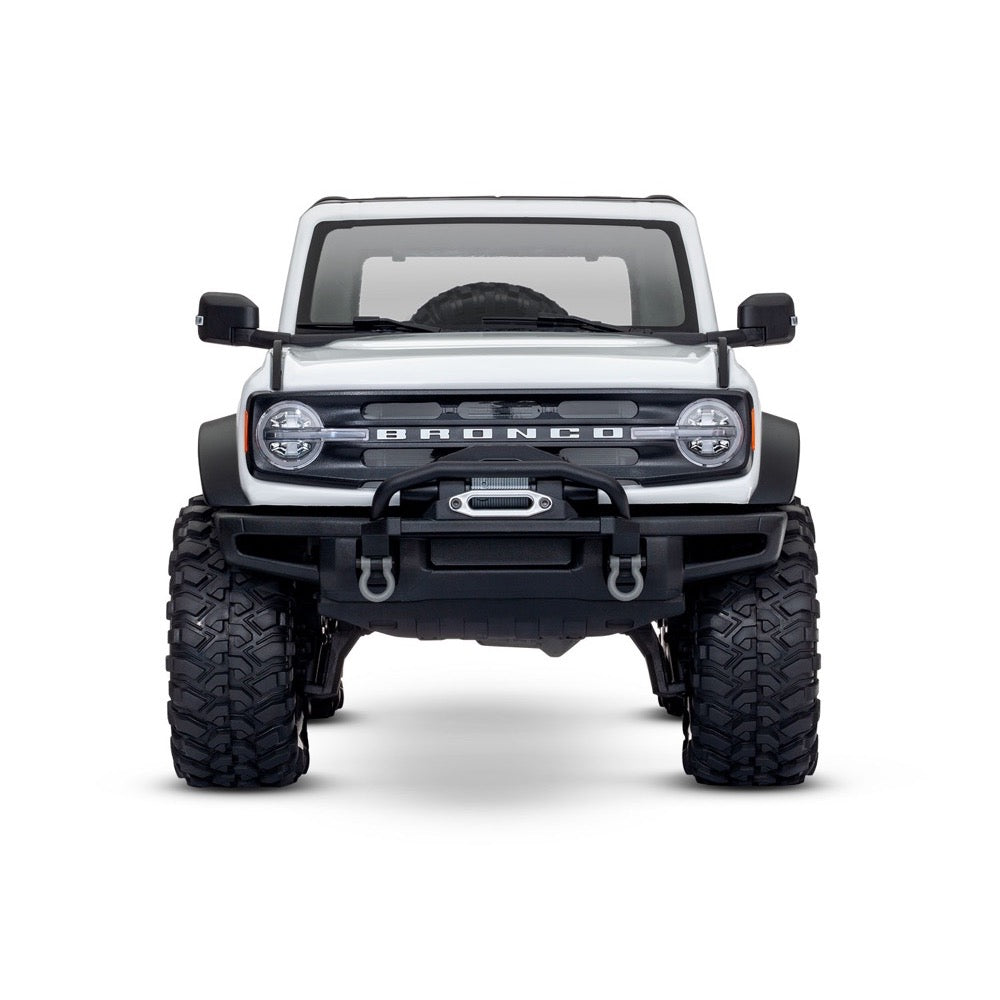

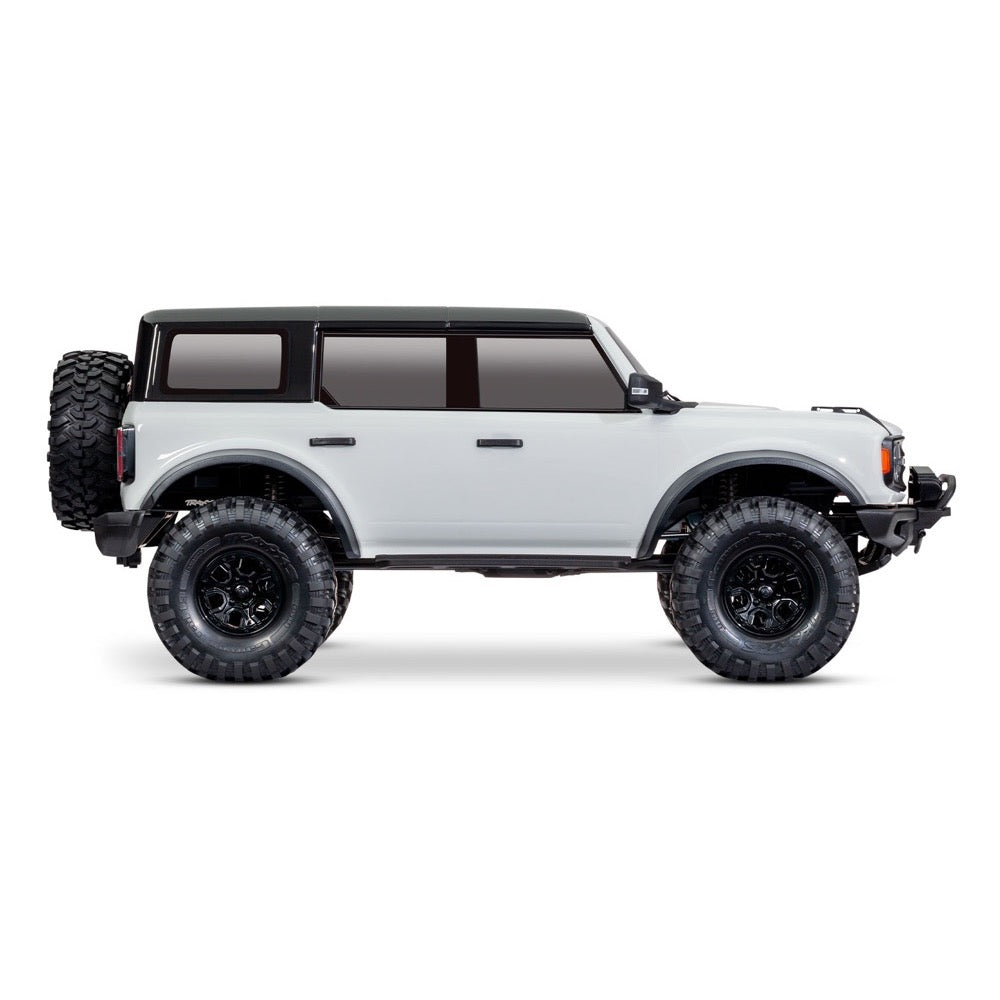

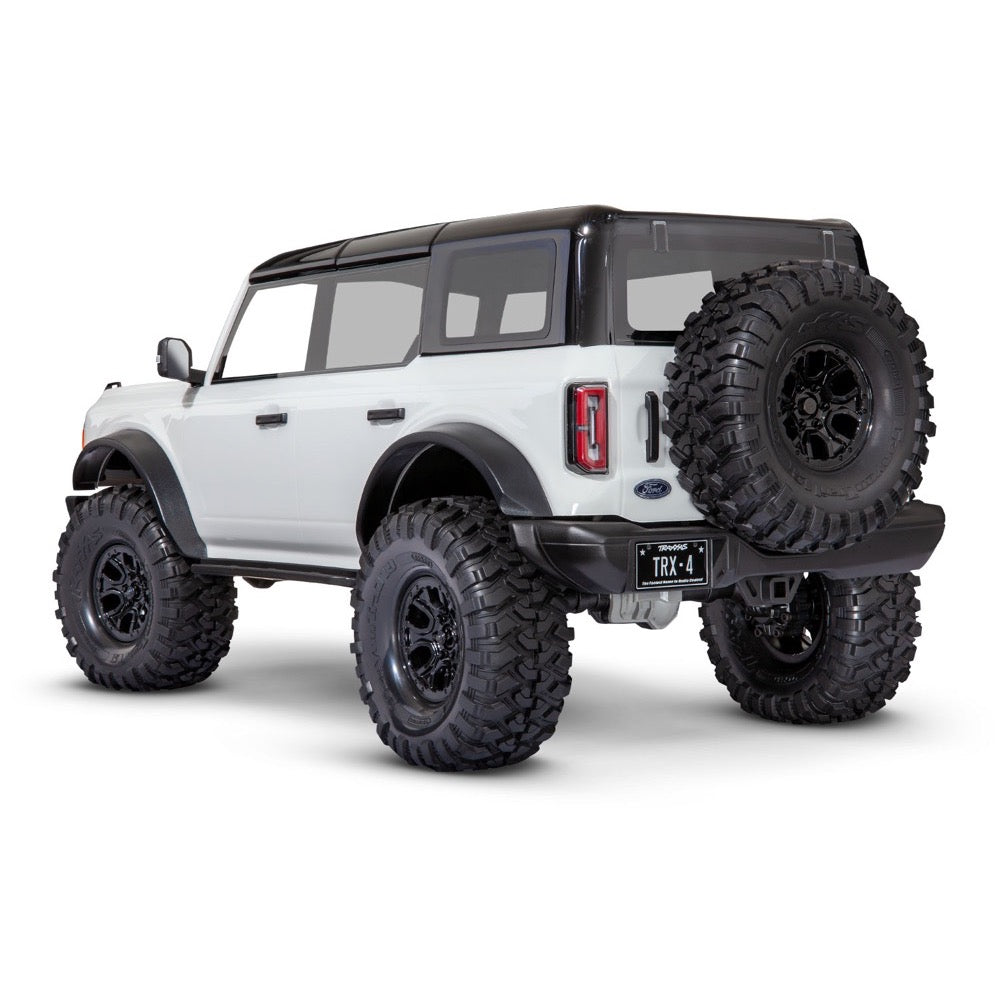

Officially Licensed 2021 Ford® Bronco Body

• Two-tone paint with black roof and clear windows
• LED-ready headlights and tail lights with multi-function capability

Scale details

• Black molded grille with white Bronco logo
• Replica hood cowl w/ wipers and folding mirrors
• Replica spare tire mount
• Replica door handles
• Tough PVC fender flares, wheel wells, and floor pans
• Front and rear Bronco bumpers with skid plate and replica winch

Clipless Body mounting

• Clipless design for smooth body appearance
• Rugged internal body cage for added rigidity
• Body details mount directly to internal frame

Trail-tuned XL-5 HV Waterproof Electronic Speed Control

• Fully waterproof design

Five drive profiles

• Sport Mode — forward / brake / reverse
• Race Mode — forward / brake / no reverse
• Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
• Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
• Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake

Traxxas EZ-Set® one-button setup

Large, efficient heat sink

Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)

Two stage low voltage protection (LVD)

Motor

• Powerful Titan™ 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh

Portal Axles

• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

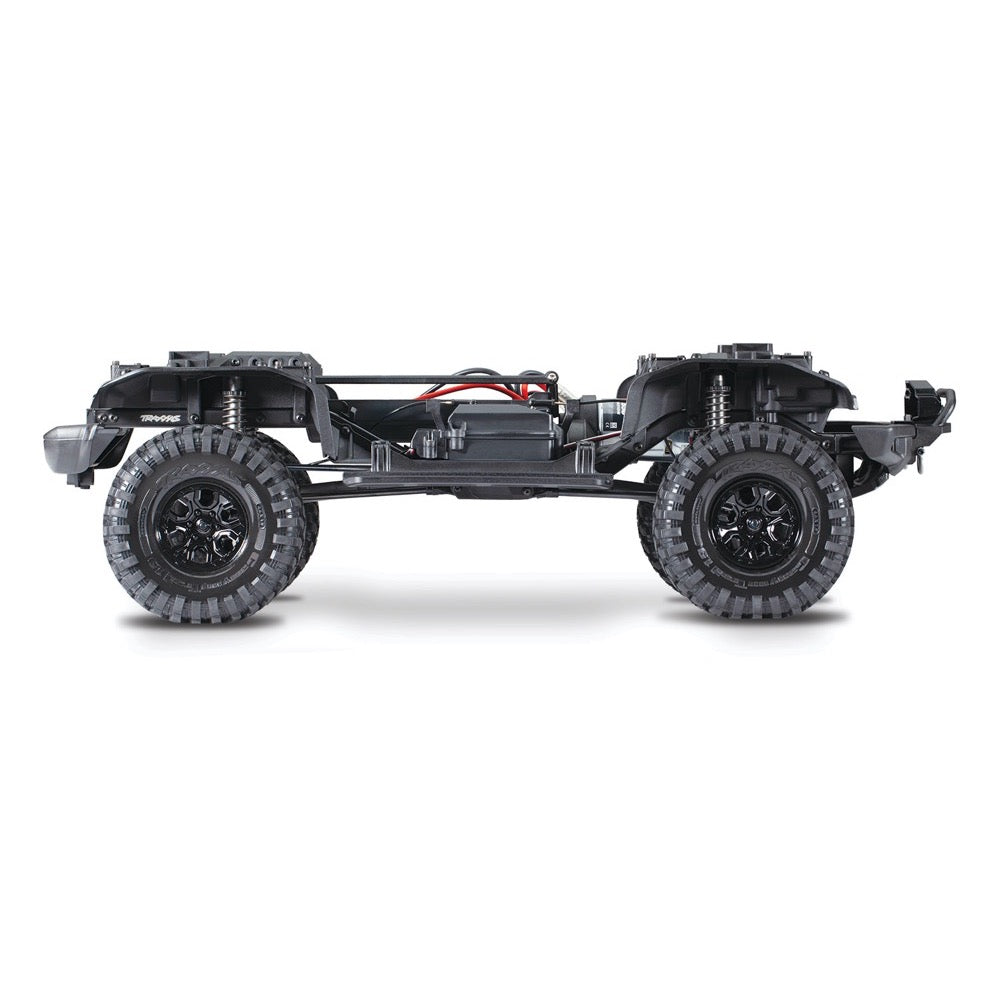

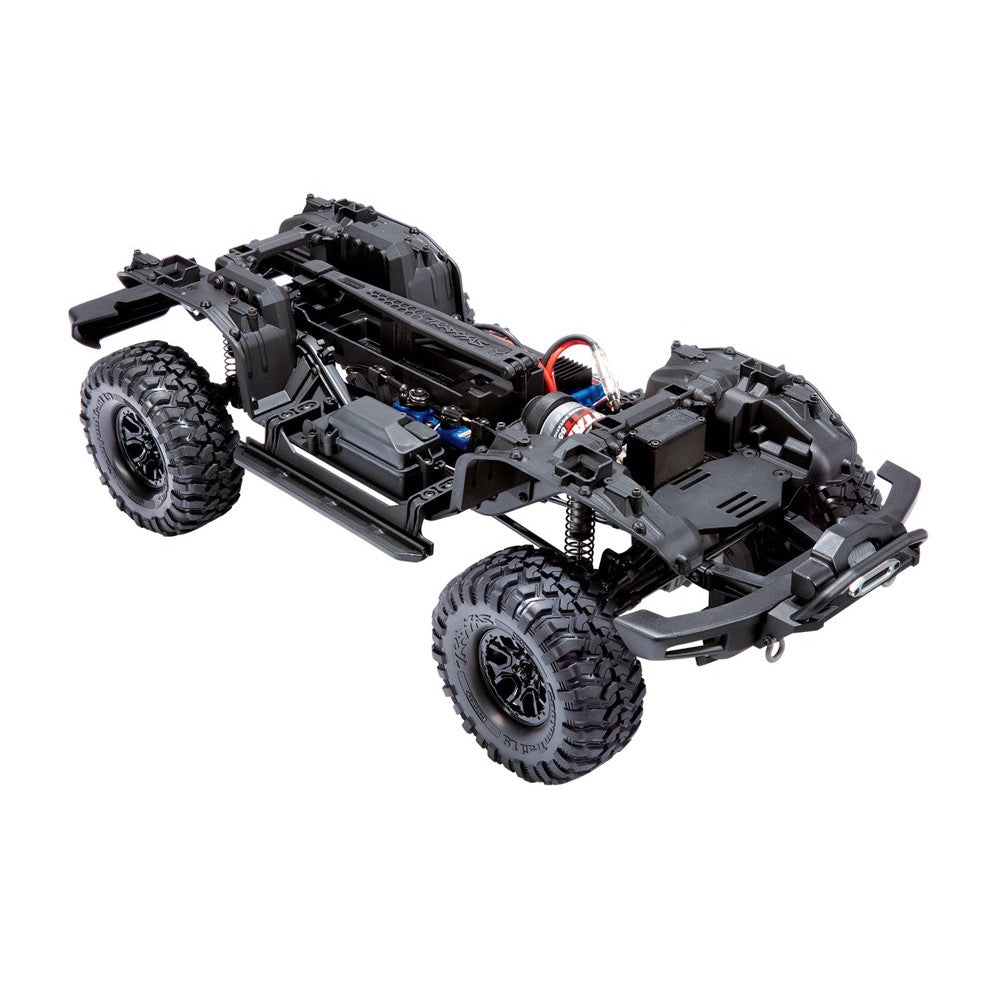

Rigid Steel Frame

• 1.5mm thick steel frame rails increase torsional rigidity
• Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails

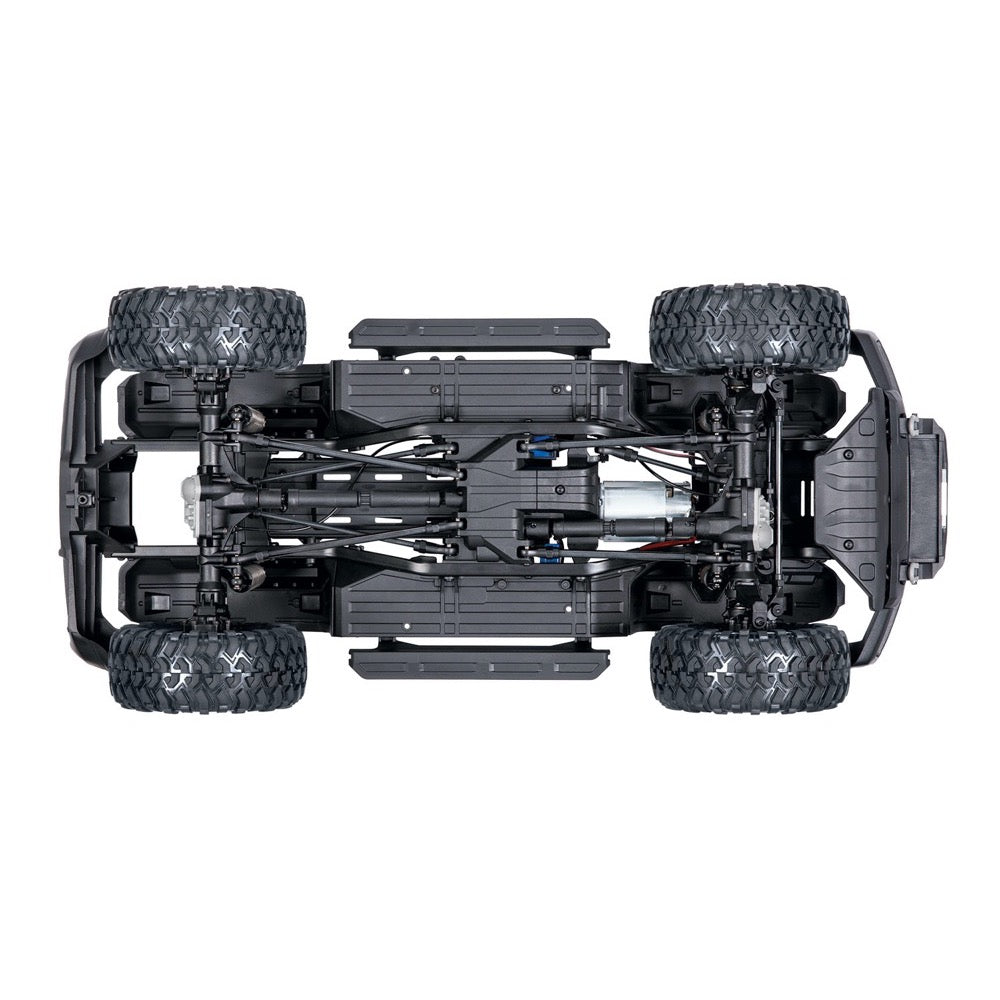

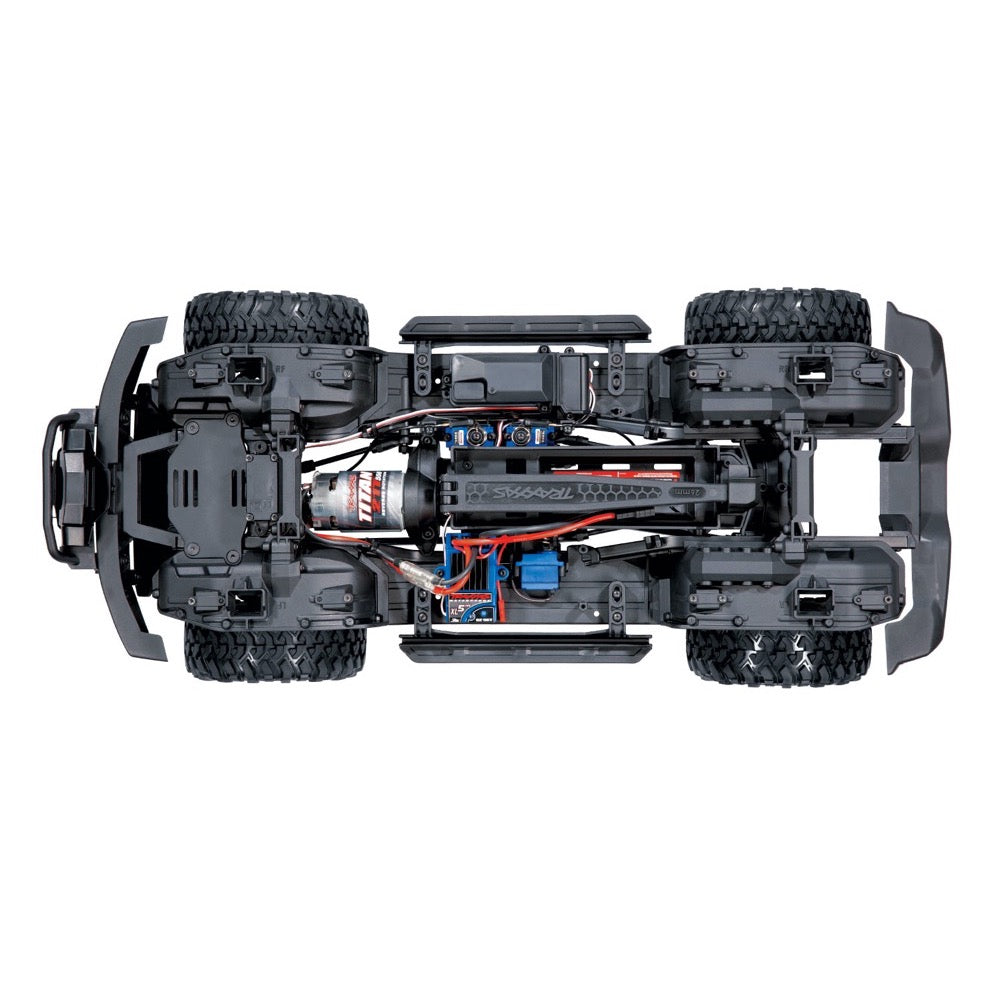

Drivetrain

• Full-time shaft driven 4-wheel drive
• Tough 6mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case

Innovative Battery Compartment

• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
• Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

Transmission

• Two speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing

Steering

• Chassis mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer

Suspension

• Front — 3 link with panhard
• Rear — Triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5mm diameter steel link rods with 4mm threaded ends

Aluminum GTS Shocks

• Oil-filled coilover GTS shocks
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals

Wheels and Tires

• Replica black 2021 Bronco wheels
• Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
• Trail tuned S1 rubber compound
• 12mm steel hex

Transmitter

• TQi™ 2.4GHz 4-channel transmitter
• Traxxas Link enabled
• Telemetry ready #6533 5-channel micro receiver with failsafe
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Exclusive Cruise Control feature for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints

Patented O-ring sealed watertight receiver box keeps the micro receiver dry

Sealed Ball Bearings

Hex hardware with rust-resistant black oxide coating

• Length (overall) : 22.98 inches (584mm)
• Length (chassis) : 21.59 inches (549mm)
• Front Track : 9.78 inches (249mm)
• Rear Track : 9.78 inches (249mm)
• Ground Clearance : 3.14 inches (80mm)
• Weight : 6.42lb (2.91kg)
• Height : 9.4 inches (239mm)
• Wheelbase : 12.8 inches (324mm)
• Front Shock Length : 3.54 inches (90mm)
• Rear Shock Length : 3.54 inches (90mm)
• Front Wheels : 1.9 x 1.02 inches (49 x 26mm)
• Rear Wheels : 1.9 x 1.02 inches (49 x 26mm)
• Front Tires : 4.64 x 1.89 inches (118 x 48mm)
• Rear Tires : 4.64 x 1.89 inches (118 x 48mm)
• Approach Angle : 52°
• Departure Angle : 49°
• Breakover Angle : 58°
• Hex Size : 12mm
• Speed Control : XL-5 HV
• Motor (electric) : 21T Reverse Rotation
• Transmission : 2-speed Hi-Lo, Remote Shifting
• Gear Pitch : 32P
• Differential Type : 4 Gear, Remote Locking
• Chassis Structure / Material : Steel Ladder Frame with Nylon Composite Crossmembers
• Brake Type : Electronic “Hill Hold”
• Drive System : Shaft Driven 4WD
• Steering : Chassis Mounted Servo
• Servo : 2075X Metal Gear
• Transmitter : TQi™ 2.4 GHz 4-Channel Transmitter
• Receiver : 6533
• Skill Level : 1
• Battery Tray : 158.75 L x 47 W x 23/26mm H
