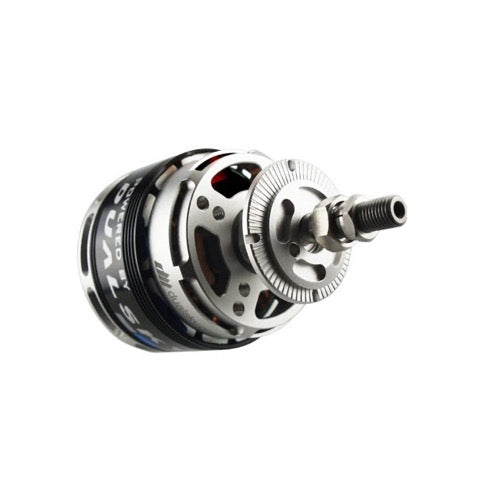

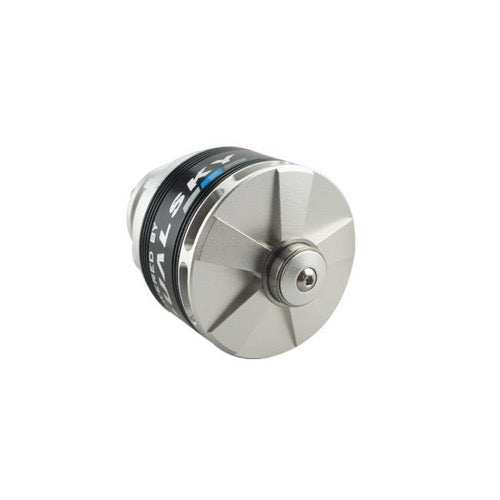

Dualsky XM6352DA-26 220kv Competition F3A Motor

Dualsky XM6352DA-26 Competition F3A motor, 220kV

Features

• XM6352DA V4, corresponding to 3000 watts class, suitable for lightweight F3A airplanes and up to 12kg gliders
• New curved magnets. Torque in the middle RPM range is increased by 12% to 15% (compared to DA V3 motor)

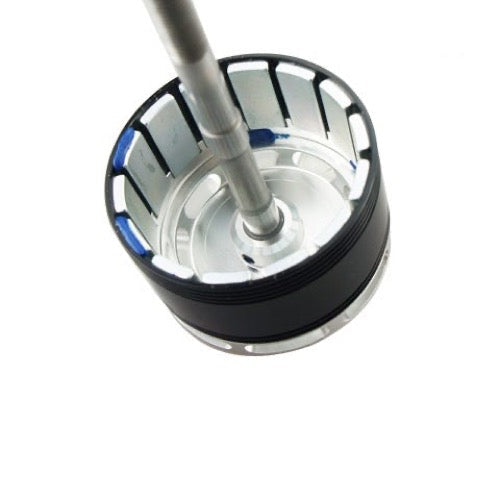

• Hollow shaft and lightweight parts, the overall weight is reduced by 7-10%.
• With 3 EZO bearings and precisely balanced rotors, the motors can be maintenance-free up to 1000 flights.
• Optimized rear support bearing (mount)
• The total length of the two types of motor are uniform, the accessories are interchangeable, and they can be replaced seamlessly.

Specification

• RPM/V (KV): 220
• Stator (DxL): 5322
• Weight: 490g
• Ri (mOhm): 43
• Io @ 10V (A): 0.7
• Voltage: 40 V
• Peak Current (W): 75 A
• Peak Power (W): 3000
• Torque (N*M): 4.07
