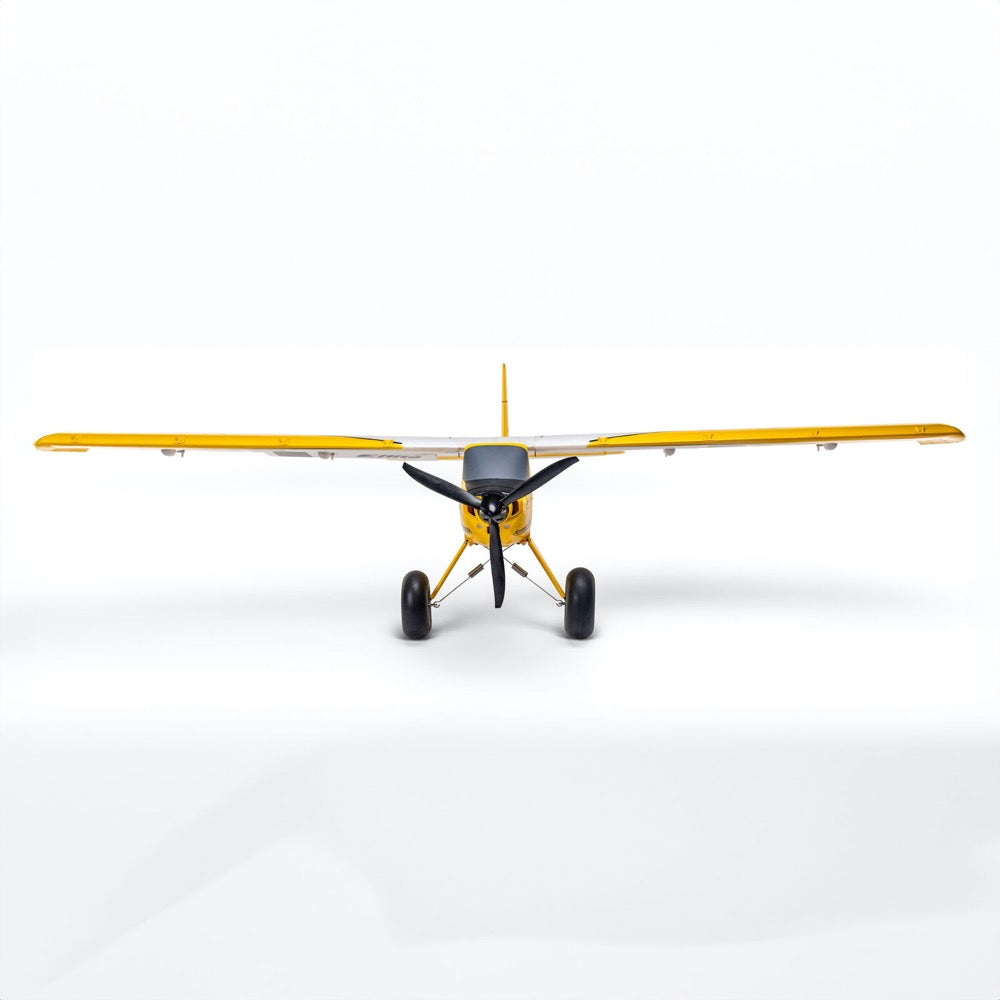

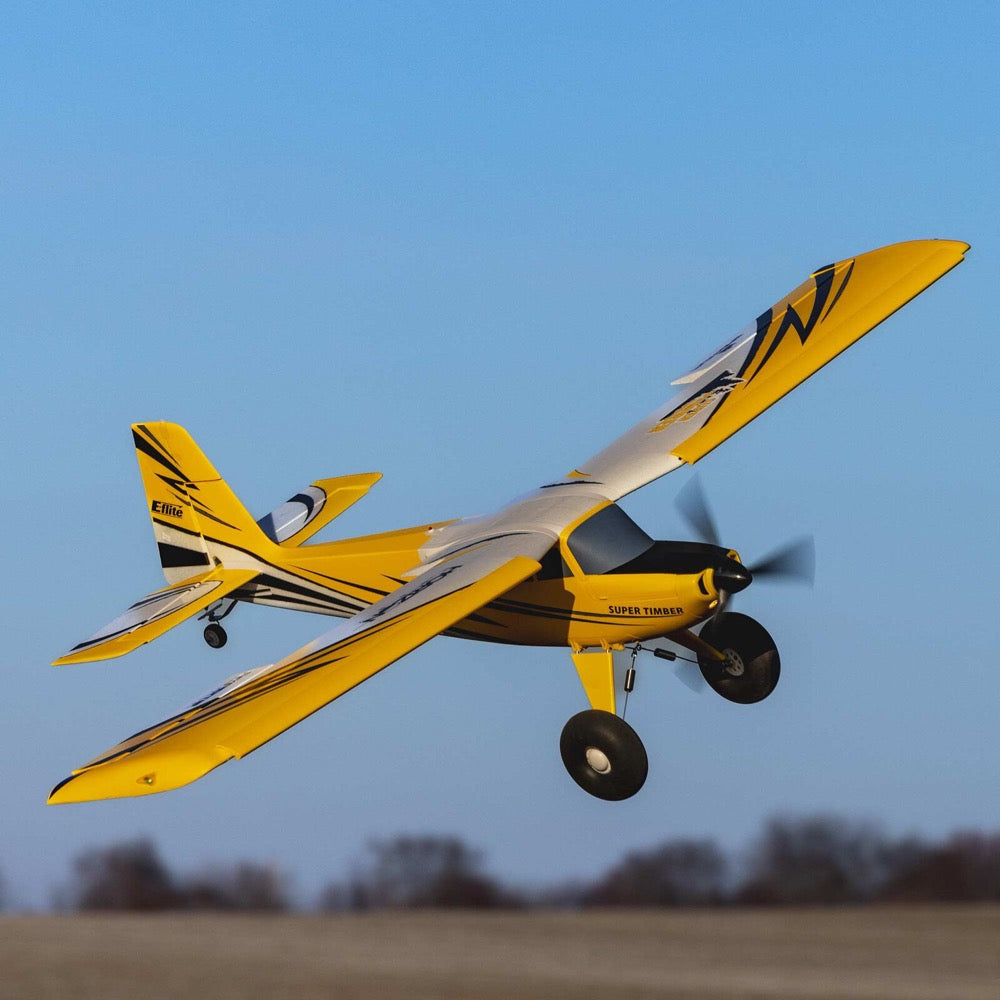

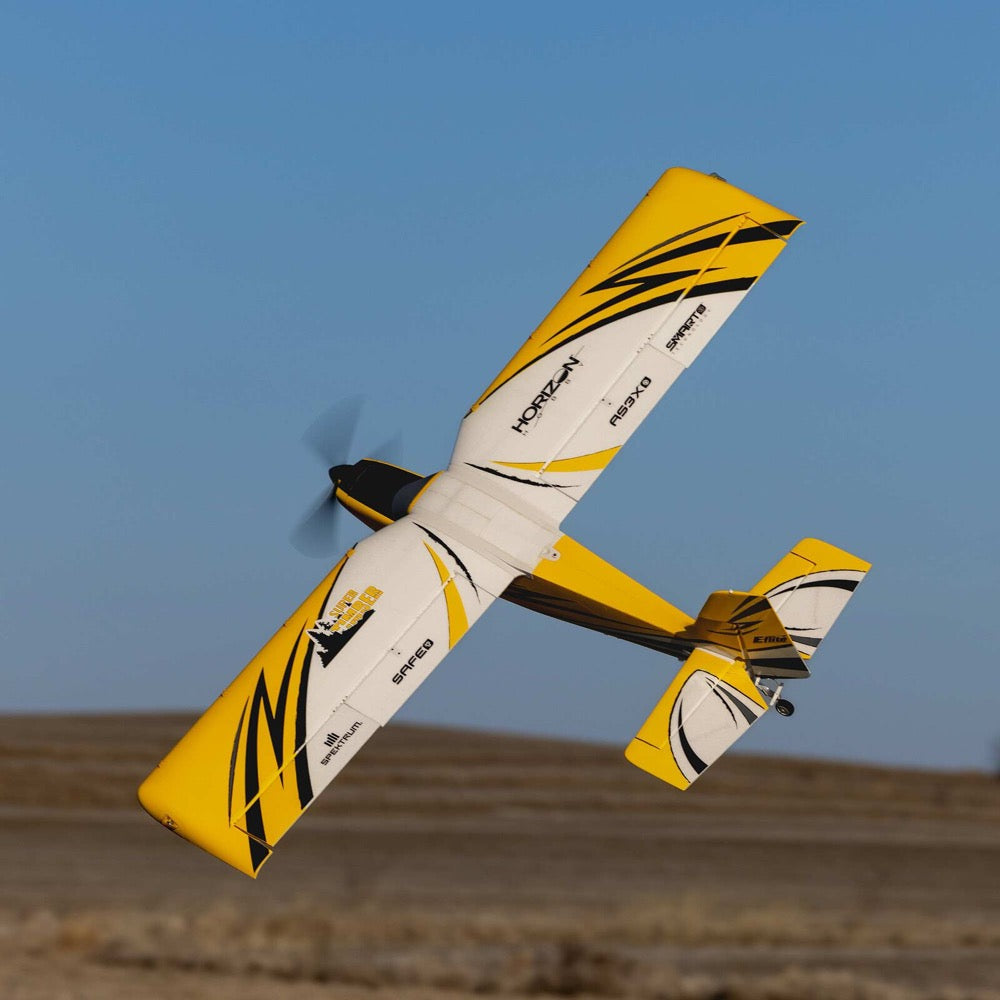

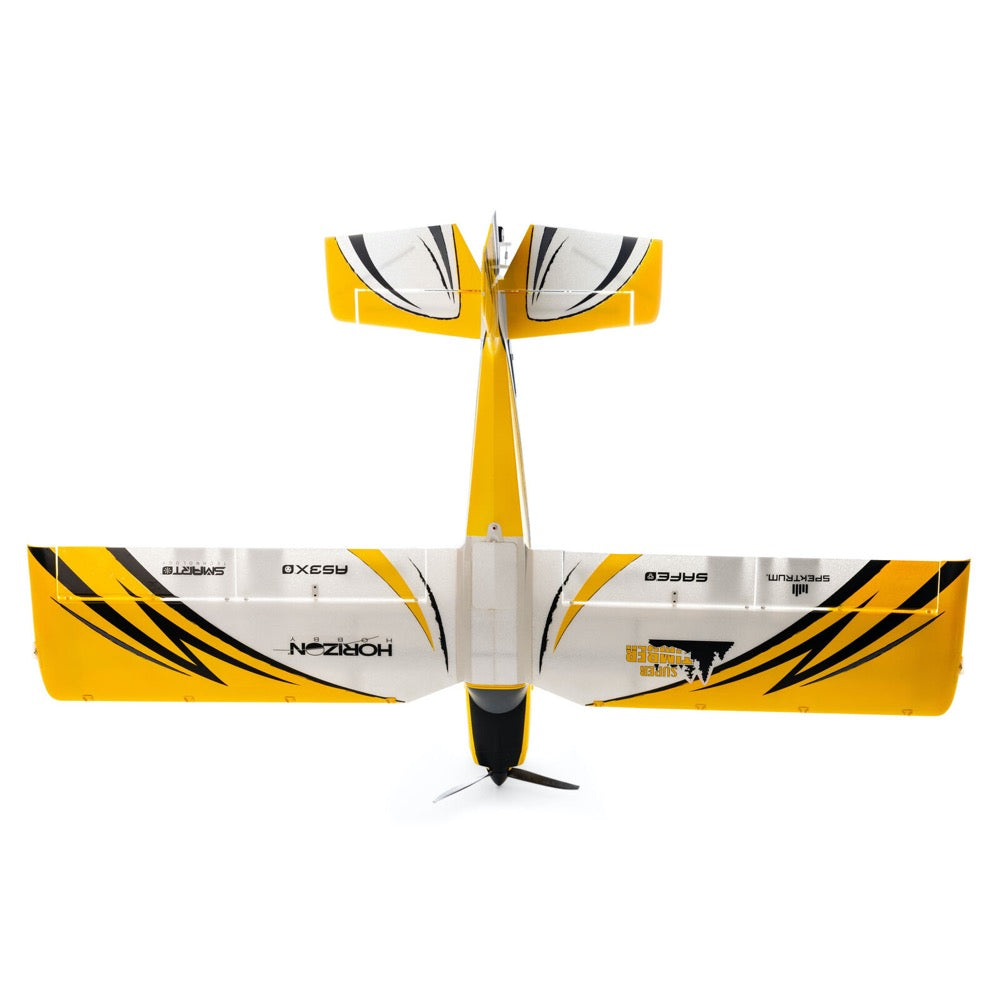

E-Flite Super Timber 1.7m STOL RC Plane (BNF Basic) EFL02550

Much like how the Super Cub and Super Decathlon are more feature-rich, powerful, and capable versions of the original designs, the E-flite® Super Timber® 1.7m is the same when compared to the world-renowned and best-selling Timber models that came before it. It’s not only larger than the Timber X 1.2m, Turbo Timber 1.5m, and Twin Timber 1.6m models but also features a more flexible and powerful 4S to 6S compatible power system. Plus, it’s equipped with even more “super” features and capabilities that set it apart from all the rest including inflatable tires with beadlock wheels, heavy-duty and articulated shock-absorbing landing gear, slats that can be installed without glue and removed easily in seconds, fastener-free wing and tail attachment, and more. It’s the most feature-rich, capable, and best flying Timber model to date which makes it perfect for everything from slow and easy cruising to sport and all-out aerobatic flying – along with the incredible STOL capabilities a wide range of pilots have come to expect.

The E-flite Super Timber 1.7m is equipped with a long list of “super” details that make it the most feature-rich and capable Timber yet! Starting with inflatable tundra tires and unique beadlock wheels mounted on heavy-duty articulated and shock-absorbing landing gear that are angled forward to help prevent nose-overs. It’s the best and strongest landing gear that’s ever been installed on a Timber model to deliver maximum durability and STOL capability when flying from almost any terrain! The optional-use slats can be clipped into place without the use of any glue, then can be removed and even reinstalled in seconds. All the LED lights you’ve come to expect are there, along with additional position and landing lights for added visibility. The horizontal stabilizer halves snap into place, plus the plug-in wing panels featuring hands-free servo connections are secured with innovative wing lock mechanisms so no fasteners or tools are required to install/remove them. There’s even a custom-designed clip in the fuselage that holds the wing joiner tube so you never forget it when the wing is removed for more convenient storage and transport! The digital, metal-geared servos deliver precise and reliable control of the oversized control surfaces for added authority, including flaps that can travel both ways for additional capabilities such as optional-use full-span ailerons.

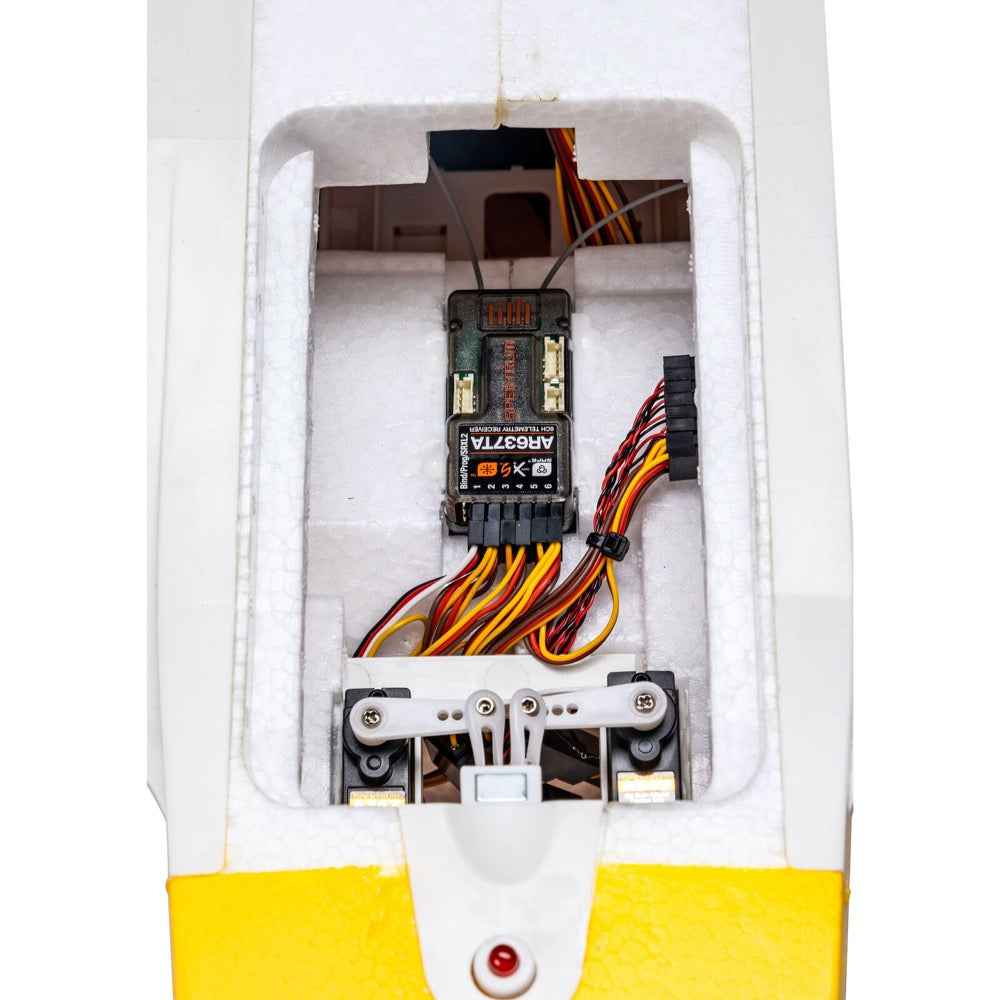

A specially tuned motor is matched to an exclusive 85-amp Spektrum Avian Smart Lite ESC that can provide a variety of real-time power system telemetry data with Smart and non-Smart batteries via compatible receivers (including the AR637TA installed in the BNF® Basic version) and Spektrum AirWare™ equipped transmitters. The BNF® Basic version is equipped with an AR637TA receiver to provide full-range, real-time telemetry data, including overall battery voltage, ESC temp, and more — plus motor/thrust reversing for special ground handling and other capabilities — along with the benefits of AS3X® and optional-use SAFE® Select technologies. The Super Timber 1.7m also features a large top hatch for faster, easier battery changes using a quick-release, multi-position battery mounting tray that fits most 4S to 6S 3200–5000mAh batteries. You even have the option to install floats (sold separately) to fly from ponds and lakes! All these super details and features add up to make this the best Short Take Off and Landing (STOL), everyday sport, and even aggressive aerobatics capable model for a wide range of pilots.

Features

• A long list of “super” details makes this the most feature-rich, capable, and best flying Timber model to date

• Incredible Short Takeoff and Landing (STOL) plus sport and aerobatic flight capabilities for a wide range of pilots

• Specially tuned Spektrum brushless motor compatible with 4S to 6S batteries without the need for modifications

• Popular and common 3200–5000mAh batteries deliver a wide range of performance and flight times

• Convenient top hatch plus a quick-release, multi-position mounting tray for easier battery changes

• 85-amp Spektrum Avian Smart Lite ESC provides real-time battery voltage, current, and other data via compatible receivers and transmitters

• Optional-use motor/thrust reversing for special ground handling and other capabilities including shortened rollouts after landing

• Spektrum AR637TA receiver with full-range telemetry and industry-leading
• DSMX® technology

• Easier to fly with innovative and optional-use SAFE® Select flight envelope protection

• The unmatched stability and locked-in feel of exclusive AS3X® technology

• Six durable and factory-installed digital, metal-geared servos for precise and reliable control

• Optional-use leading-edge slats that clip into place without glue for quick and easy installation/removal

• Inflatable rubber tires with beadlock wheels plus heavy-duty articulated and shock-absorbing landing gear

• Plug-in wing panels featuring hands-free servo connections and innovative wing lock mechanisms, so no fasteners are required to install them

• Composite wing joiner tube plus a custom-designed clip in the fuselage to hold the joiner when the wing panels are removed

• Oversized control surfaces with double-beveled hinge lines for added control and aerobatic capabilities

• Functional flaps that can travel both ways for optional use as full-span ailerons

• Includes hardware to mount the optional float set (sold separately) to fly from water

• Functional and factory-installed LED landing, navigation, and strobe lights

• Lightweight yet durable composite-reinforced EPO construction

• Fast and easy assembly – no glue required

Skill Level 2 – Some Experience Required

Skill Level 2 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up, and fly similar class models. And although this BNF Basic version is equipped with optional-use SAFE Select, it's not a suitable first-ever RC aircraft for new pilots, or "next step after a trainer" model for low-time RC pilots. You should have the experience and skills necessary to successfully fly STOL-capable models like the E-flite Timber X 1.2m, Turbo Timber Evolution 1.5m, Twin Timber 1.6m, or other similar class models before attempting to fly the Super Timber 1.7m.

Exclusive Technologies

This model is equipped with exclusive Spektrum™ AS3X® and SAFE® Select technologies. AS3X works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you're flying an even larger airplane. Optional-use SAFE Select offers pitch and bank angle limits along with automatic self-leveling that can be turned on and off at the flip of a switch to make it easier to take off, fly and land!

Smart Technology

Both the PNP and BNF Basic versions of the Super Timber 1.7m are equipped with an exclusive Spektrum Avian 85A Smart Lite ESC that can provide a variety of real-time power system-related telemetry data, including overall battery voltage, motor RPM, current draw, and more – with Smart and non-Smart batteries – via compatible receivers (including the AR637TA installed in the BNF Basic version) and Spektrum AirWare™ equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20, and others) while you fly. It also features optional-use motor/thrust reversing to offer special ground handling and other capabilities.

Super Power

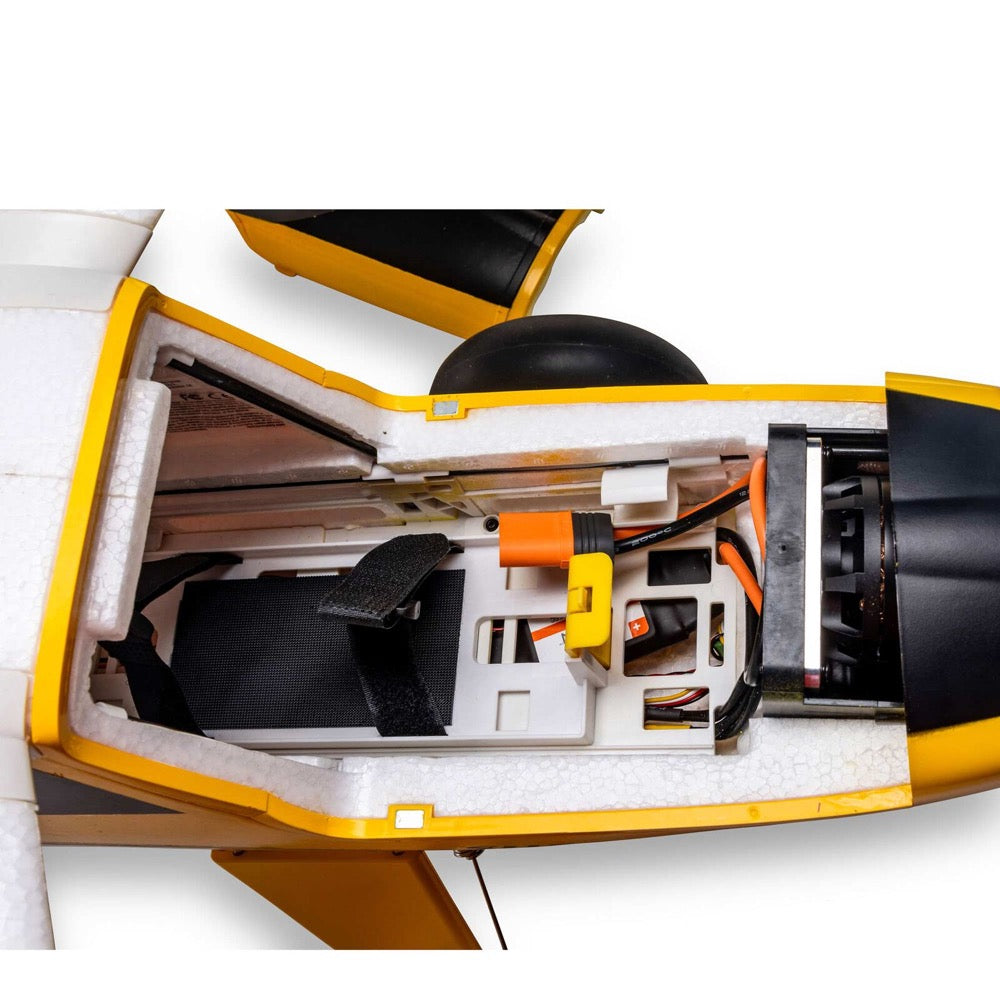

The factory-installed Spektrum brushless outrunner motor is 4S to 6S compatible to offer a wide range of “mild to wild” performance – from sport flying and basic aerobatics with 4S batteries to hovering and unlimited vertical performance with 6S batteries! The convenient top-mounted and magnetically secured hatch plus a quick-release, multi-position mounting tray makes it easy to install and remove common and popular 3200–5000mAh batteries.

Super Capable

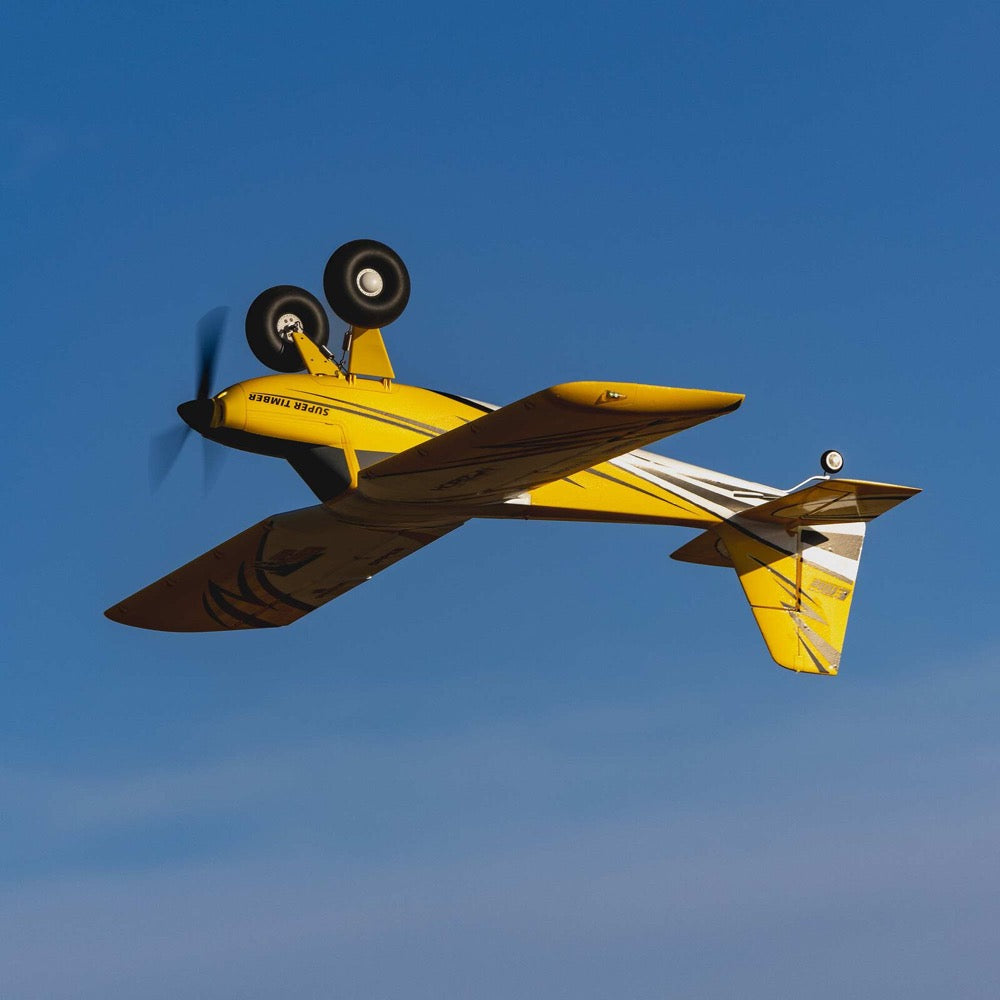

Double-beveled hinge lines make it possible to deflect all the oversized control surfaces to high angles for outstanding control and aerobatic capability. Plus, the flaps can travel both ways for optional use as full-span ailerons for even more aggressive capabilities. Or on low rates, the controls can be smooth and docile so you can fly as mild or as wild as you'd like!

Super STOL (Short Takeoff and Landing)

The wing design has a larger span and more area than the Timber X 1.2m and Turbo 1.5m models, plus it features drooped wingtips and can be equipped with the included optional-use leading edge slats for improved slow flight and STOL performance. The slats clip into place for easy installation without the use of glue or tools – and can easily be removed then reinstalled in seconds! These features, along with the lightweight design, oversized flaps, and high-power brushless power system, make it possible to spring into the air or float down to land in as little as a few feet or less.

Super Versatile Gear

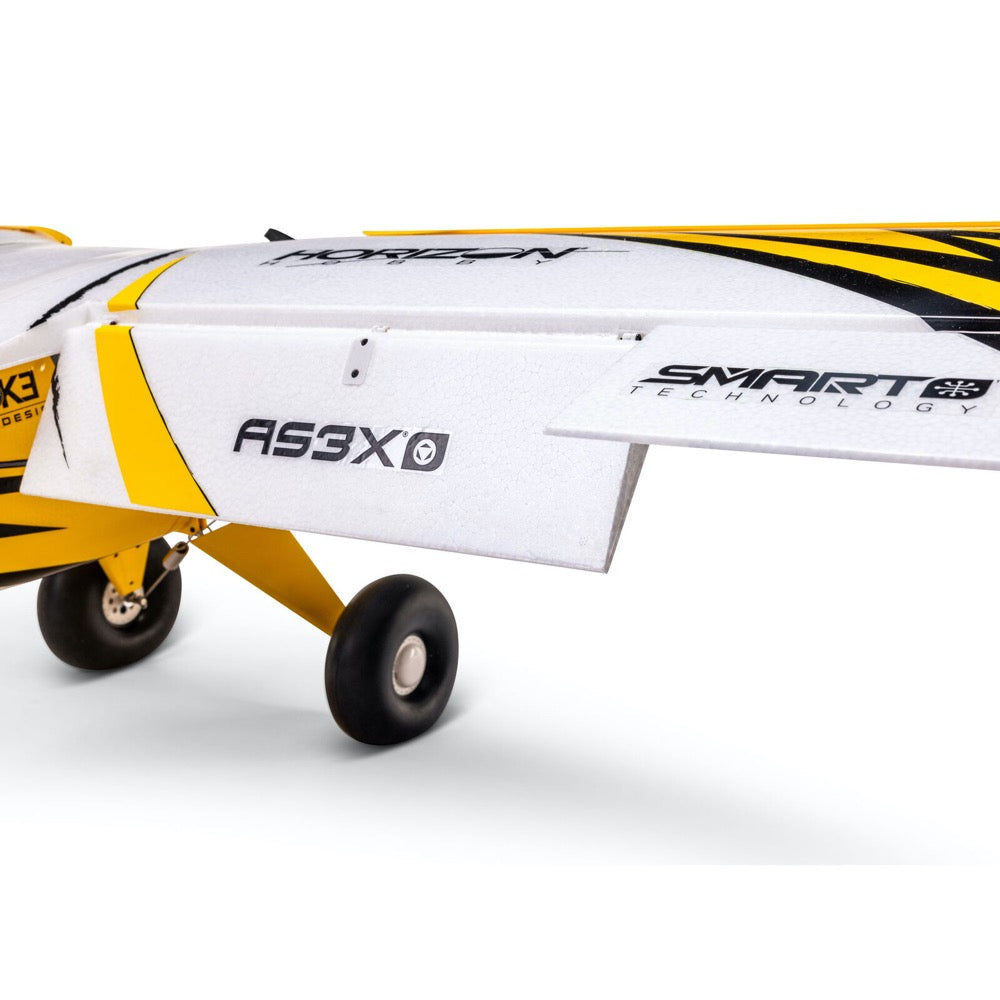

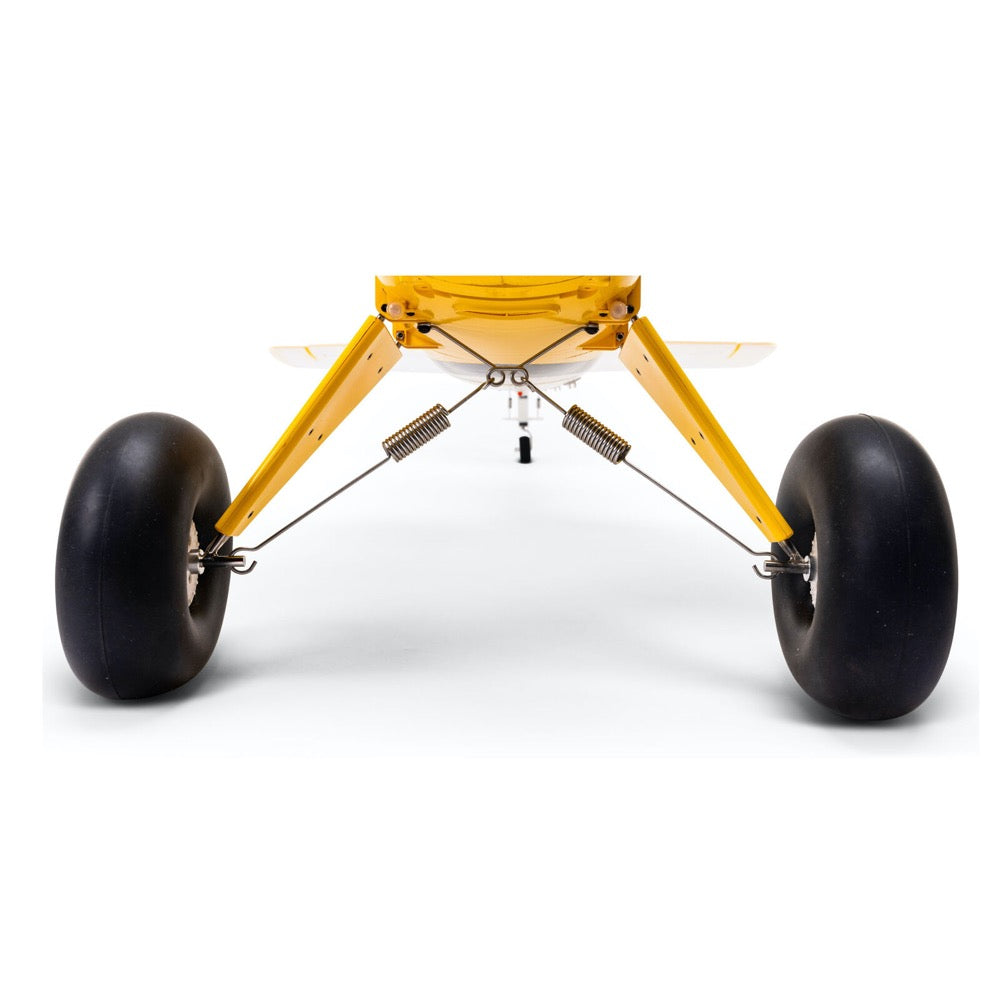

From thick grass to gravel paths and dirt trails—even local lakes and ponds—you can easily fly off of these and many other surfaces with the Super Timber 1.7m. The heavy-duty, articulated, and shock-absorbing landing gear is angled forward to help prevent nose-overs making it the best and strongest installed to a Timber model yet! It’s also equipped with inflatable rubber tundra-style tires (air pump included) mounted to unique beadlock wheels to better soak up the bumps of rough surfaces and not-so-great landings. Extra hardware is also included to mount the optional float set (EFLA550; sold separately) that features a water rudder for superb steering control. Whichever gear option you choose to fly with, both are easy to install and can be swapped out in minutes!

Super Easy Assembly

No glue is required for assembly, and the Super Timber can be ready to fly in less time than it takes to charge the flight battery. The horizontal stabilizer halves snap into place, and the plug-in wing panels featuring hands-free servo connections are secured with innovative wing lock mechanisms so no fasteners or tools are required to install/remove them. Plus, a custom-designed clip in the fuselage holds the wing joiner tube so you never forget it when the wing is removed for more convenient storage and transport!

Super Durable

Composite-reinforced, hollow-core construction with EPO material delivers a lightweight yet durable airframe. And the factory-installed digital, metal-geared servos are precise, durable, and reliable. In the unfortunate event you damage any airframe parts or components and can't repair them, a full line of replacement/spare parts is readily available.

Super LEDs

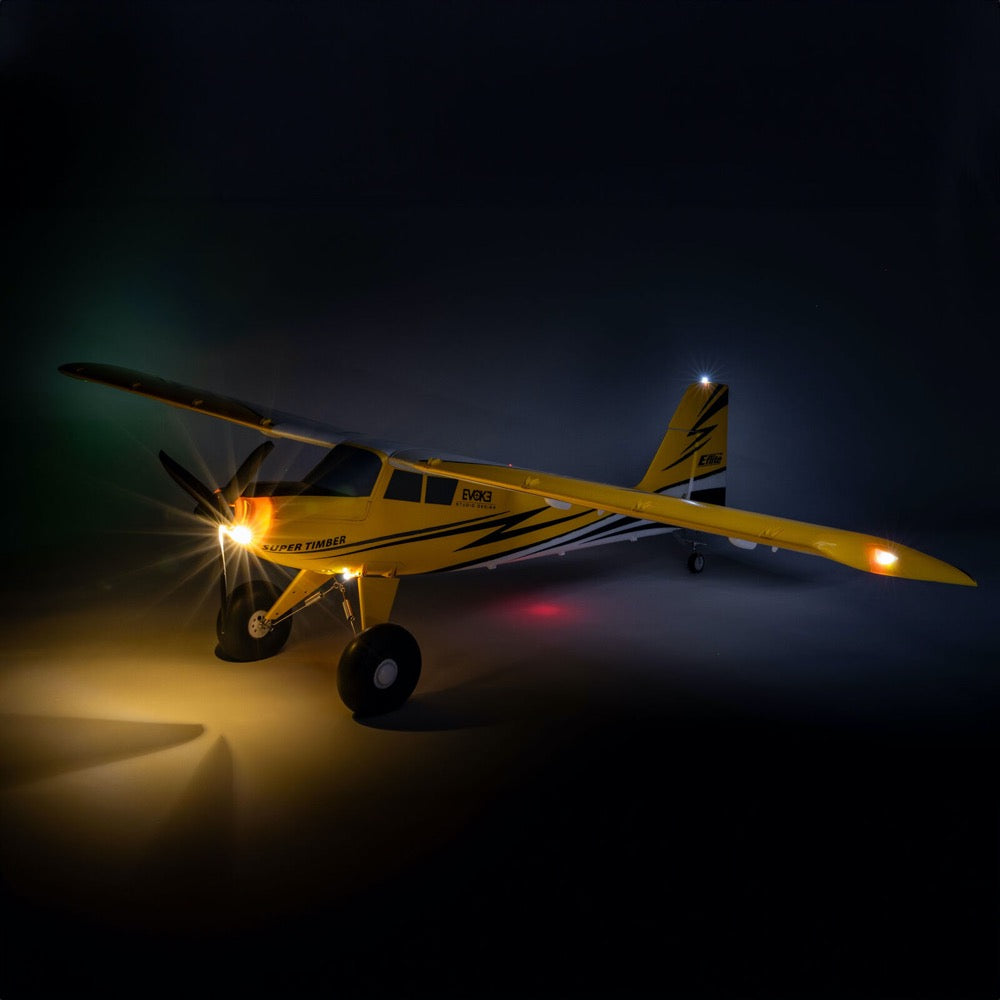

Like most other Timber models, the Super Timber comes with realistic-looking LED landing, navigation, and strobe lights that are factory-installed and powered by the flight battery. It even has additional position and landing lights for added visibility!

Contents

• (1) E-flite Super Timber 1.7m

• (1) Spektrum Brushless Outrunner Motor (installed)

• (6) Spektrum Digital, Metal-Geared Servos (installed)

• (1) Spektrum Avian 85-Amp Smart Lite Brushless ESC (installed)

• (1) Product Manual

Requires

• Full-range 5–7+ channel Spektrum™ DSMX®/DSM2® compatible transmitter

• 4S 14.8V to 6S 22.2V 3200–5000mAh LiPo with EC5™ or IC5™ Connector

• Compatible LiPo charger

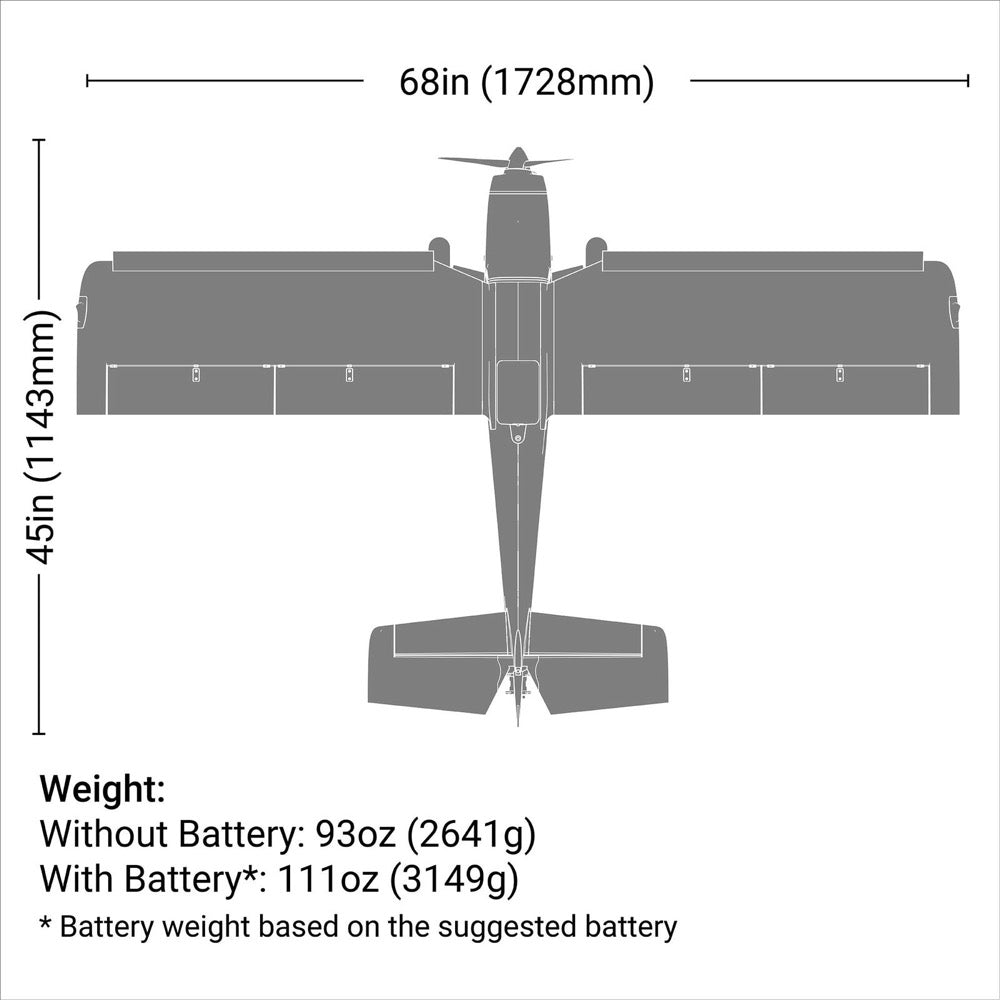

• Product Weight : Without Battery: 93oz (2641g) With Recommended 6S 3200mAh Flight Battery: 111oz (3149g)
• Landing Gear : Yes
• Motor Type : Brushless
• Speed Control : Included
• Charger : Sold Separately
• Receiver : Included
• Approximate Assembly Time : Less than 1 hour
• Flaps : Yes
• Material : EPO
• Lighting : LED Navigation and Landing Lights
• Minimum Required Radio : Full-range 5–7+ channel Spektrum DSMX/DSM2
• compatible transmitter
• Radio : Sold Separately
• Technology : Smart, AS3X and SAFE
• Battery : Sold Separately
• Connector Type : IC5
• Product Length : 45" (1143 mm)
• LiPo Compatibility : 4S, 6S
• Completion Level : Bind-N-Fly Basic
• Recommended Motor Battery : 4S - 6S 3200mAh - 5000mAh w/IC5 or EC5
• Power Type : Electric
• Servos : Included
• Skill Level : Level 2
• Trim Scheme Colors : Yellow & White
• Wingspan : 68" (1727 mm)

Download Product Manual
