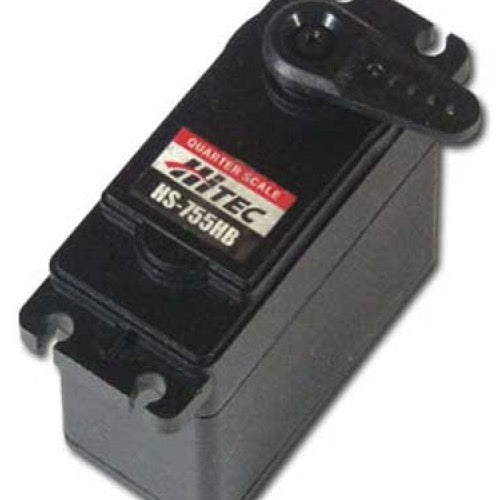

Hitec HRC33755S HS-755HB Giant Scale Servo

Hitec’s expansive line-up of servos includes the HS-755HB “giant scale” servos offered with either the revolutionary Karbonite gears or metal gears (HRC32755S). Both are perfect for larger R/C applications and feature dual ball-bearings with a water and dust resistant case. The powerful HS-755HB 183 oz-in of torque at 6 volts. - (HTHS-755HB)

Features

• Offered with Karbonite gears or Metal gears
• Dual Ball-Bearings
• *** Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail

Specs

• Type: Analog
• Application: 1/4 Size Models
• Torque: 152.8 oz-in (11.0kg-cm) @ 4.8V; 183.3 oz-in (13.2kg-cm) @ 6V
• Speed: 0.28 sec/60 deg @ 4.8V; 0.23 sec/60 deg @ 6V, at no load
• Length: 2.32 in (59.0mm)
• Width: 1.14 in (29.0mm)
• Height: 1.97 in (50.0mm)
• Weight: 3.88 oz (110g)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Motor Type: 3 Pole
• Connector Type: Universal
• Gear Material: Karbonite
• Current Draw Idle: 8mA
• Current Draw Stall: 1500mA @ 4.8V; 1800mA @ 6V
• Voltage: 4.8V to 6.0V
• Deadband: 5µs
