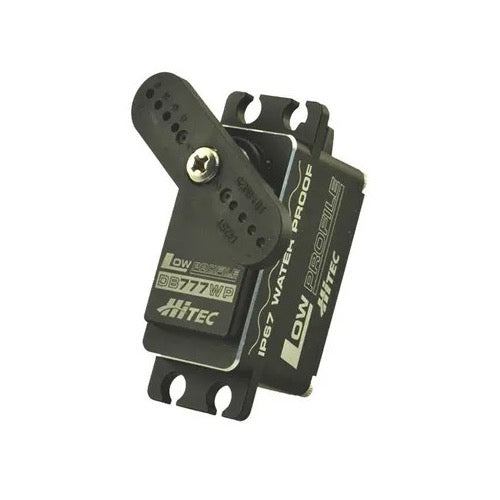

Hitec DB777WP BLDC Low Profile Waterproof Servo

Hitec is excited to introduce the new addition to their D-Series servo line, the high-performance, low profile DB777WP. Designed with a full metal, IP-67 rated waterproof case, this advanced, programmable servo is our fastest, low profile option for 1/10 buggy and touring car drivers.

Features

• Voltage range is 4.8V - 8.4V
• Ultra-efficient brushless motor
• 32-Bit MCU Technology / 4096 Resolution
• Smart Sense technology for servo analytics
• High response, high-resolution circuitry
• Full metal case
• Full programmability
• 1M cycle, long-life potentionmeter
• IP-67 waterproof rated
• H25T - industry standard output spline

Specs

• Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
• Speed (Second @ 60°): 0.08 ~ 0.06
• Maximum Torque Range oz. / in.: 111 ~ 153
• Maximum Torque Range kg. / cm.: 8.0 ~ 11.0
• Current Draw at Idle: 35mA / 40mA
• No Load Operating Current Draw: 250mA / 350mA
• Stall Current Draw: 3500mA / 4500mA
• Dead Band Width: 1usec
• Dimensions (Inches): 1.61 x 0.83 x 1.04 in.
• Dimensions (Metric): 41.0 x 21.0 x 26.5
• Weight (Ounces): 2.4
• Weight (Gram): 68
• Circuit Type: 32bit Programable Digital
• Motor Type: Brushless
• Gear Material: Metal
• Bearing Type: Brushless
• Output Shaft (type / Ømm): H25T
• Case Material: Aluminum
• Dust / Water Resistance: IP-67 Rated
• Connector Gauge (AWG) / Strand Count: 20AWG / 80
