Hobbywing HW30112402 XeRun XR10 Stock Spec G2 100A ESC

Product Code: HW30112402
Barcode: 088718508681
$239.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

HOBBYWING XERUN XR10 STOCK SPEC G2 100A SPEED CONTROL

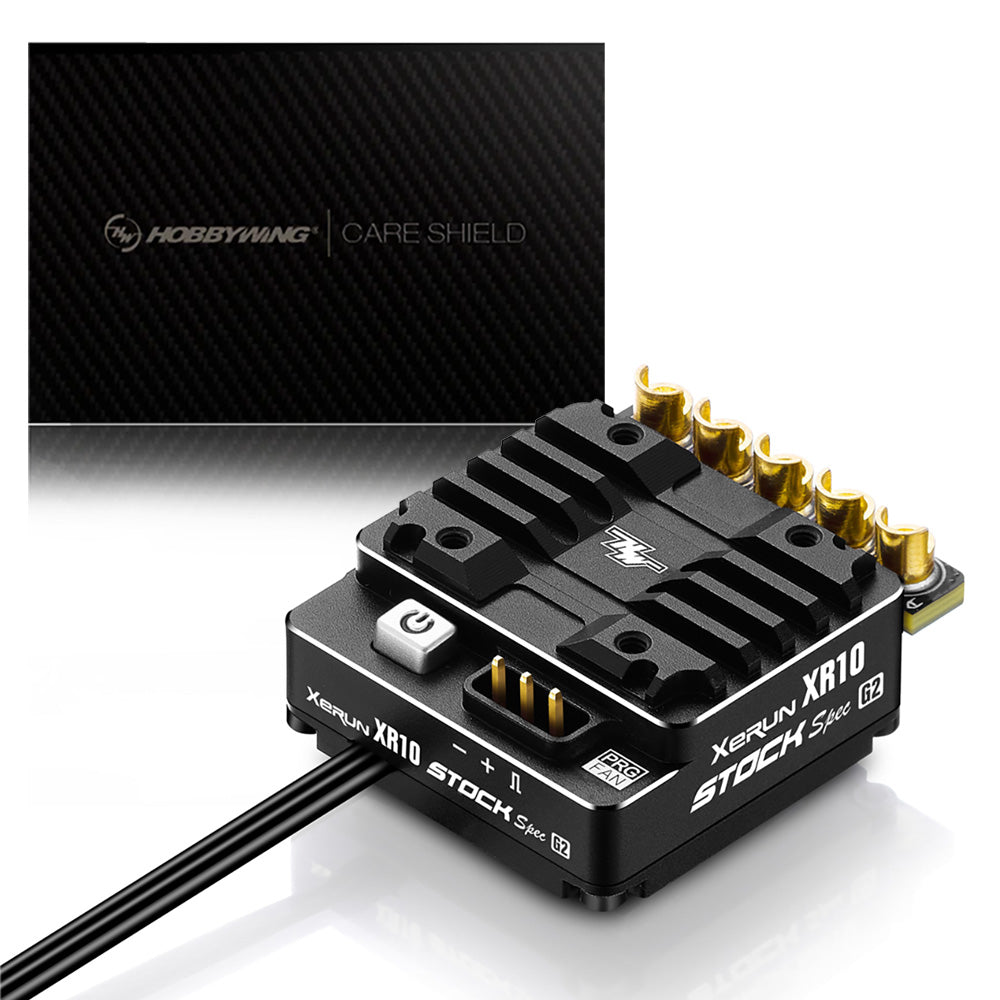

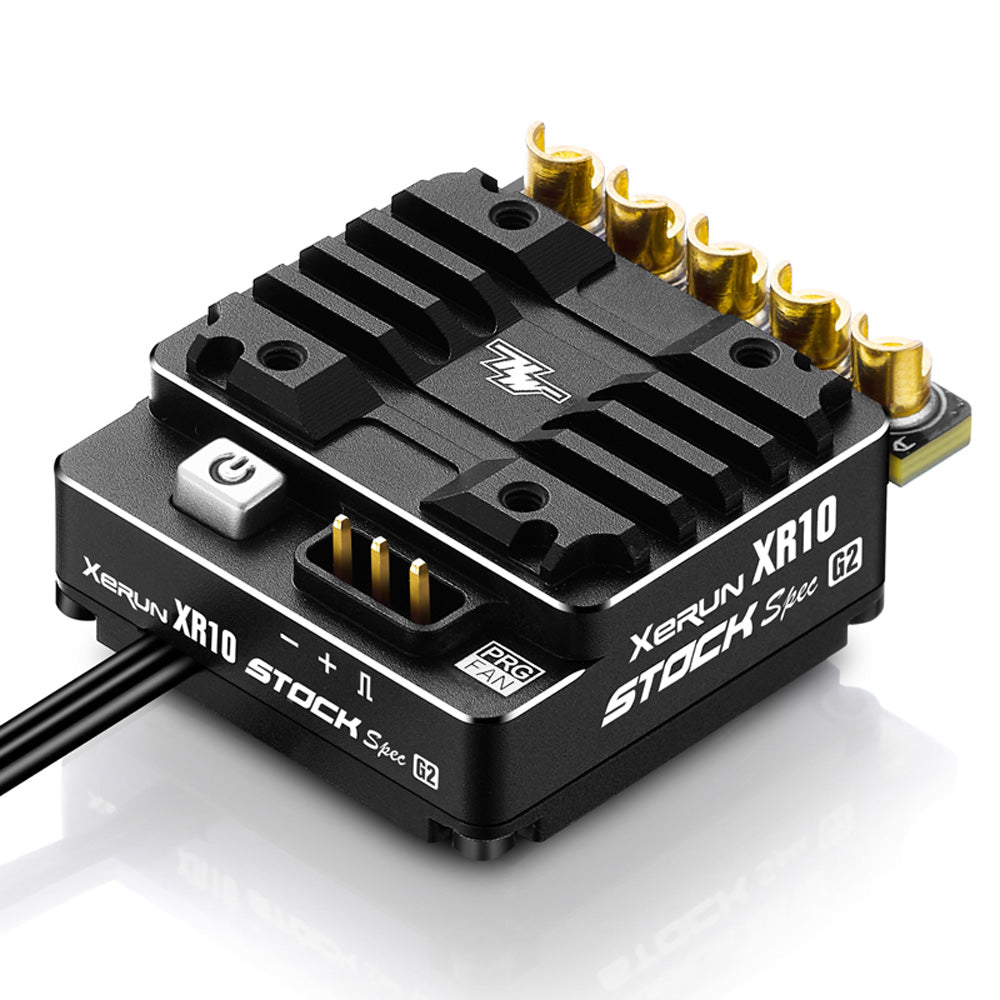

The XR10 Stock Spec G2 ESC is smaller and lighter than the standard XR10 Pro range and is the mini version of XR10 Pro 160A. The super small size (34.8 x 30 x 13.8mm) makes the installation convenient and the light weight provides more weight margin when adjusting the balance of the chassis.

Reliable hardware combined with great software (contains 3 common ready-to-use profiles) creates an ideal power solution to the STOCK class of 1/10 scale touring car, buggy racing.

This ESC features the data-logging function which can record the maximum ESC & motor temperatures, the minimum battery voltage, the maximum motor RPM and others in real time and allows users to check the data via the LCD G2/Pro program box or OTA Programmer after each use (items sold separately).

Features

  • Increased Maximum Current Rating
  • Special Design for STOCK Class Racing
  • Programming/Upgrading/Data Reading Wirelessly
  • Small Size & Light Weight
  • Upgraded Super Internal BEC
  • Adjustable Throttle & Brake PWM Frequencies
  • Data-logging Capability

Type

  • Scale - 1/10th
  • Brushed/Brushless - BL
  • Sensored/Sensorless - SD
  • Waterproof - No
  • Cont./Peak Current - 100A/500A
  • Input Voltage - 2S LiPo
  • BEC Output - Switch Mode 6V/7.4V @5A

Wires & Connectors

  • Input Wires - Black-13AWG-200MMmm*2
  • Output Wires - Black-13AWG-200MMmm*3
  • Input Connectors - No
  • Output Connectors - No

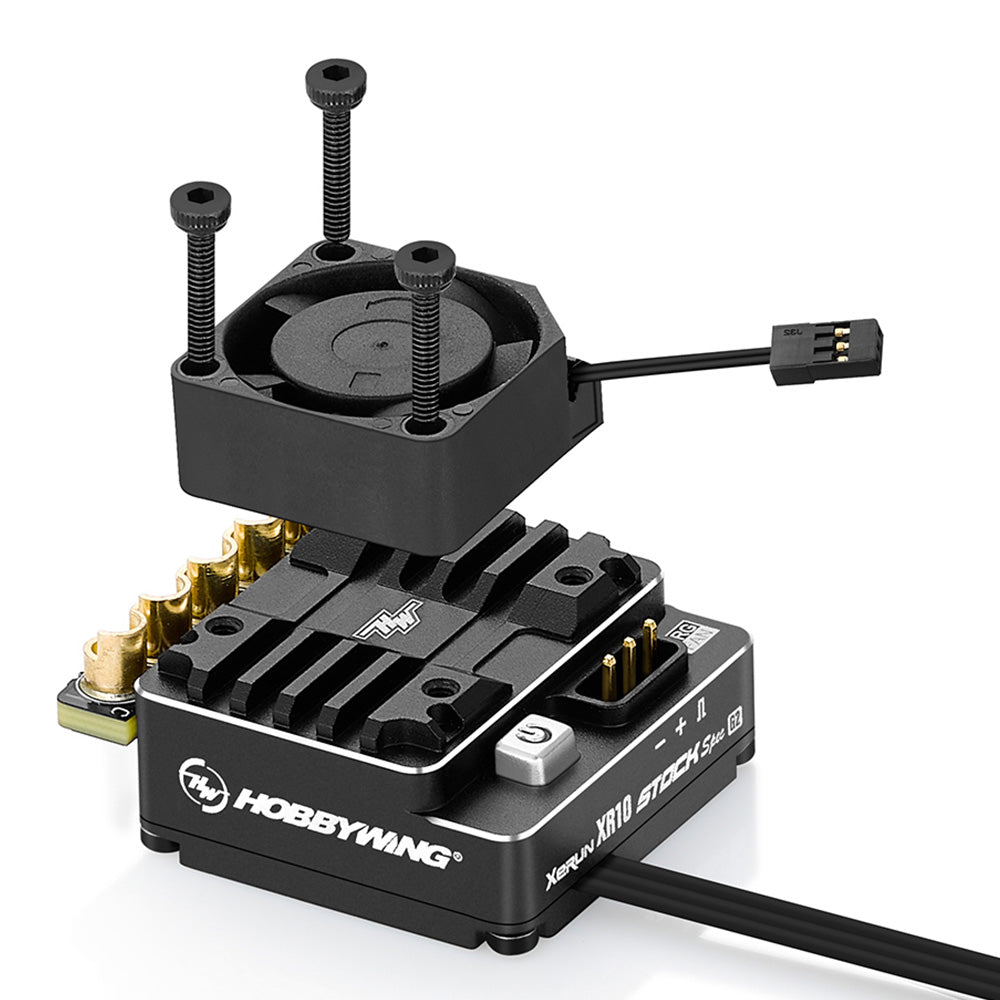

Fan

  • Size - 20x20x8mm
  • Output Wires - 5-7.4V
  • Input Connectors - Powered by BEC

Data Recording

  • Extreme Value - Supported
  • Real-Time Date - Supported
  • Historical data (Graph) - Supported

ESC Programing via

  • SET Button on ESC - Not Supported
  • LED Program Box - Not Supported
  • LCD G2 Program Box - Supported
  • LCD PRO - Supported
  • OTA Programmer - Supported
  • Programming Port - Separate

Firmware

  • Firmware Upgrade - Supported

Size & Weight

  • Size - 34.8x30x13.8mm
  • Weight - 63g(w/Wires)

Applications

  • Motors3650 size motors
  • Applications - SL BL Motors / SD BL Motors
  • Vehicles - Stock Class of 1/10th Touring Car and Buggy Racing, 1/10th Drift
  • KV Rating/T Count - ≥10.5T
