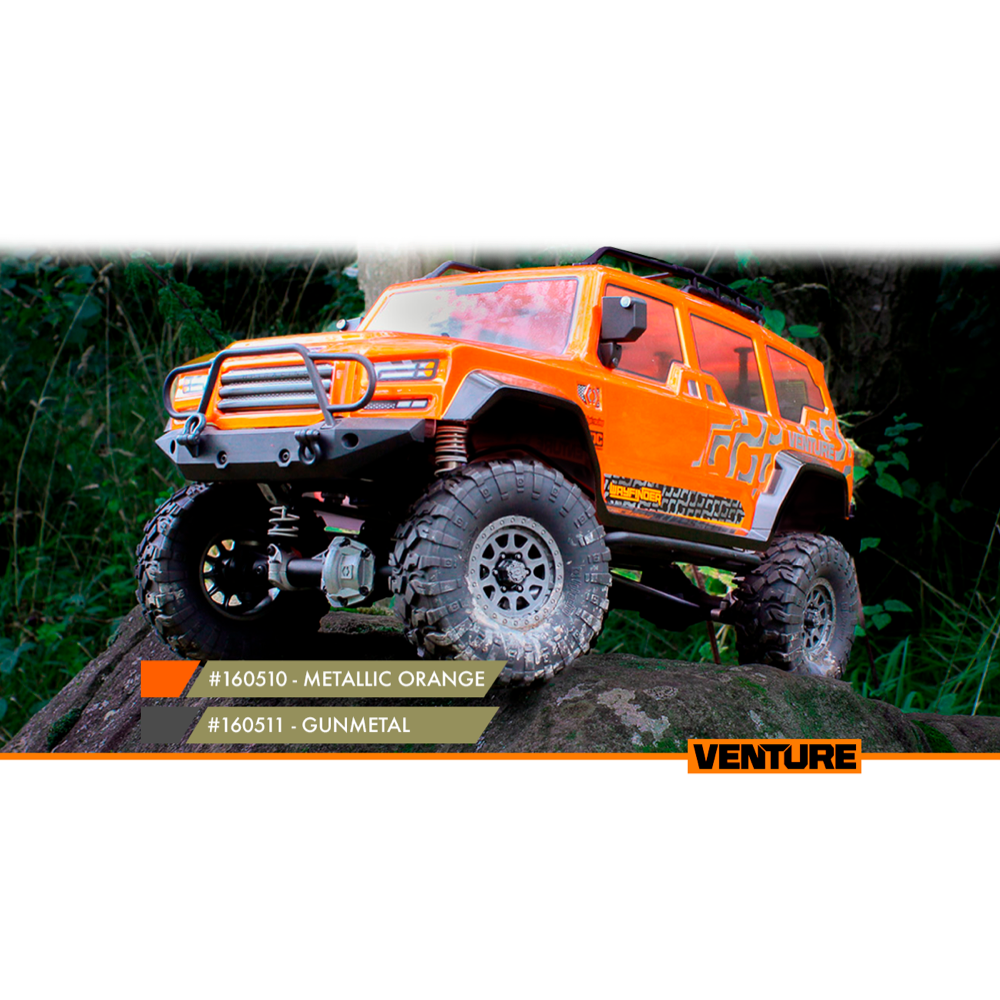

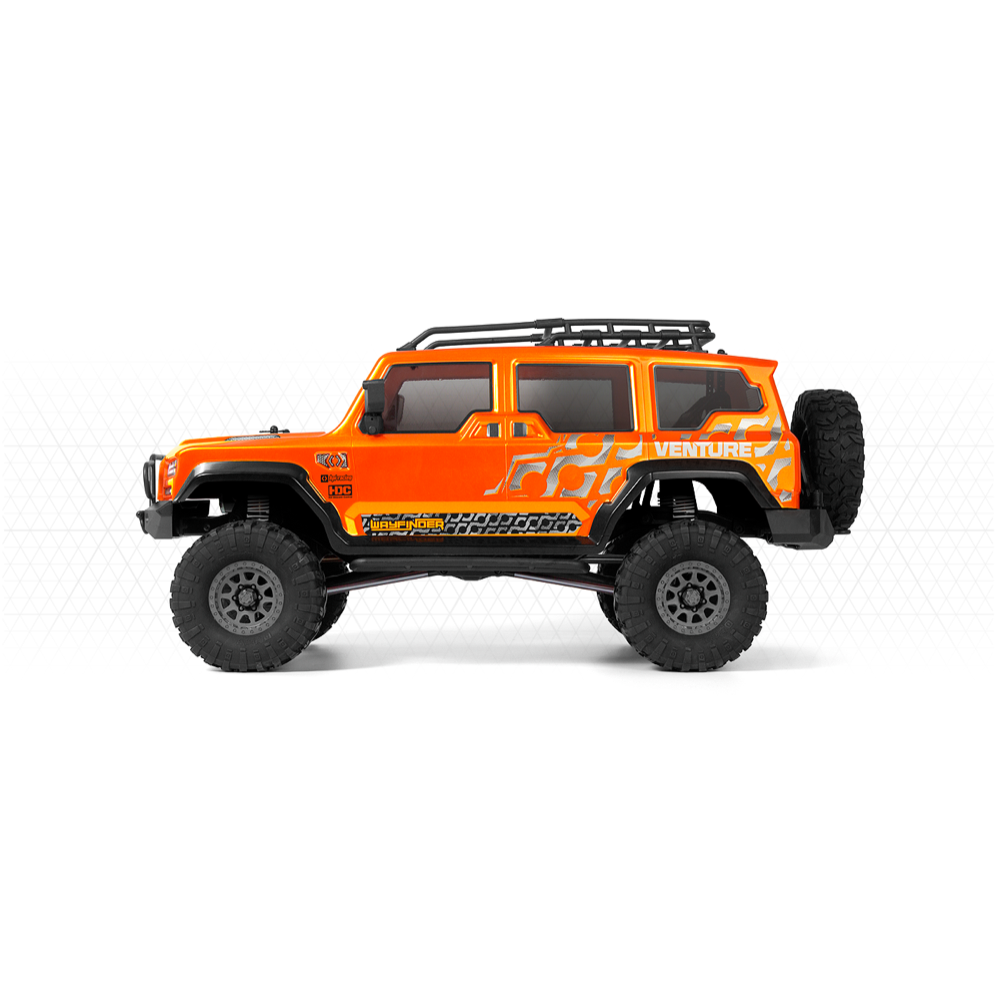

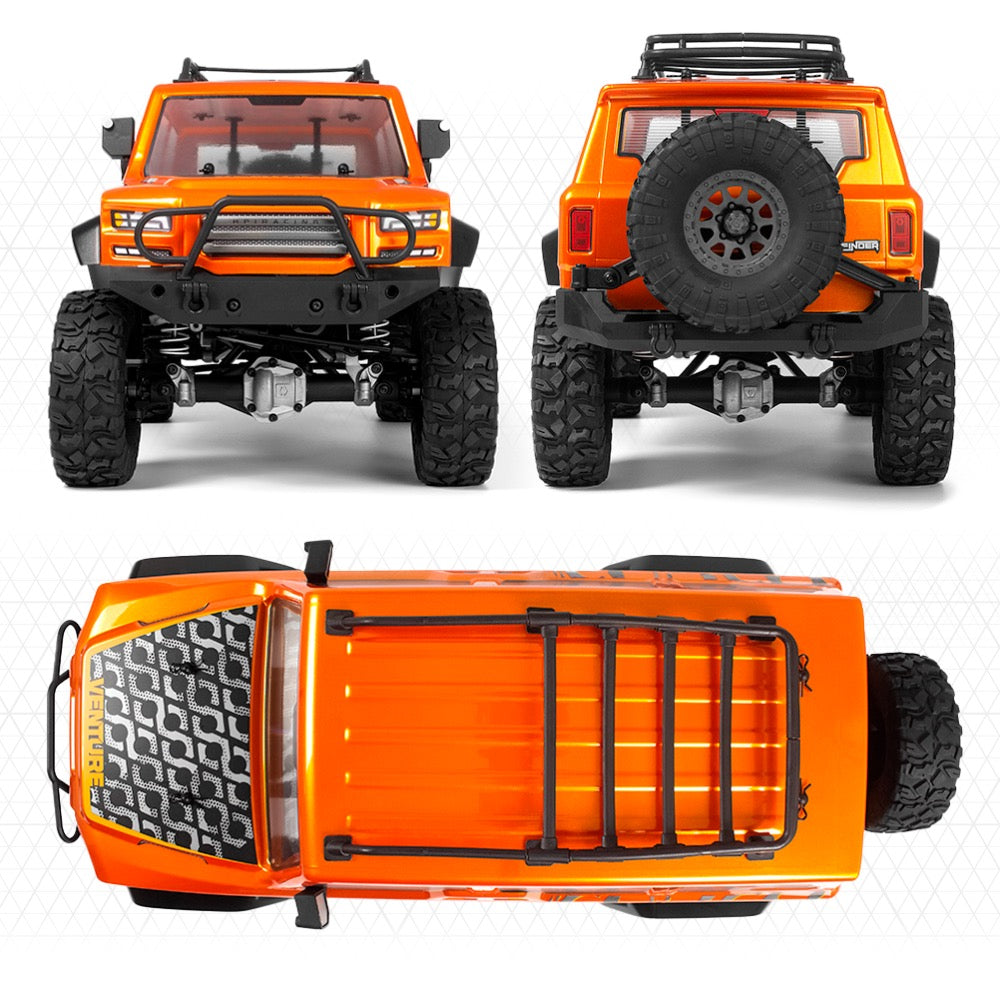

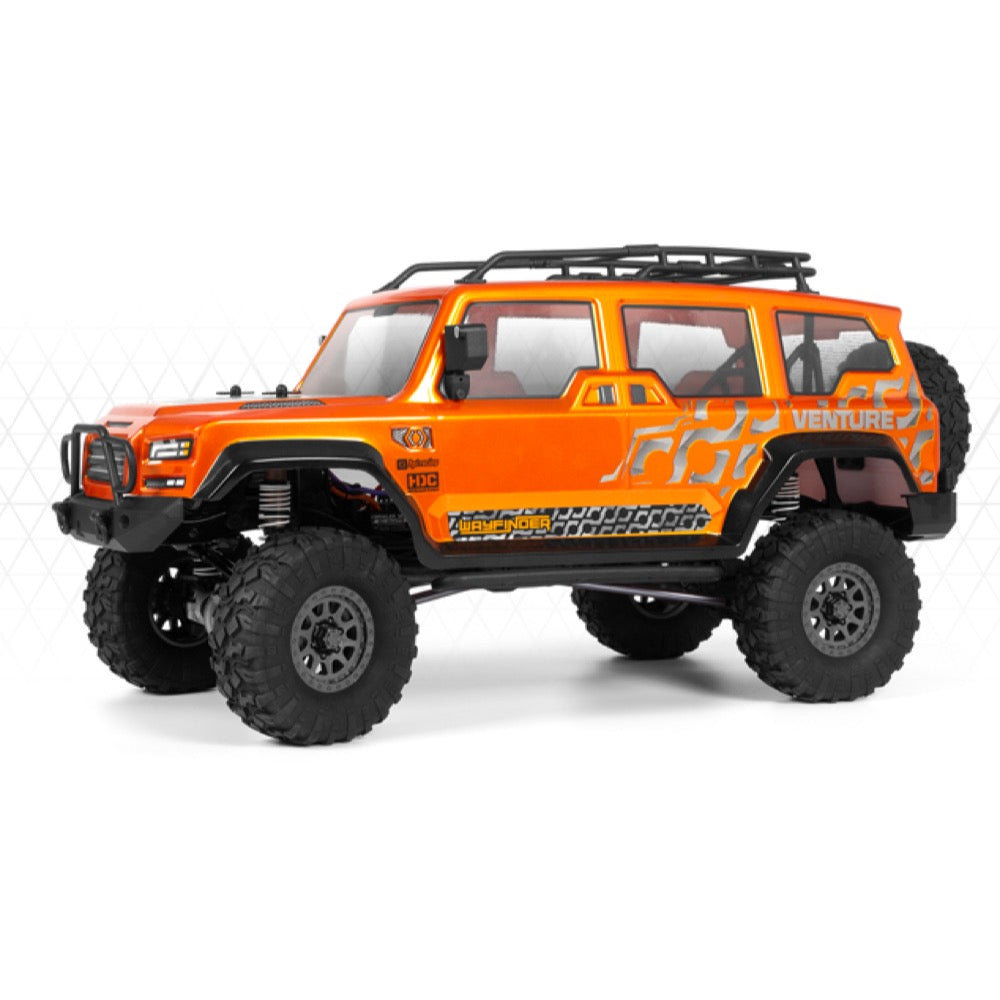

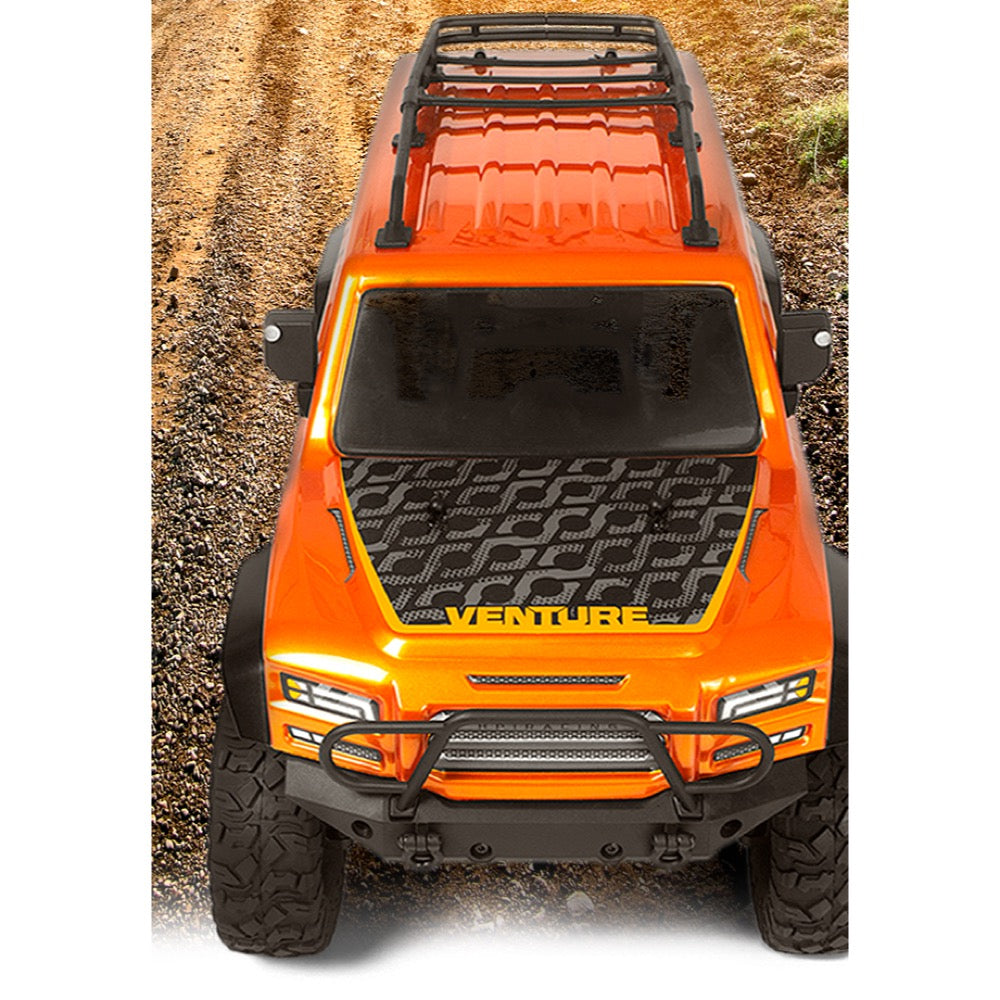

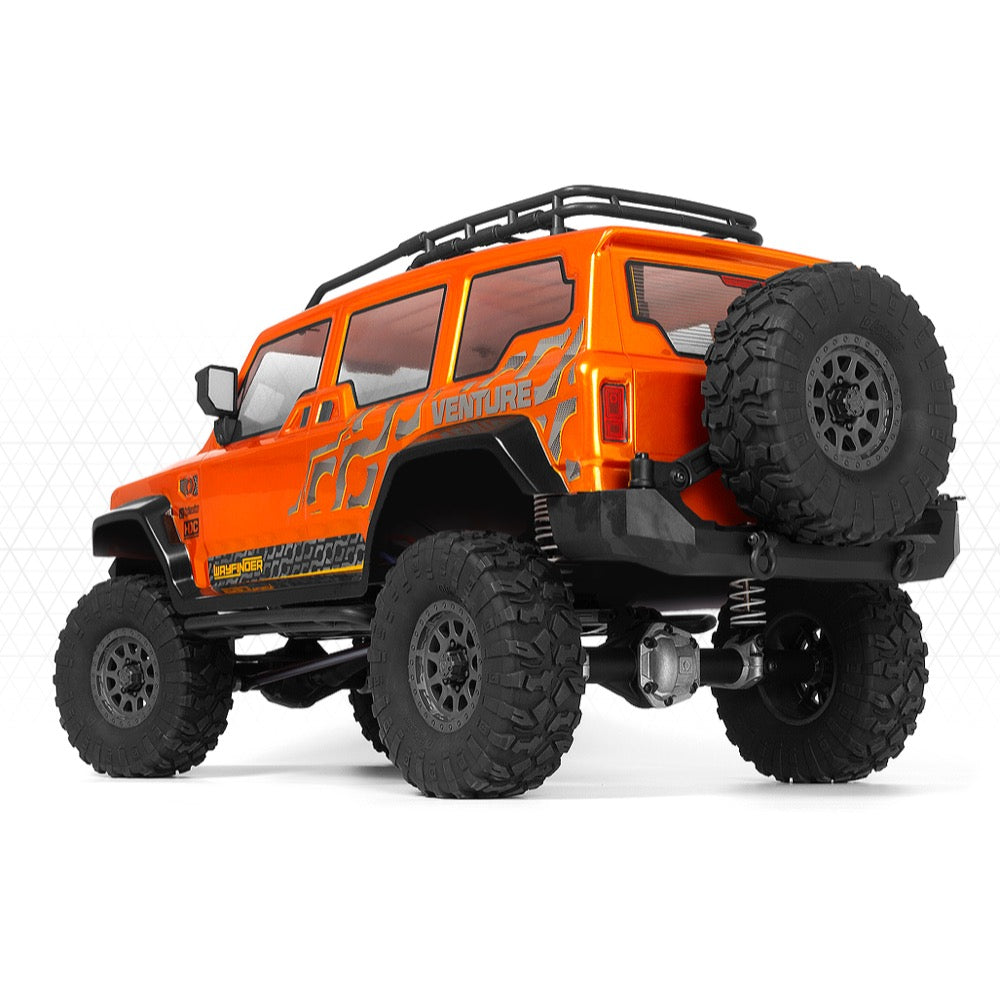

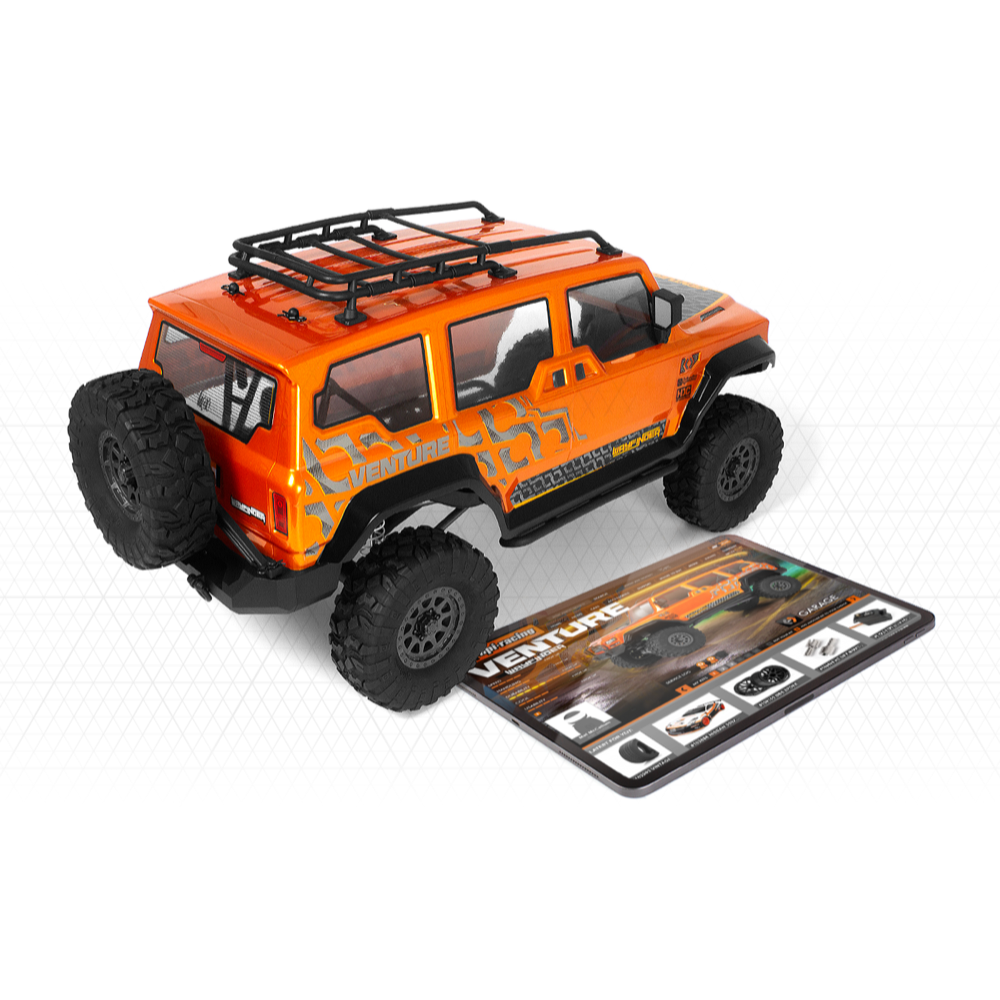

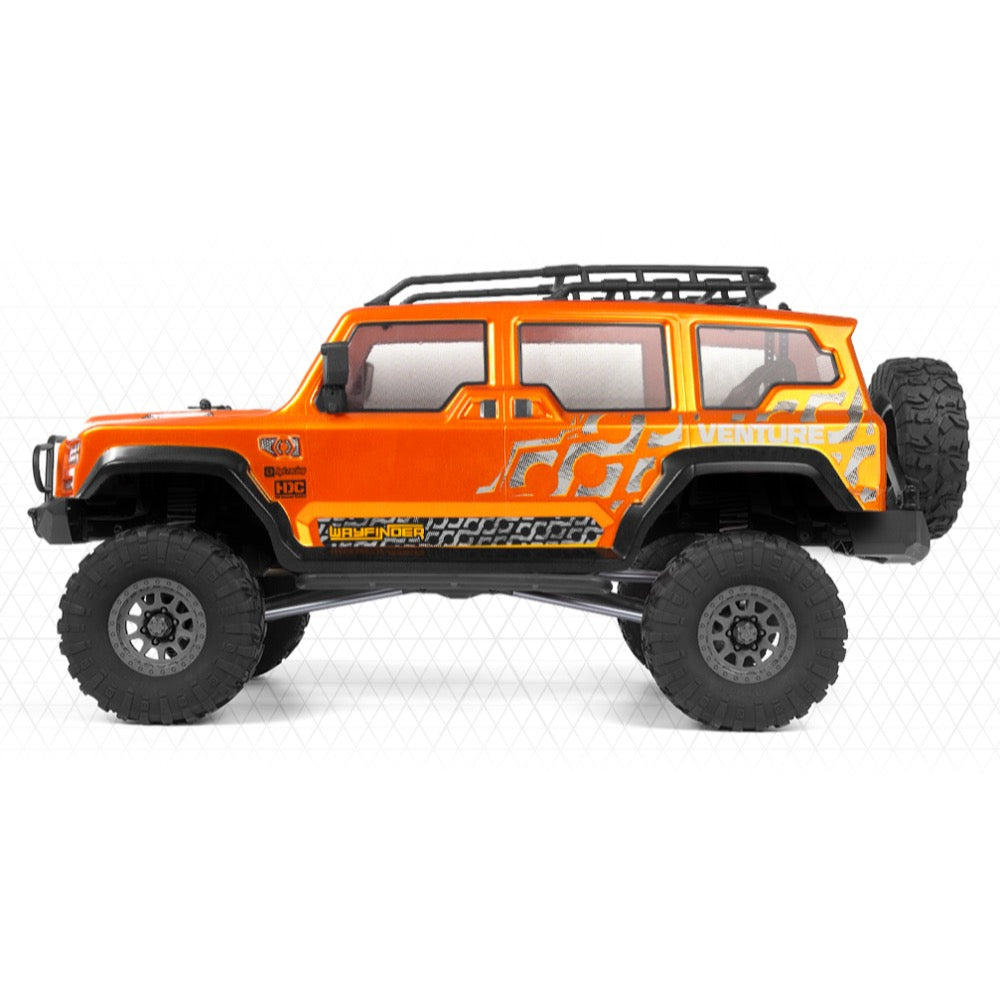

HPI 160510 1/10 Venture Wayfinder RC Rock Crawler Metallic Orange

Product Code: HPI-160510
Barcode: 5050864030311
$649.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

DIMENSIONS

  • Length: 527mm (20.7")
  • Width: 227mm (9")

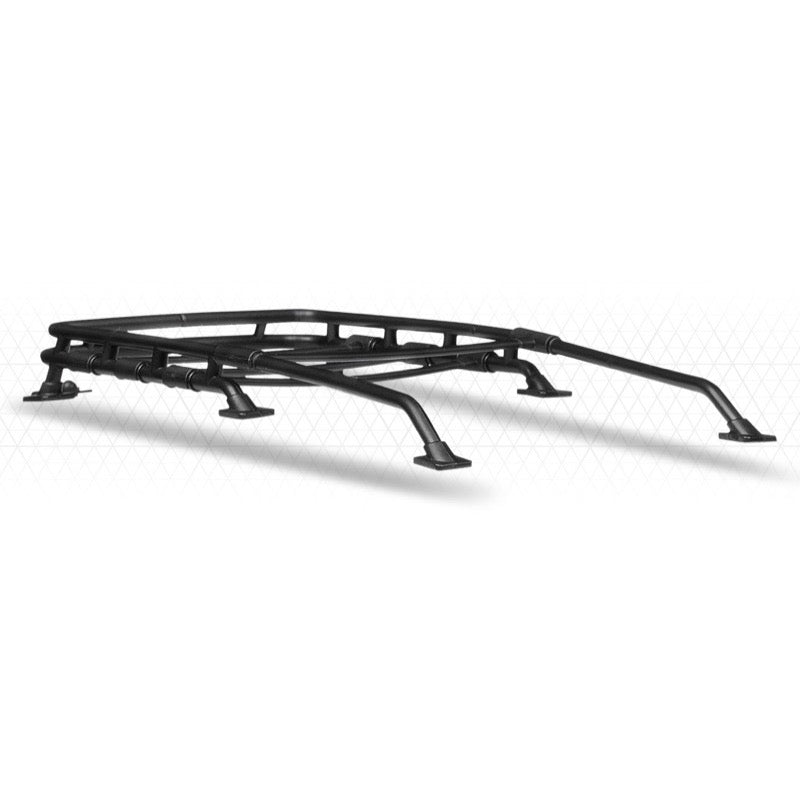

  • Height: 238mm (9.4") with roof rack, 217mm (8.5") without (will vary depending on tire choice and suspension settings)

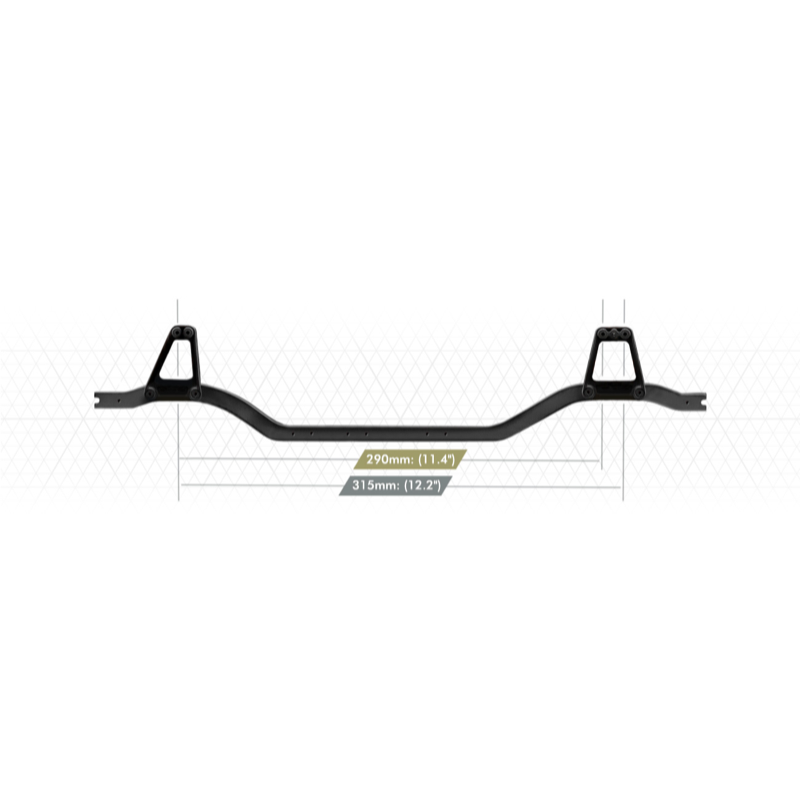

  • Wheelbase: 311mm (12.3")
  • Front overhang: 101mm (3.9")
  • Rear overhang: 135mm (5.3")

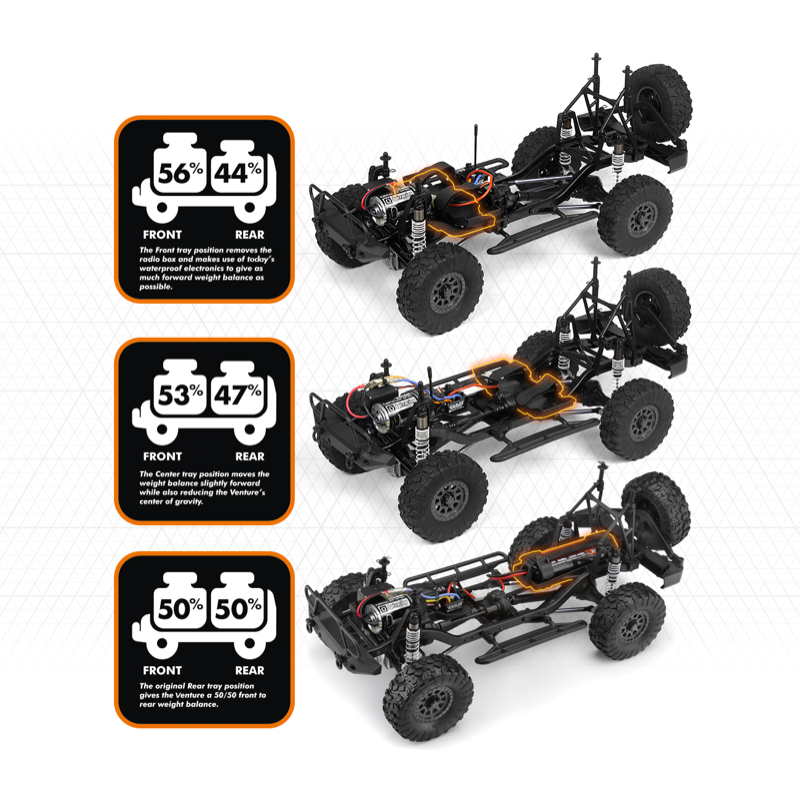

WEIGHT

  • Running weight: 2.4kg (5.3lbs)
  • Weight without battery: 2.1kg (4.7lbs)
  • Body Weight: 0.21kg (7.44oz)

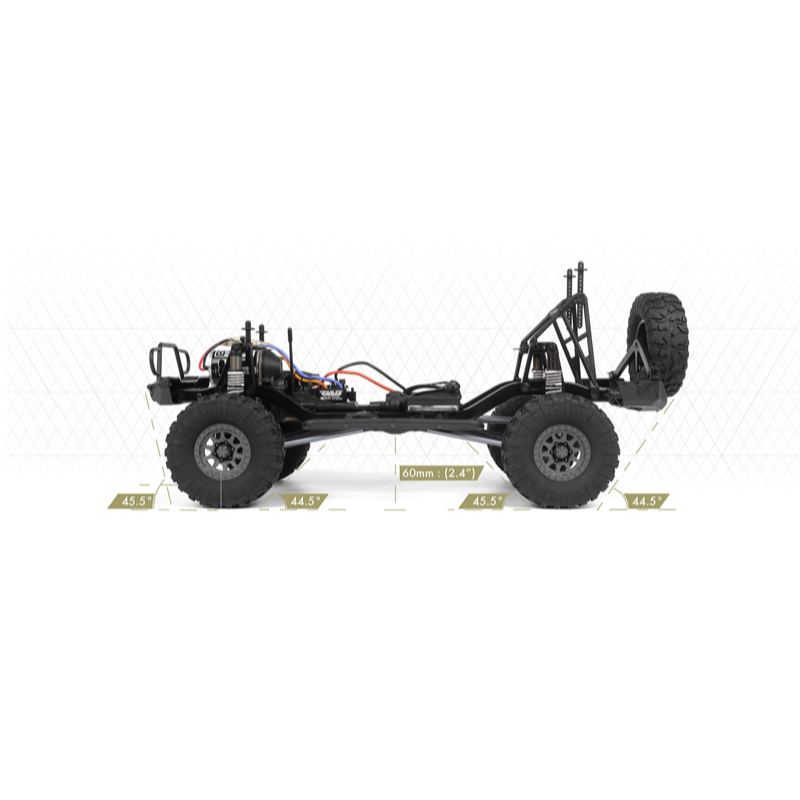

CAPABILITY

  • Break-over angle: 44.5 degrees
  • Approach angle: 55 deg
  • Departure angle: 45.5 deg
  • Max climb angle: 49 deg
  • Max tilt angle: 28 deg
  • Axle articulation: 30 deg
  • Ground clearance 68mm capable: (2.7")
  • Ground clearance at standard ride height 60mm: (2.4")
  • Axle ground clearance 32mm: (1.3")

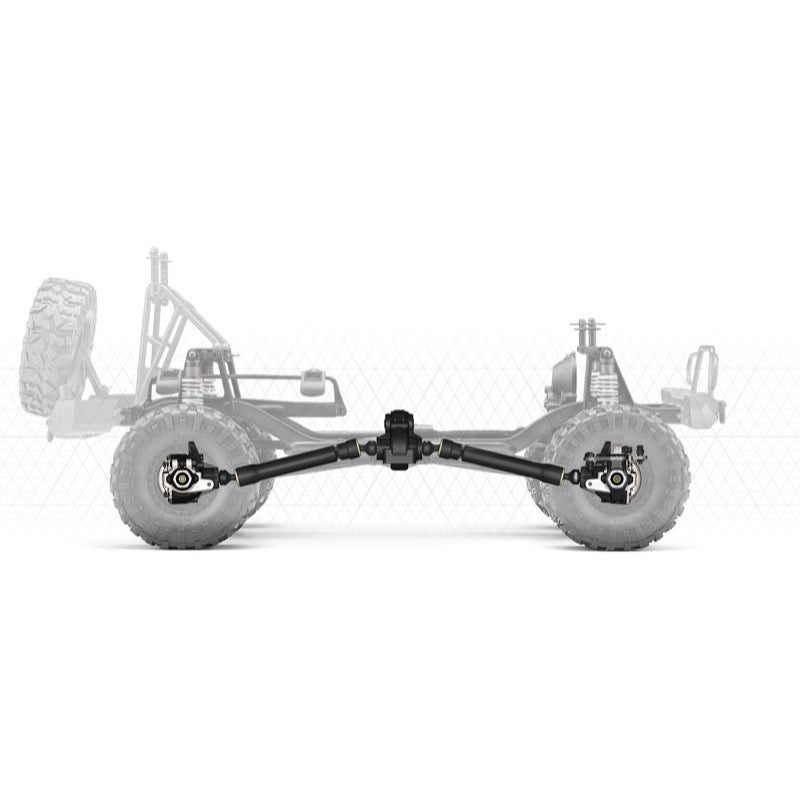

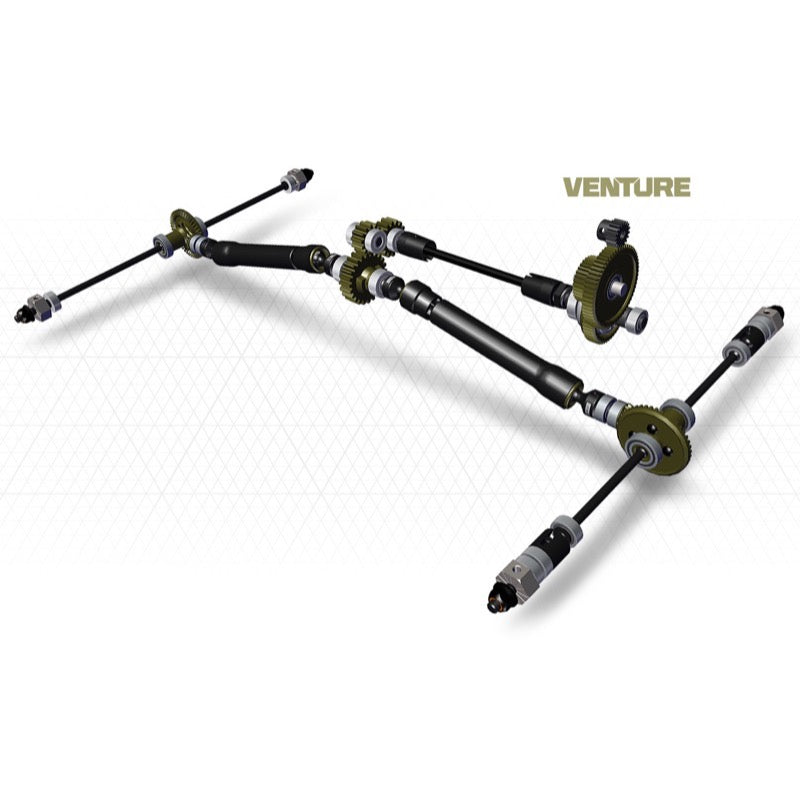

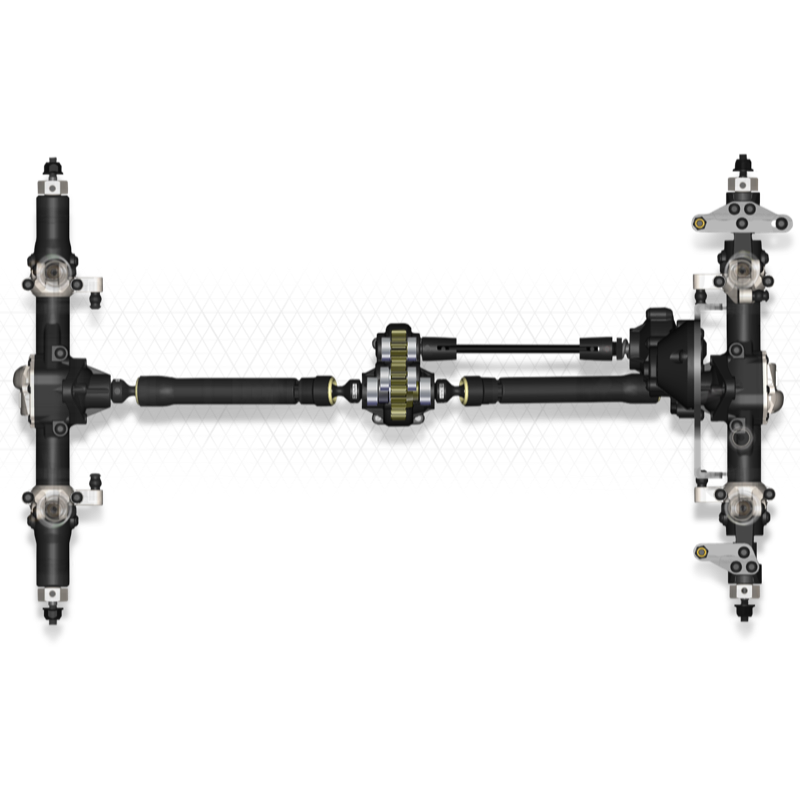

GEARING

  • Drivetrain ratio: 7.6:1

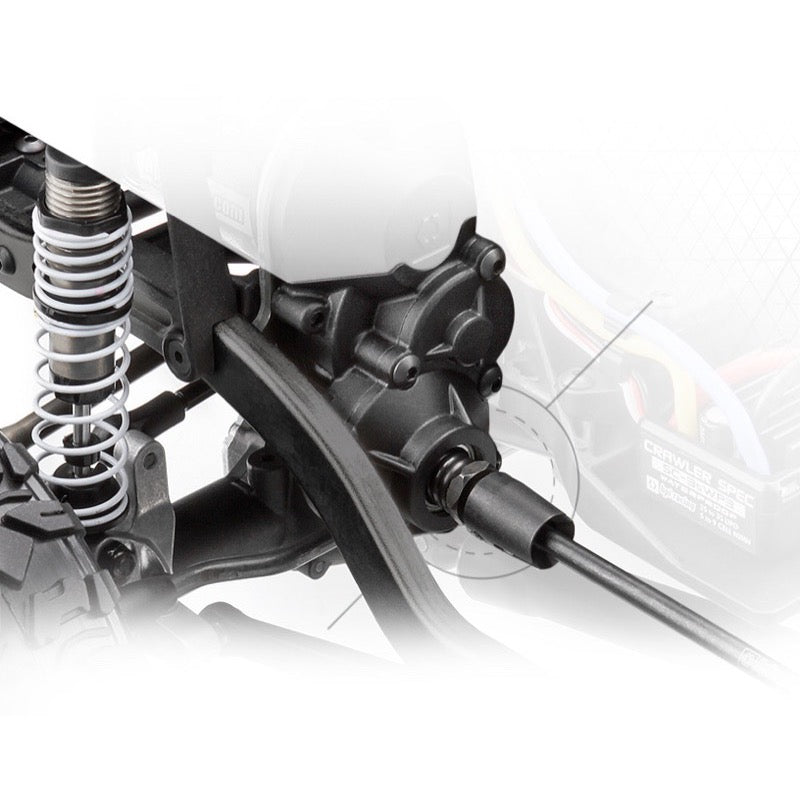

  • Transmission gearing: 1.53:1

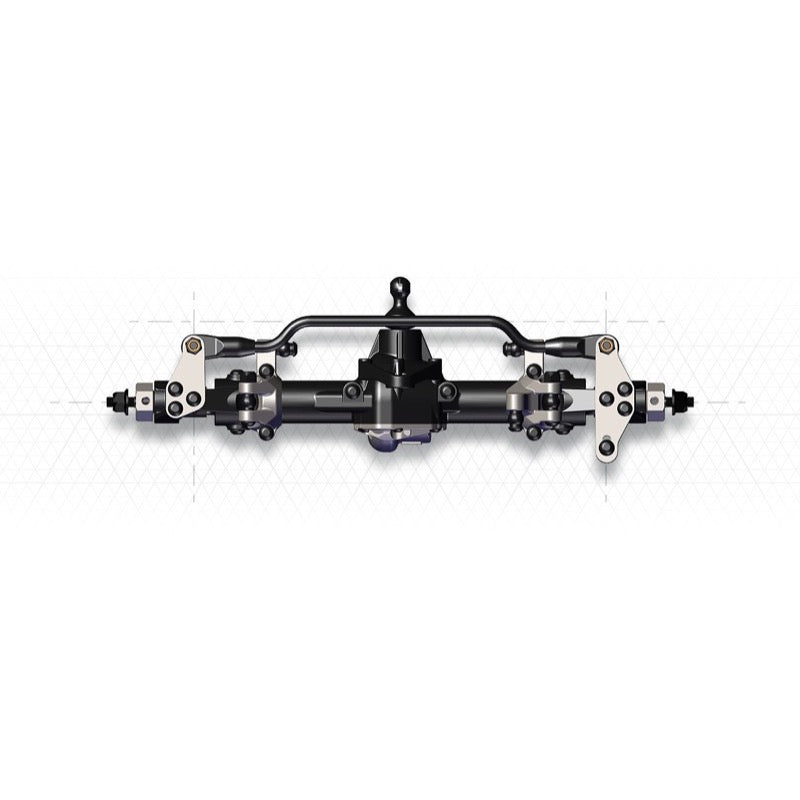

  • Axle gearing: 3.31:1
  • Transfer case gearing: 1.5:1
