Spektrum SPMXAM4795 Avian 6362-250Kv 30cc Equivalent Brushless Outrunner Motor

Product Code: SPMXAM4795
Barcode: 605482102138
$369.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models

The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits

  • Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
  • Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
  • Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features

  • Lightweight design
  • Powerful and durable Rare-Earth Neodymium magnets
  • 14-pole stator for smooth and precise propulsion

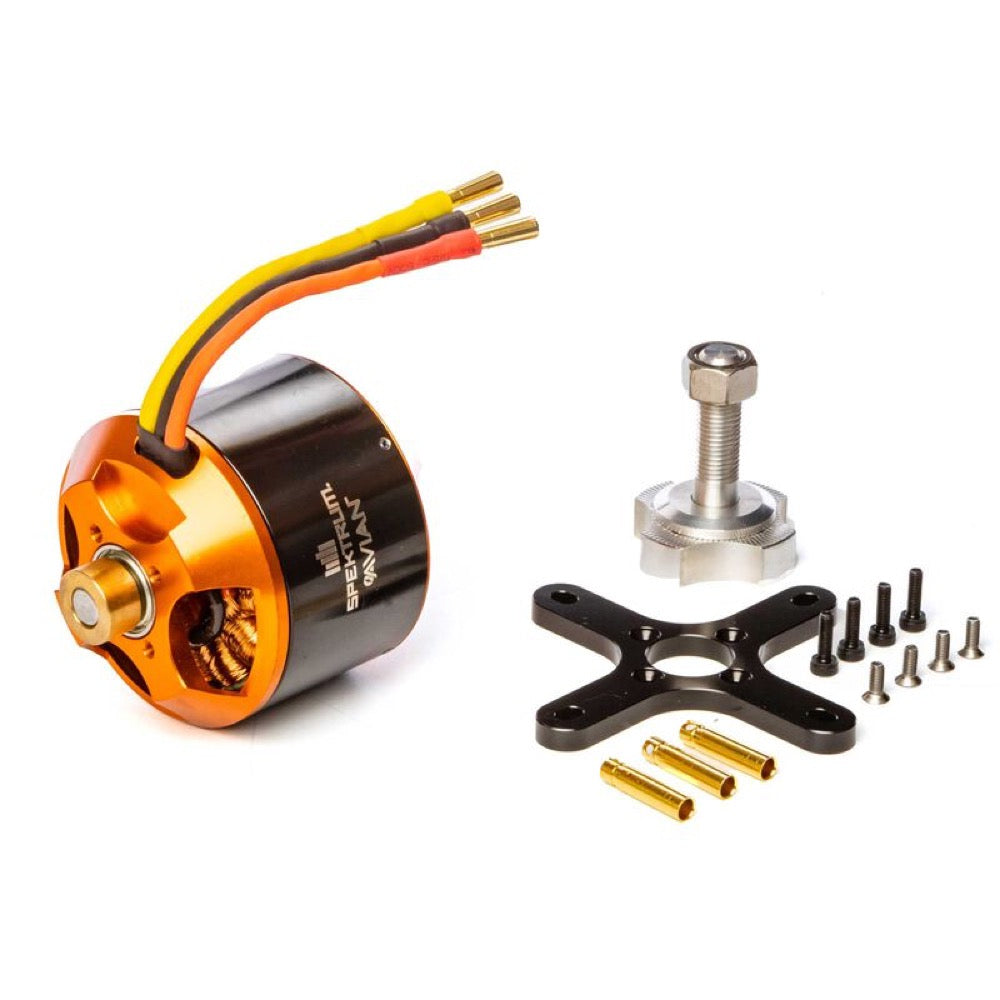

  • Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
  • Perfect match for the Spektrum Smart Avian 120 amp HV ESC
  • Perfect electric conversion upgrade for 30cc size gas size combustion power systems

Important Specs

  • Recommended Voltage Range – 33.3 - 44.4V / 9-12S LiPo
  • Recommended Propeller Range – 16x8 to 18x8 Electric Propeller
  • Recommended Model Flying weight – 3D 5445g (12 lbs) - Sport 9070g (20 lbs)
  • Max Wattage – 1900w
  • Max Current – Max Burst Amps (100A) Max Continuous Amps (60A)

Specs

  • Adjustable Timing: No
  • Connector Type: 4mm Bullet
  • Constant Wattage: 1500-1999W
  • Input Voltage: 33.3 - 44.4V
  • Integrated ESC: No
  • Kv Rating: 250-499Kv
  • Maximum Burst Current: 72A
  • Maximum Continuous Current: 45A
  • Motor Class: Large
  • Motor Design: Outrunner
  • Motor Output Lead: 4
  • Motor Type: Brushless
  • Outer Diameter: 2" (51 mm)
  • Product Length: 2.6" (66 mm)
  • Product Weight: 22.2oz (634g)
  • Recommended Speed Control: 80A
  • RPM/Volt (Kv): 250
  • Sensor Type: Sensorless
  • Shaft Diameter: 0.32" (8 mm)
  • Shaft Length: 0.79" (20 mm)
