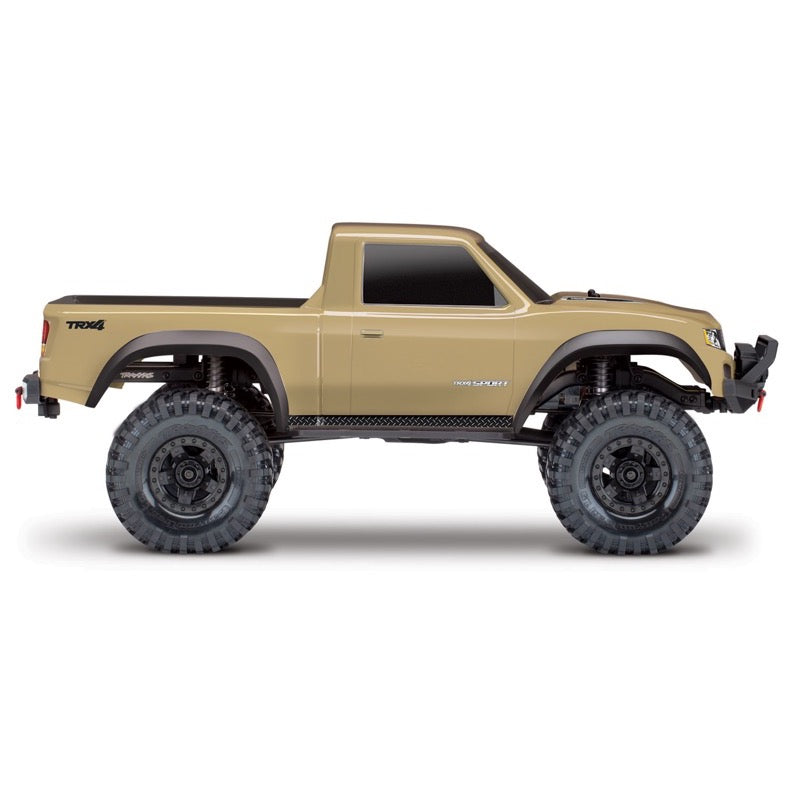

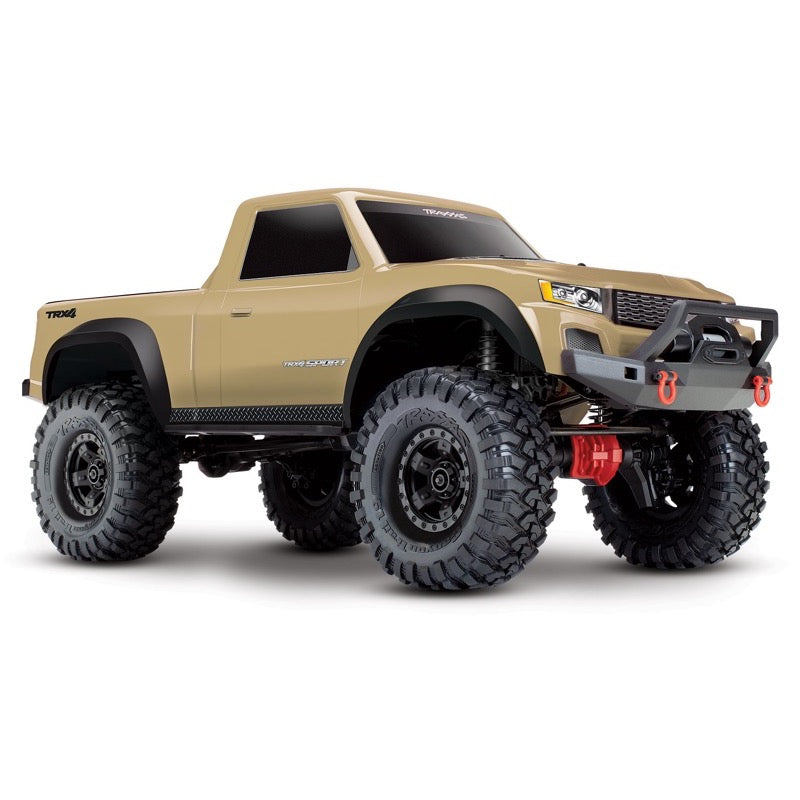

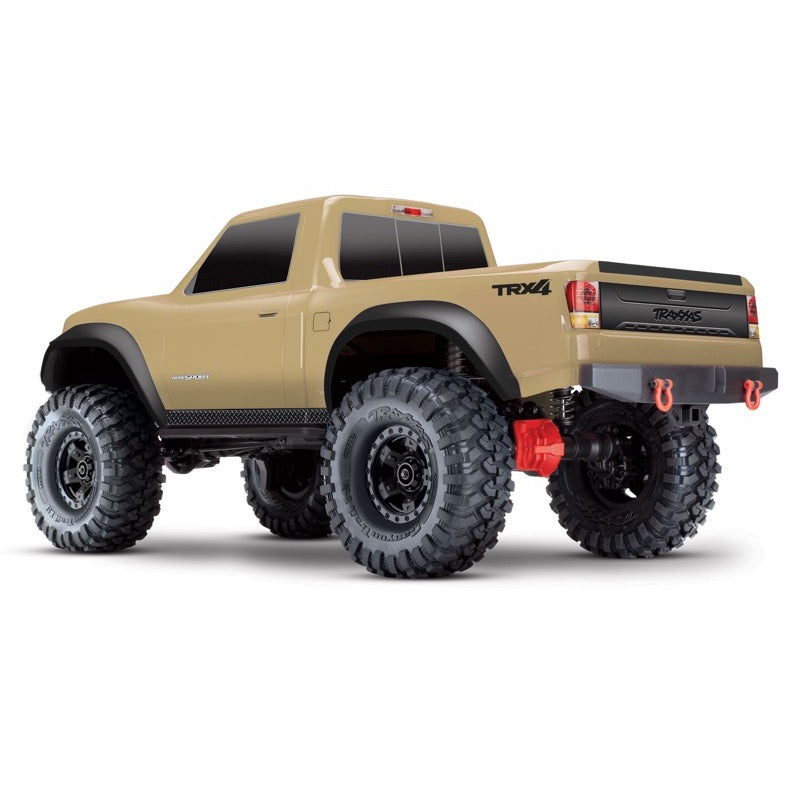

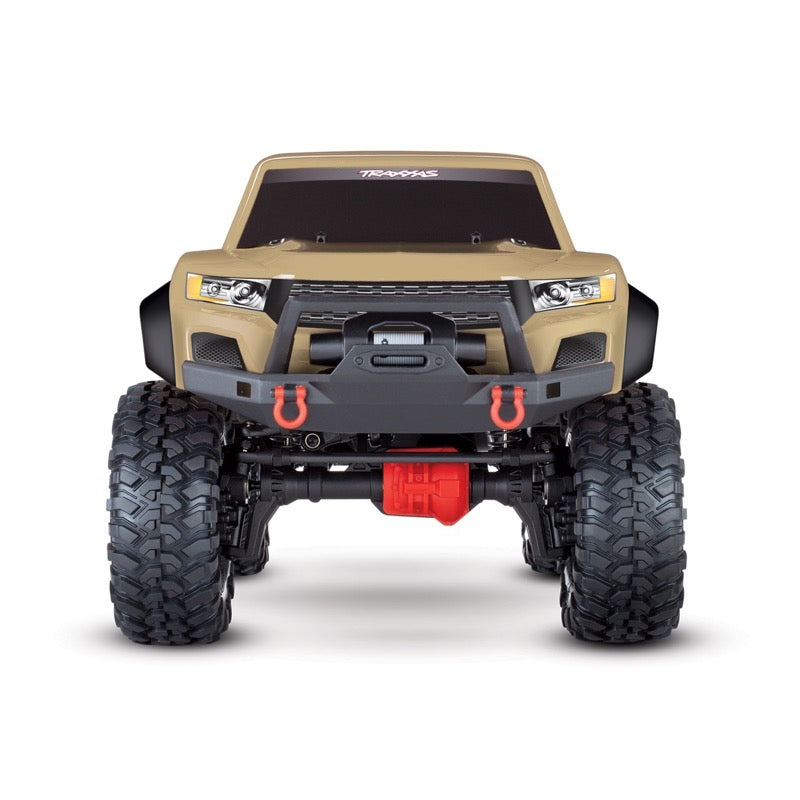

Traxxas 82024-4 TRX-4 Sport 4x4 1/10 RC Trail Truck Tan

Purpose Built

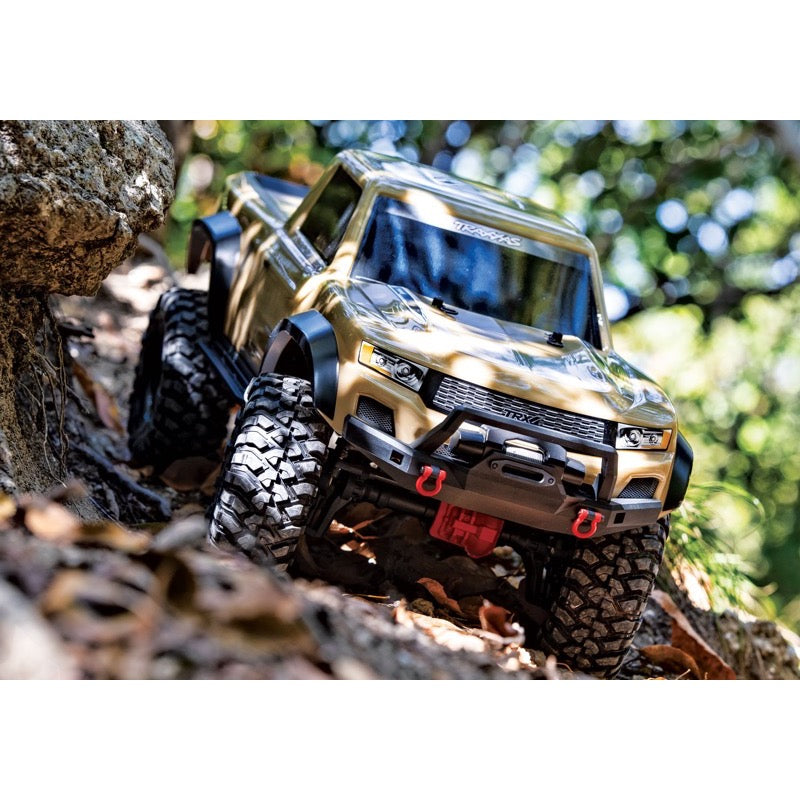

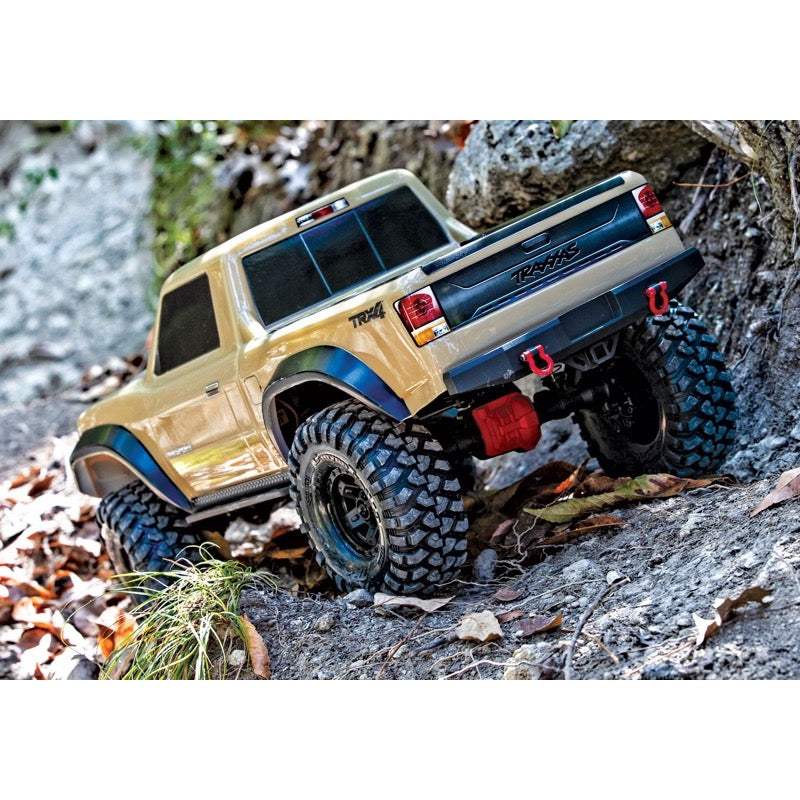

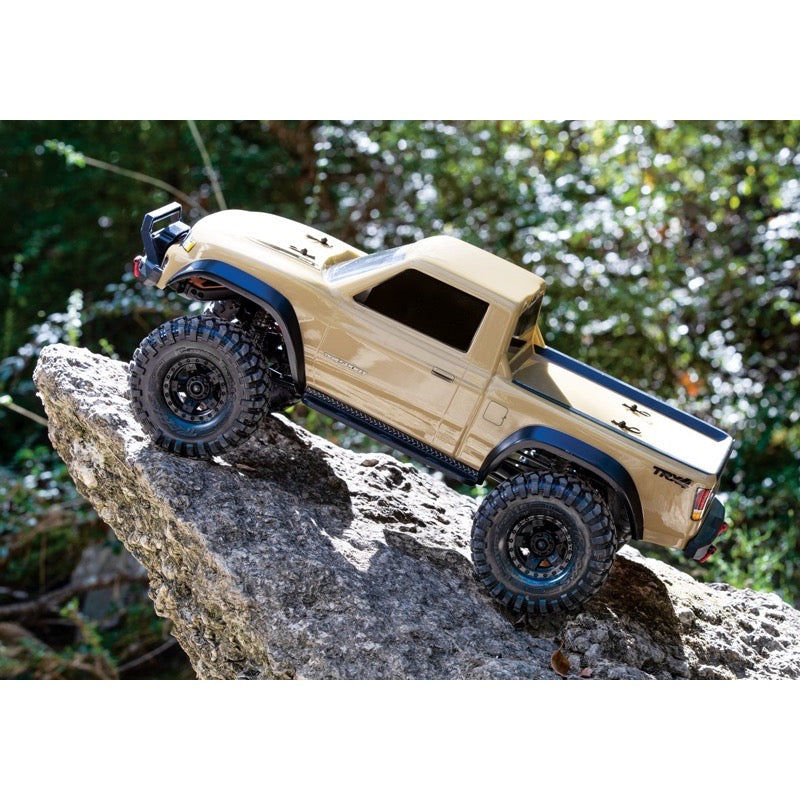

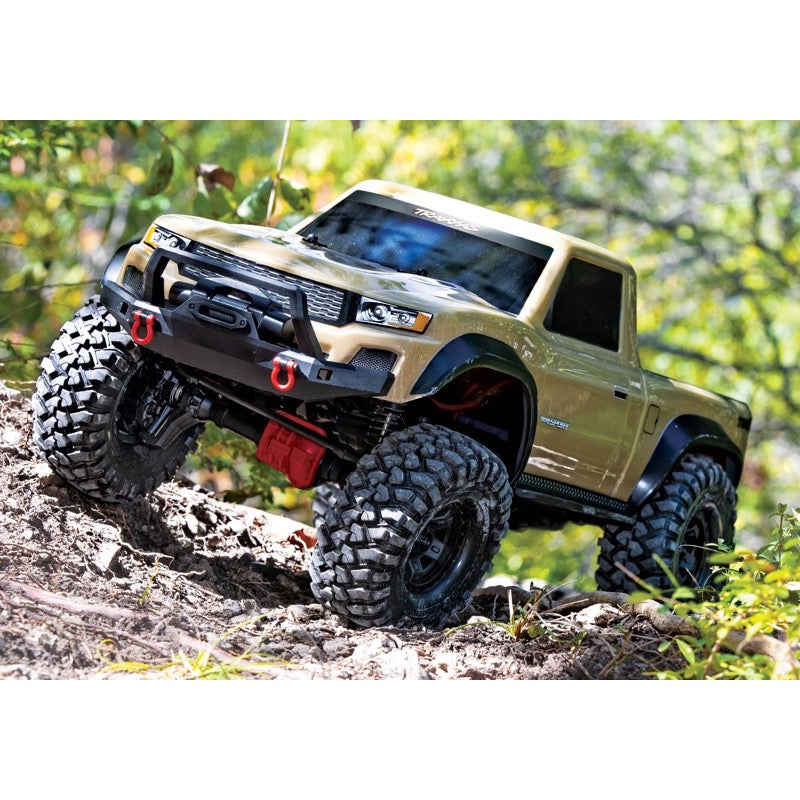

The TRX-4 Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail tires, and a lightweight pickup truck body for a leaner, performance-focused new TRX-4. The Sports unique bumpers, wheels, and body were designed for increased climbing versatility. Whether its a fun trail run or a hardcore technical crawl, the TRX-4 Sports capability and performance-built approach takes your outdoor adventure to a new level.

Innovation

Outfitted with radically innovative technology, the TRX-4 Sport minimizes weight to maximize performance.

Accessories

A wide range of performance and adventure accessories are available to transform your TRX-4 Sport into a highly detailed Scale & Trail crawler.

• Clear and Painted Bodies
• Expedition Rack
• Auxilliary Exterior LED Lighting for the Roof, Bumper, and Expedition Rack
• Traction Boards
• Side View Mirrors
• Molded Inner Fenders
• Snorkel
• Spare Tire Mount
• Bolt-on Headlights and Tail Lights
• Shovel, Axe, Jack & More!

Features

• Tough, Lightweight Pickup Truck Body
• Trail-Tuned XL-5 HV Waterproof Electronic Speed Control
• Innovative Battery Compartment
• Rigid Steel Frame
• TQ 2.4GHz 2-channel transmitter
• Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
• Sealed Ball Bearings
• Hex Hardware with Rust-Resistant Black Oxide Coating

Contents

• TRX-4, Ready-To-Drive model
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQ 2.4GHz radio system
• High quality maintenance tools

Requires

• Batteries -TRX-4 accepts a wide variety of NiMH (4-7 cell) and LiPo (2s-3s) batteries.
• Charger -Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
• AA Alkaline Batteries -Four AA alkaline batteries for the transmitter.

The TRX-4 Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail tires, and a lightweight pickup truck body for a leaner, performance-focused new TRX-4. The Sports unique bumpers, wheels, and body were designed for increased performance in technical sections. Whether its a fun trail run or a hardcore technical crawl, the TRX-4 Sports capability and purpose-built approach takes your outdoor adventures to a new level.

• Length: 21.93 inches (557mm)
• Front Track: 9.78 inches (249mm)
• Rear Track: 9.78 inches (249mm)
• Ground Clearance: 3.14 inches (80mm)
• Weight: 5.79lb (2.63kg)
• Height: 9.47 inches (241mm)
• Wheelbase: 12.28 inches (312mm)
• Approach Angle: 58.82°
• Departure Angle: 45.83°
• Breakover Angle: 58.93°
• Front Shock Length: 3.54 inches (90mm)
• Rear Shock Length: 3.54 inches (90mm)
• Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
• Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
• Front Tires: 4.64 x 1.89 inches (118 x 48mm)
• Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
• Hex Size: 12mm
• Speed Control: XL-5 HV
• Motor (electric): 21T Reverse Rotation
• Transmission: Single Speed
• Gear Pitch: 32P
• Differential Type: Spool (no differential)

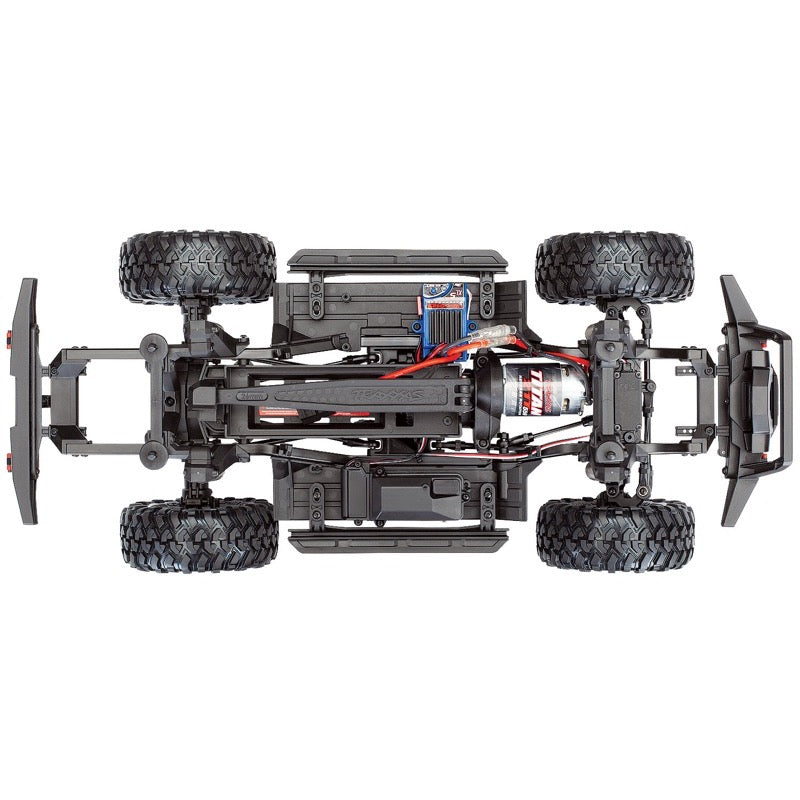

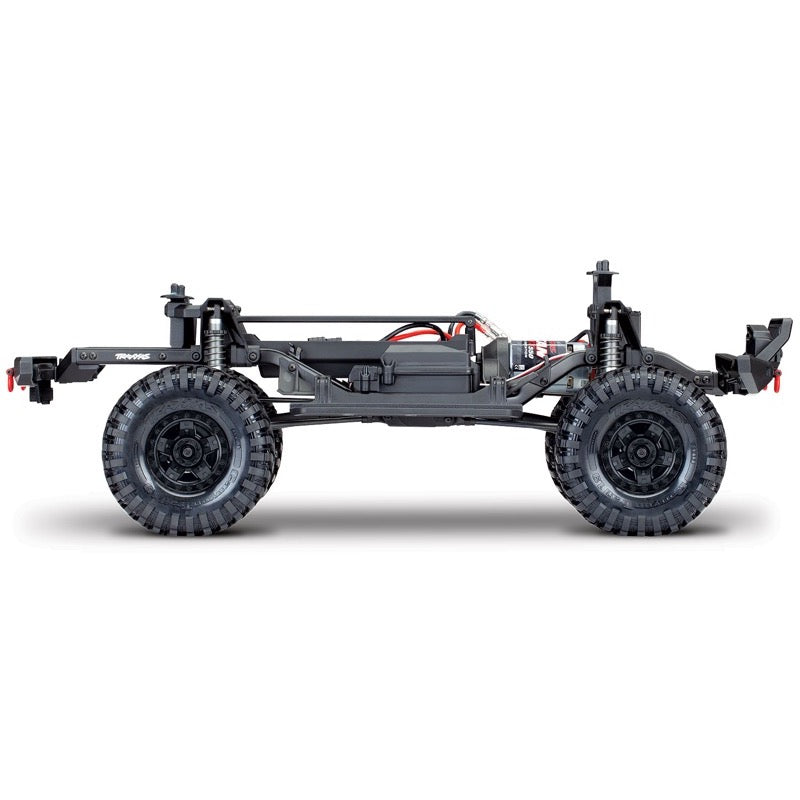

• Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft Driven 4WD
• Steering: Chassis Mounted Servo
• Servo: 2075X Metal Gear
• Transmitter: TQ™ 2.4GHz 2-Channel Transmitter
• Receiver: 6519
• Skill Level: 2
• Battery Tray: 158.75 L x 47 W x 23/26mm H
