Traxxas 93044-4 1/10 Factory Five 1933 RC Hot Rod Truck (Red)

Traxxas Factory Five Hot Rods

The Traxxas Factory Five Hot Rods honor the early days of hot rodding when big power, bright chrome, and curved steel ruled the streets. Like their full-size Factory Five counterparts, the Traxxas ‘33 Coupe and ‘35 Truck combine modern chassis design with eye-catching gorgeous bodies. Riding on the 4-Tec 3.0 chassis, the Traxxas Hot Rods offer blistering speed and razor-sharp reflexes with timeless good looks. Beautiful to behold and even more fun to drive, the Traxxas Factory Five Hot Rods add a classic touch to your RC experience.

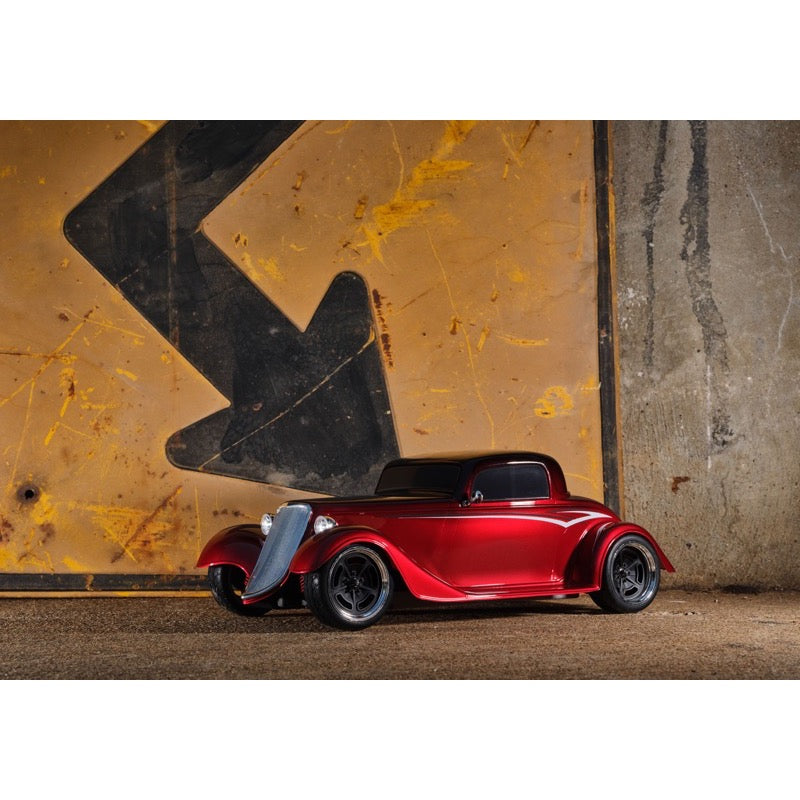

Classic Beauty

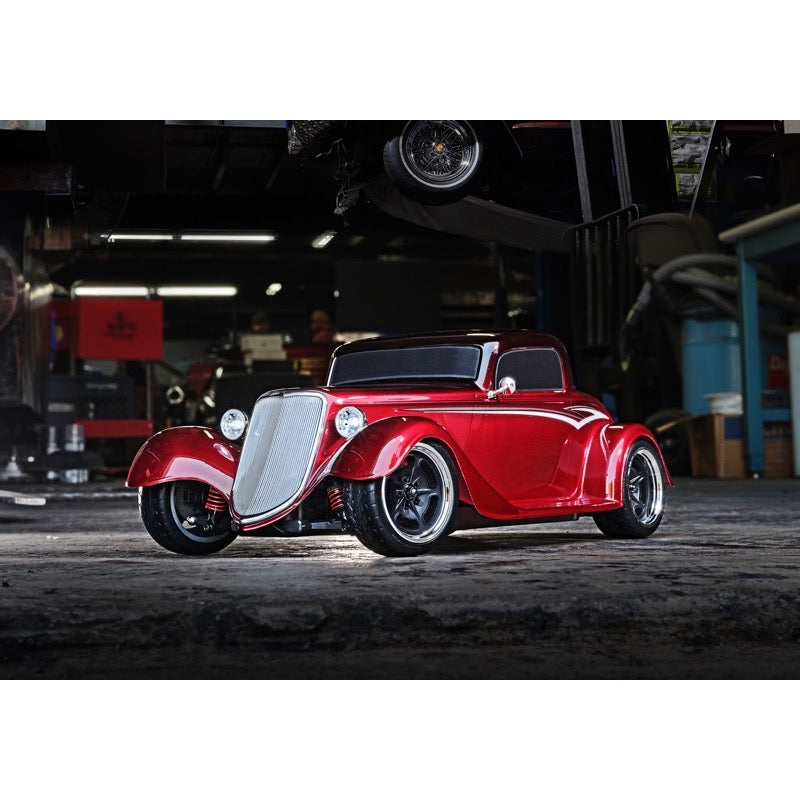

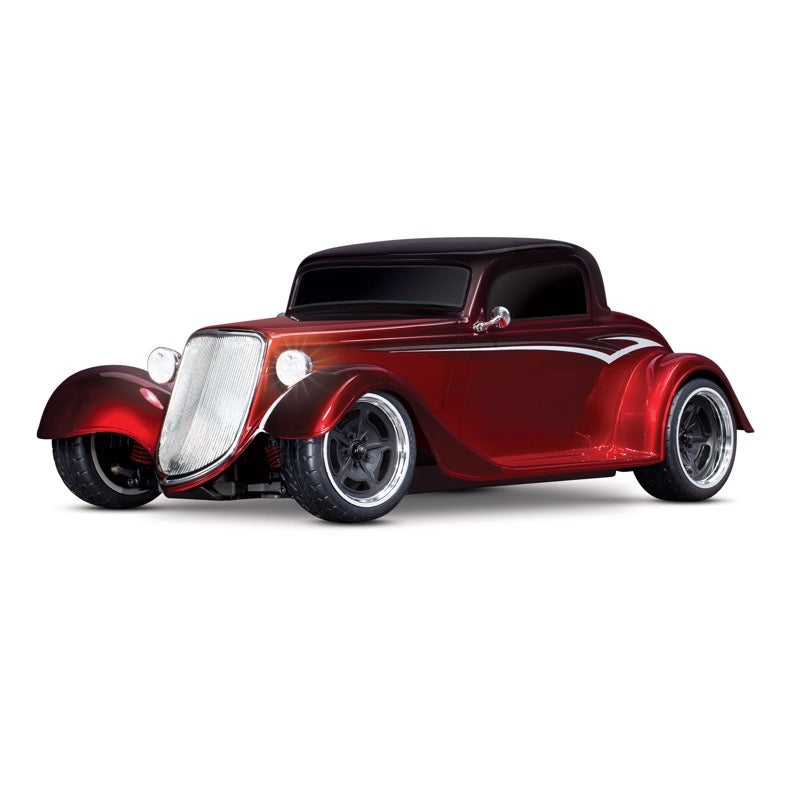

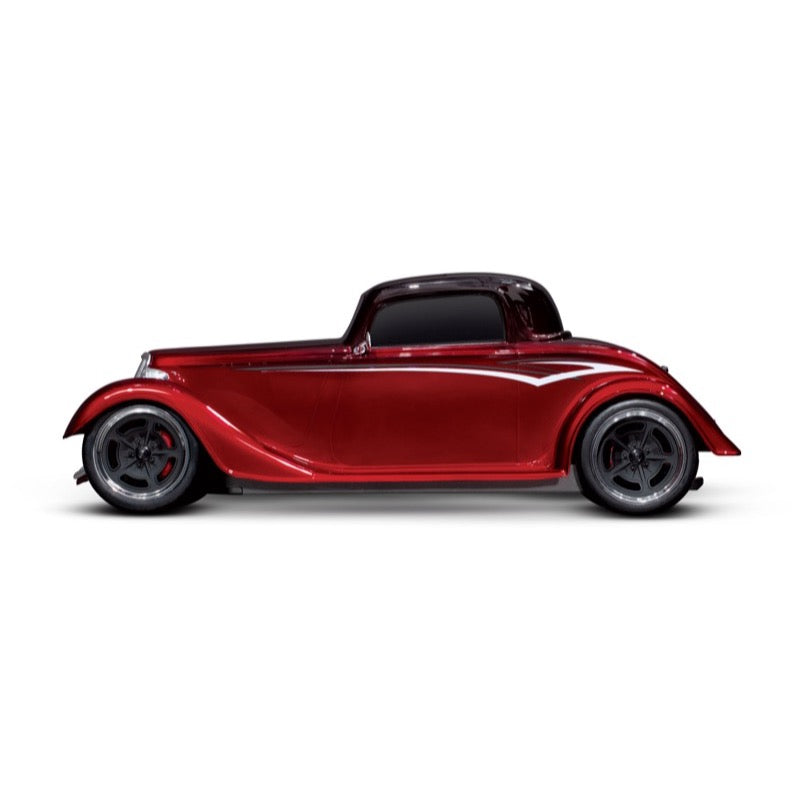

A steeply-raked chrome grille flows into the long narrow hood and aggressively chopped roof. Chrome headlights flank the sculpted fenders with full running boards. Deep, lustrous paint and wild graphics complete the package. The look is pure classic hot rod and Traxxas brings this timeless style to life in 1/10 scale.

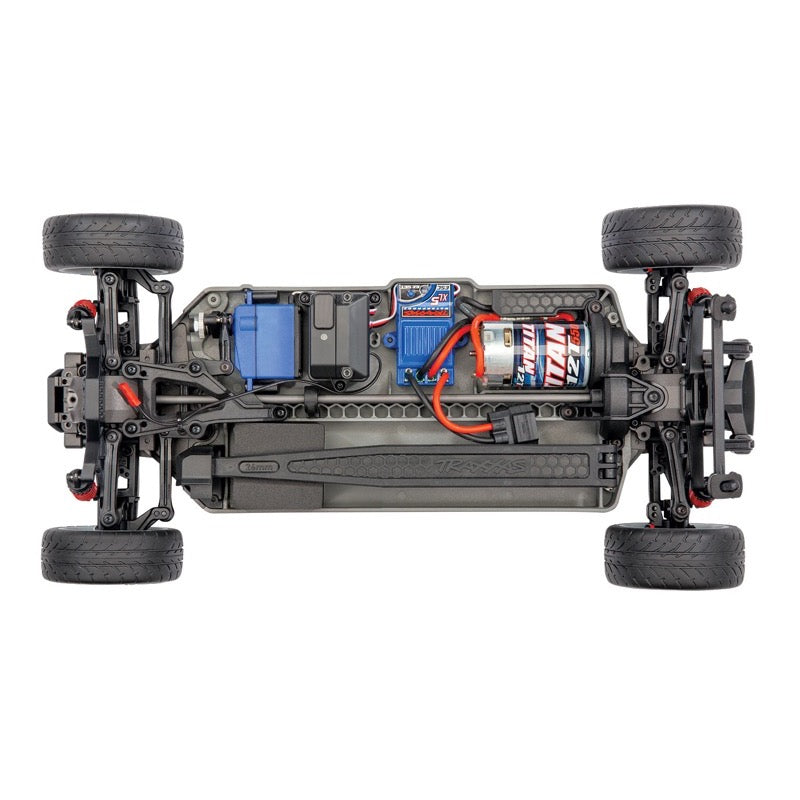

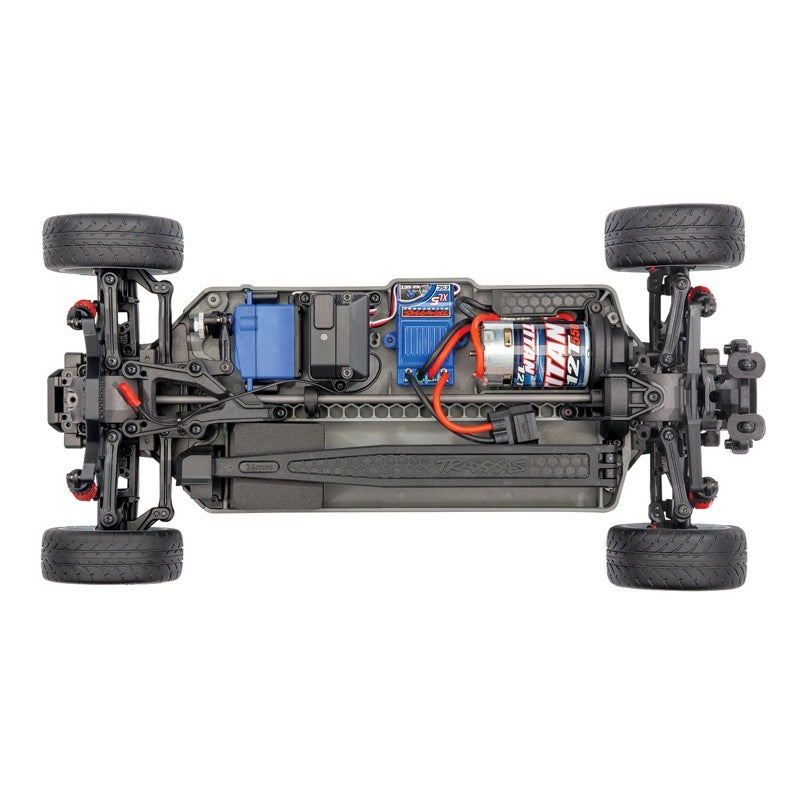

New 4-Tec 3.0 Hot Rod Chassis

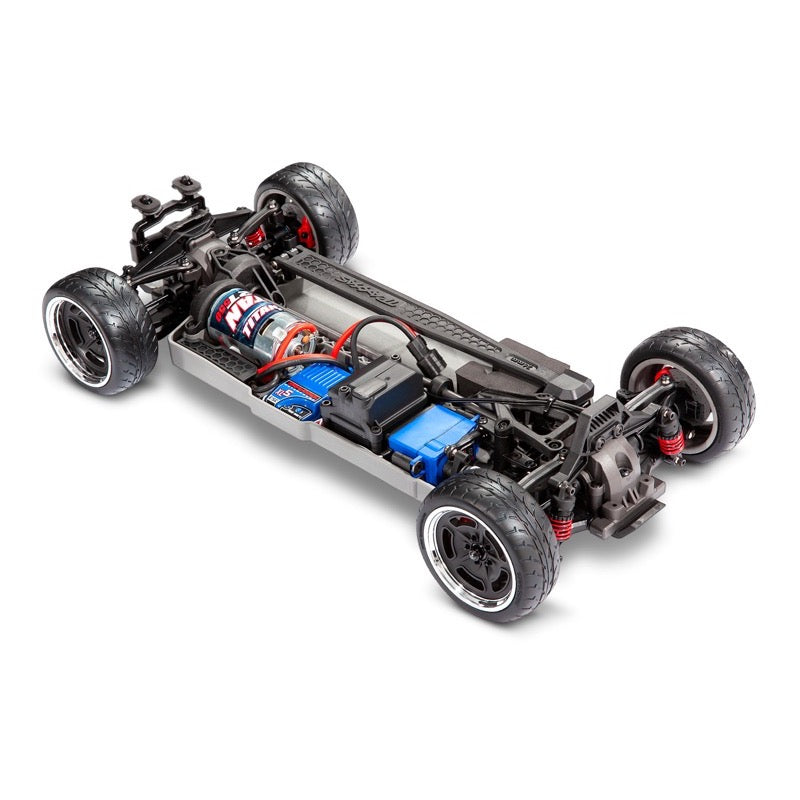

The 4-Tec 3.0 chassis wheelbase is extended to 300mm and outfitted with ultra low-profile suspension. This allows for highly accurate, deep-cut body lines and exacting proportions throughout both models. The rigid modular platform delivers ultimate steering precision and nearly infinite tuning potential. No classic hot rod ever handled this well.

Factory Lighting

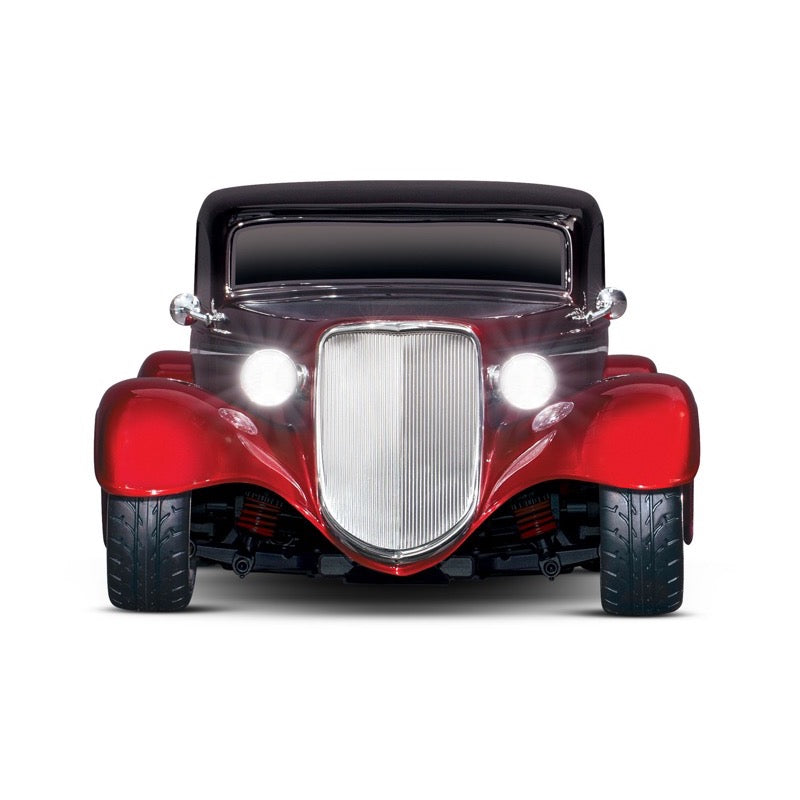

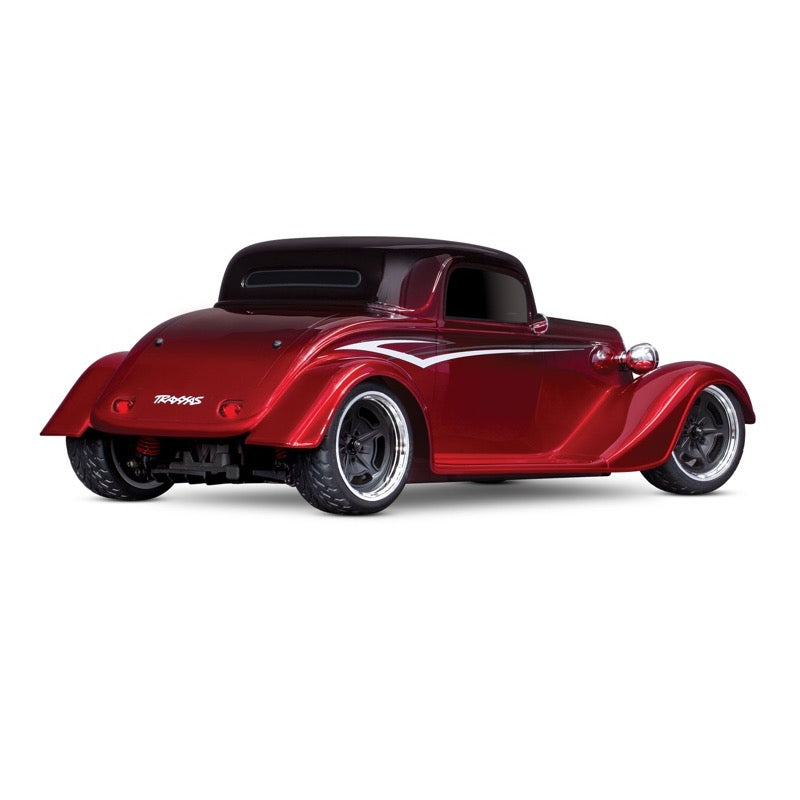

Factory-installed LED lighting adds another layer of scale detail to the sculpted Hot Rod bodies. Brilliant white LEDs illuminate the headlight housings to lead the way with red tail light lenses for the competition as you blow past them. Naturally everything’s waterproof to keep the fun going, regardless of weather conditions.

Innovation

Insightful design touches and precision engineering, combined with a low-CG, mid-motor configuration and fully adjustable suspension, make the Traxxas Factory Five Hot Rods as exciting and capable as the real thing.

Contents

• Traxxas Factory Five replica Hot Rod, Ready-To-Race Model with Titan 12T 550 Motor
• XL-5 Waterproof Electronic Speed Control
• TQ 2.4GHz Radio System
• Quick Start Guide
• High Quality Maintenance Tools
• Optional High Speed Pinion Gear

Features

• Front clipless body mount
• Injection molded details
• Front grille, side mirrors, headlight housings
• Custom graphics

• Detailed chrome headlights
• Rear red LED lenses

• Innovative waterproof design
• Three drive profiles
• Sport Mode - forward / brake / reverse
• Race Mode - forward / brake
• Training Mode - 50% forward / brake / 50% reverse (patented)
• Traxxas EZ-Set one-button setup
• LiPo and NiMH compatible with two-stage low-voltage

• Traxxas #6519 3-channel micro receiver
• Patented O-ring sealed watertight receiver box keeps the micro receiver dry

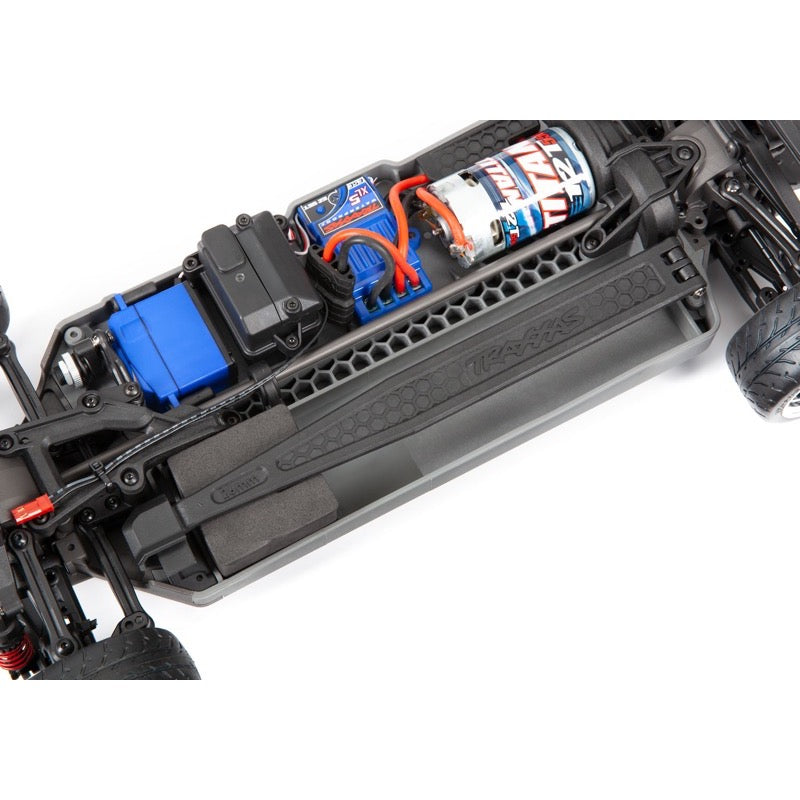

• Powerful Titan 12T 550 modified motor with internal cooling fan
• Fixed gear mesh motor plate makes setting gear mesh simple with 11 different gearing positions
• 30+mph with included optional pinion gear
• Molded wire retainer keeps motor wires secure

• High-torque waterproof Traxxas #2075 steering servo
• Precise servo saver integrated into servo horn
• High steering angle option

• Positions weight low for improved handling

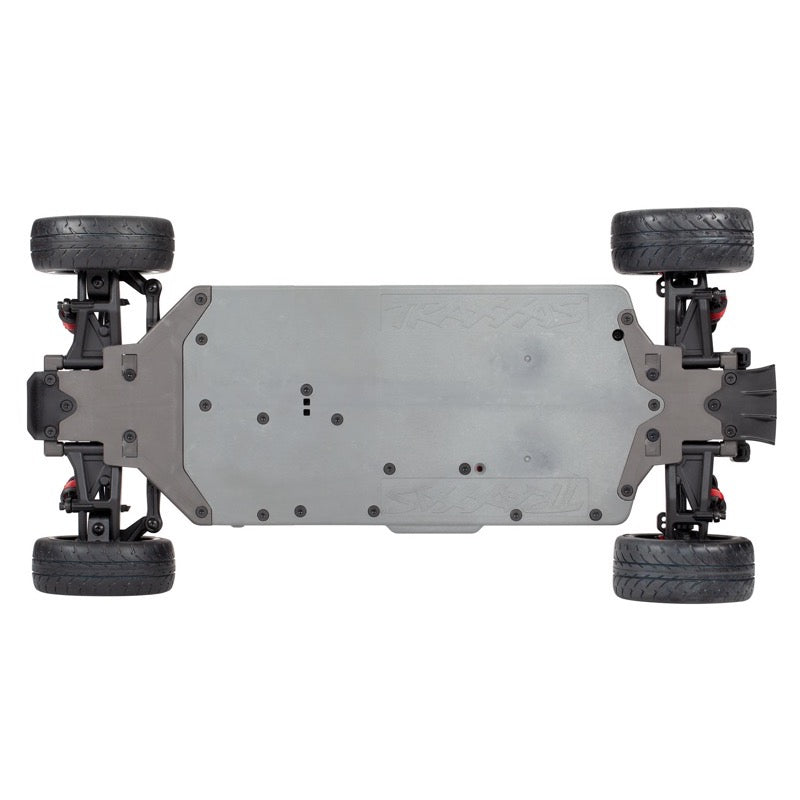

• Smooth underside resists drag and snags
• Angled front bumper improves approach angle
• Modular interlocking chassis pieces
• Improves rigidity and tightens tolerances
• Allows for easy maintenance

• Captured links won’t pop off
• Geometry tuned for precise handling
• Dual rear camber link mounts
• Adjustable droop

• Easy, secure battery installation
• Swivels to allow different height batteries
• Locks securely without pins or parts to lose

• Full-time shaft driven 4-wheel drive
• Steel center driveshaft with center bearing support
• Direct drive
• Sealed, silicone-filled differential
• Brushless ready for easy Velineon brushless power upgrade

• Replica black Salt Flat-style wheels
• Mirror chrome trim rings
• High-performance tires with long-wearing compound
• Wider rear tires for a more aggressive stance
• Replica brake discs incorporate standard 12mm wheel hexes

• Fully adjustable oil-filled GTR shocks with X-ring technology
• Threaded bodies for easy ride height adjustment
• Red powder coated shock springs feature a responsive spring rate

• Requires Traxxas 7-Cell NiMH “flat pack” or 2-Cell LiPo Battery and Charger (Sold Separately)
• Backed by Unparalleled Traxxas Support and Parts Availability

Requires

Battery Pack

Traxxas Hot Rods require the use of a 7-Cell NiMH “flat pack” or 2-Cell LiPo Battery equipped with a Traxxas High Current Connector. For compatible batteries listing, click here for Coupe and here for Truck.

Charger

Traxxas EZ-Peak Plus (model #2970) recommended. Click here for a full list of Traxxas chargers.

AA Alkaline Batteries

Four AA alkaline batteries for the transmitter

• Length : 16.7 inches (423mm)
• Front Track : 7.7 inches (195mm)
• Rear Track : 7.9 inches (200mm)
• Ground Clearance : 0.3 inches (9mm)
• Weight : 4.4lbs (1.89kg) with body (with battery)
• Height (ride) : 5.9 inches (151mm)
• Wheelbase : 11.8 inches (300mm)
• Shock Length : 1.5 inches (39mm) (front and rear)
• Tire Diameter : 2.8 inches (73mm)
• Tire Width (front) : 1.1 inches (28mm)
• Tire Width (rear) : 1.3 inches (32mm)
• Wheel Diameter : 2.1 inches (54mm)
• Speed Control : XL-5™ Electronic Speed Control
• Motor (electric) : Titan® 12T 550 (12-Turn)
• Transmission : Single Speed Direct Drive
• Overall Drive Ratio : 11.38
• Differential Type : Sealed, Hardened Steel Bevel, Limited Slip
• Gear Pitch : 48
• Chassis Structure/Material : Molded Tub / Nylon Composite
• Brake Type : Electronic
• Drive System : Shaft-Driven 4WD
• Steering : Dual-Bellcrank
• Radio System : TQ™ 2.4GHz Transmitter
• Servo : #2075 High Torque Waterproof
• Top Speed : 30+mph (with included optional pinion gear)
• Skill Level : 1
• Battery Tray : 158mm long / 46mm wide / 23 or 26mm high
