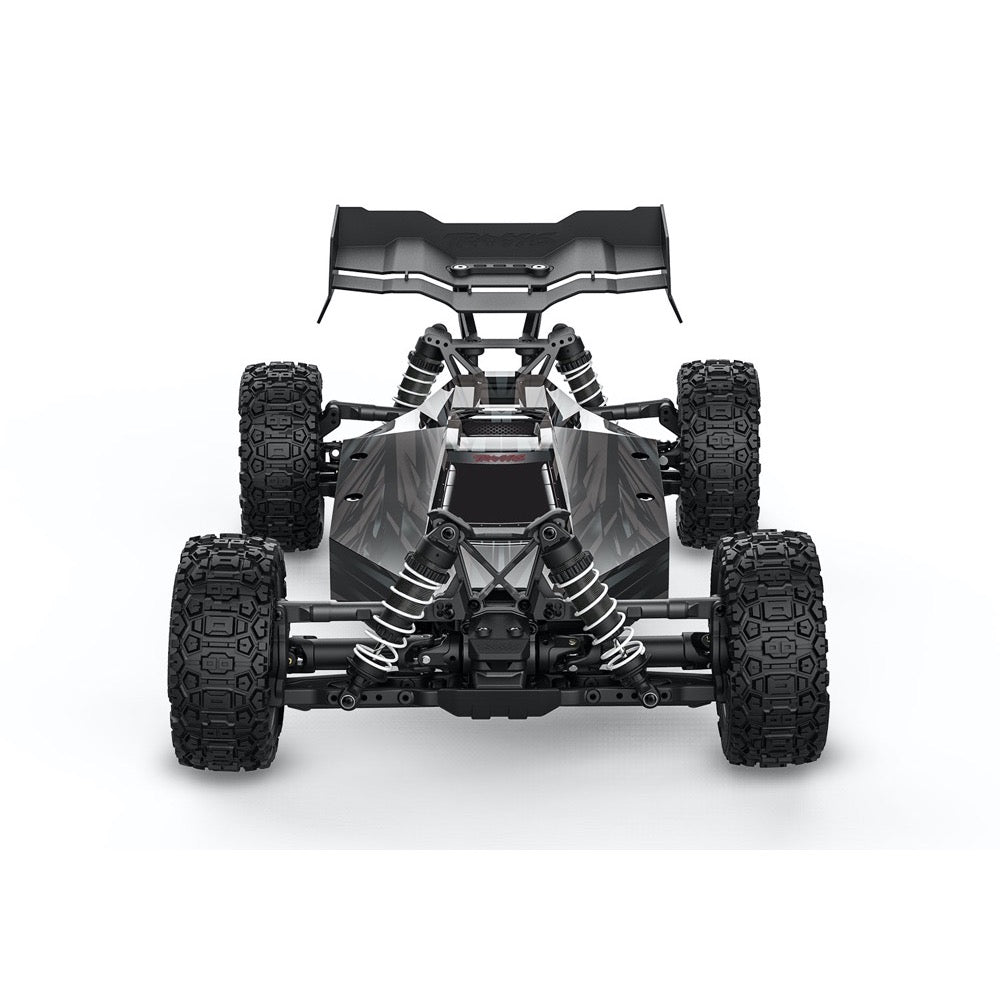

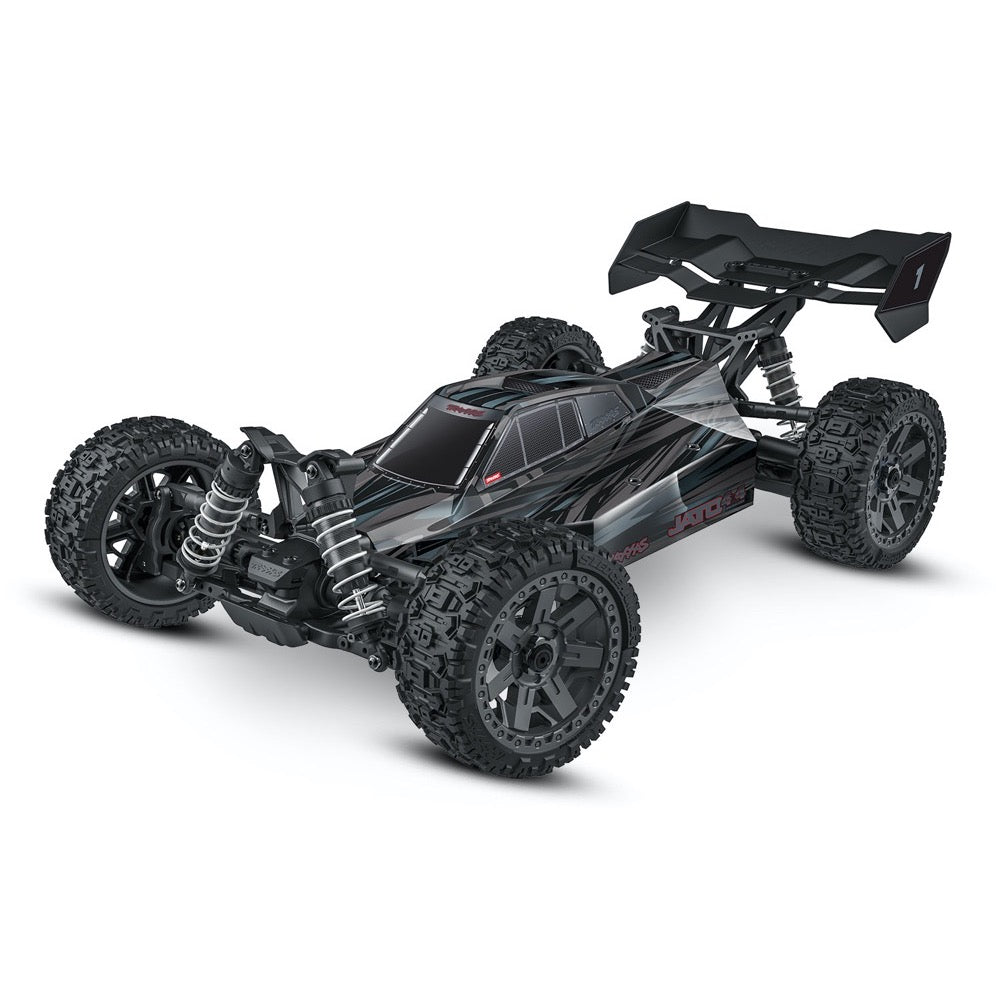

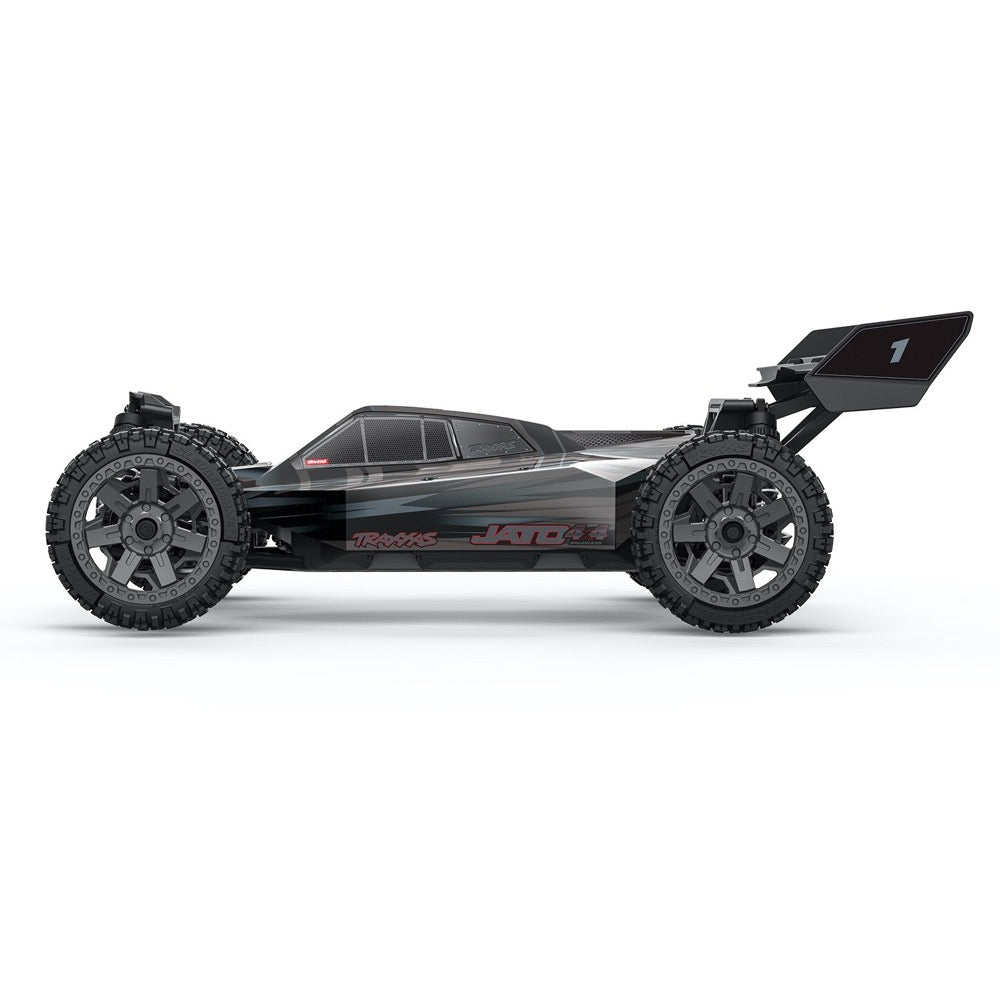

Traxxas Jato 4x4 Brushless BL-2S 1/8 RC Buggy (Black) 90154-4

Product Code: TRA-90154-4BLK
Price coming soon
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

BL-2s Brushless System

The BL-2s™ brushless power system ramps up the fun with up to 60% more speed and faster acceleration than comparable brushed power systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Jato 4X4 to run battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 Kv is long-lasting and requires virtually no maintenance.

Next-Level Toughness

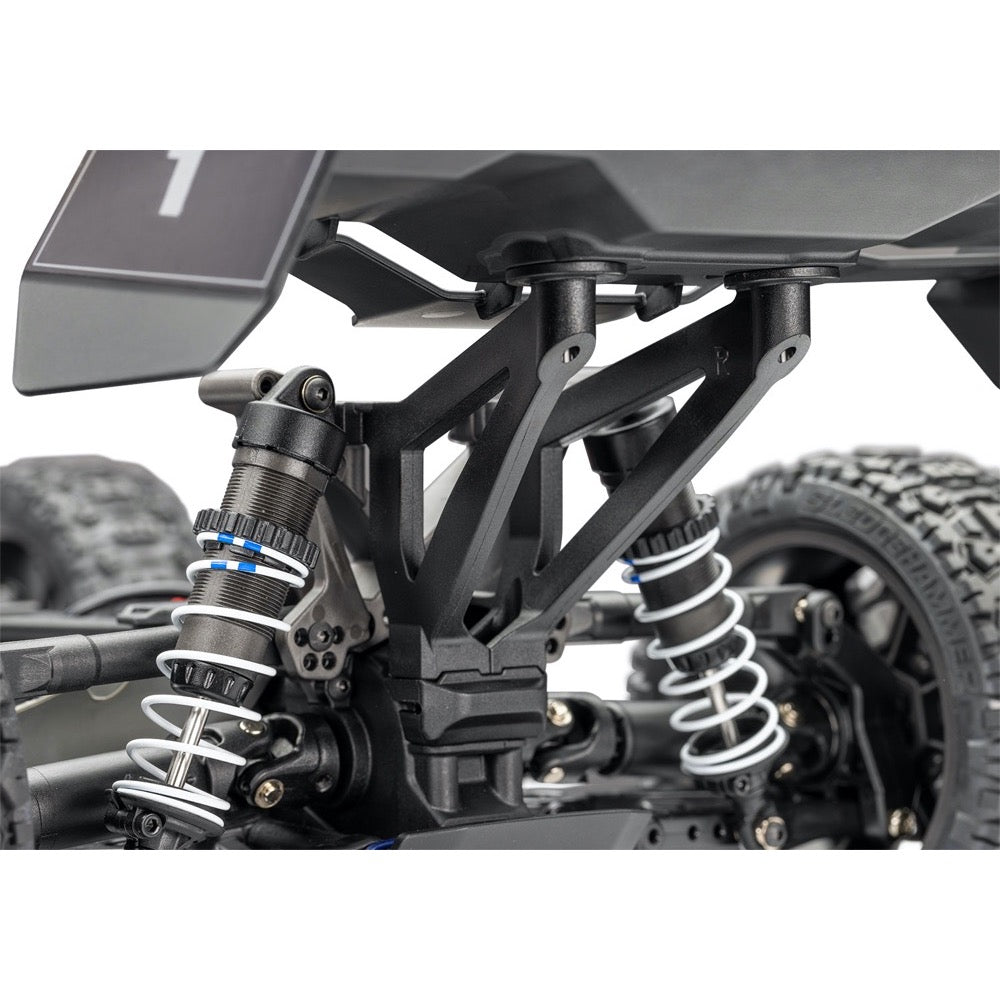

Factory-installed Extreme Heavy Duty Upgrade components give Jato 4X4 the superior strength and durability normally associated with Traxxas’ toughest off-road trucks. An ultra-rigid T-Bar reinforces the chassis with Extreme HD shock towers to support the suspension. Huge Maxx-Duty® driveshafts transfer every ounce of the motor’s torque to the wheels with unsurpassed strength.

Track-Ready Handling

Jato 4X4 sits low and wide, concentrating its weight below the driveshafts for exceptional handling and perfect weight distribution. Extra-long GTR shocks in the front and rear maximize traction by keeping Jato 4X4’s new Sledgehammer® buggy tires in constant contact with the ground. Add the optional sway bar kit (sold separately) for ultra-flat cornering and game-changing on-track performance.

Clipless Buggy Body

Jato 4X4’s form-fitted clipless body cuts through the wind and eliminates the parachuting effect for stable performance at speed. Tough clipless side latches hold the body securely in place but release in just seconds for fast battery swaps. Jato 4X4 incorporates the high-downforce wing from Sledge® to keep its chassis planted with rugged rollover protection as an added benefit.


Features

Clipless Body

  • Holds tight for intense action
  • Quick and easy removal

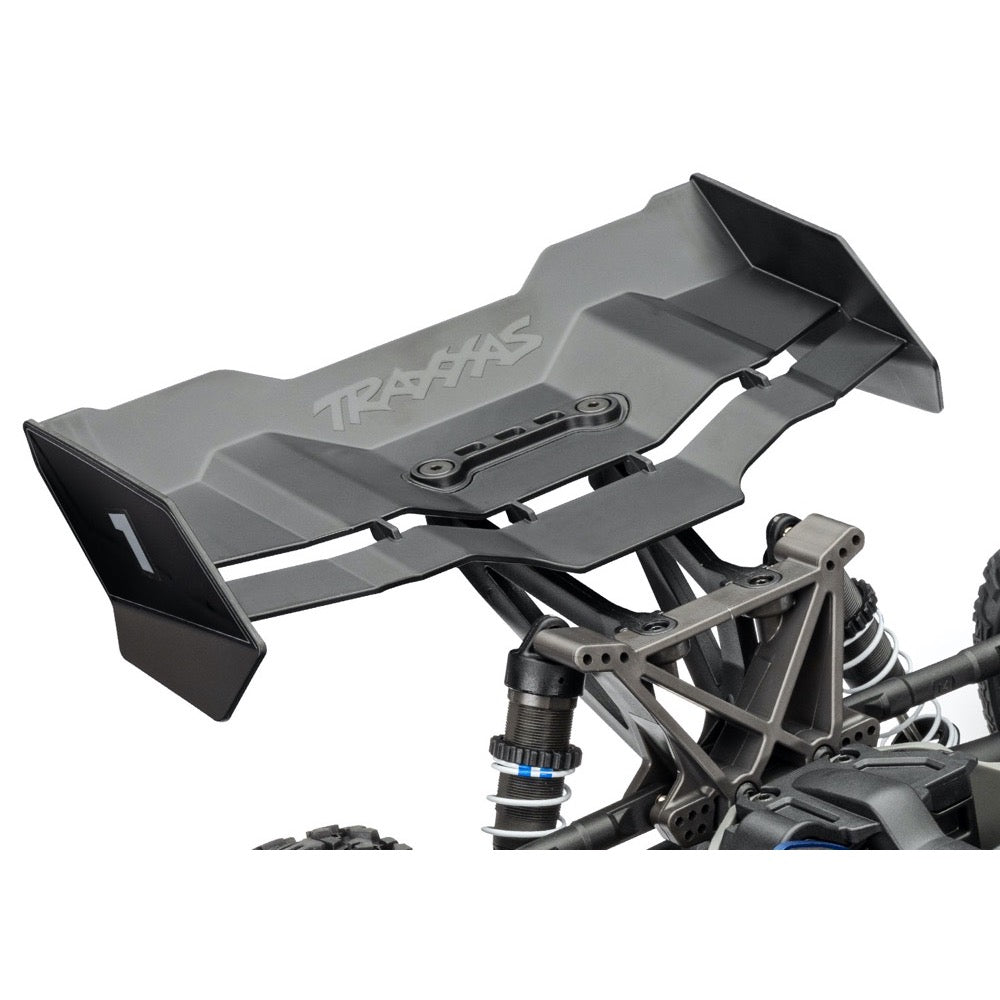

  • High-downforce wing

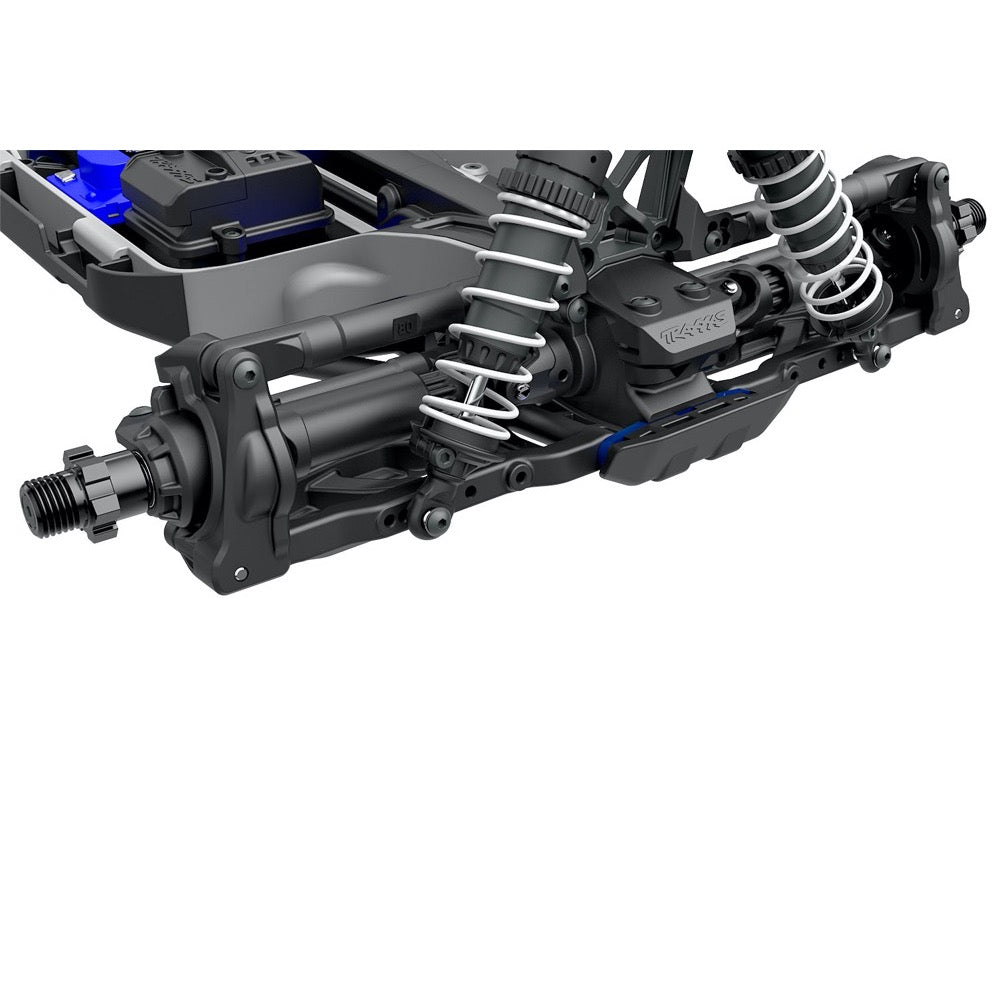

Extreme Heavy Duty Upgrade Kit Installed

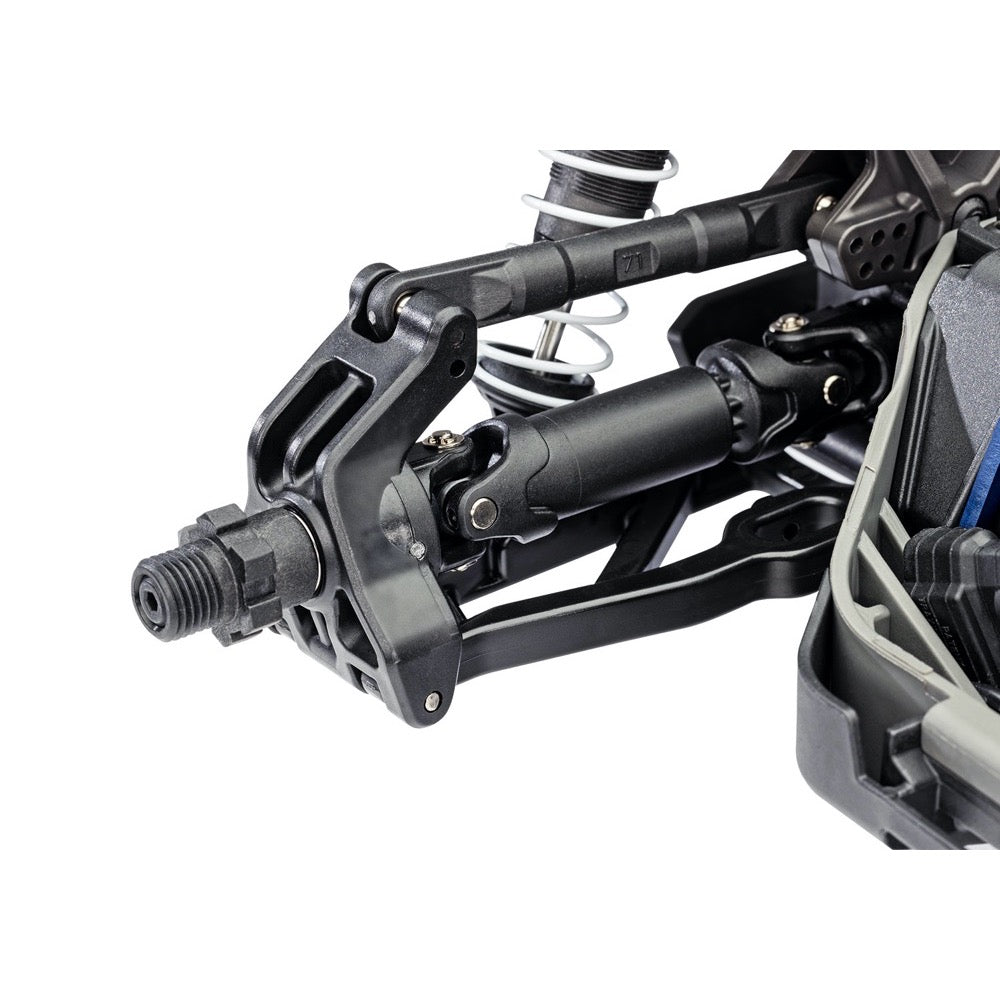

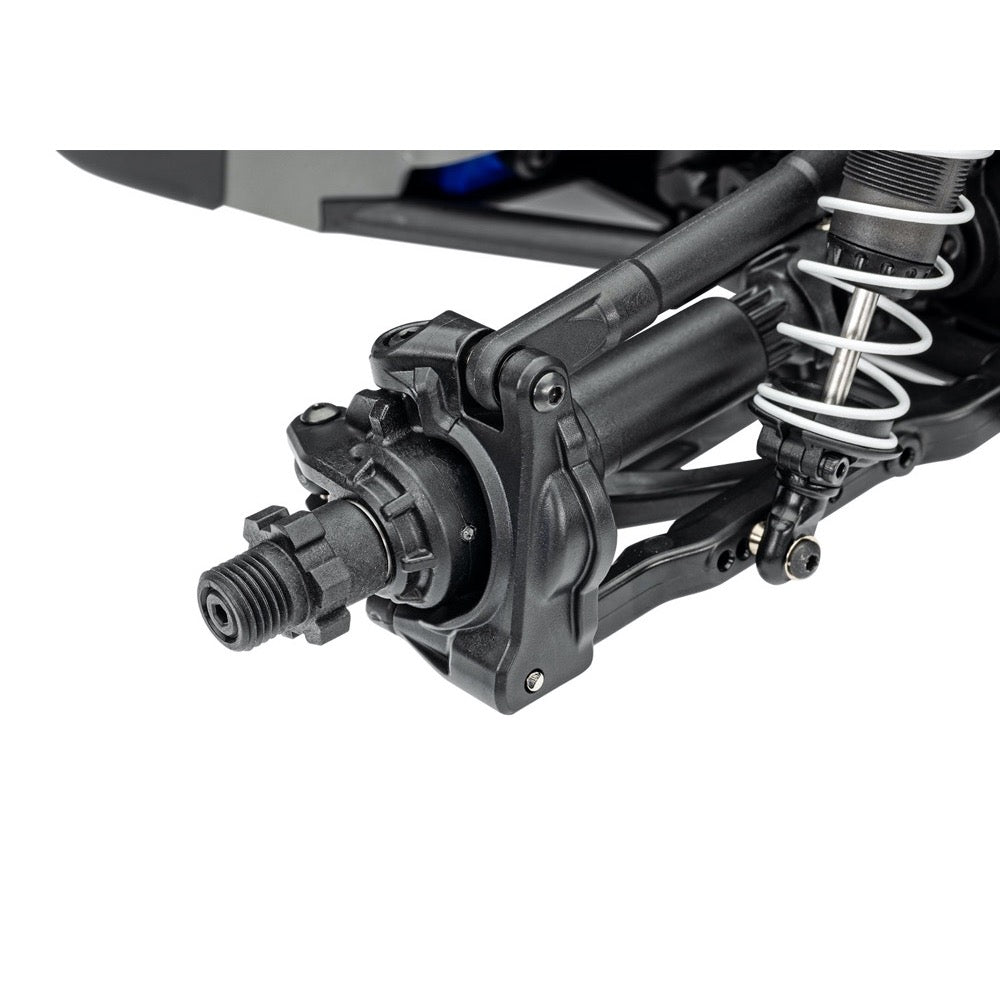

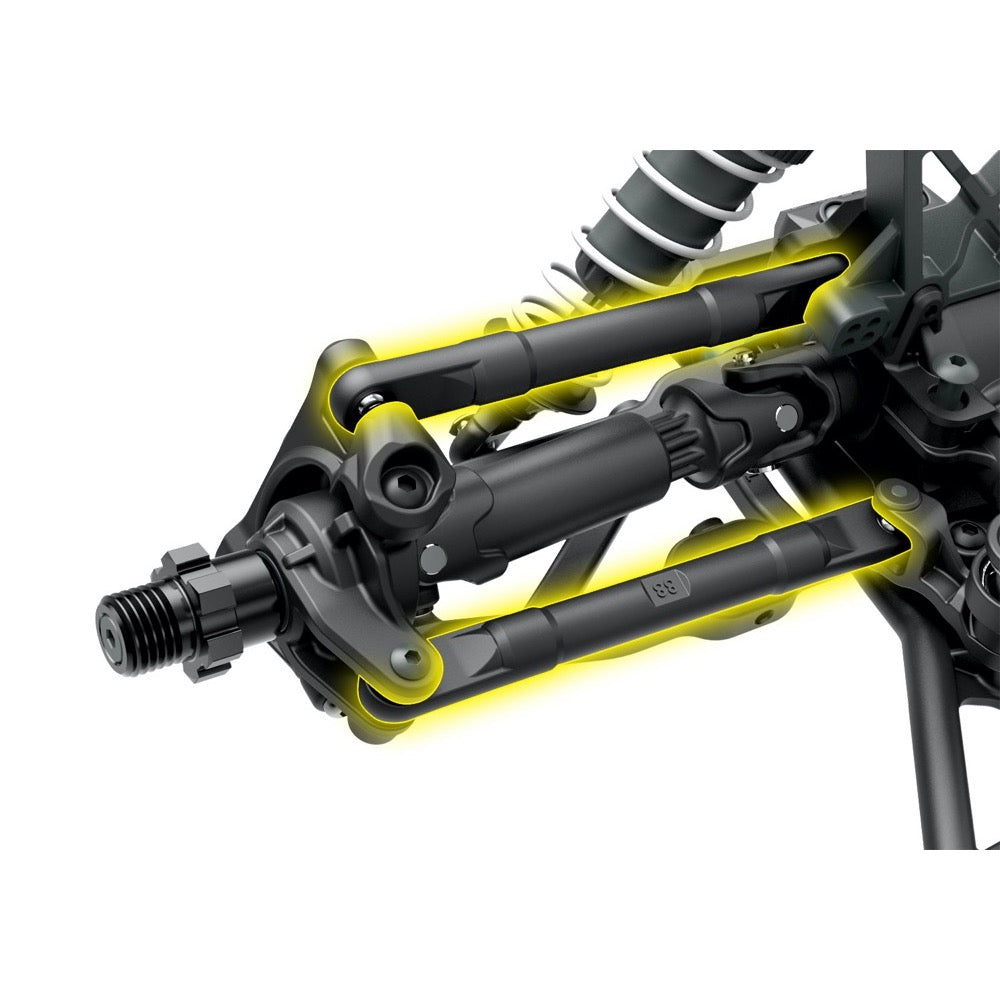

  • Strengthened C-hubs, axle carriers, and steering blocks
  • Heavy duty one-piece camber & toe links
  • Maxx-duty driveshafts
  • Oversize diameter
  • 6 mm axles
  • 17 mm hex hubs
  • Aluminum wheel nuts

TQ™ 2.4 GHz Transmitter

  • Full-size 2-channel transmitter
  • All-day comfort with precise long-range control

Steering

  • Chassis-mounted 2075 servo
  • Dual bellcrank design with integrated servo saver

BL-2s™ Waterproof Electronic Speed Control

  • Heat sink accepts accessory cooling fan (3340)
  • Three Programmable Drive Profiles
  • Sport Mode - Forward / Brake / Reverse
  • Race Mode - Forward / Brake
  • Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
  • Traxxas EZ-Set® one-button setup
  • Built-in two-stage low-voltage detection for LiPo batteries
  • NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
  • LiPo battery packs: 2 cells (7.4 volts)

3300 Kv Brushless Motor

  • Integrated cooling fan
  • Low-maintenance design
  • Efficient ball bearings
  • 3300 Kv

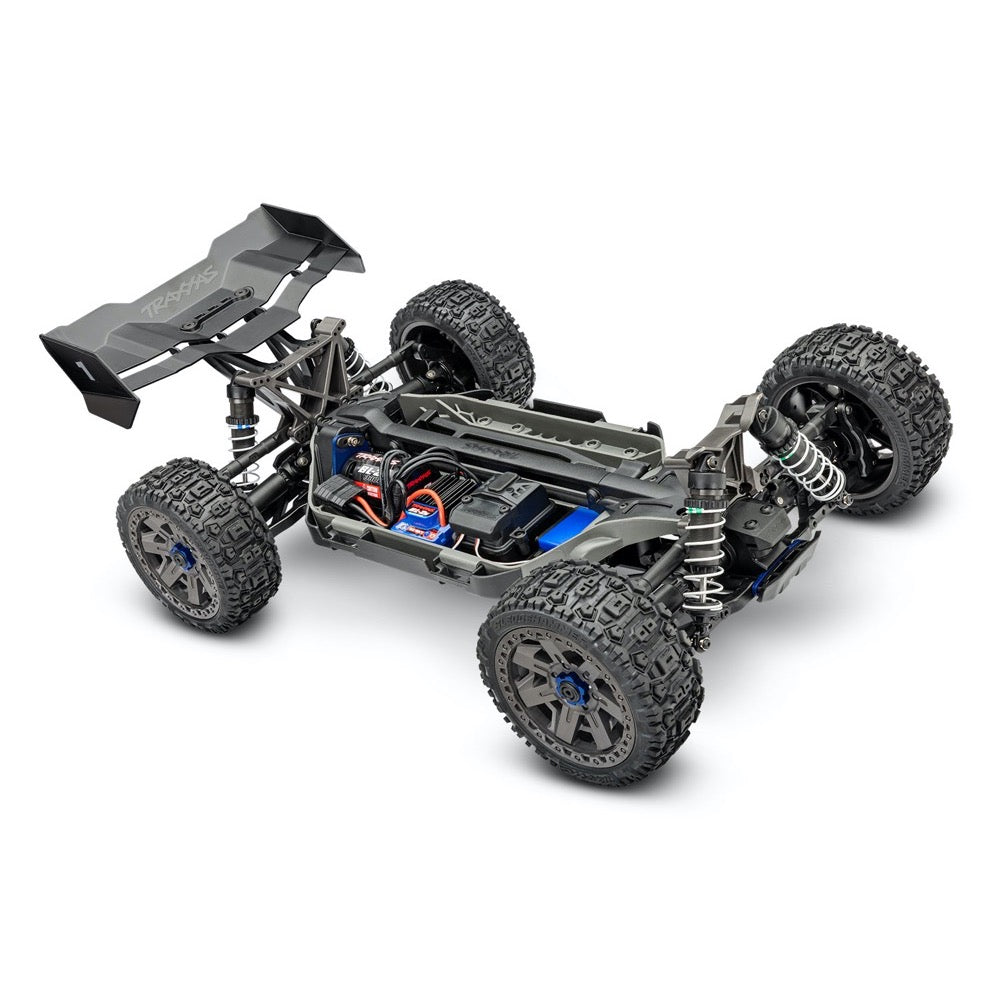

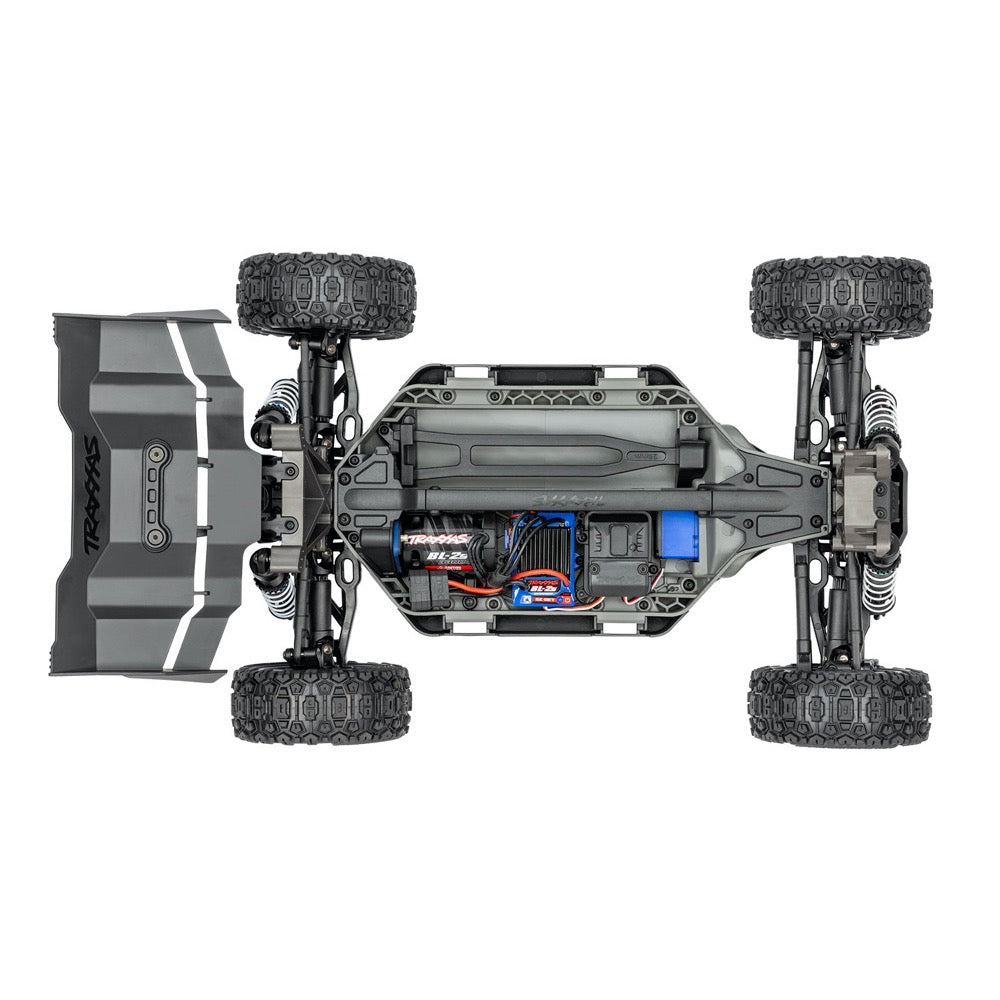

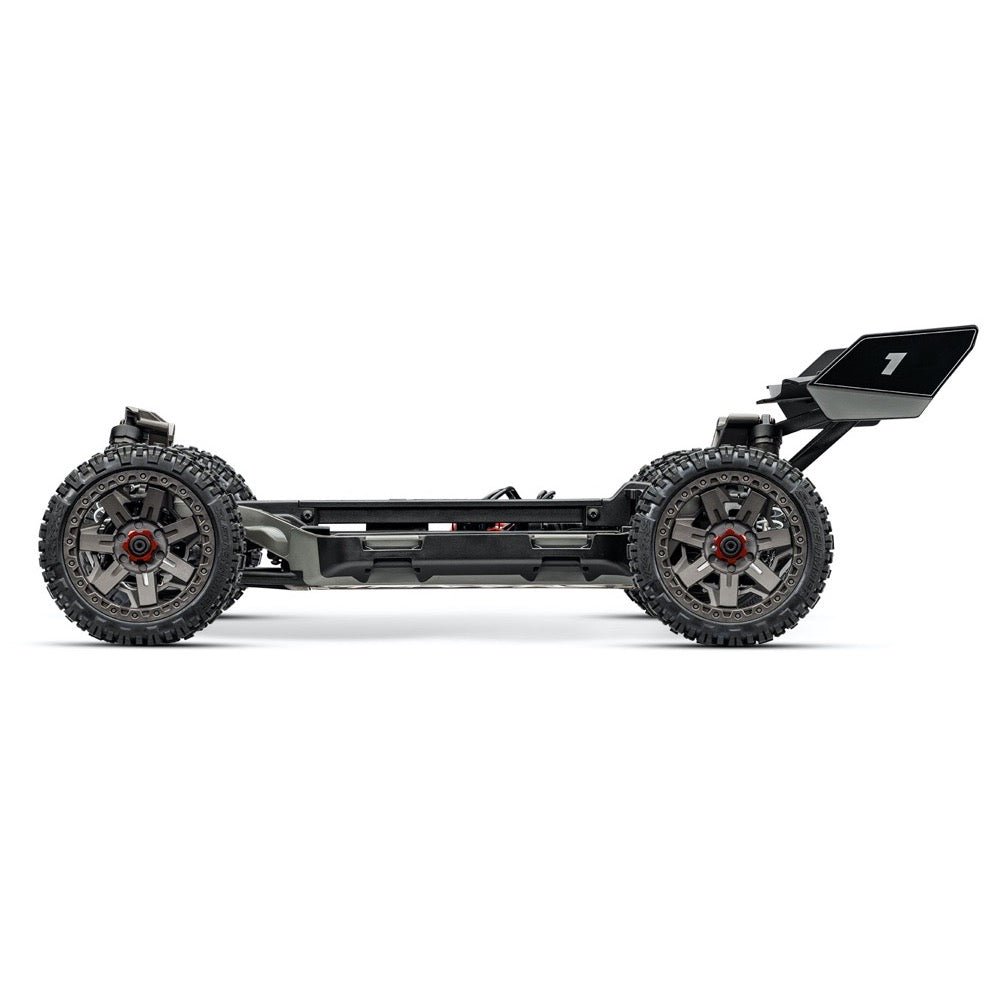

Chassis

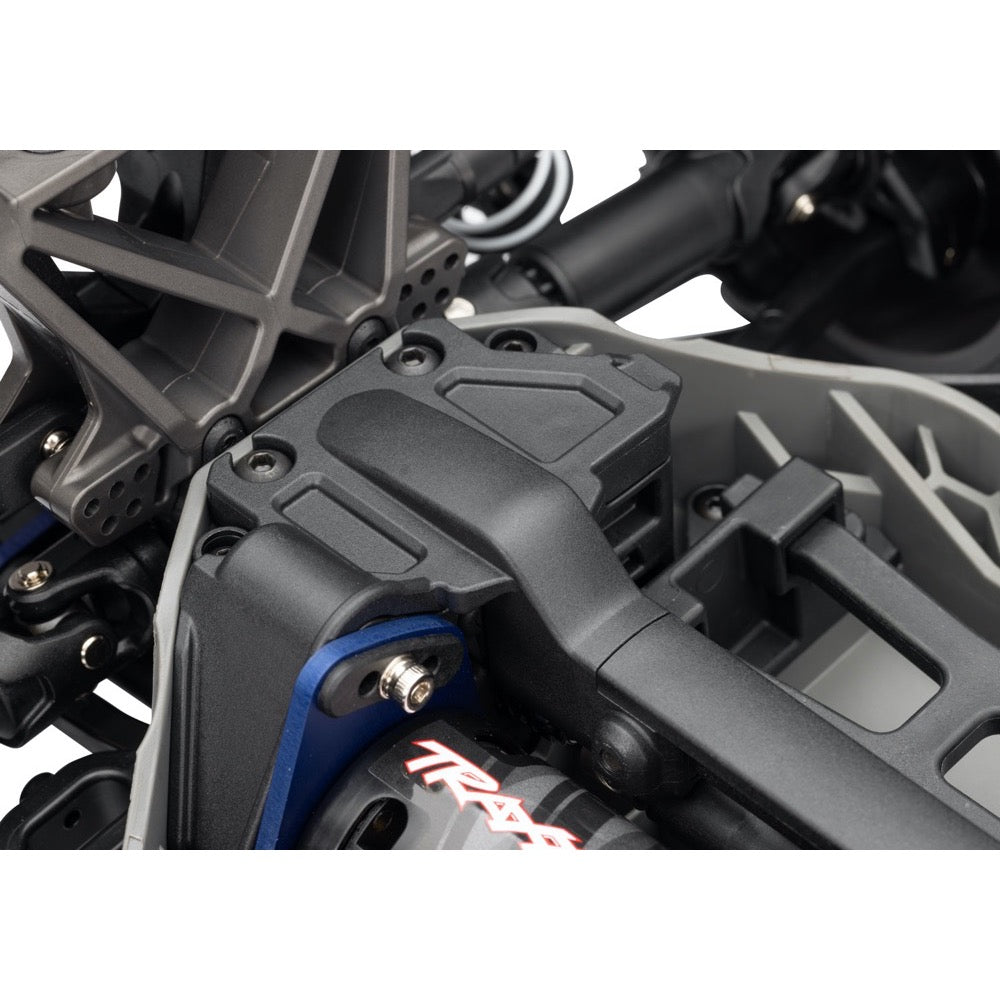

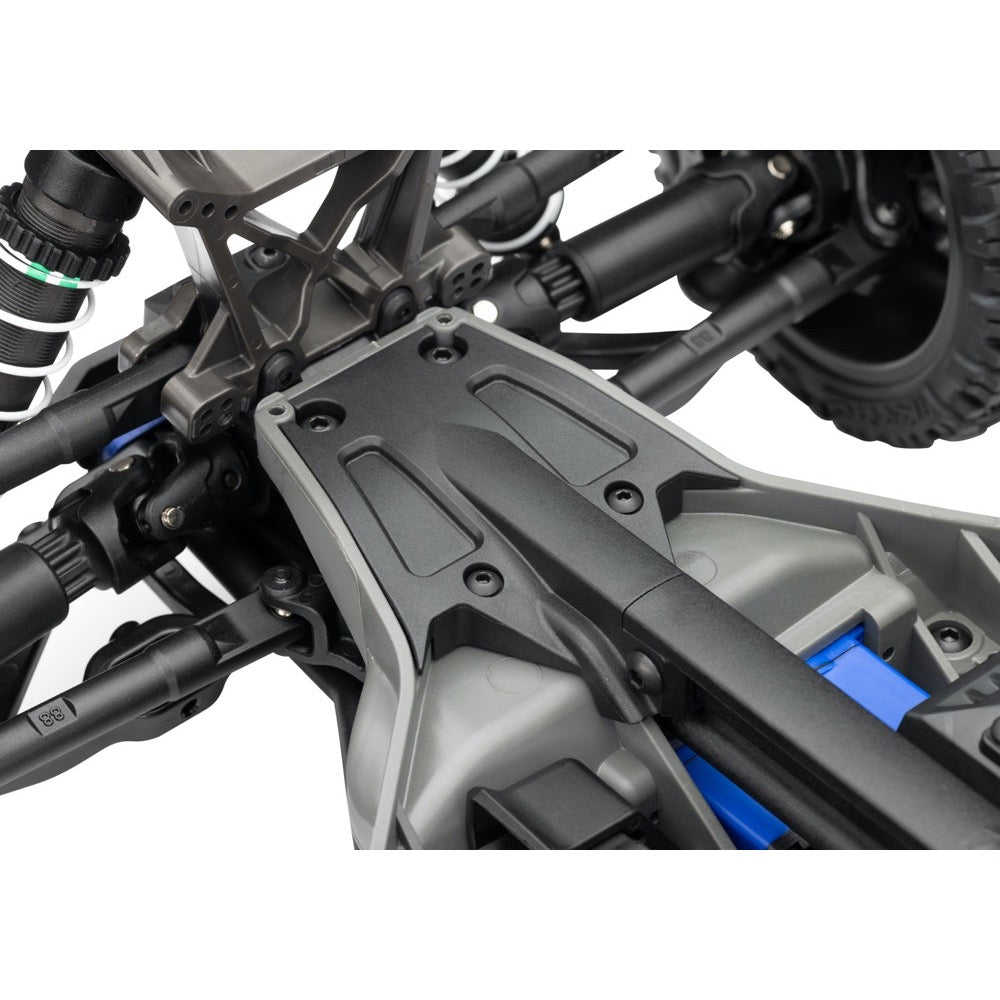

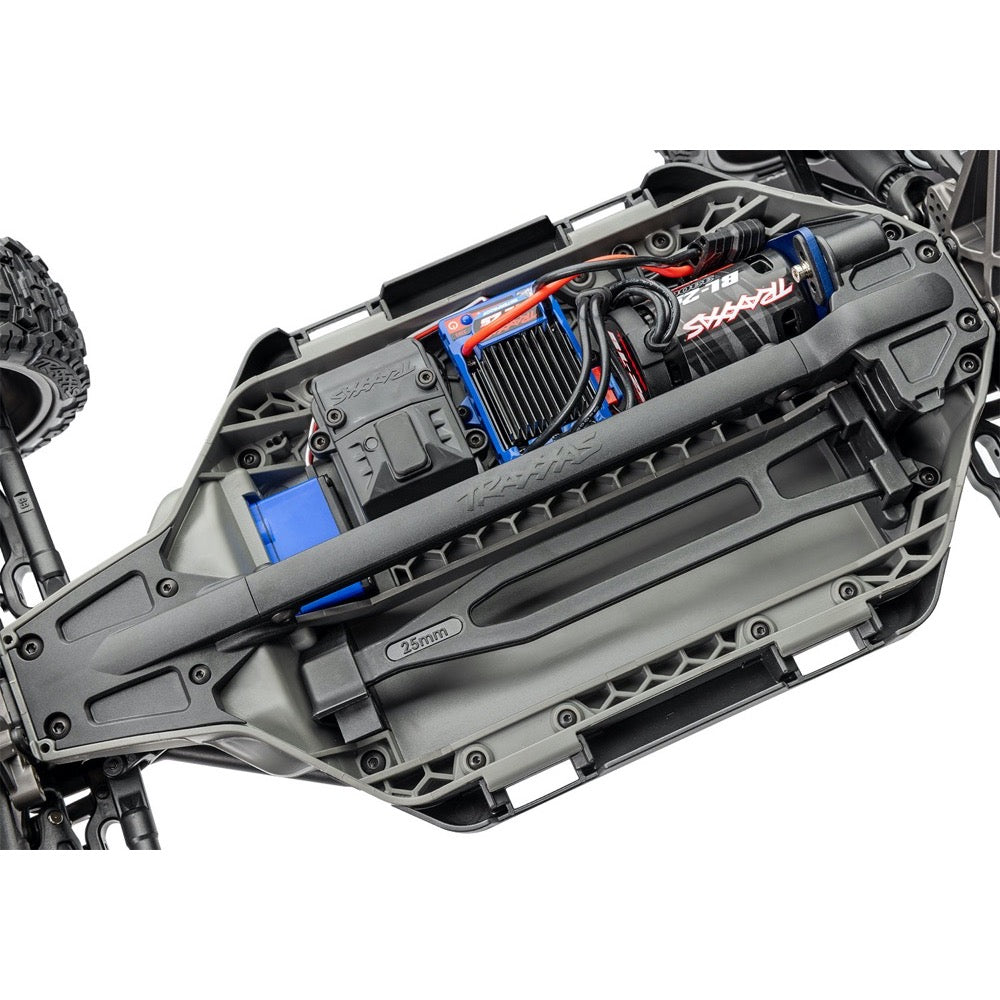

  • T-Bar chassis stiffener
  • Modular composite tub design
  • Secure battery hold-down latch
  • Low-CG design

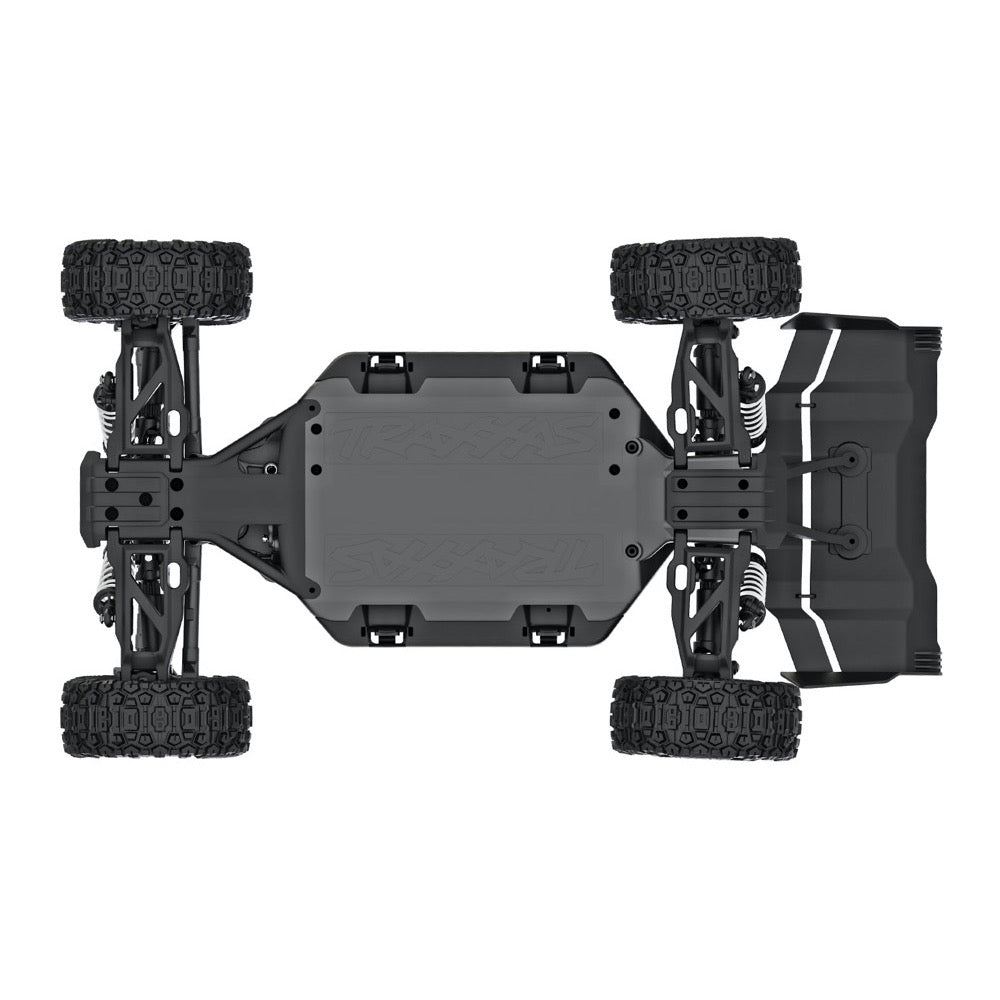

  • High-clearance skid plate

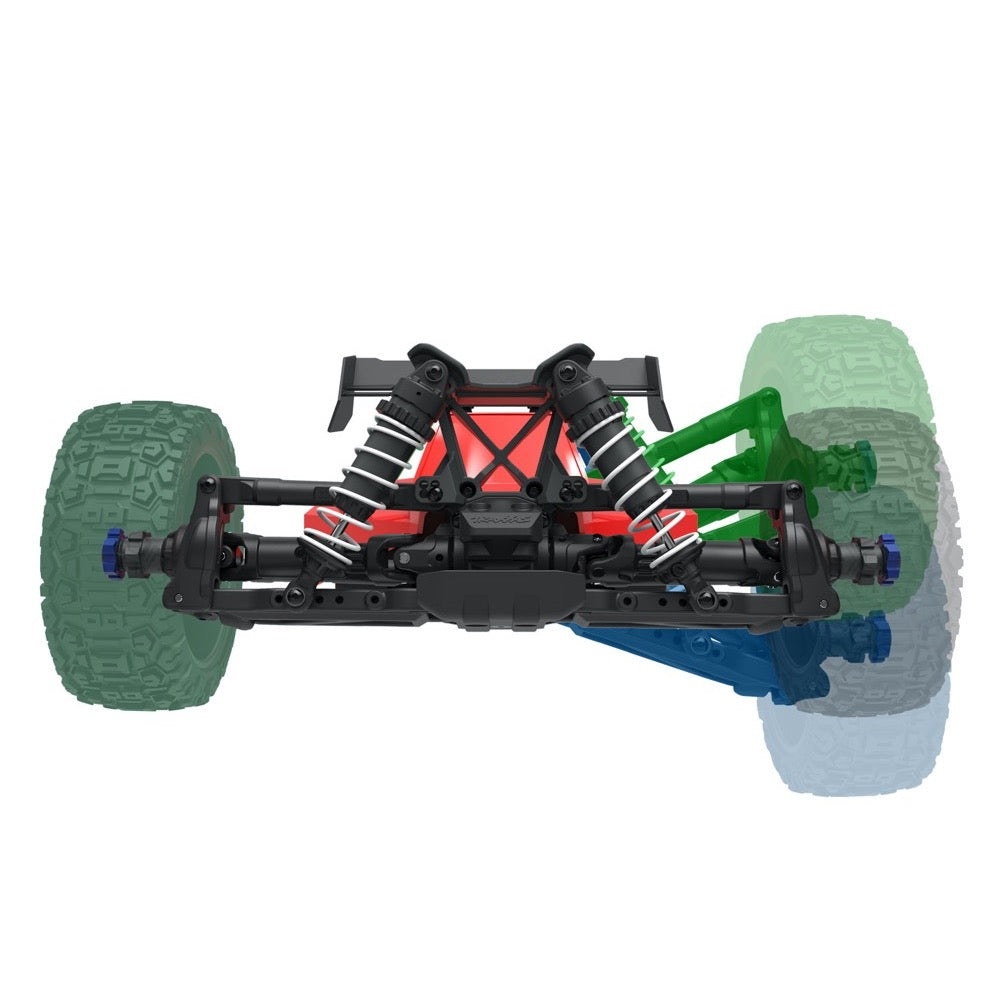

Suspension

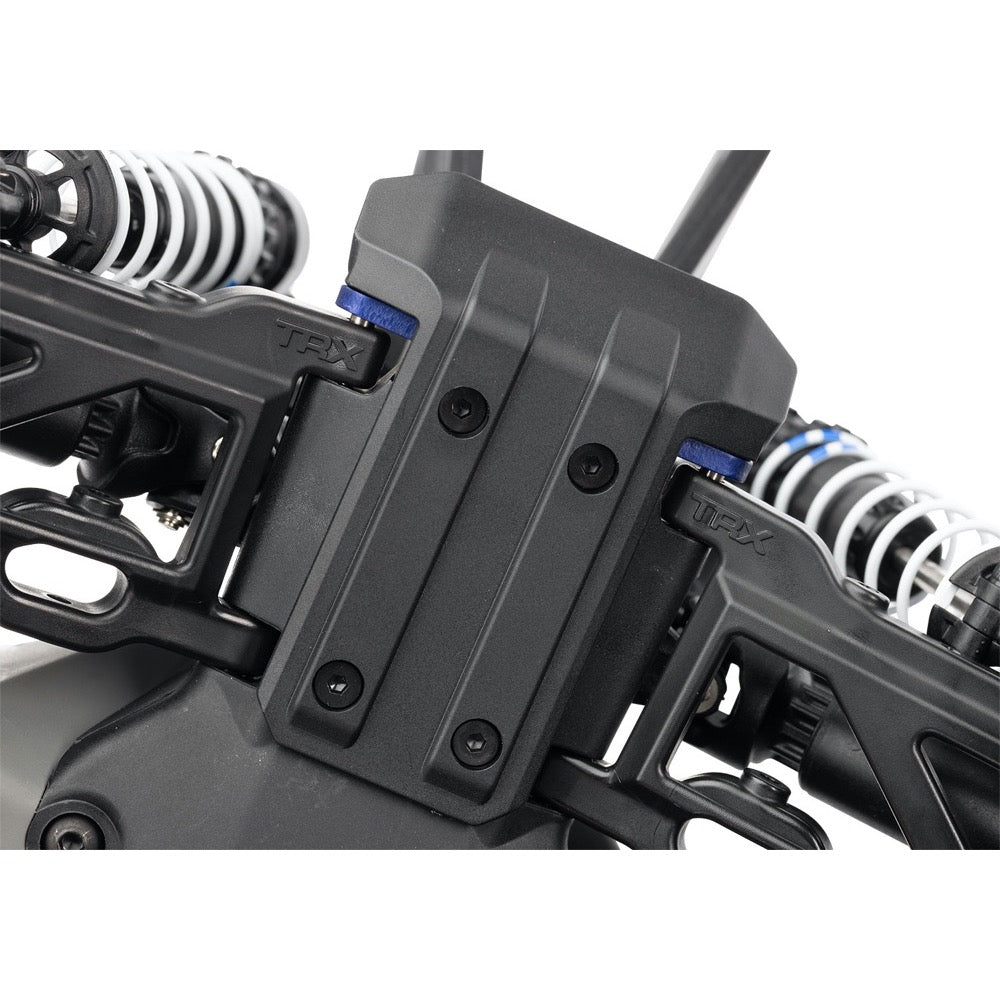

  • Heavy duty shock towers
  • Reinforced shock mounts
  • Double-shear camber link connections
  • Heavy duty suspension arms
  • Oil-filled GTR shocks
  • Threaded shock collars for precise ride height adjustment
  • Large oil capacity for consistent damping
  • White powder-coated springs

Driveline

  • Full-time shaft-driven 4-wheel drive

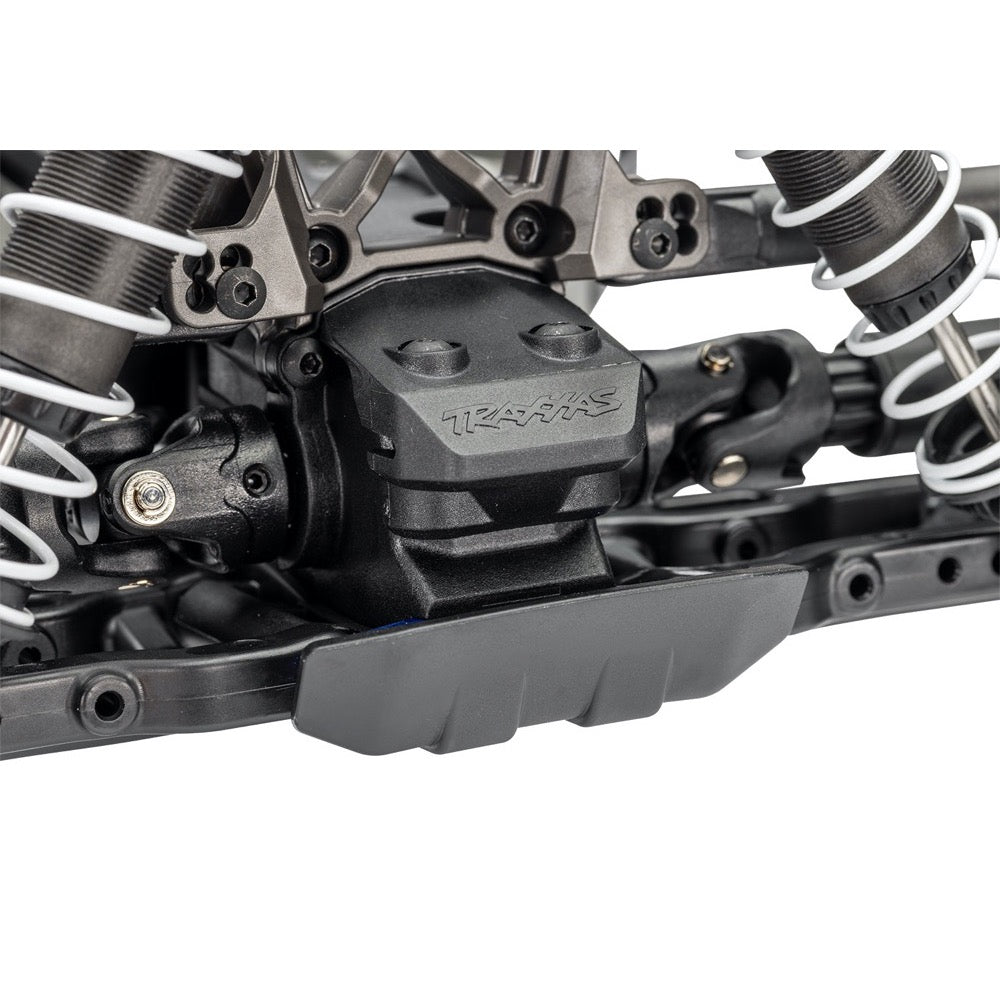

  • Sealed steel gear front and rear differentials
  • Heavy-duty slipper clutch
  • Large 32-pitch spur gear

Wheels and Tires

  • 3″ gray buggy wheels
  • Sledgehammer® tires

Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

Contents

  • Jato 4X4 with BL-2s ESC and 3300 Kv motor
  • Quick Start Guide
  • TQ 2.4 GHz radio system
  • High quality maintenance tools

Requires

Batteries

Jato 4X4 requires a 7.4-volt LiPo battery or 8.4-volt NiMH battery. See full list of batteries.

Charger

The Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance.

AA Alkaline Batteries

Four AA alkaline batteries for the transmitter.



  • Length : 20.4 inches (517 mm)
  • Front Track : 12 inches (305 mm)
  • Rear Track : 12 inches (305 mm)
  • Ground Clearance : 1.02 inches (26 mm) (center)
  • Weight (no battery) : 5.2 pounds (2.36 kg)
  • Height (overall) : 7 inches (179 mm)
  • Wheelbase : 12.6 inches (320 mm)
  • Shock Length (front) : 3.98 inches (101 mm) - XX-long
  • Shock Length (rear) : 3.98 inches (101 mm) - XX-long
  • Speed Control : BL-2s™ electronic speed control
  • Motor (electric) : BL-2s™ 3300 Kv sensorless brushless
  • Overall Drive Ratio : 12.80:1
  • Differential Type : Hardened steel bevel, sealed, limited slip
  • Gear Pitch : 32
  • Chassis Structure/Material : Composite tub
  • Drive System : Shaft-driven 4WD
  • Steering : Dual-bellcrank with integrated servo saver
  • Tires : Sledgehammer® with foam inserts
  • Tire Diameter : 4.5 inches (114 mm) (front and rear)
  • Wheels (front/rear) : 3″ Gray buggy wheels
  • Wheel Diameter : 3″ inches (78 mm)
  • Radio System : TQ™ 2.4 GHz (2-channel)
  • Servo : Waterproof digital 2075 servo (125 oz-in torque)
  • Skill Level : 1
  • Battery Compartment (L/W/H) : 165 mm x 50 mm x 23/26 mm
  • Required Batteries : 4 “AA” (transmitter), Vehicle
