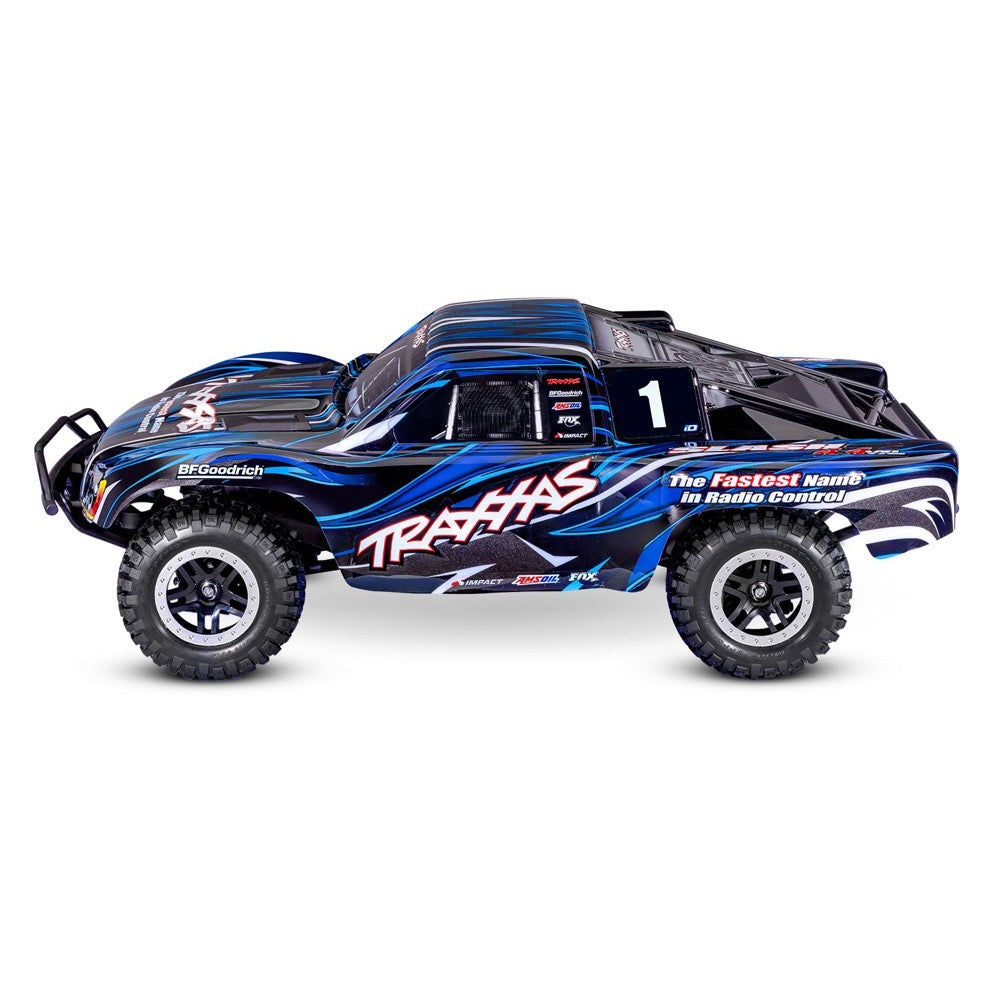

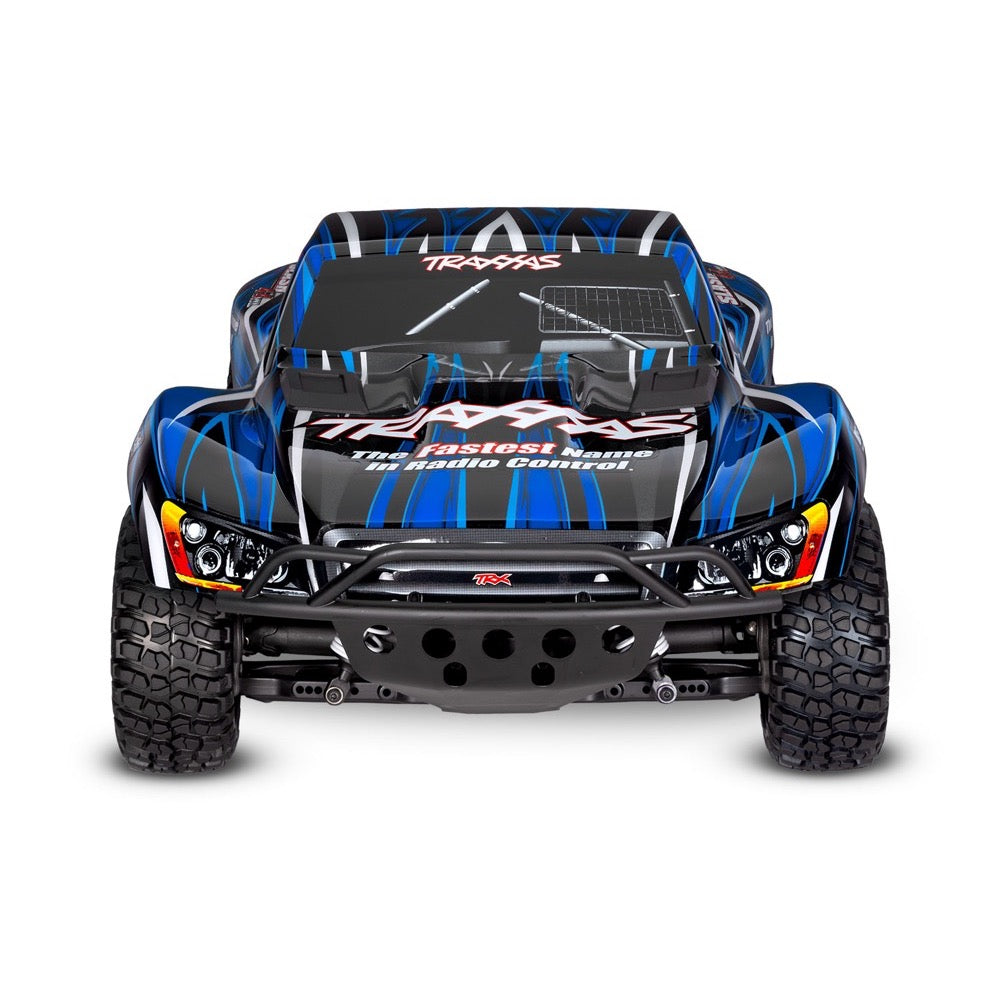

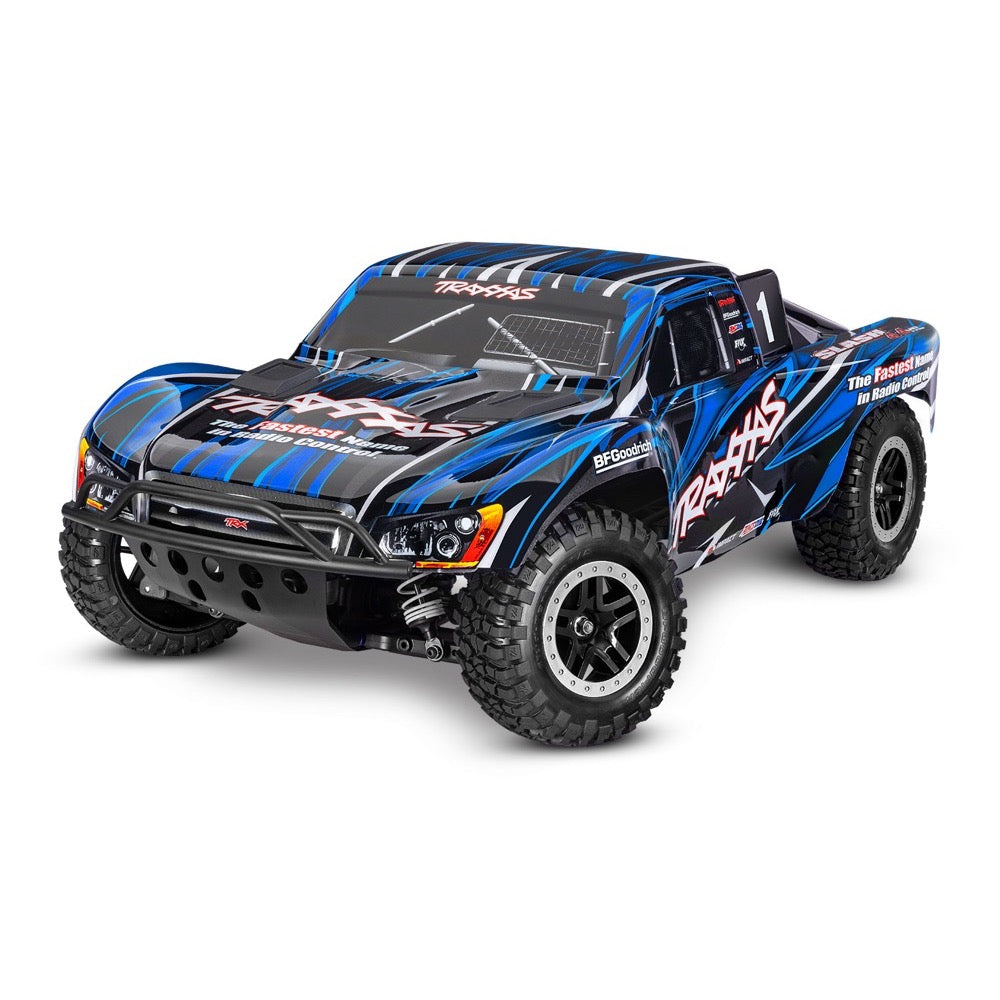

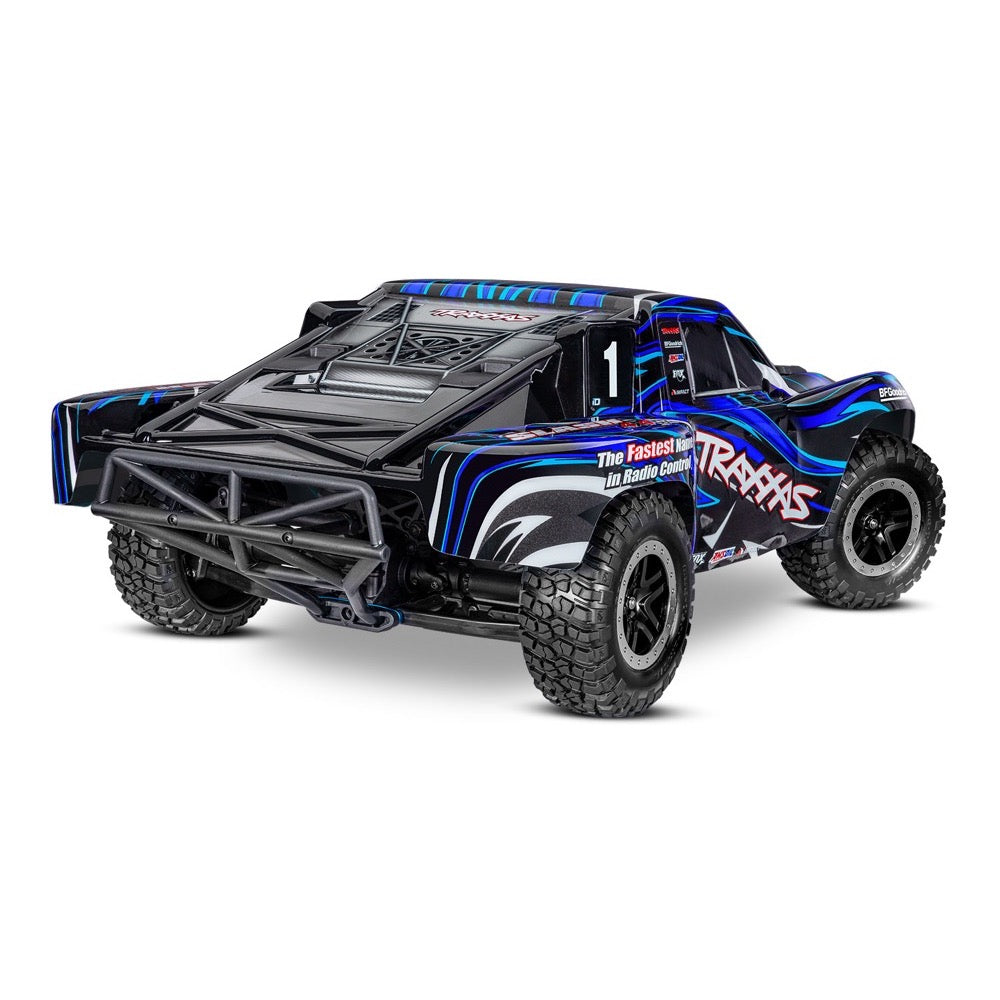

Traxxas Slash 4x4 VXL HD 1/10 Brushless RC Short Course Truck (Blue) 68386-4

Built Slash Tough

Traxxas Slash® set the standard for durability, performance, and fun by which all other short course trucks are measured. Now Slash 4X4 VXL includes a factory-installed Extreme Heavy Duty Upgrade Kit to take brutal punishment in stride. Innovations like TSM®, modular chassis design, and ultra-efficient shaft drive complement Slash’s track-tested precision. Slash 4X4’s extreme Velineon® brushless horsepower provides dirt-roosting torque and screaming 60+ mph speed with a TQi™ radio system to keep everything under precise control.

Extreme Heavy Duty Upgrade Kit

Slash's factory-installed Extreme Heavy Duty Upgrade Kit replaces key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. Maxx-duty® driveshafts and HD suspension arms, along with upgraded shock towers and outer suspension components, make this is the strongest driveline ever offered in a Slash.

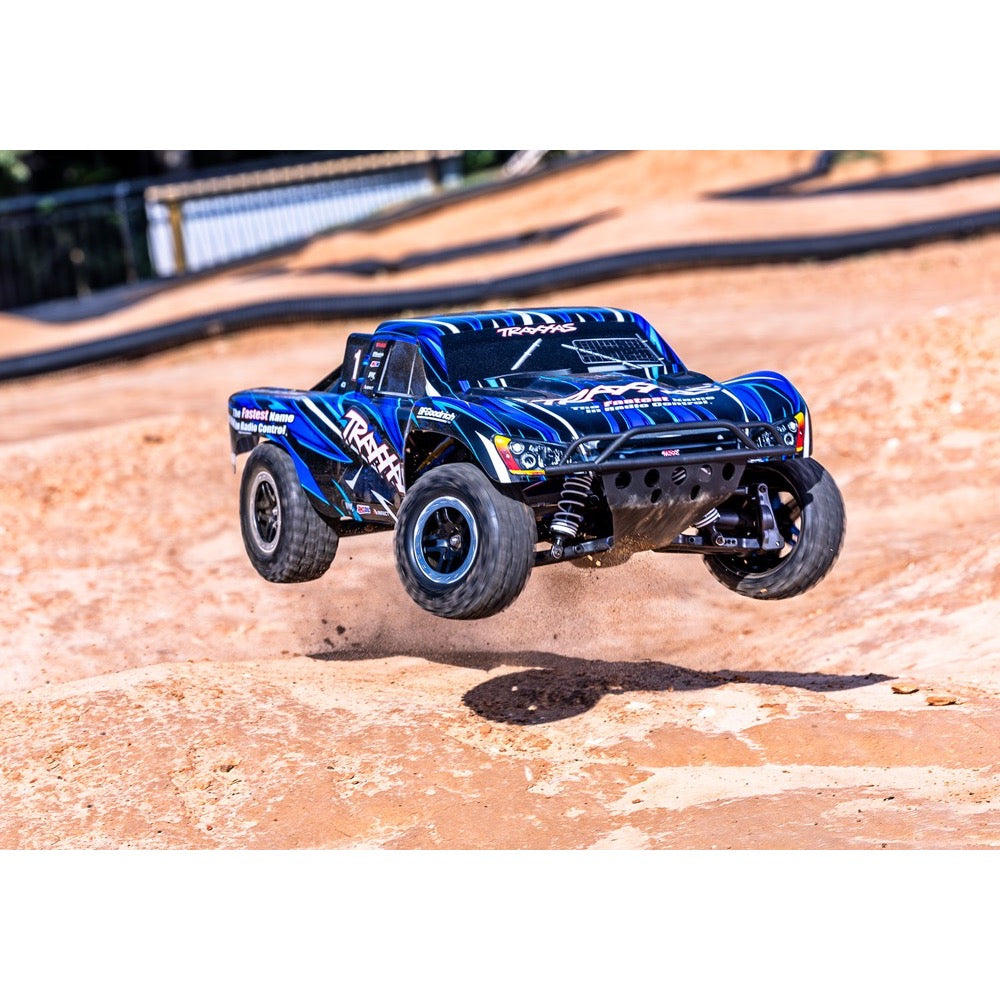

Track-Ready Performance

From races at the local track to backyard bash sessions, Slash 4X4 is Ready-To-Race® right out of the box. Slash’s track-bred chassis features an integrated transponder mount and extended battery tray for optimum weight positioning. Slash gives you the winning edge with a fully adjustable steel-link suspension and tunable oil-filled differentials to put the power down smoothly.

Clipless Body Mounting

Slash 4X4’s tough clipless body holds firm no matter how rough the action gets. Heavy-duty latches grip the body tightly, but release in just seconds to access the chassis. Slash’s hidden latching system replaces time-consuming and inconvenient body clips with large, reinforced panels to resist pull-through damage.

Features

Clipless Short Course Body

• Tough front and rear tube-style bumpers
• Body reinforcements to prevent pull-through damage
• Holds tight for intense action
• Quick and easy removal
• Smooth appearance with no body posts or clips

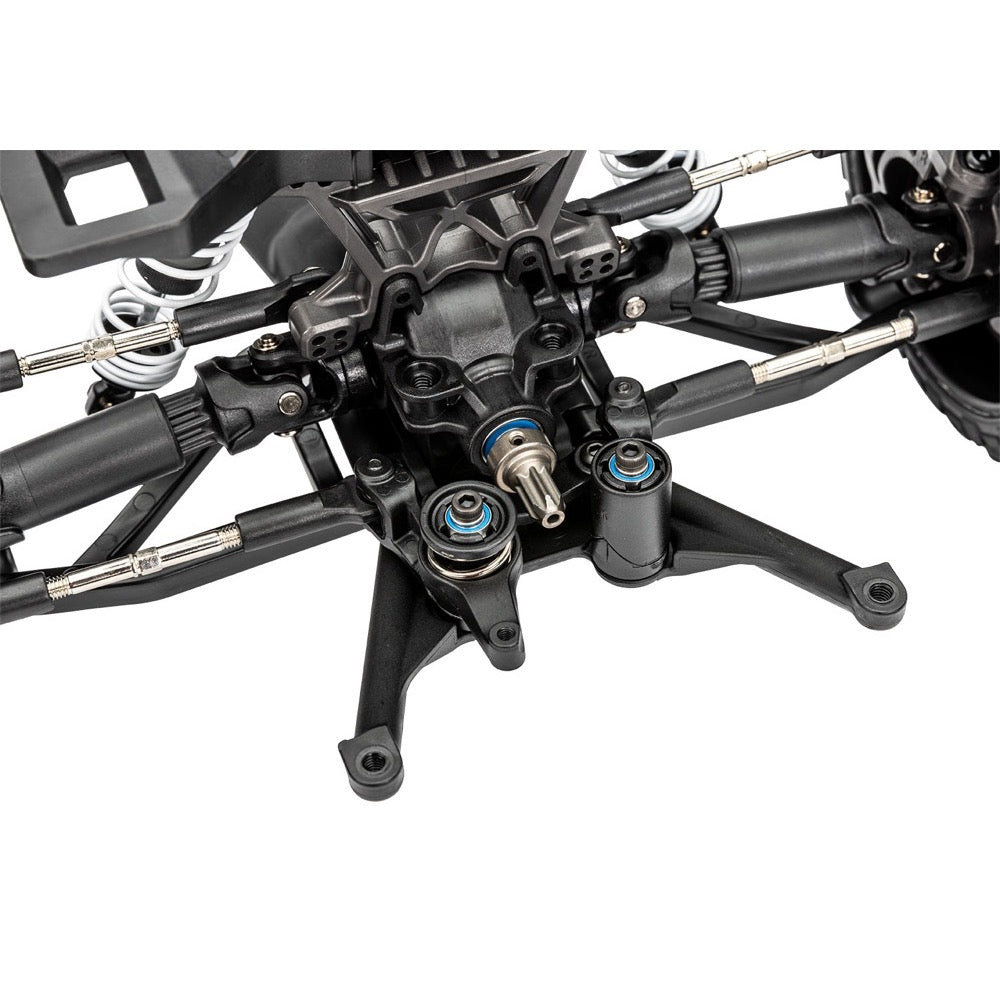

Extreme Heavy Duty Upgrade Kit Installed

• Strengthened C-hubs, axle carriers, steering blocks, and shock towers

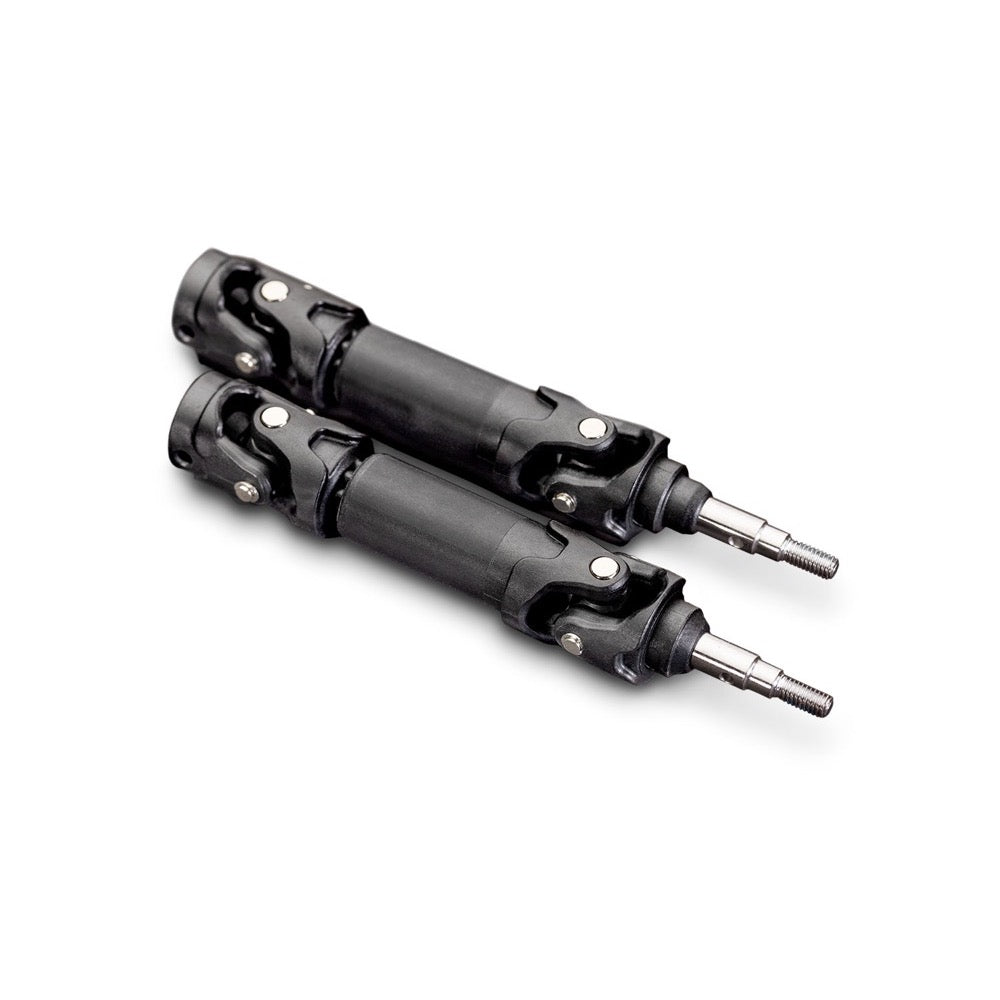

• Maxx-duty® driveshafts
• Oversize diameter
• 6 mm axles
• Steel wheel hexes

TQi™ 2.4 GHz High Output Transmitter

• TQi 2-channel transmitter
• All-day comfort with precise long-range control
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• 5-channel micro receiver (6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug

Velineon® VXL-3s™ Waterproof Electronic Speed Control

• Three Programmable Drive Profiles
• Sport Mode - Forward / Brake / Reverse
• Race Mode - Forward / Brake
• Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
• Heat sink accepts accessory cooling fan (3340)
• Traxxas EZ-Set® one-button setup
• Built-in two-stage low-voltage detection for LiPo batteries
• NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
• LiPo battery packs: 2-3 cells (7.4-11.1 volts)

Velineon® 3500 Kv Brushless Motor

• Ultra high-temperature sintered Neodymium magnets
• Optimized for power and efficiency in 1/10th scale vehicles
• Low-maintenance design
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• 3500 Kv
• Efficient ball bearings
• Brilliant blue-anodized finish

Traxxas Stability Management® (TSM)

• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

Steering

• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver

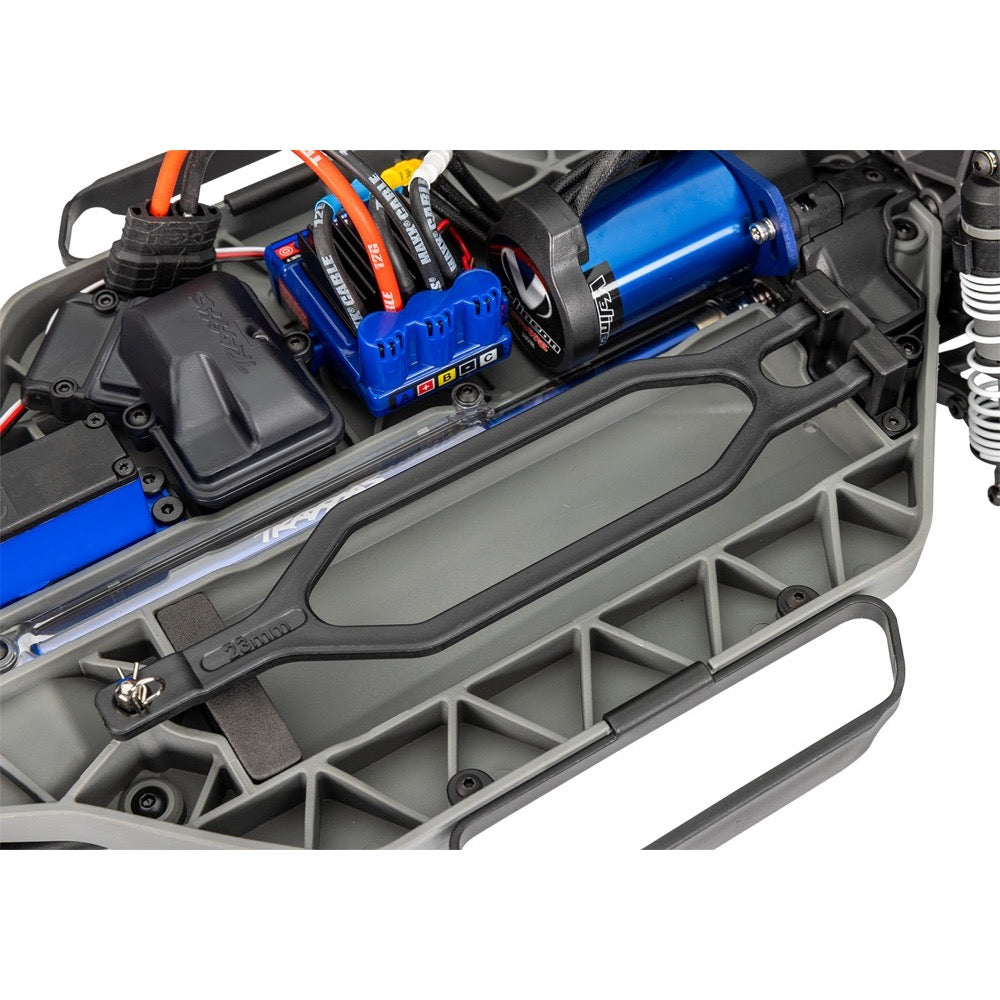

Chassis

• Extended modular composite tub design
• Secure battery hold-down latch

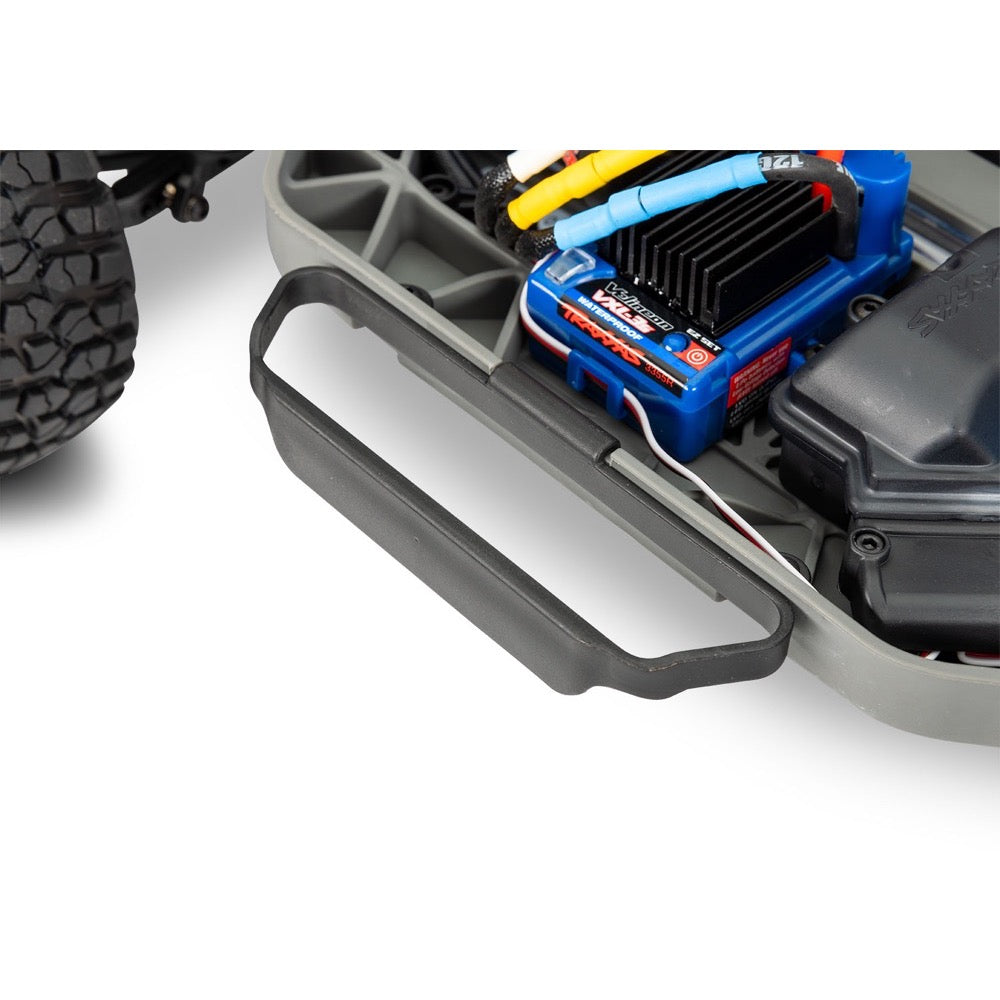

• Side nerf bars for impact resistance

Suspension

• Steel adjustable toe and camber links
• Heavy duty suspension arms
• Oil-filled Ultra Shocks
• White powder-coated progressive springs

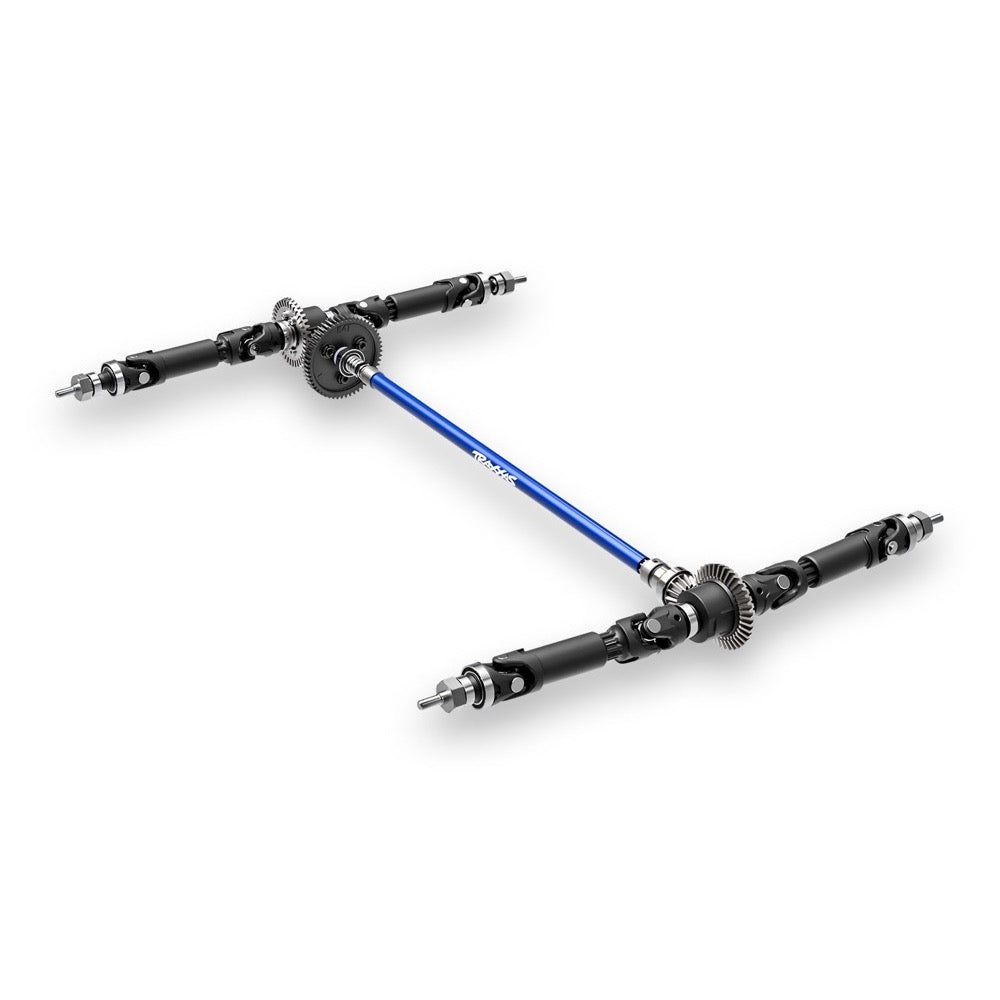

Drivetrain

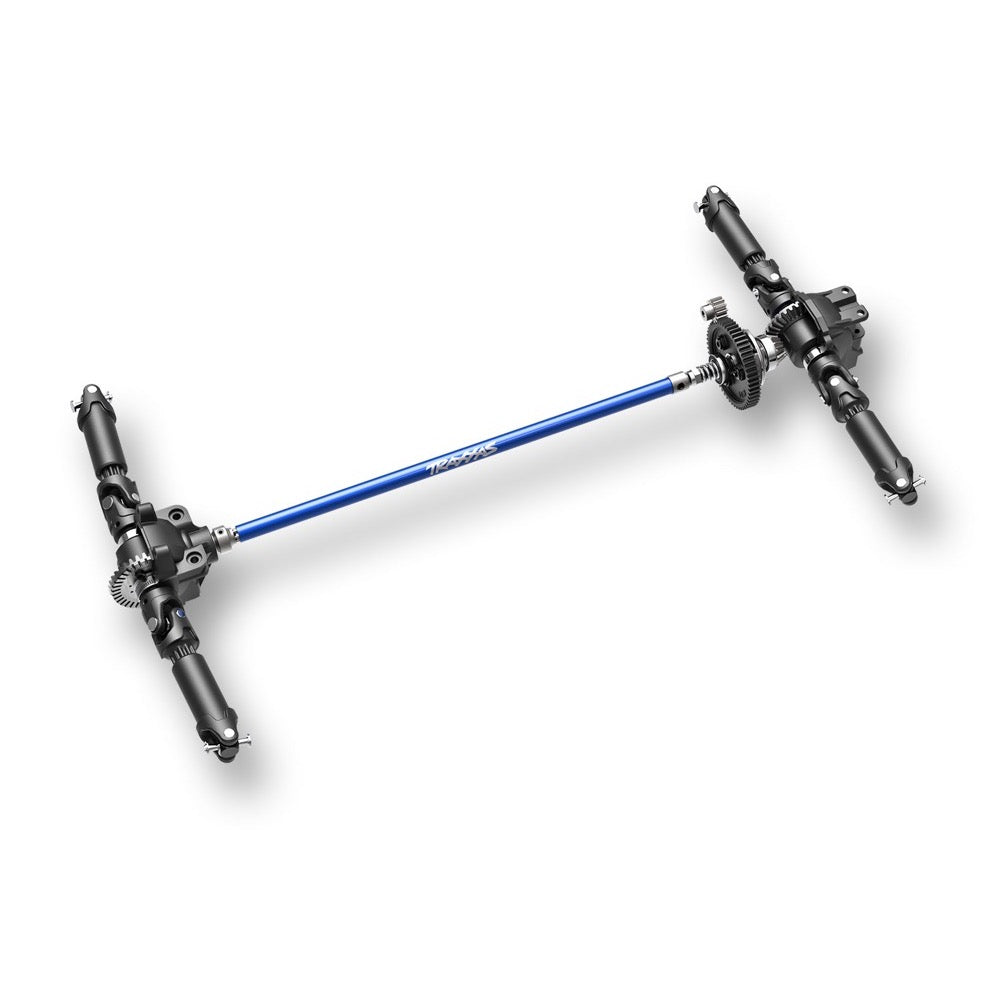

• Full-time shaft-driven 4-wheel drive
• Sealed steel gear front and rear differentials
• Large 32-pitch steel spur gear

Wheels and Tires

• Black Split-Spoke SCT wheels
• 2″ outer diameter, 3″ inner diameter
• Replica BFGoodrich® Mud Terrain T/A® Tires

Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

Contents

• Slash 4X4 with VXL-3s ESC and 3500 Kv brushless motor
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools

Requires

Batteries

Slash 4X4 requires a single NiMH or LiPo battery. See full list of batteries.

Charger

Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance.

AA Alkaline Batteries

Four AA alkaline batteries for the transmitter.

• Length : 23.36 inches (568 mm)
• Front Track : 11.65 inches (296 mm)
• Rear Track : 11.65 inches (296 mm)
• Center Ground Clearance : 2.83 inches (72 mm)
• Weight (no battery) : 5.82 pounds (2.41 kg)
• Height (overall) : 7.60 inches (193 mm)
• Wheelbase : 12.75 inches (324 mm)
• Shock Length (front) : 3.45 inches (88 mm) - Long
• Shock Length (rear) : 3.98 inches (101 mm) - XX-long
• Tires : BFGoodrich® Mud Terrain T/A®
• Tire Diameter : 4.3″ x 1.7″ (109 mm x 43 mm)
• Wheels (front/rear) : Black Split-Spoke SCT wheels
• Wheel Diameter : 2.2 inches (56 mm) (outer)
• 3.0 inches (76 mm) (inner)
• Speed Control : Velineon® VXL-3s™
• Motor (electric) : Velineon® 3500 Kv sensorless brushless
• Overall Drive Ratio : 11.82:1
• Differential Type : Hardened steel bevel, sealed, limited slip
• Gear Pitch : 32
• Chassis Structure/Material : Modular composite tub
• Drive System : Shaft-driven 4WD
• Steering : Dual bellcrank with integrated servo saver
• Radio System : TQi™ 2.4 GHz (2-channel)
• Servo : Waterproof digital 2075 servo (125 oz-in torque)
• Skill Level : 1
• Battery Compartment (L/W/H) : 165 mm x 50 mm x 23/26 mm
• Required Batteries : 4 “AA” (transmitter), Vehicle
